Center Mounted Brake Lamp: Service and Repair

Removing And Installing Additional Brake Light

NOTE:
- The upper shell half must be removed from the rear spoiler before the additional brake light can be removed.
- Remove ignition key.

Removing Additional Brake Light

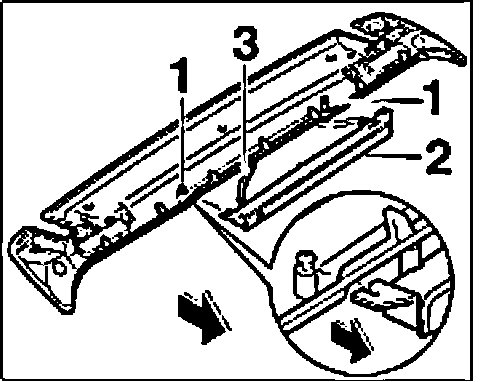

1. Undo fastening screws "1".
2. Pull the additional brake light "2" out of the lower shell of the rear spoiler "arrow".
3. Pull washer fluid hose line "3" off the spray nozzle.

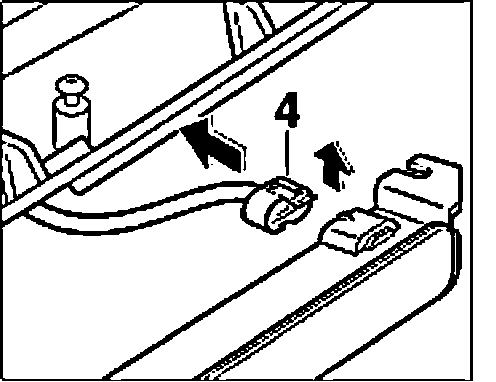

4. Release and remove plug "4".

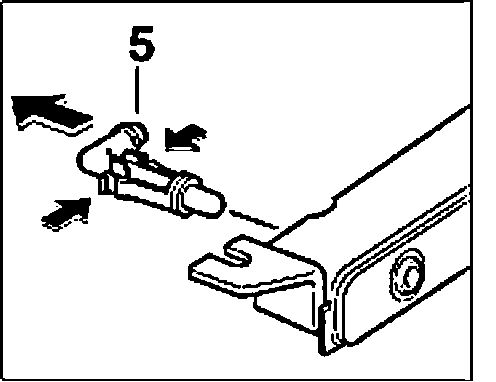

5. Press together the holder for the spray nozzle "5", e.g. using a screwdriver, and remove the spray nozzle "5".

Installing Additional Brake Light

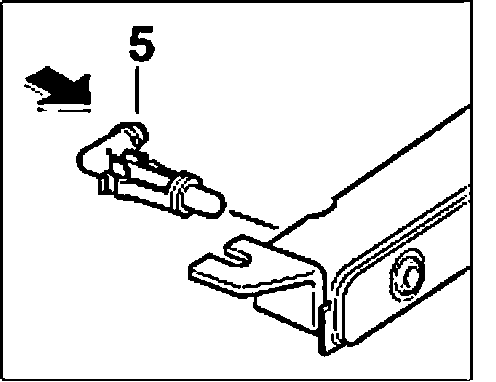

1. Push spray nozzle "5" into additional brake light until it engages.

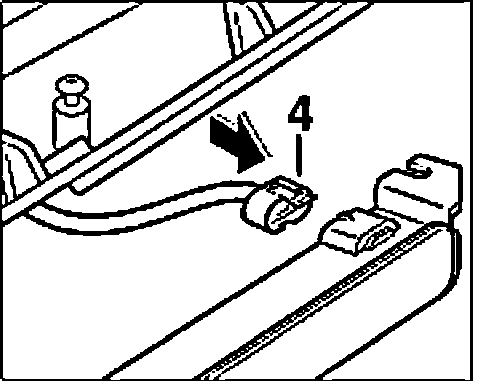

2. Insert plug "4" until it engages.

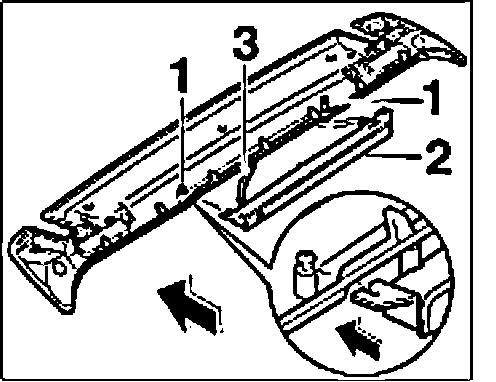

3. Insert additional brake lights "2" into the lower shell of the rear spoiler.
4. Push washer fluid hose line "3" onto the spray nozzle.
5. Tighten fastening screws "1".
6. Install upper shell half of rear spoiler.
