Door Lamp: Service and Repair

Removing And Installing Door Warning Light







Removing Door Warning Light
Switch the ignition off and remove ignition key.

1. Use a plastic spatula or screwdriver to pry out the light.

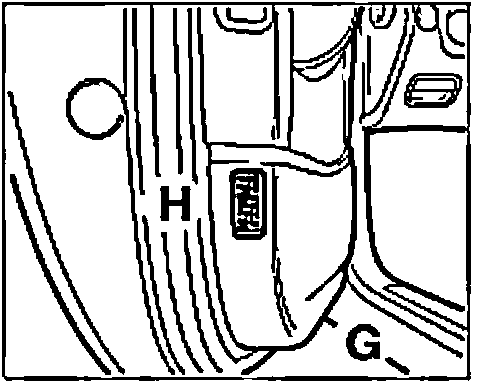

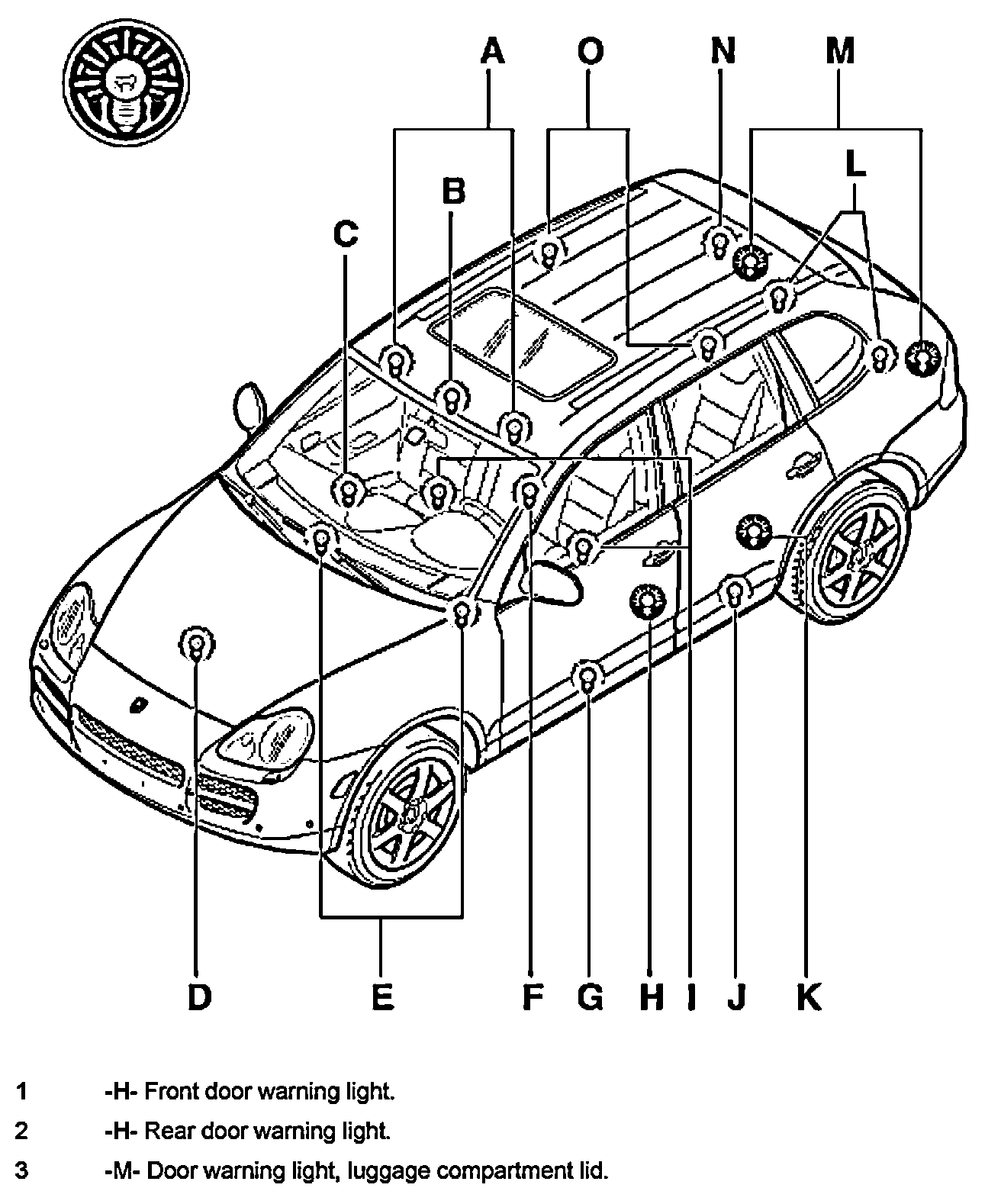

"H" Front door warning light.

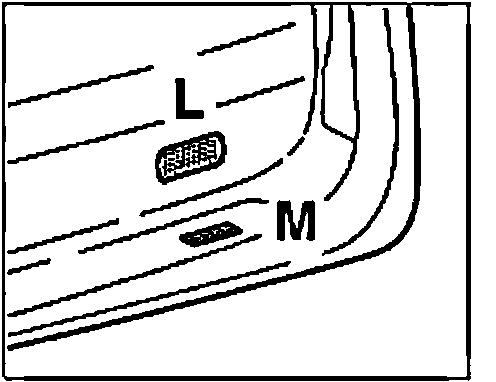

"M" Door warning light, luggage compartment lid.

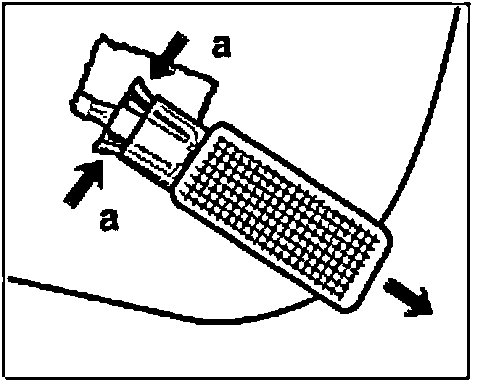

2. Remove light, press connector together "a" and remove.

Installing Door Warning Light

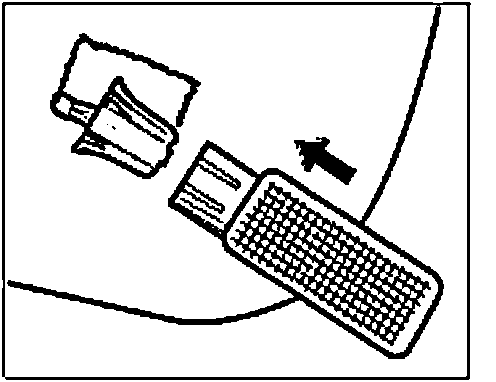

1. Connect the plug, pressing on until the plug audibly clicks into place.
2. Insert the light in the opening and press in place. Ensure the light is fitted securely.

Removing Bulb For Door Warning Light
Remove the door warning light.

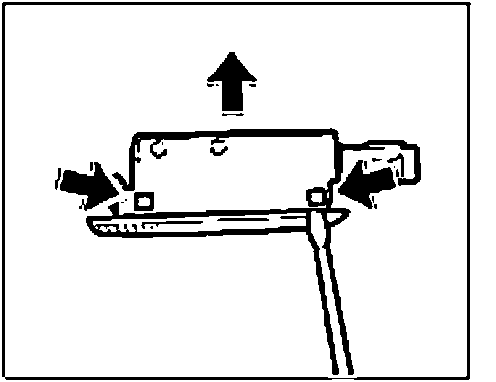

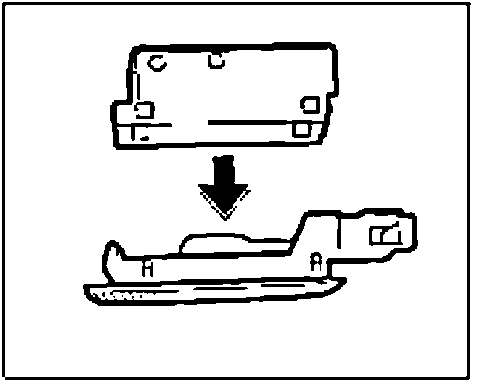

1. Use a screwdriver carefully to lever down the 4 locking elements on the sheet metal cover.

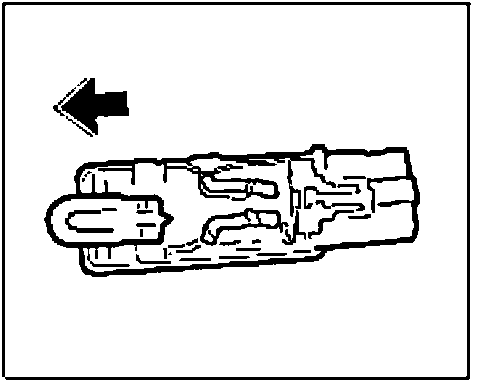

2. Pull the bulb from the holder.

Installing Bulb For Door Warning Light

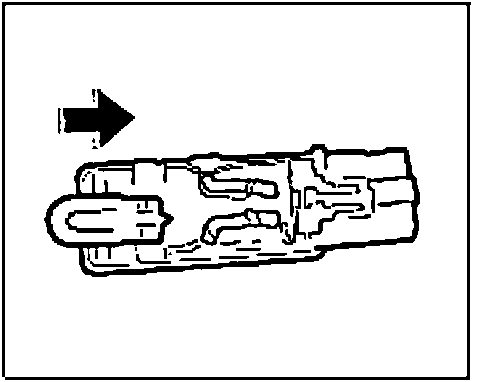

1. Insert bulb in the holder.







2. Position the sheet metal cover and press in place. Ensure that all 4 locking elements engage properly and that the sheet metal cover is not deformed.
