Fog/Driving Lamp Bulb: Service and Repair

Removing And Installing Bulb For Fog Light

WARNING: Risk of short circuit: Before removing the bulb, take out the ignition key and switch the light switch off.

Removing Bulb For Fog Light

NOTE:
- Reassemble the wheel housing liner.
- For turbo engines, the respective air grill must be unclipped first. To do this, take hold of the the air grill and unclip both upper tabs from the air grill.

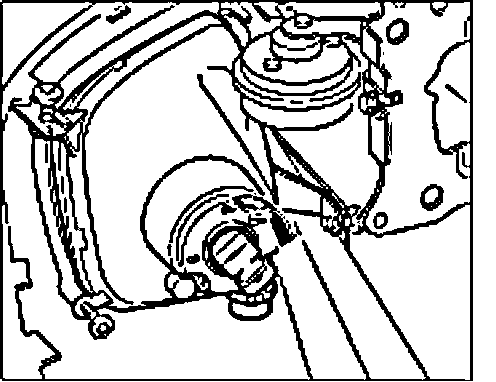

1. Disconnect the electrical plugs.

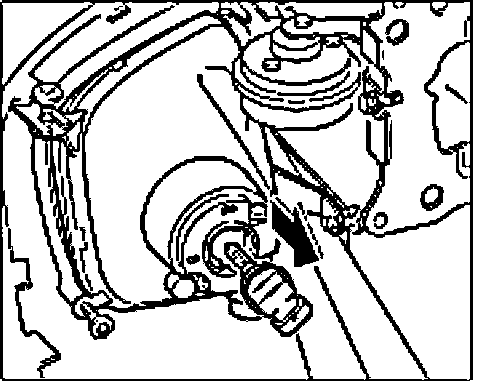

2. Turn the bulb in "direction of arrow", bayonet lock.







3. Remove the bulb.

Installing Bulb For Fog Light







1. Install the new or tested bulb, pay attention to installation position.

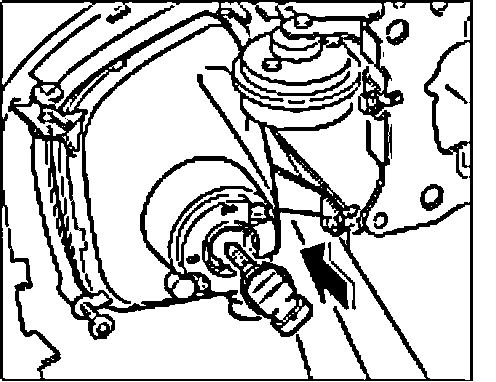

2. Turn the bulb in direction of arrow, bayonet lock.
3. Connect the plug, pressing on until the plug audibly clicks into place.

Reassemble the wheel housing liner.
For turbo engines, the respective air grill must be clipped in again. Position the air grill and clip in both upper tabs on the front spoiler.
