Removing and Installing Rear Angle Sensor For Headlight Beam Adjustment

Removing And Installing Rear Angle Sensor For Headlight Beam Adjustment

NOTE:
- The angle sensors are installed together with the Bi-XENON headlights and the steel-spring running gear.
- An angle sensor is located at the front and rear left in running gears with steel springs.
- The level sensor is screwed to the suspension subframe and upper control arm.

Removing Rear Angle Sensor For Headlight Beam Adjustment
Turn steering until access to the level sensor is achieved.

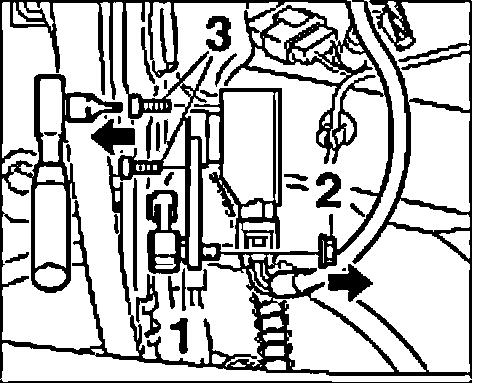

1. Counter with an open-ended wrench on the two flats "1" and unscrew the fastening nuts "2".

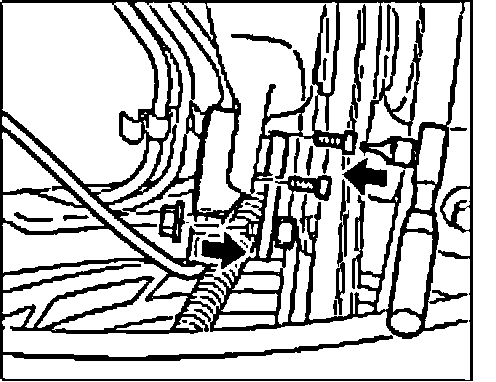

2. Unscrew both fastening screws "3".

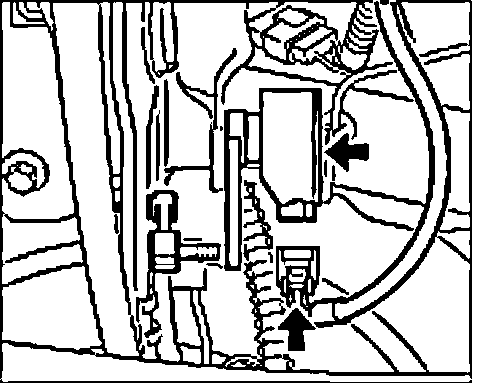

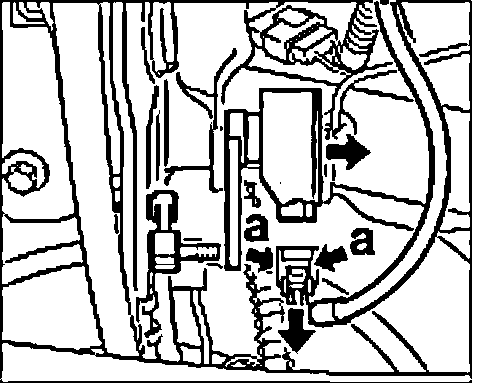

3. Press the electrical plug together "a" and disconnect.

Installing Rear Angle Sensor For Headlight Beam Adjustment







1. Press the electrical plug onto the angle sensor until it clicks into place.







2. Engage angle sensor lever and position angle sensor.
3. Tighten fastening screws "3". Refer to 'Tightening torques'
4. Position the fastening nut "2", hold with an open-ended wrench on the two flats "1" and tighten the nut. Refer to 'Tightening torques'

If a new angle sensor has been installed for headlight beam adjustment (HBA), the headlights must be recalibrated with the Porsche System Tester.

Calibrating angle sensor for headlight beam adjustment
With the vehicle standing on level ground:
1. Connect the Porsche System Tester to the vehicle and start the System Tester. Switch on ignition.
2. Select "Special function" using the cursor keys.
3. Select "- HBA left or right -" using the cursor keys.

Under the menu item "Calibration", the control unit for the gas-discharge lamp is adapted to current positional conditions in the vehicle. The existing vehicle position is stored as zero position during calibration.

Following calibration, the headlight setting must be checked and corrected if necessary.

4. Read out fault memory. If fault is present, proceed in accordance with Headlight beam adjustment diagnosis.
5. Check headlight setting.
