Removing and Installing Auxiliary High Beam Halogen Bulbs

Removing Auxiliary High Beam Halogen Bulbs

WARNING: Risk of short circuit: Before removing the headlights, take out the ignition key and switch off the audio system.

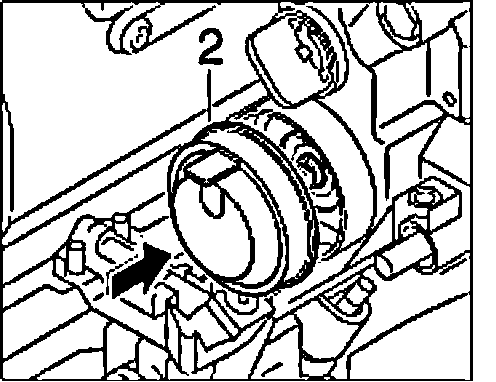

1. Remove the cover "2".

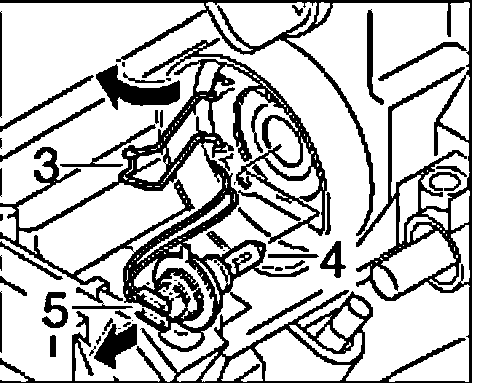

2. Disengage the safety bracket "3" and remove the light with the connector.
3. Disconnect the connector "5" from the light "4".

Installing Auxiliary High Beam Halogen Bulbs

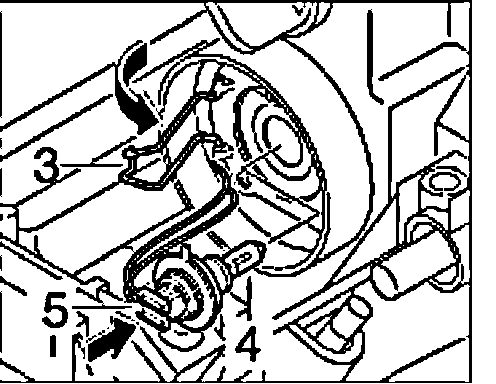

1. Plug the connector "5" onto the halogen bulbs "4".







2. Insert the halogen bulbs "4" in the light housing and engage the safety bracket "3".







3. Mount the cover "2" ensuring it is firmly fixed. Do not use and sliding agents/lubricants.
4. Install the main headlight and carry out a function test.
