Removing and Installing Dipped Beam Halogen Bulbs

Removing And Installing Halogen Bulbs

WARNING: Risk of short circuit: Before removing the headlights, take out the ignition key and switch off the audio system.

Removing Dipped Beam Halogen Bulbs

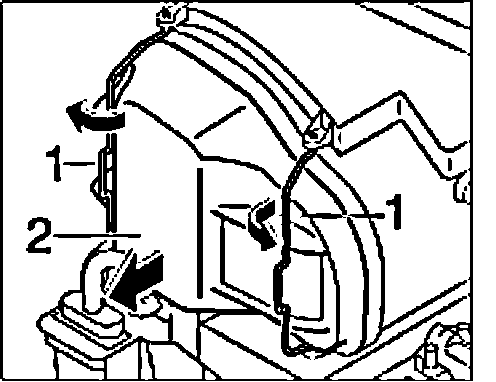

1. Open the two locking bars "1" on the headlight and remove the cover "2".

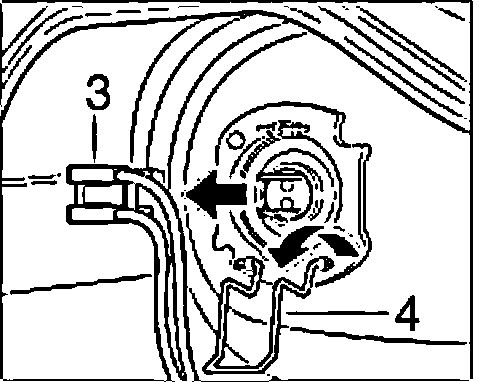

2. Disconnect the connector "3" and disengage the retaining bar "4".

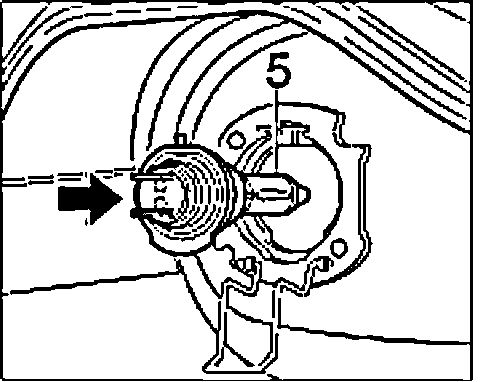

3. Remove the halogen bulb "5" from the housing.

Installing Dipped Beam Halogen Bulbs







1. Insert the halogen bulbs "5" in the light housing. Pay attention to the installation position.

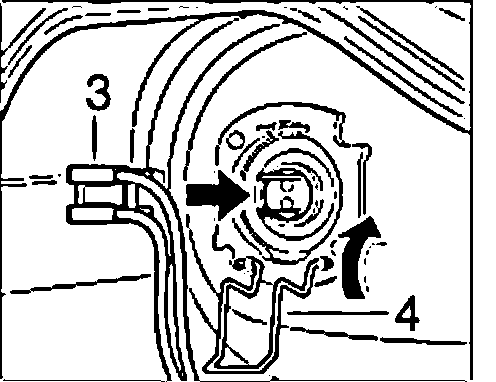

2. Engage the safety bracket "4" and attach the connector "3".

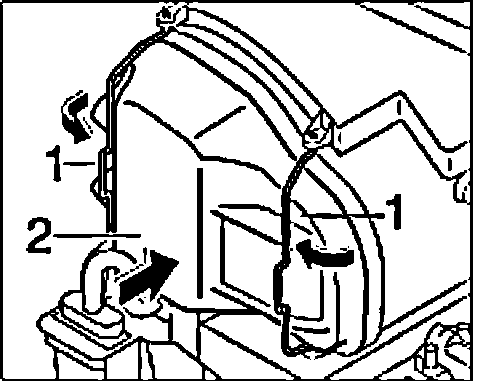

3. Place the cover "2" in position, press on and close the locking bar "1".
4. Install the main headlight and carry out a function test.
