Removing and Installing High Beam Halogen Bulbs

Removing High Beam Halogen Bulbs

WARNING: Risk of short circuit: Before removing the headlights, take out the ignition key and switch off the audio system.

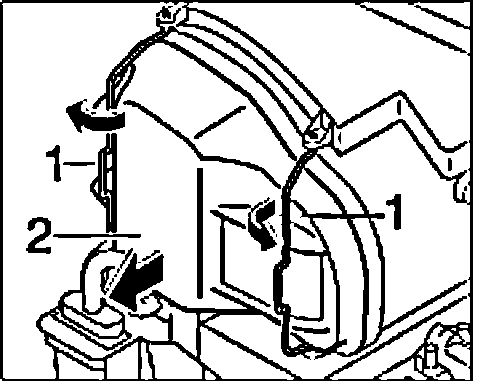

1. Open the two locking bars "1" on the headlight and remove the cover "2".







2. Disengage the safety bracket.

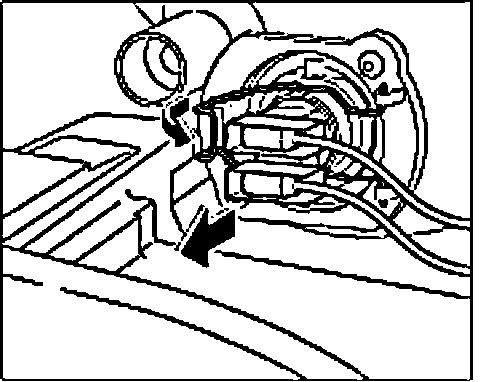

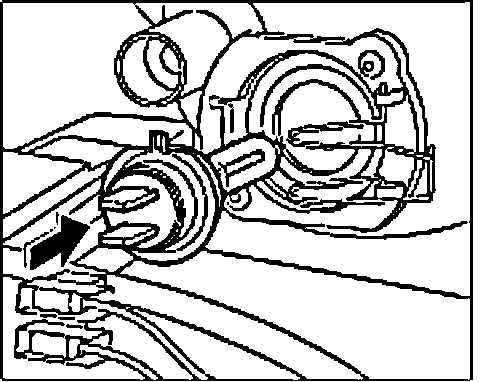

3. Unplug the connector and remove the halogen bulbs from the housing.

Installing High Beam Halogen Bulbs

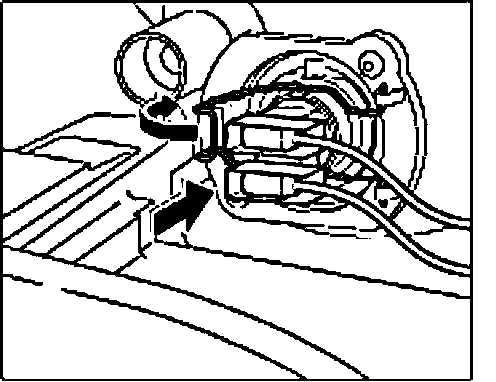

1. Plug in the connector and insert halogen bulbs in the light housing.







2. Engage the safety bracket.

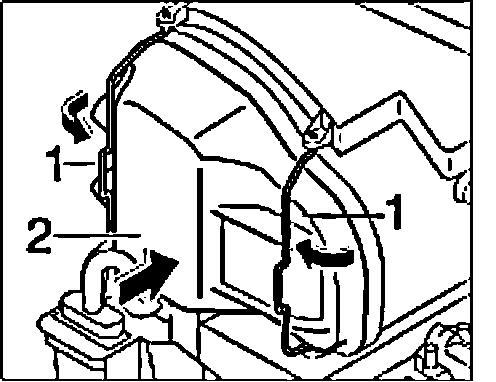

3. Place the cover "2" in position, press on and close the locking bar "1".
4. Install the main headlight and carry out a function test.
