Parking Light Bulb: Service and Repair

Removing And Installing Bulb For Parking Light

WARNING: Risk of short circuit: Before removing the headlights, take out the ignition key and switch off the audio system.

Removing Bulb For Parking Light
1. Remove main headlight.

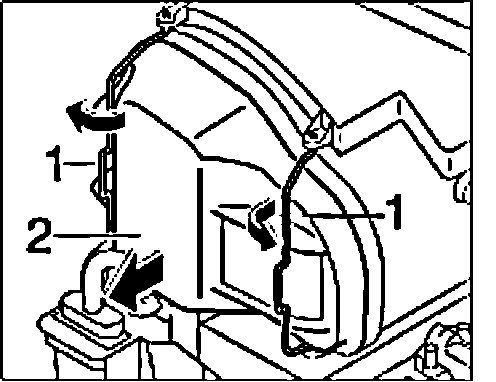

2. Open the two locking bars "1" and remove the cover "2".

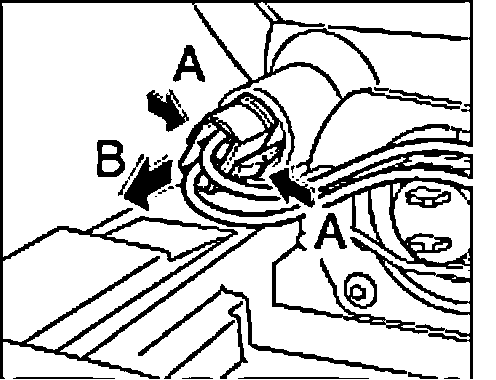

3. Press the bulb holder "A" together and out of the lamp bracket "B".

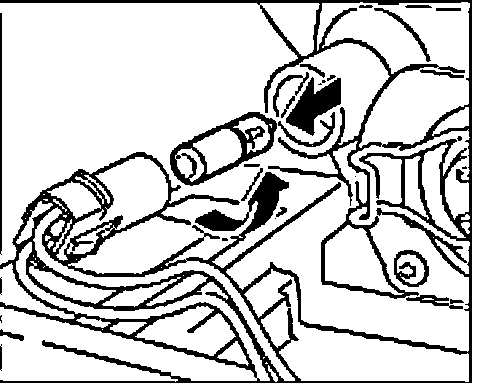

4. Press the bulb in the holder, turn "arrow" and remove from the holder.

Installing Bulb For Parking Light

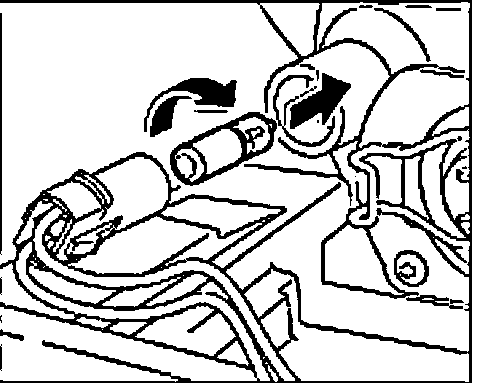

1. Insert a bulb in the holder and turn "arrow".

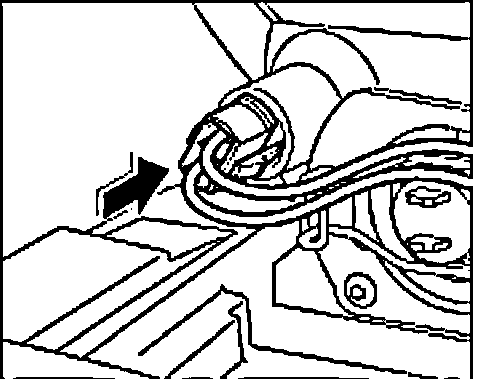

2. Insert the bulb holder in the lamp bracket until it engages in place. Check that components are fitted properly.

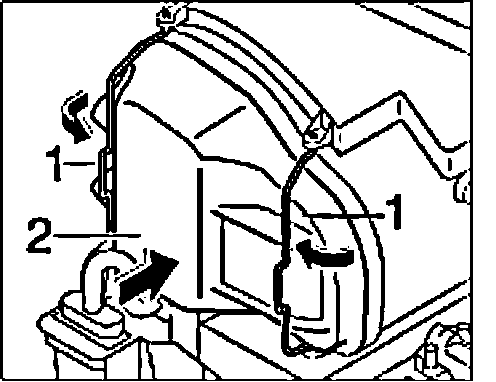

3. Replace the cover cap "2" and close the two locking bars "1".
4. Install the main headlight and carry out a function test.
