Glove Box Lamp Switch: Service and Repair

Removing And Installing Contact Switch For Glove Compartment Light







Removing Contact Switch For Glove Compartment Light

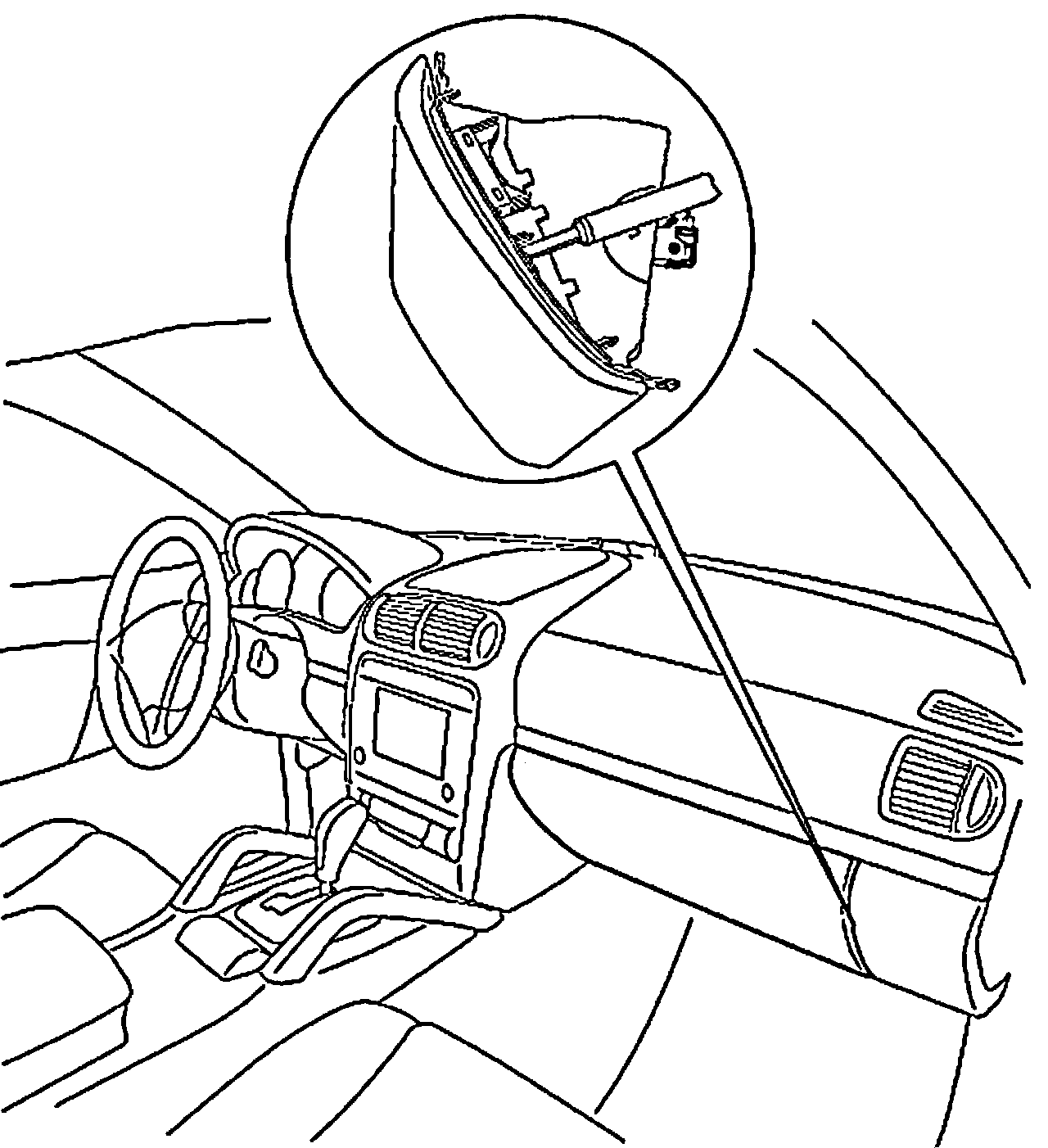

1. Remove glove compartment.

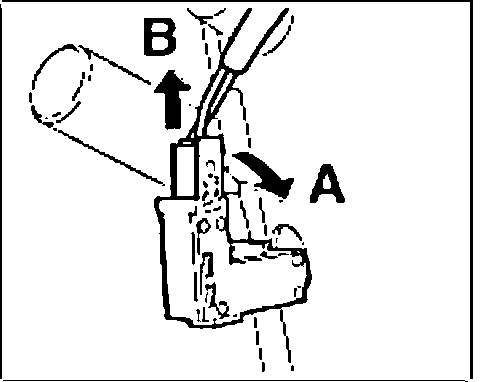

2. Release plug "arrow A" and pull it off contact switch "arrow B".

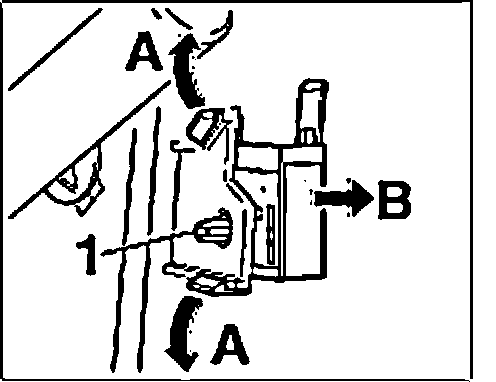

3. Release contact switch "arrow A".
4. Push contact switch inwards "arrow B" until the guide pin "1" pops out of the bore.

Installing Contact Switch For Glove Compartment Light







1. Open glove compartment.

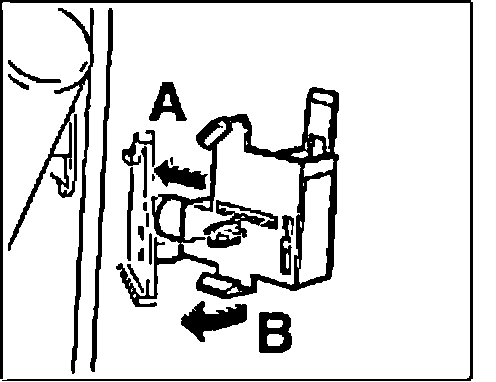

2. Insert the contact switch into the bore "A" and screw it into the holder "arrow B", until the locking tabs engage audibly.







3. Connect the plug to the contact switch "arrow A" until it engages audibly "arrow B".
4. Install glove compartment.
