Trunk Light Bulb: Service and Repair

Removing And Installing Bulb For Luggage Compartment Light







Removing Bulb For Luggage Compartment Light
Switch the ignition off and remove ignition key.

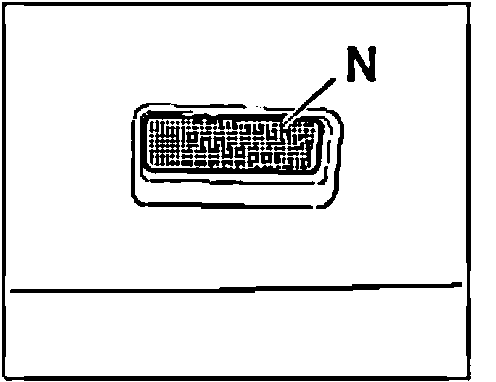

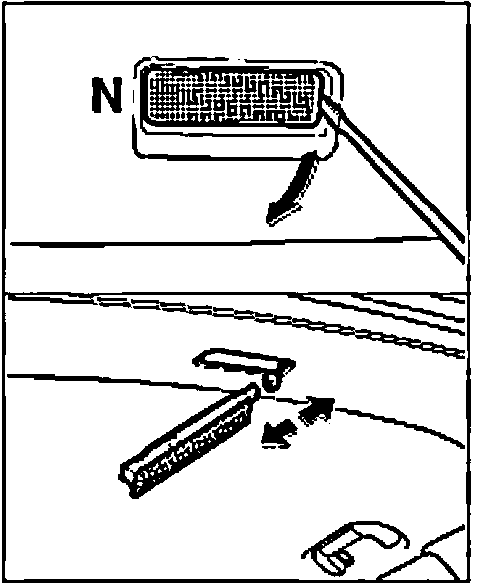

"N" Luggage compartment light, luggage compartment.







1. Use a plastic spatula or screwdriver to pry out the light cover.
- Pull off electrical plug connection.

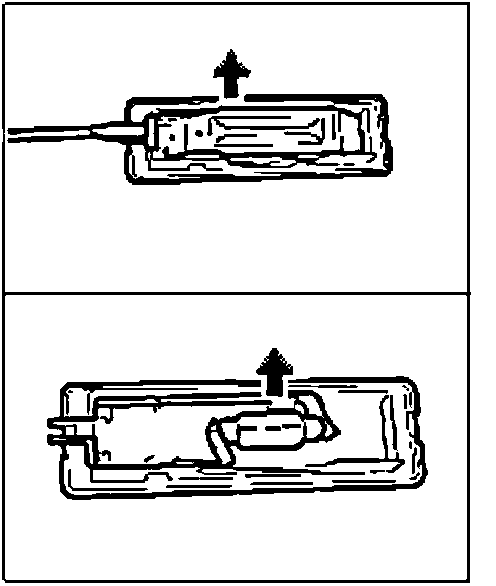

- Open the cover using a screwdriver and pivot up.

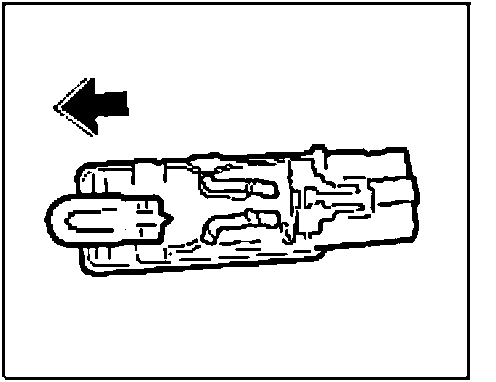

- Remove the bulb from the holder.

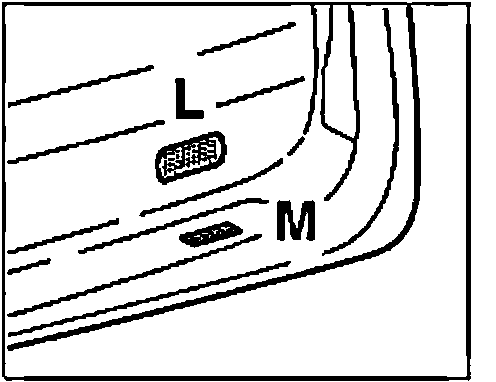

"L" Luggage compartment light, rear lid:

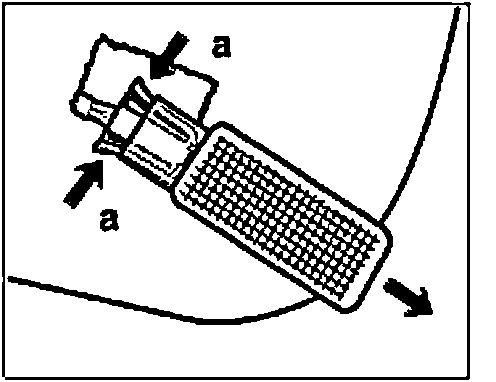

2. Remove light, press connector together "a" and remove.

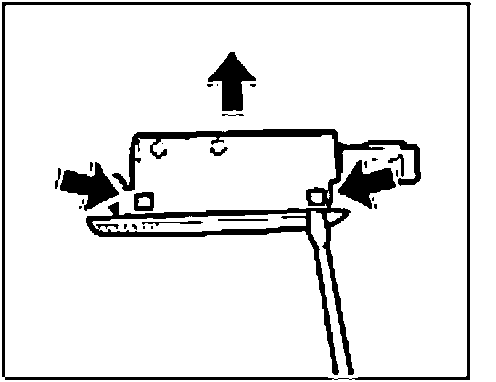

3. Use a screwdriver carefully to lever down the 4 locking elements on the sheet metal cover.







4. Pull the bulb from the holder.

Installing Bulb For Luggage Compartment Light

Luggage compartment light, luggage compartment:

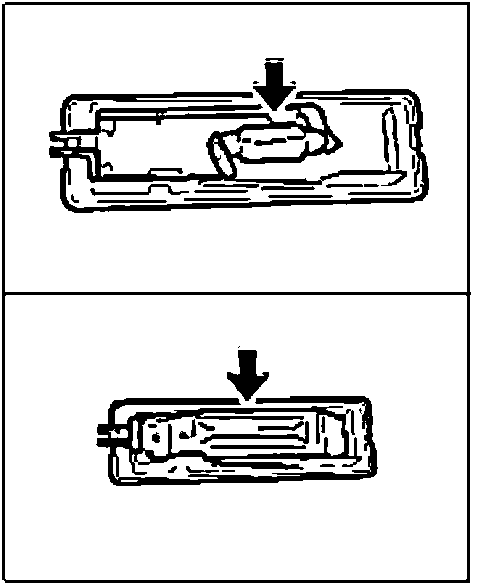

- Insert bulb and close the cover.







- Connect the plug, pressing on until the plug audibly clicks into place.
- Clip the light unit in the headliner.

Luggage compartment light, rear lid:

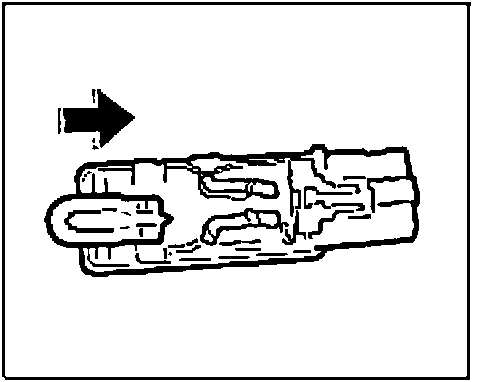

1. Insert bulb in the holder.

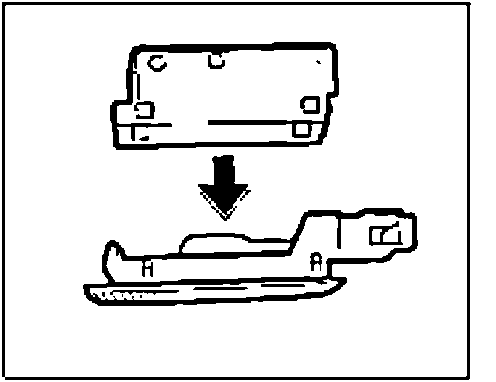

2. Position the sheet metal cover and press in place. Ensure that all 4 locking elements engage properly and that the sheet metal cover is not deformed.

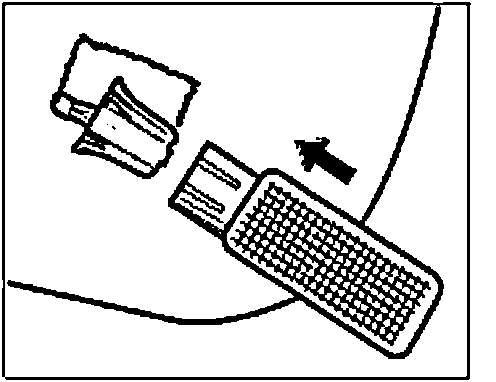

3. Connect the plug, pressing on until the plug audibly clicks into place.

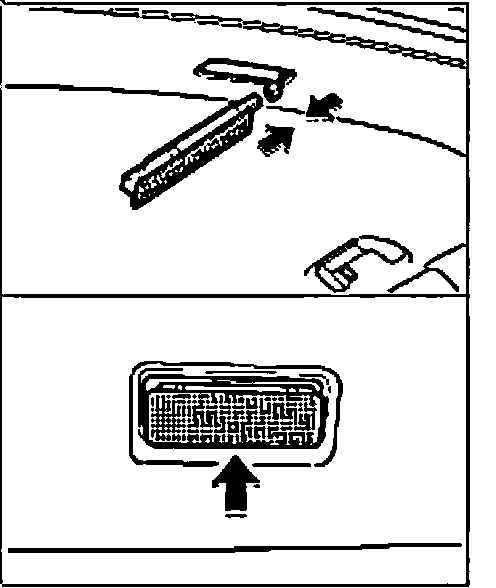

4. Insert the light in the opening and press in place. Ensure the light is fitted securely.
