Removing and Installing Bulb For Direction Indicator Light

Removing And Installing Bulb For Direction Indicator Light

WARNING: Risk of short circuit: Before removing the headlight, take out the ignition key and switch the light switch off.

Removing Bulb For Direction Indicator Light
1. Switch off the light. Remove the main headlight.

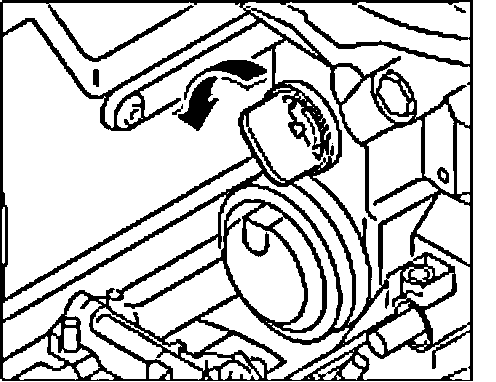

2. Turn the bulb holder in the headlight housing counter-clockwise and remove.

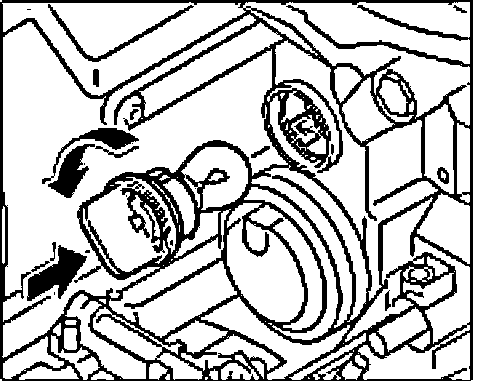

3. Take defective bulb out of the bulb holder (bayonet lock) towards the left.

Installing Bulb For Direction Indicator Light

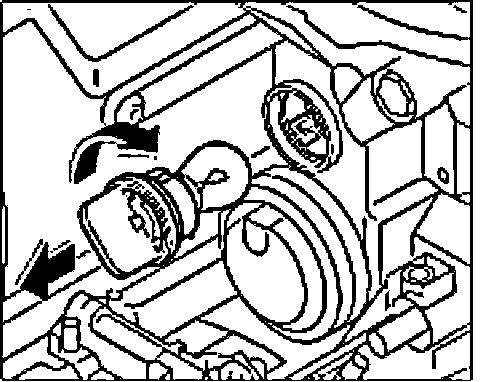

1. Screw bulb clockwise into the bulb holder (bayonet lock).

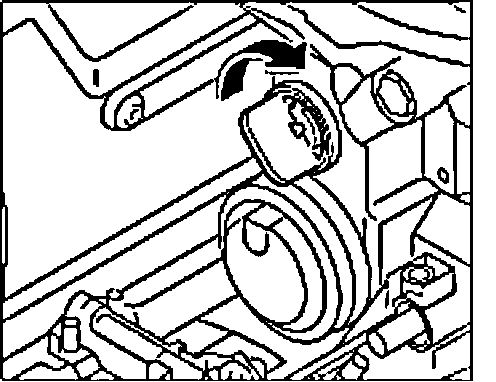

2. Insert the bulb holder in the headlight housing and turn clockwise until it locks in place.
3. Install the main headlight and carry out a function test.
