Underhood Light Bulb: Service and Repair

Removing And Installing Bulb For Engine Compartment Light







Removing Bulb For Engine Compartment Light
Switch the ignition off and remove ignition key.

1. Use a plastic spatula or screwdriver to pry out the light cover.

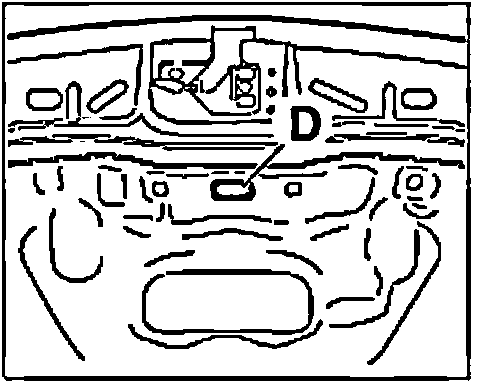

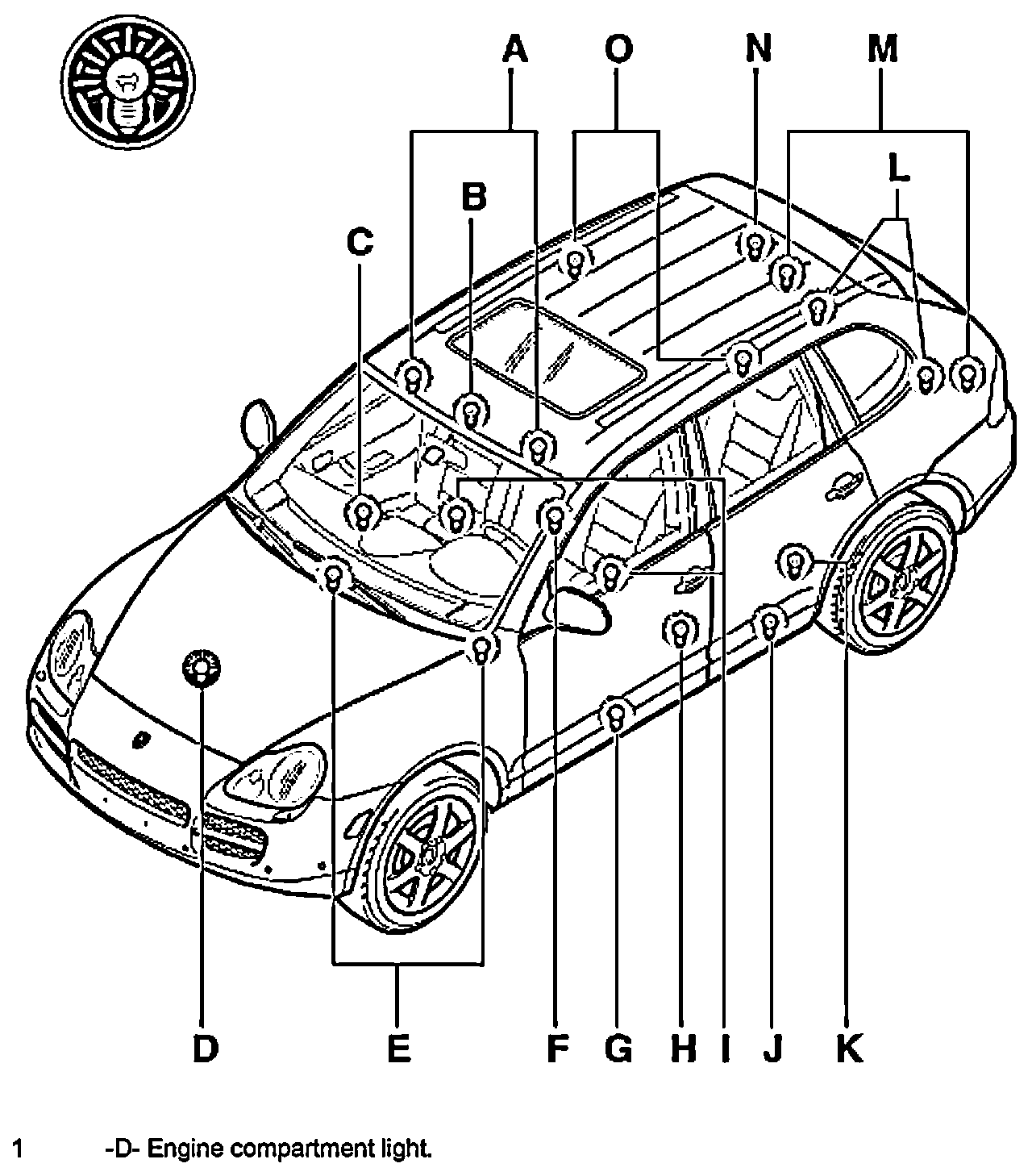

"D" Engine compartment light:

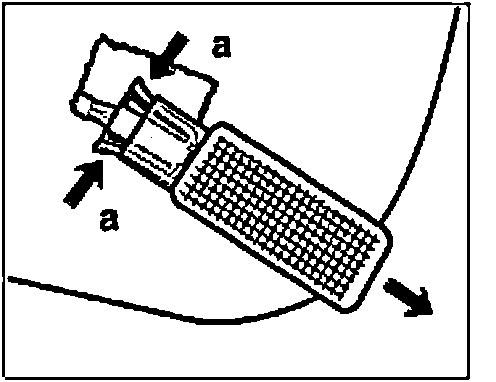

2. Pull out light, press connector together "a" and remove.

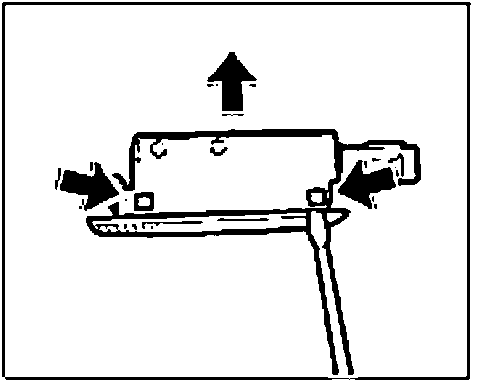

3. Use a screwdriver carefully to lever down the 4 locking elements on the sheet metal cover.

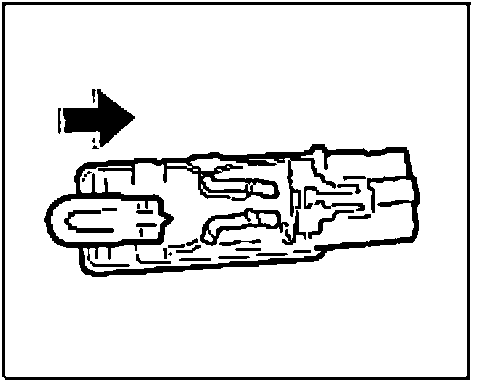

4. Pull the bulb from the holder.

Installing Bulb For Engine Compartment Light

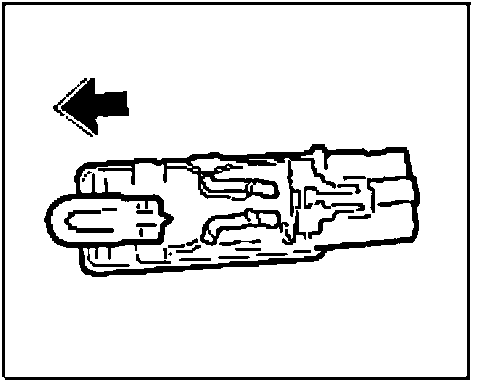

1. Insert bulb fully in the holder.

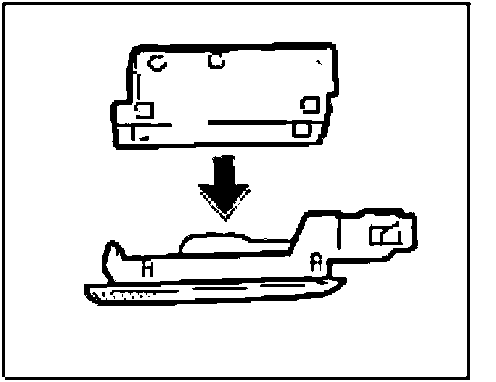

2. Position the sheet metal cover and press in place. Ensure that all 4 locking elements engage properly and that the sheet metal cover is not deformed.







3. Connect the plug, pressing on until the plug audibly clicks into place.
4. Insert the light in the opening and press in place. Ensure the light is fitted securely.
