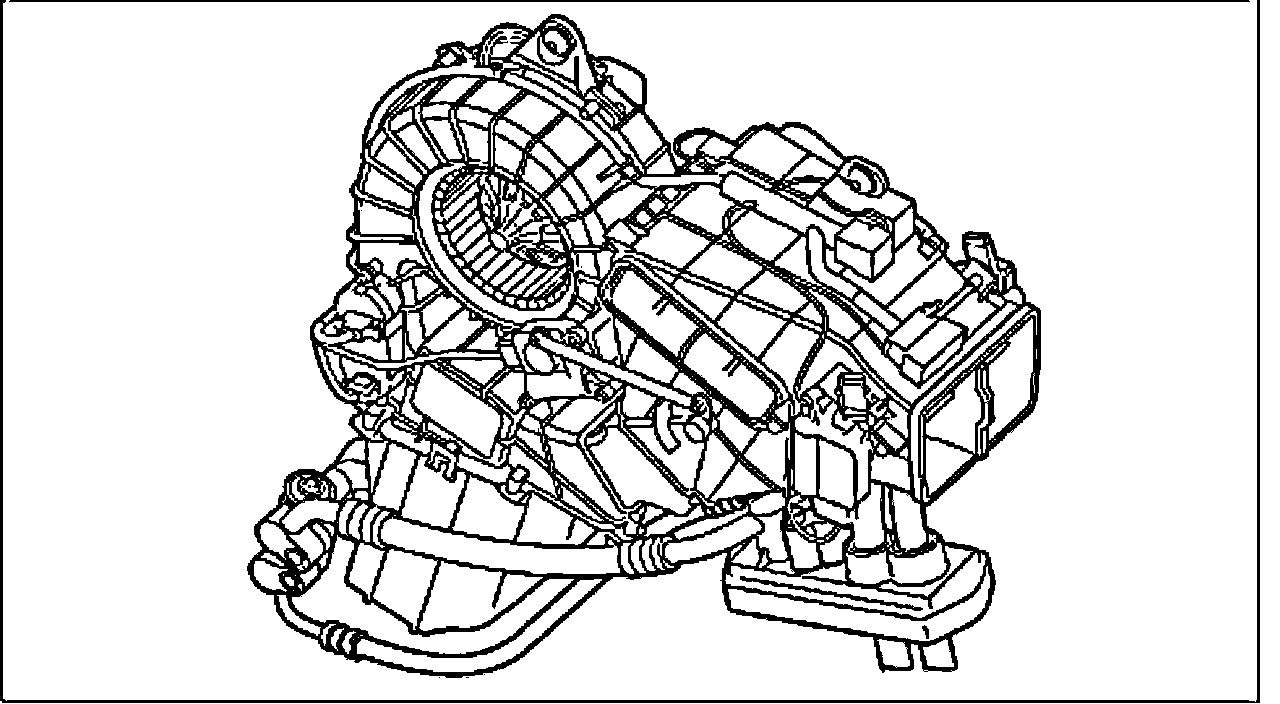

Removing and Installing Pressure Pipe In Vehicle

Removing and Installing Pressure Pipe In Vehicle







Removing Pressure Pipe In Vehicle
- Remove refrigerant by suction.
- Remove the side lining at rear.

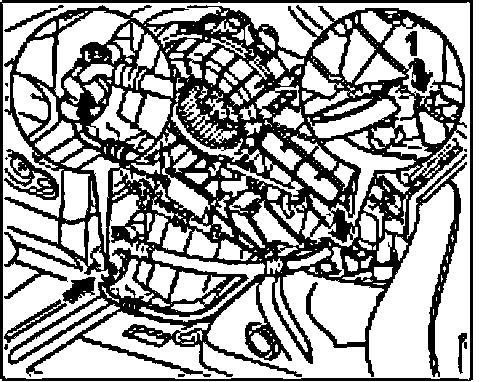

1. Unscrew both fastening screws -1-.
2. Remove the pressure pipe -arrows- and close with plugs.

Installing Pressure Pipe In Vehicle







1. Remove the plugs on the pressure pipe, check the O-rings and replace if in doubt.

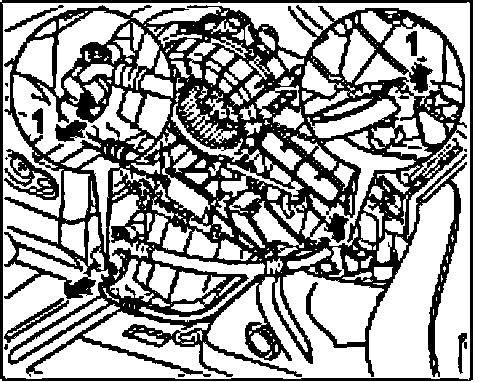

2. Push the pressure pipe onto the connections -arrow- and screw down with both fastening screws -1-.

- Fill refrigerant.
- Mount the side-panel lining at rear.

Tightening Torques
