Removing and Installing Suction Line In Vehicle

Removing and Installing Suction Line In Vehicle







Removing Suction Line In Vehicle
- Remove refrigerant by suction.
- Remove the side lining at rear.

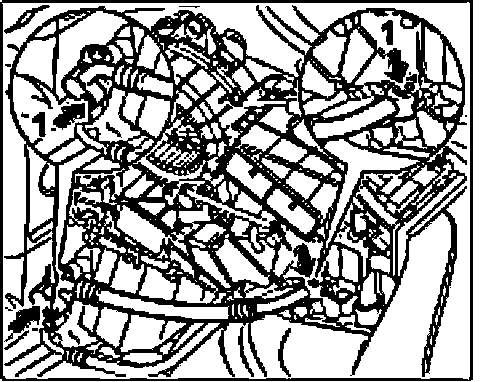

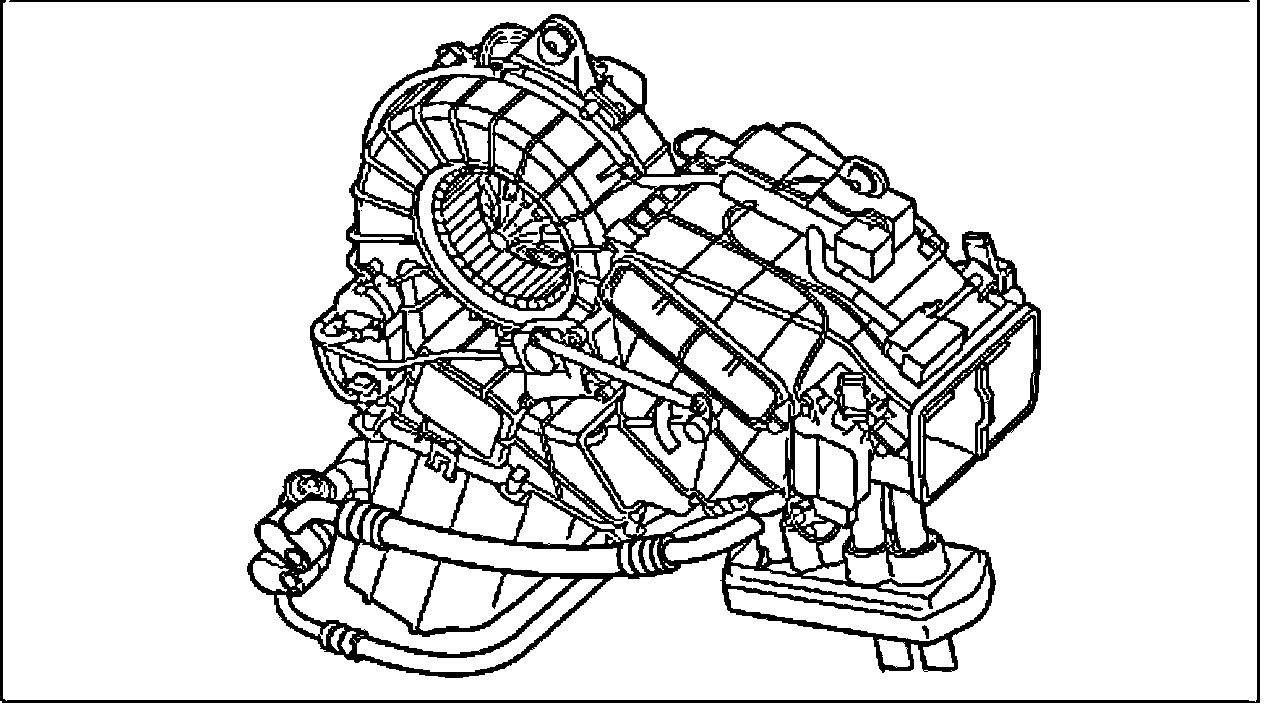

1. Unscrew both fastening screws -1-.
2. Remove the suction line -arrows- and close with plugs.

Installing Suction Line In Vehicle







1. Remove the plugs on the suction line, check the O-rings and replace if in doubt.
2. Push the suction line onto the connections -arrow- and screw down with both fastening screws -1-. Refer to tightening torques.

- Fill refrigerant.
- Mount the side-panel lining at rear.

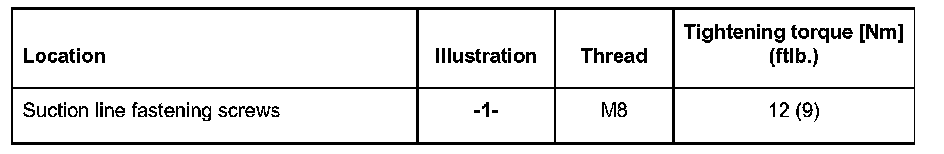

Tightening Torques
