Installing Air Flow Sensor

Removing And Installing Air Flow Sensor







Installing air flow sensor - Cayenne S (type M48/00)

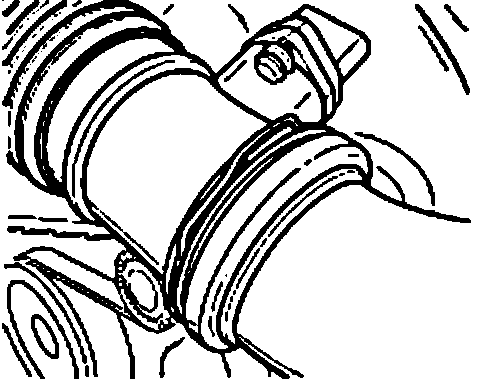

1. Insert air flow sensor in the pipe on the air cleaner housing cover. When doing so, observe the flow direction. There is a small arrow on the housing which must point towards the engine. Then connect the retaining clip.

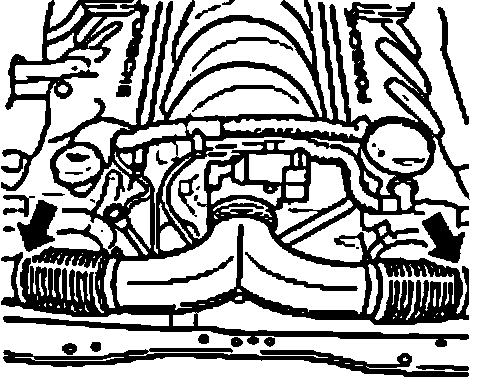

2. Connect the Y pipe and tighten the hose clamps.

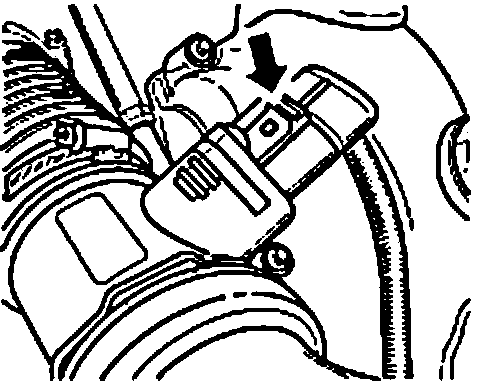

3. Connect the electrical plug to the air flow sensor.

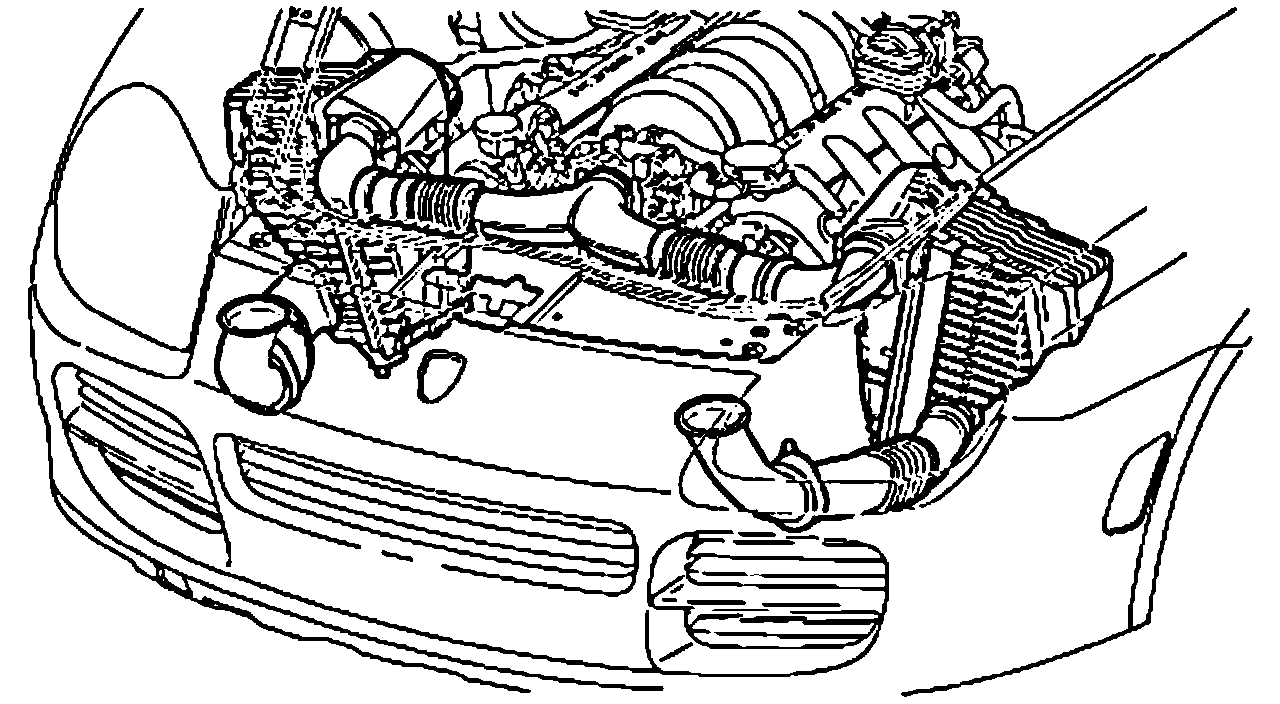

4. Install left and right engine compartment cover.
