Removing Air Flow Sensor

Removing And Installing Air Flow Sensor







Removing air flow sensor - Cayenne S (type M48/00)

1. Remove the front engine compartment cover.

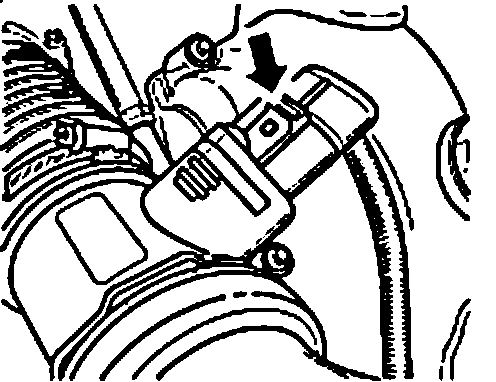

2. Disconnect electrical connections on the air flow sensor.

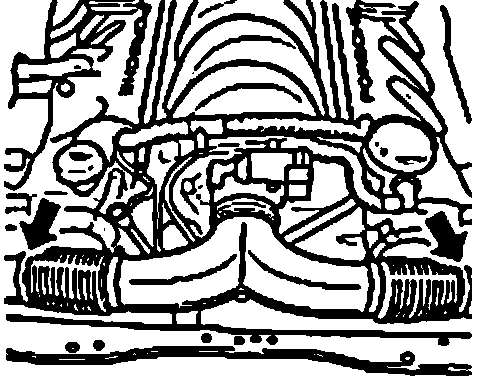

3. Disconnect the air flow sensor connections. To do this, undo the hose clamps on the left and right on the bellows and pull the bellows off the air flow sensors.

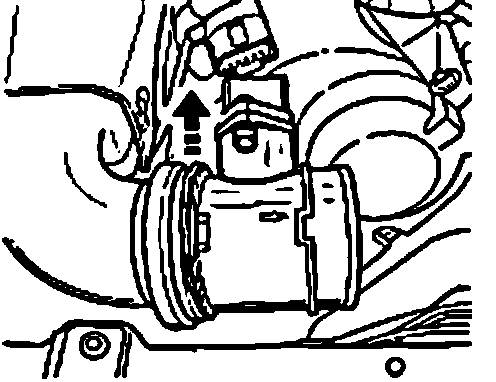

4. Pull out retaining clip on the air flow sensor.







5. Pull out air flow sensor.
