Engine Coolant Temperature Sensor Monitoring

Engine Coolant Temperature Sensor Monitoring

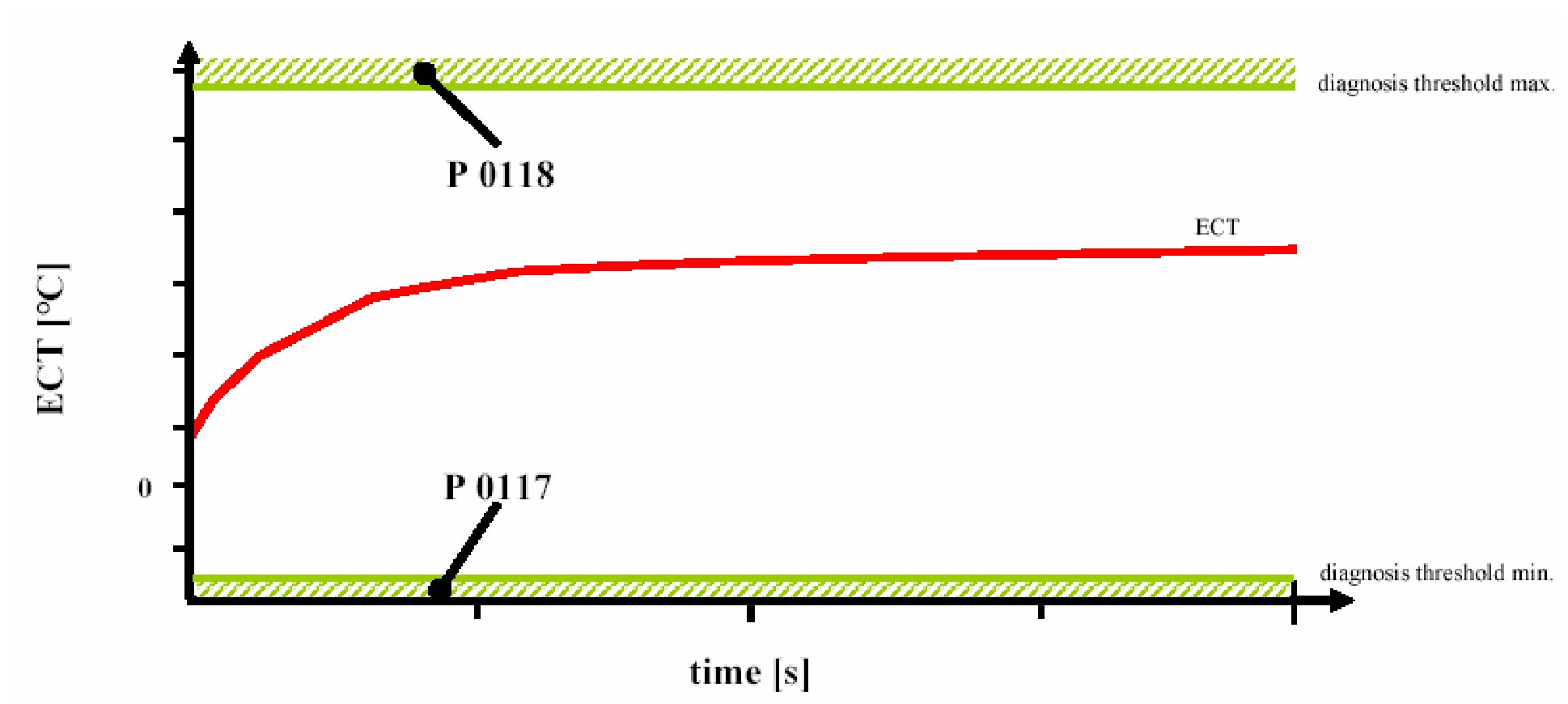

The engine coolant temperature is electrical O.K., if the following condition is true:

Diagnosis threshold min. < engine coolant temperature < Diagnosis threshold max.

Range Check

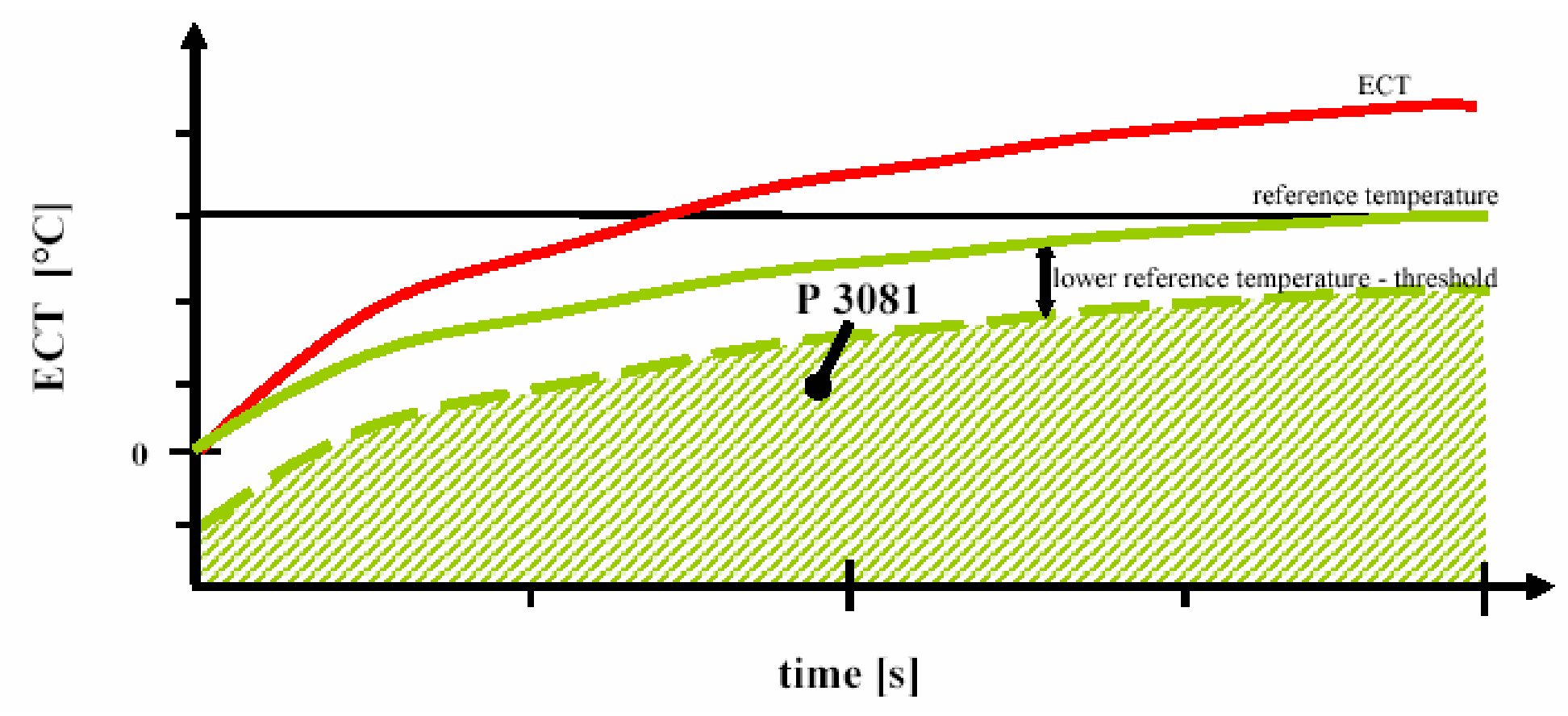

Plausibilities Check

The engine coolant temperature is plausible, if:

(reference temperature - threshold) < engine coolant temperature

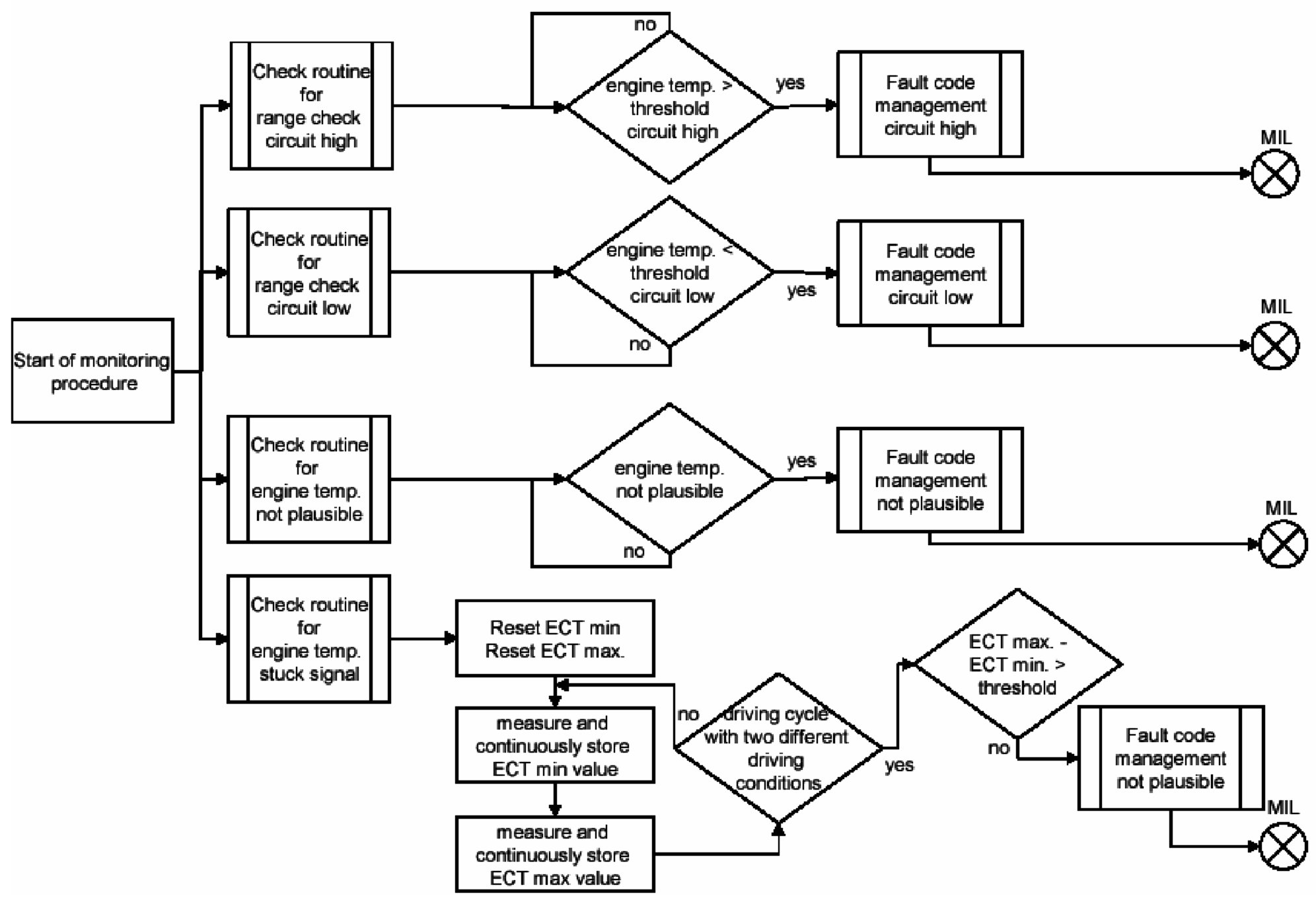

flow chart:
