Installing Y-Shaped Pipe

Removing And Installing Cowl For Throttle Body (Y-shaped Pipe)







Installing Y-shaped pipe - Cayenne S (type M48/00)
1. Attach the vacuum line to the underside of the Y pipe.

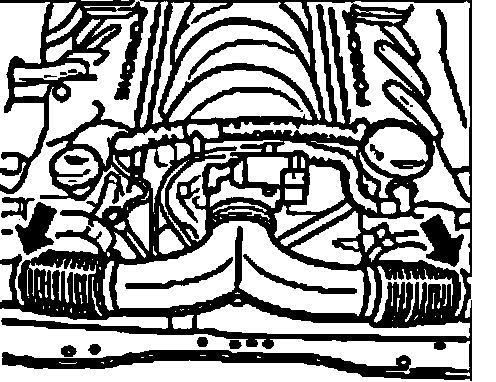

2. Slide the bellows onto the air flow sensors and tighten the hose clamps.

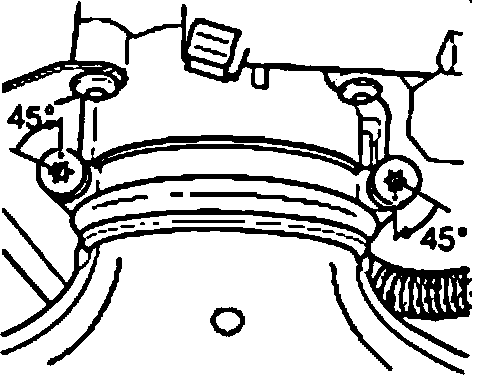

3. Slide the Y pipe onto the throttle adjuster. Then insert the left and right fastening pins. Turn the pins through 45 degrees in a clockwise direction.

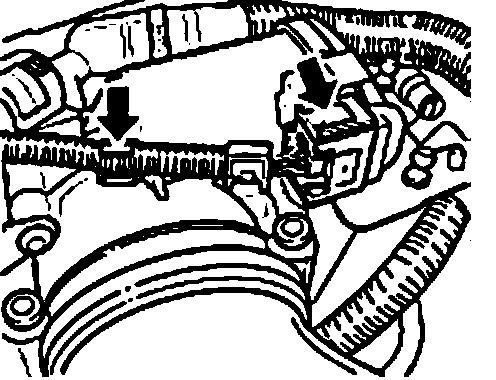

4. Connect the throttle adjuster. The connector must engage audibly. Clip the connecting cable into the sheetmetal holder.







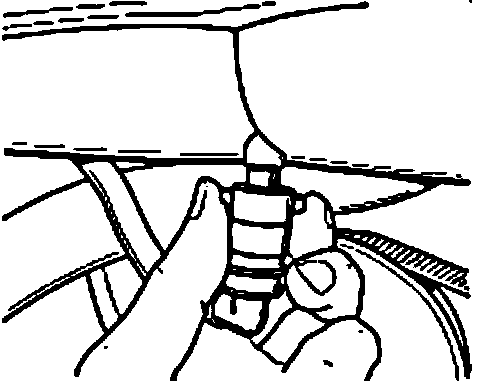

5. Press the four rubber elements in the cover onto the four ball socket holders. The fastening elements must be felt to engage.







6. Fit the front engine compartment cover.
