Removing and Installing Air Guide

Removing And Installing Air Guide

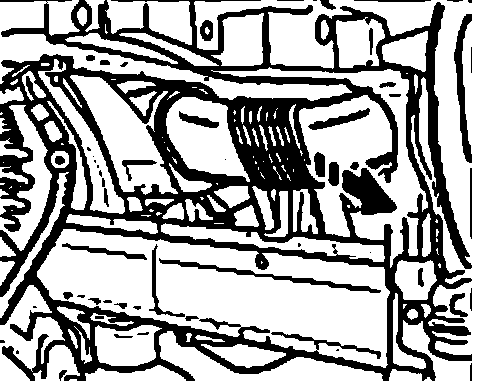

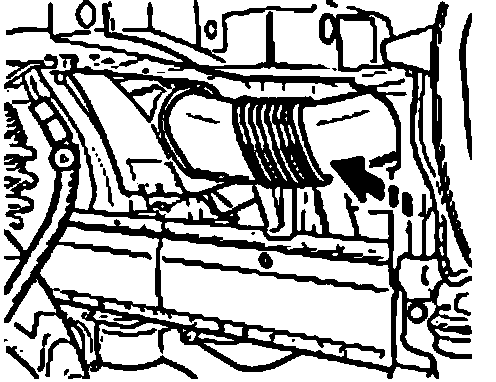

Removing air guide

1. Remove the front spoiler.
2. Remove the relevant (left/right) wheel housing liner.

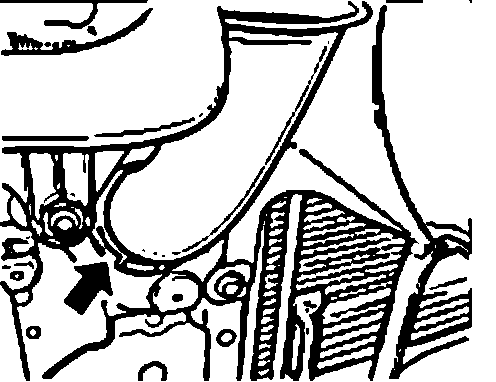

3. Grasp the air guide in the area around the air cleaner housing and pull it forwards firmly until it snaps down from the air cleaner housing.

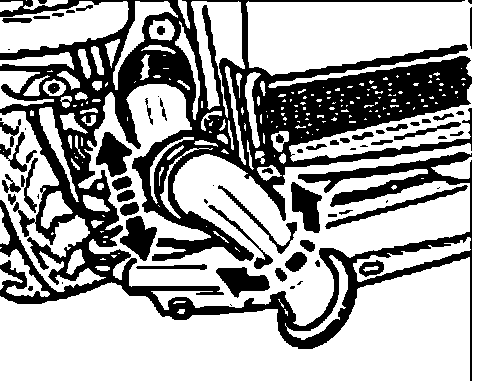

4. Pull the air guide forward, turning it so that it can be pulled out.







5. Check the air guide for damage and clean it.

Installing air guide

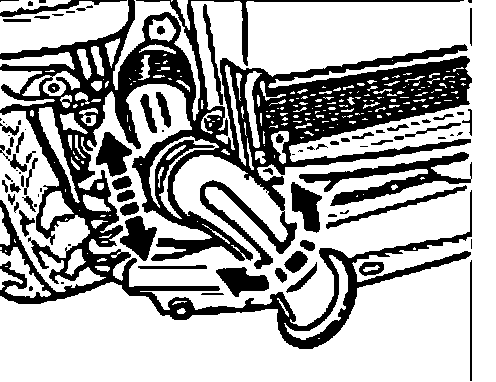

1. Insert the air guide, turned through approx. 90 degrees, through the opening in the lock mount. Then press in the air guide, swivelling it into the installation position.







NOTE: The rubber element on the air guide can be coated lightly with soapy water to make fitting easier.

2. Press the rubber element into the lock mount.







3. Push air guide onto the connection on the air cleaner housing. The air guide must audibly engage. Then check whether the installation is correct.







4. Install the relevant (left/right) wheel housing liner.
5. Install the front spoiler.
