Connector Locations

Connector Assignment - Transverse Lock Control Unit

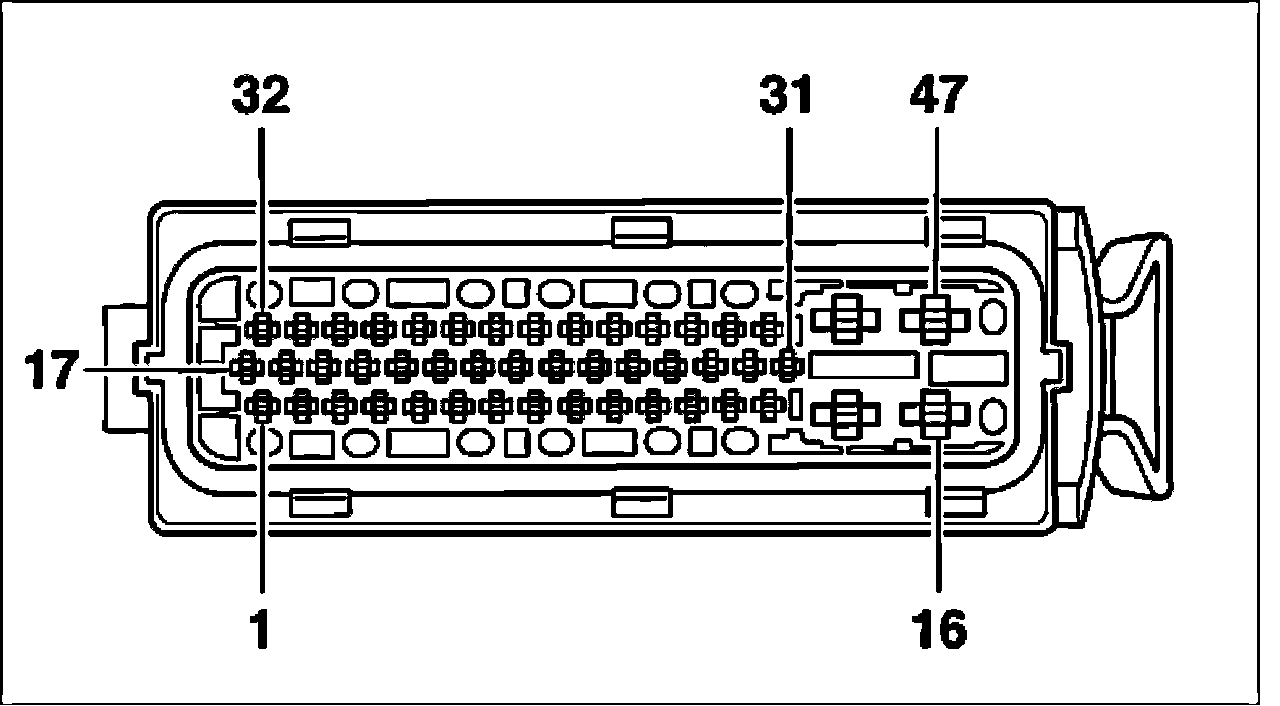

Plug 47-pin

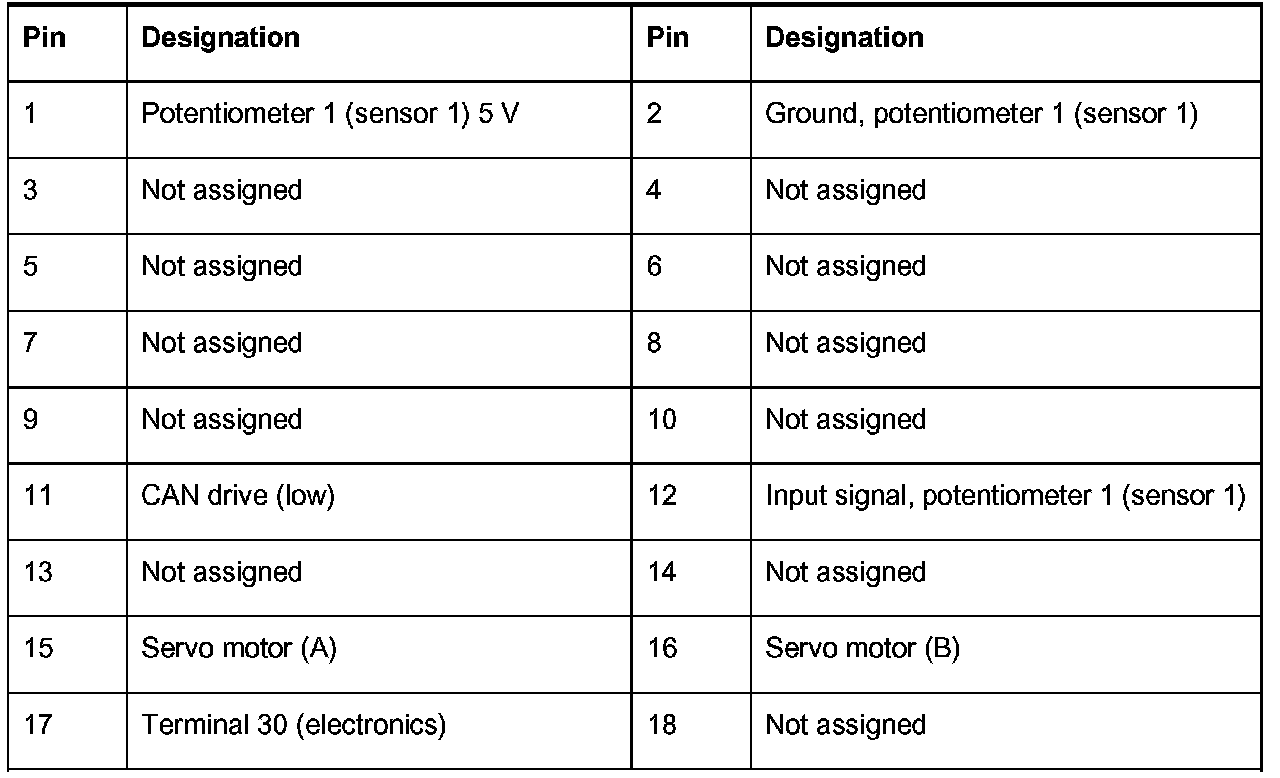

Pin 1 - 18:

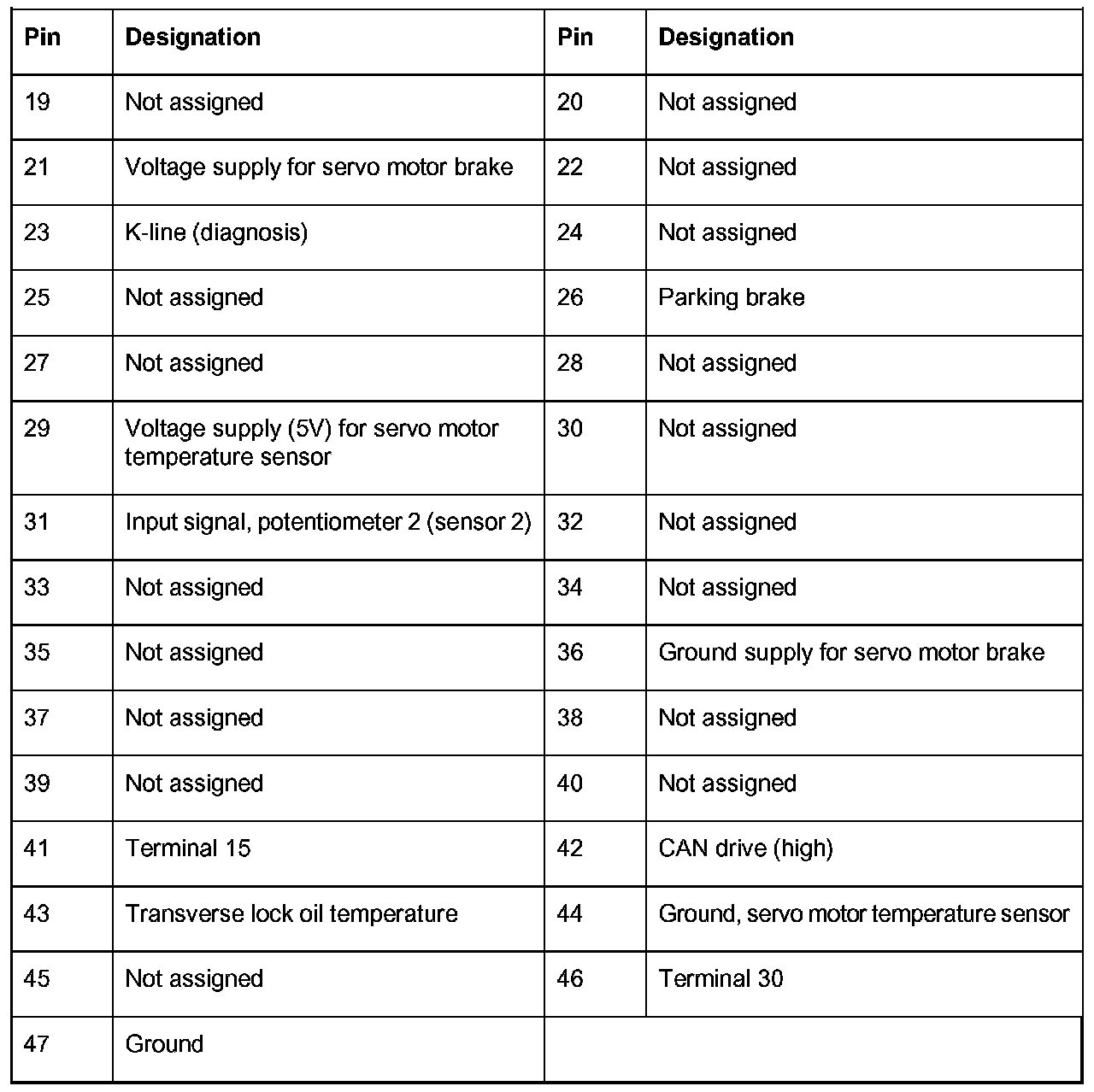

Pin 19 - 47:

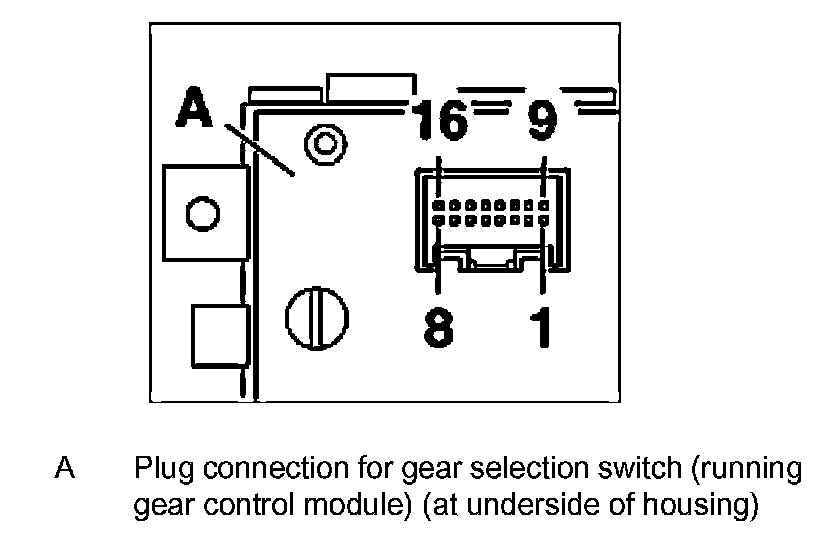

Gear selection switch connector assignment (running gear control module), 16-pin

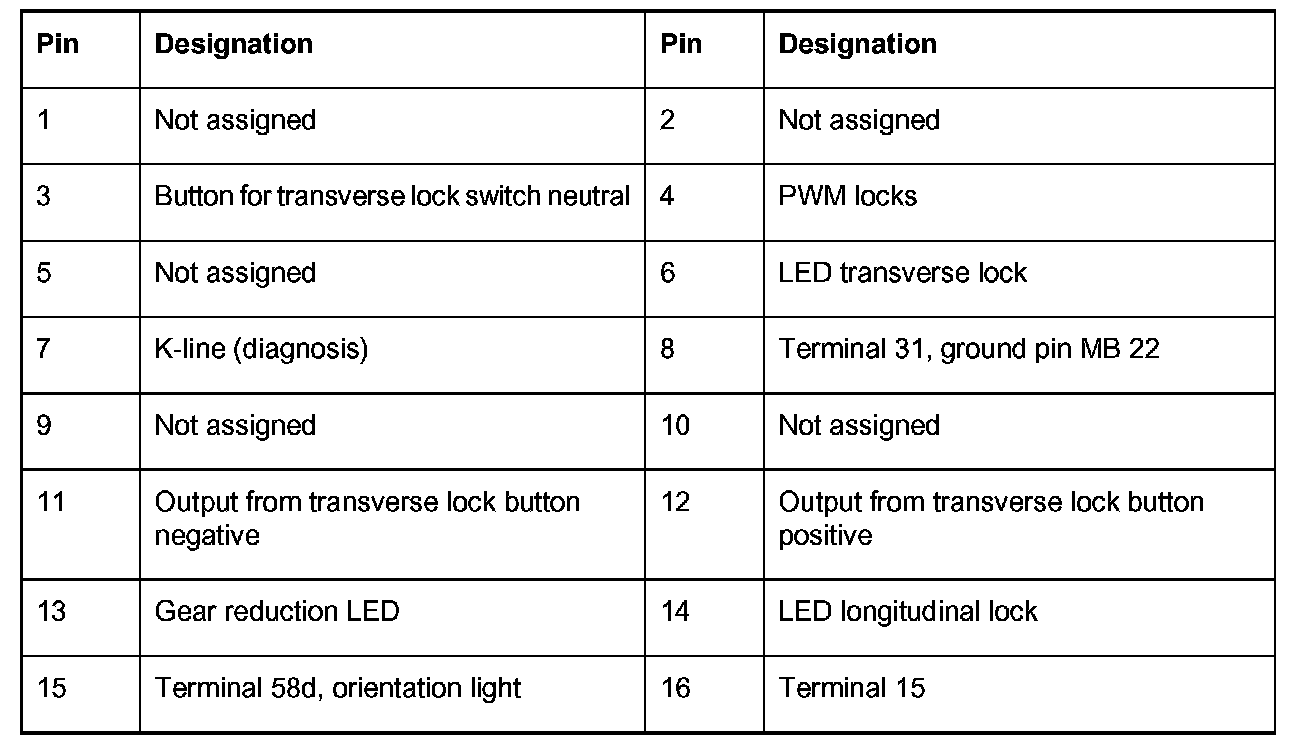

Pin 1 - 16:
