Component Arrangement - CD Changer

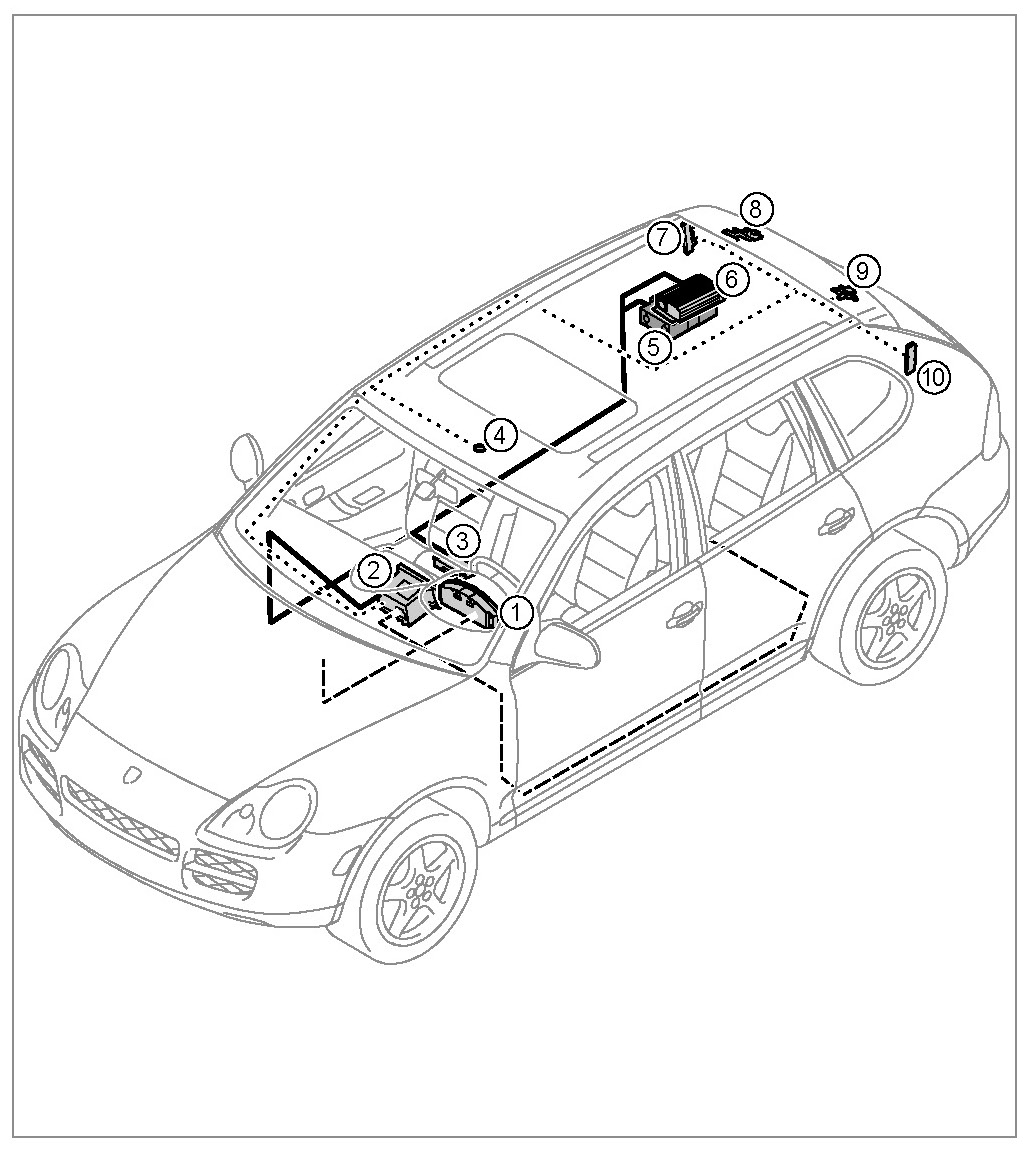

Component arrangement - CD changer






1 - Instrument cluster (gateway)
2 - PCM2
3 - Telephone/telematics optional
4 - Microphone (roof console)
5 - CD changer optional
6 - External amplifier optional (Harman or BOSE)
7 - Right antenna amplifier
8 - GSM antenna (radio)
9 - GPS antenna optional (navigation)
10 - Left antenna amplifier

Component arrangement PCM2/ CDR23 basic sound system






1 - Tweeter in left instrument panel.
2 - PCM2/ CDR23 (optional).
3 - Tweeter in right instrument panel
4 - Woofer and midrange driver, front right door
5 - Dome tweeter and woofer/midbass driver, right rear door
6 - Dome tweeter and woofer/midbass driver, left rear door.
7 - Woofer and midrange driver, front left door.

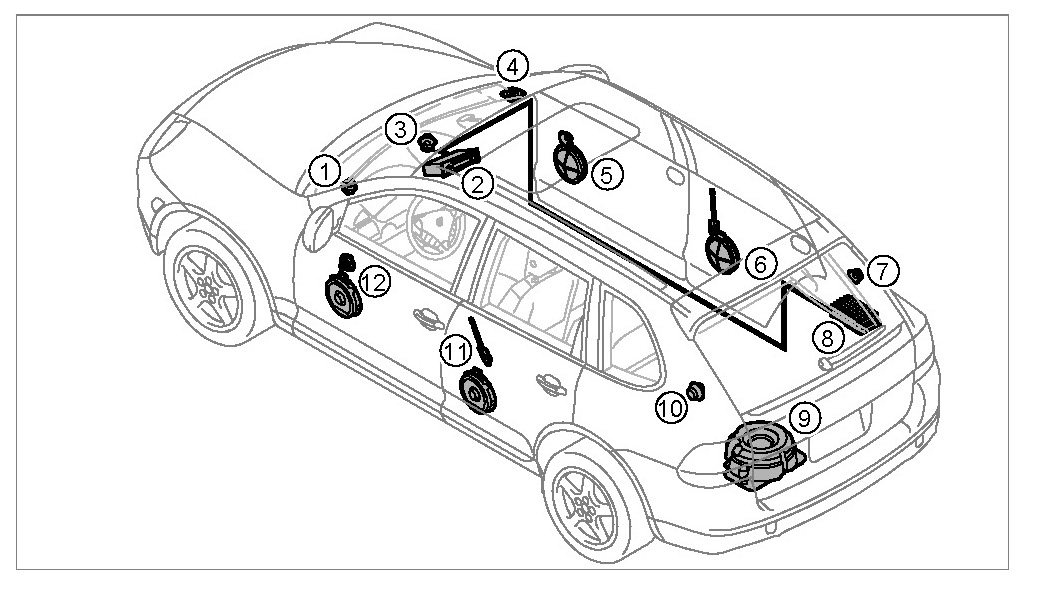

Component arrangement - external BOSE amplifier high end sound system.






a - MOST - optical.
1 - Tweeter in left instrument panel.
2 - PCM2/ CDR23 (optional).
3 - Full-range driver in centre of instrument panel.
4 - Tweeter in right instrument panel.
5 - Woofer and midrange driver, front right door.
6 - Dome tweeter and woofer/midbass driver, right rear door.
7 - Full-range driver, right D-pillar.
8 - External BOSE amplifier.
9 - High-power subwoofer (active).
10 - Full-range driver, left D-pillar.
11 - Dome tweeter and woofer/midbass driver, left rear door.
12 - Woofer and midrange driver, front left door.
