Component Arrangement - PCM2

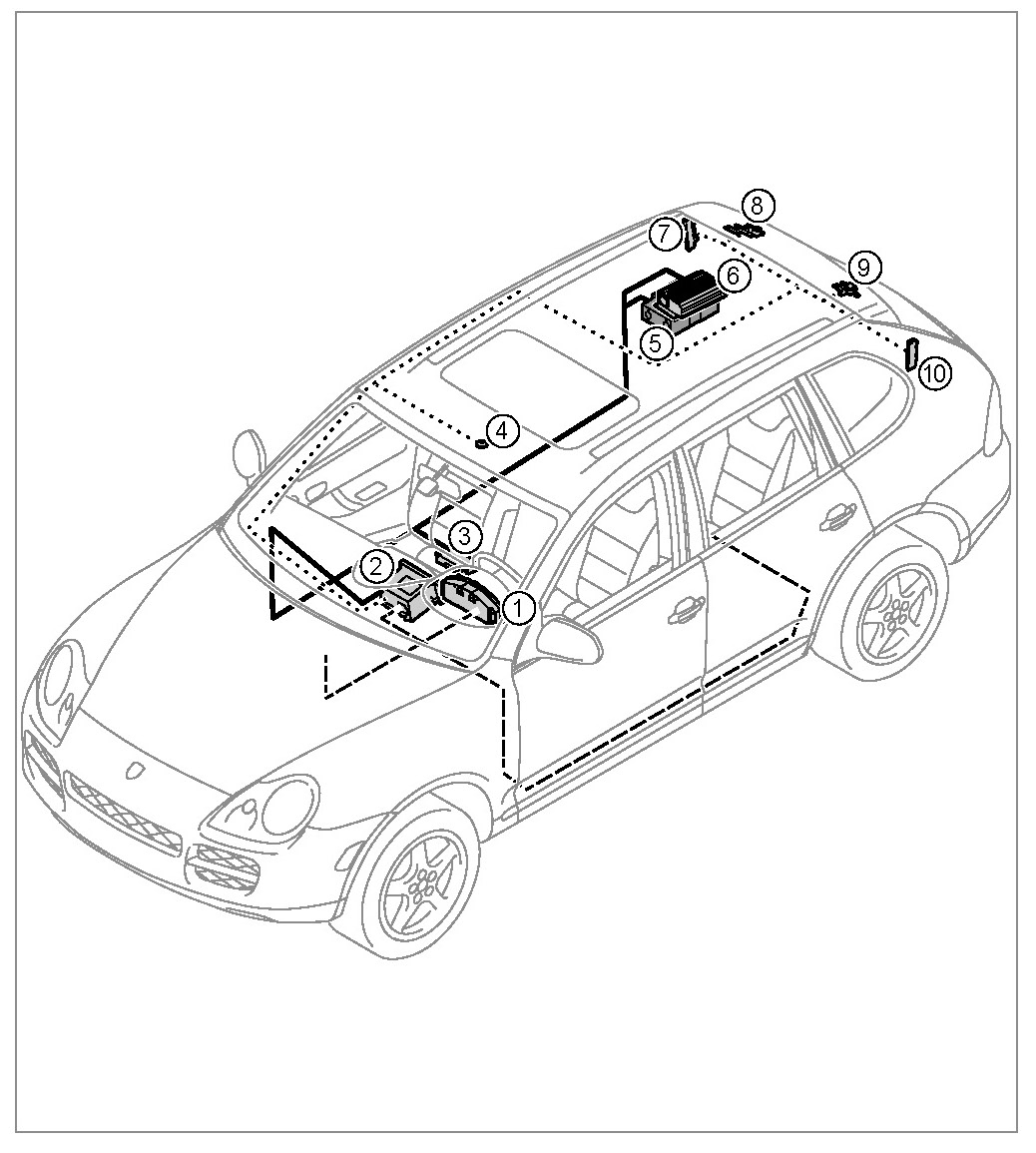

PCM2/CDR23 - component arrangementPCM2 component arrangement
1 - Instrument cluster (gateway)
2 - PCM2
3 - Telephone/telematics (optional)
4 - Microphone (roof console)
5 - CD changer (optional)
6 - Optional external amplifier (BOSE)
7 - Right antenna amplifier
8 - GSM antenna (radio)
9 - GPS antenna (optional) (navigation)
10 - Left antenna amplifier

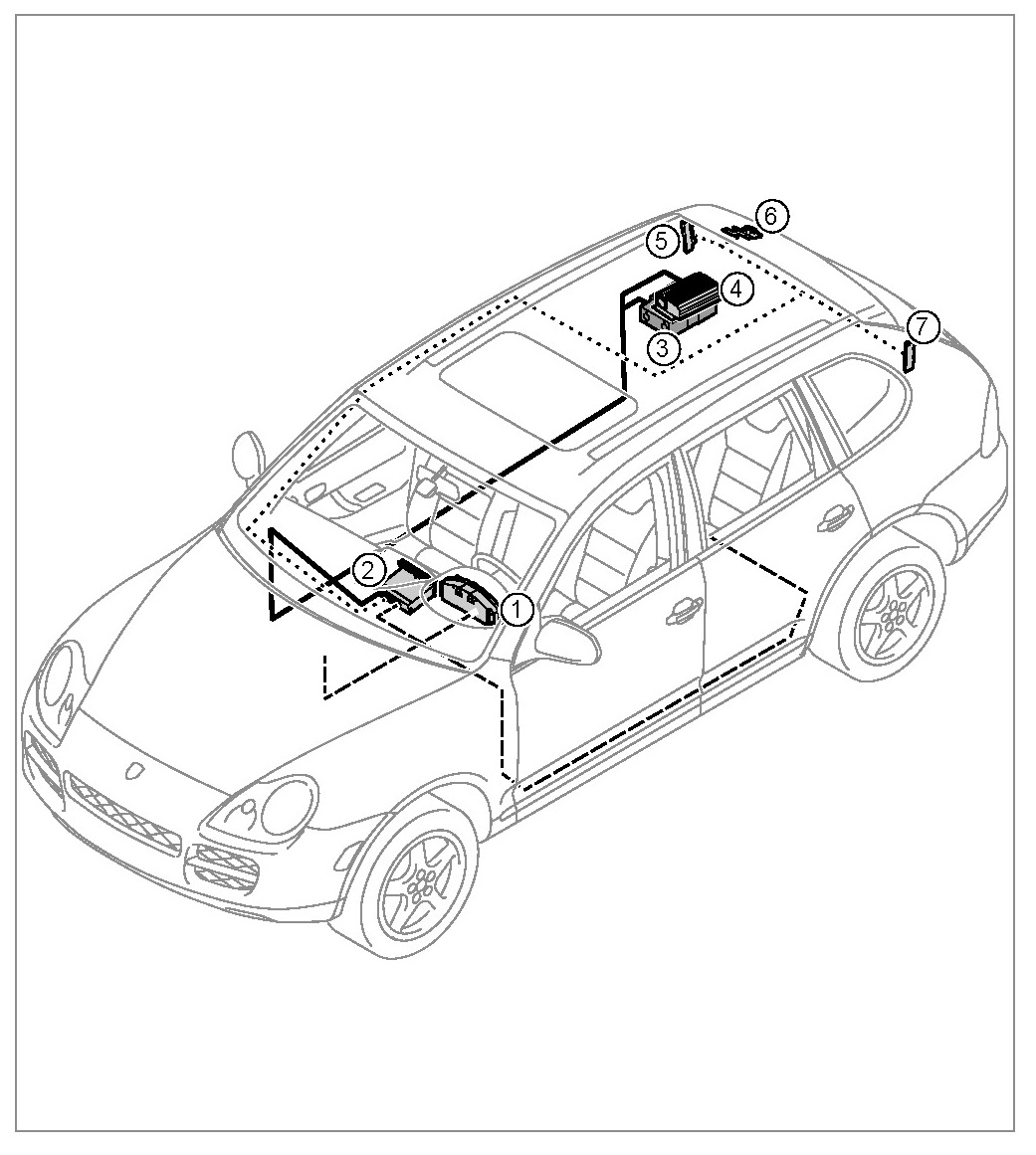

CDR23 - components
1 - Instrument cluster (gateway)
2 - Radio CDR23
3 - CD changer
4 - External amplifier (optional) (BOSE)
5 - Right antenna amplifier
6 - GMS antenna (radio)
7 - Left antenna amplifier

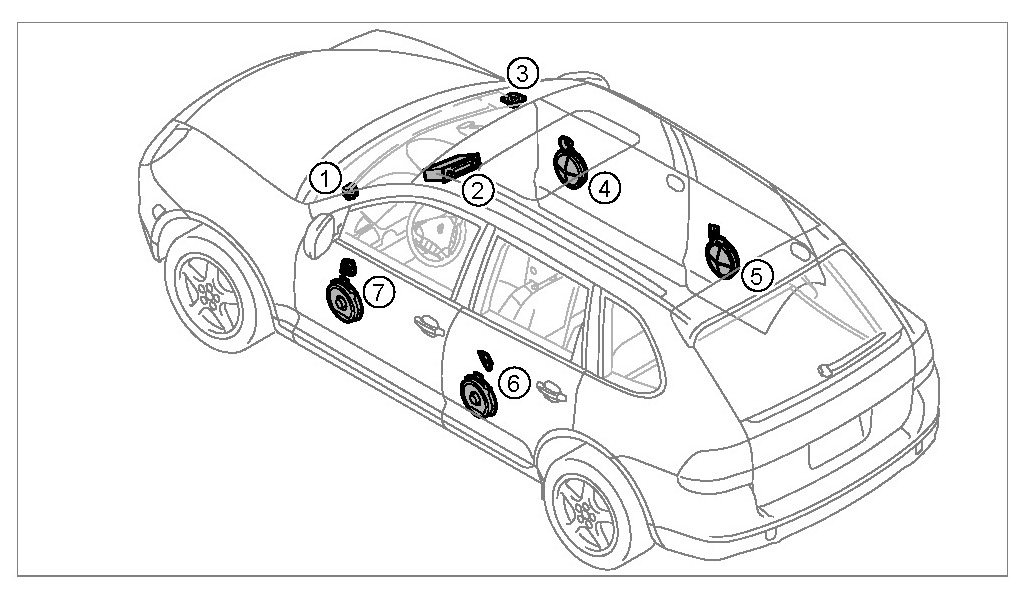

Component arrangement PCM2/CDR23 basic sound system
1 - Tweeter in left instrument panel
2 - PCM2 or CDR23 (optional)
3 - Tweeter in right instrument panel
4 - Woofer and midrange driver, front right door
5 - Dome tweeter and woofer/midbass driver, rear right door
6 - Dome tweeter and woofer/midbass driver, rear left door
7 - Woofer and midrange driver, front left door

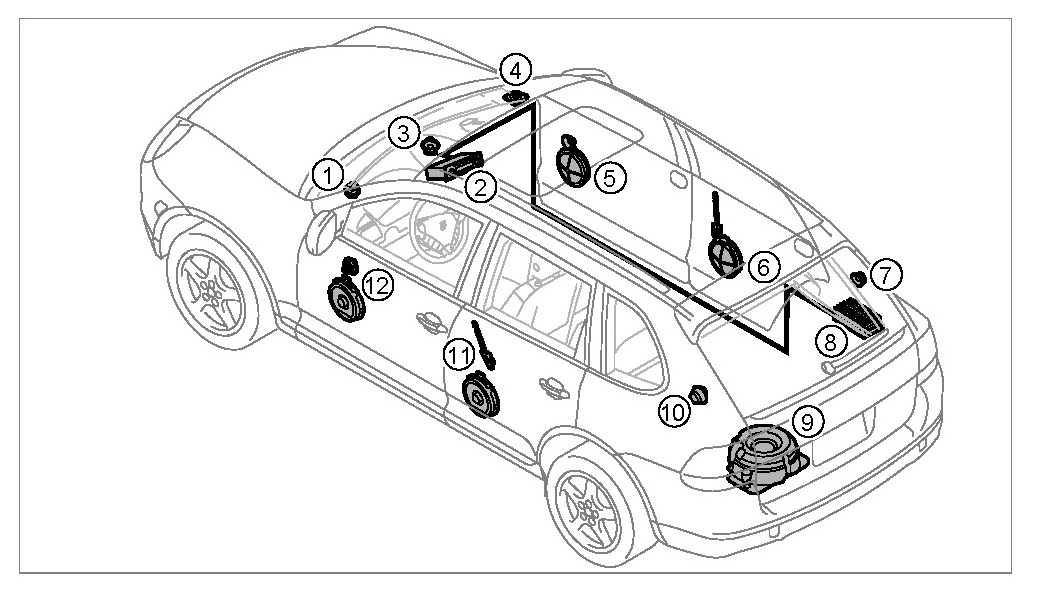

Component arrangement - external BOSE amplifier high end sound system
a - MOST - optical
1 - Tweeter in left instrument panel
2 - PCM2/CDR23 (optional)
3 - Full-range driver in centre of instrument panel
4 - Tweeter in right instrument panel
5 - Woofer and midrange driver, front right door
6 - Dome tweeter and woofer/midbass driver, rear right door
7 - Full-range driver, right D-pillar
8 - External BOSE amplifier
9 - High-power subwoofer (active)
10 - Full-range driver, left D-pillar
11 - Dome tweeter and woofer/midbass driver, rear left door
12 - Woofer and midrange driver, front left door

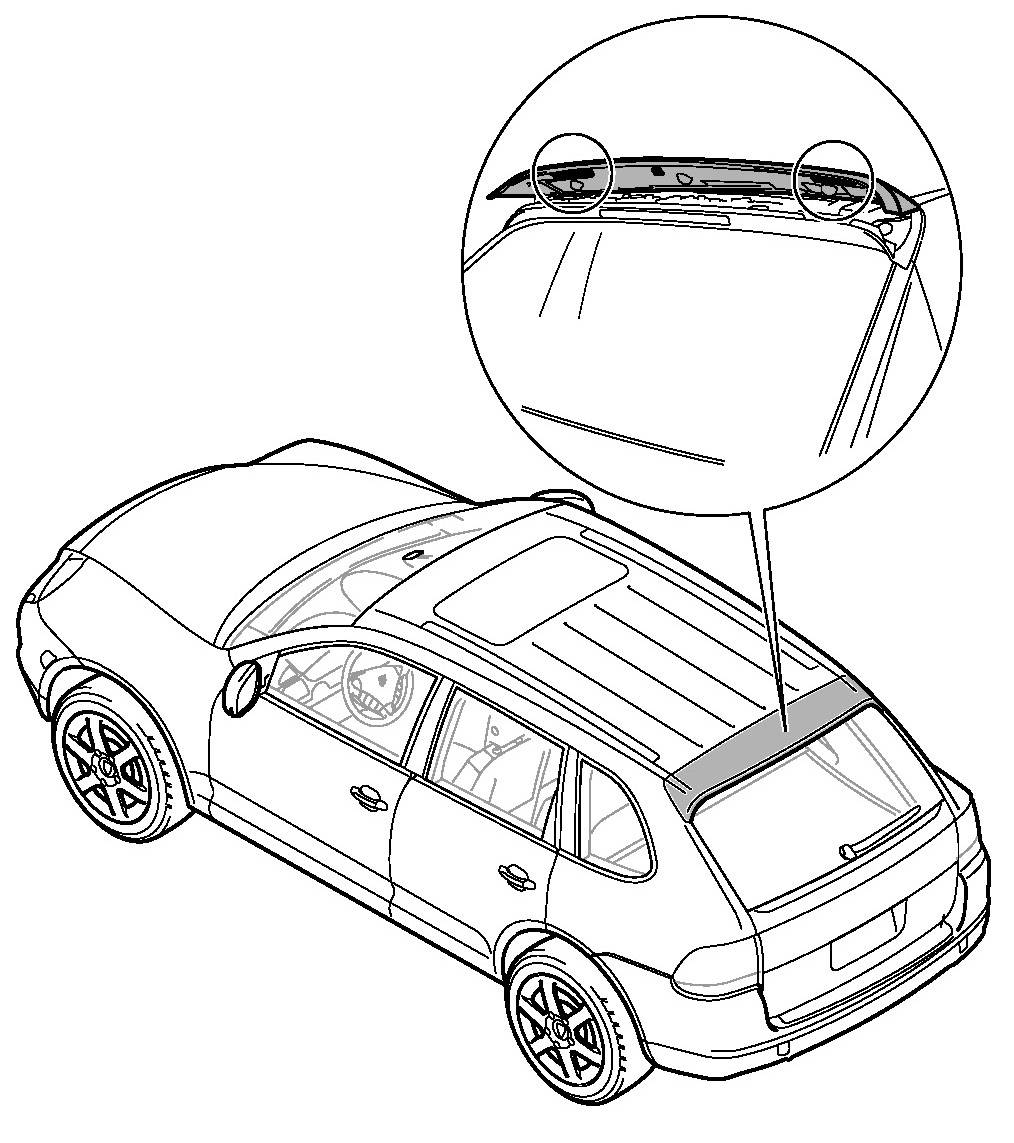

Component arrangement - satellite radio
Satellite radio
Satellite antennae

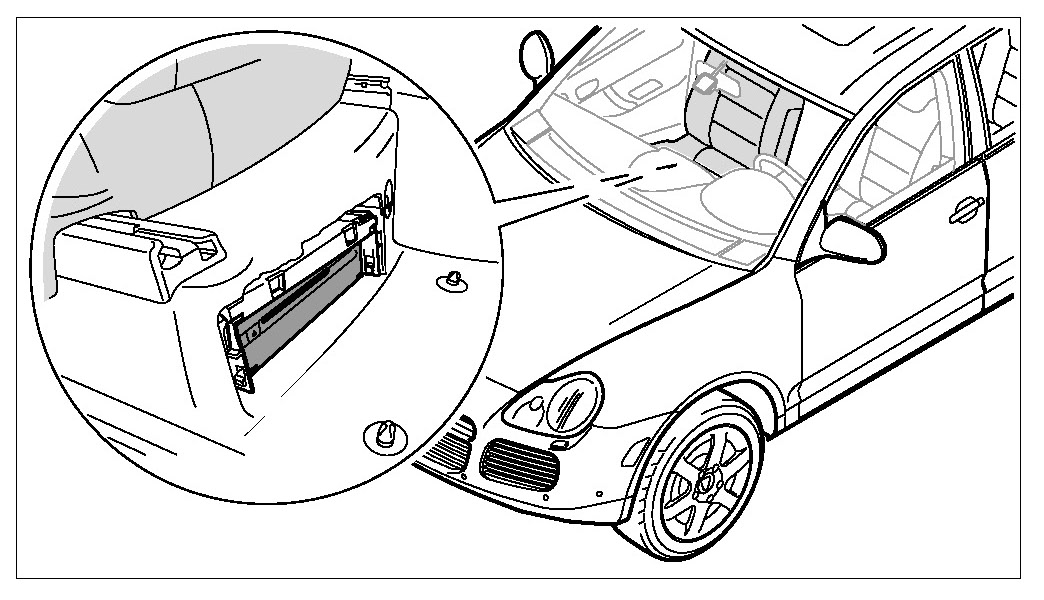

DVD Navigation component arrangement
DVD navigation
GPS receiver

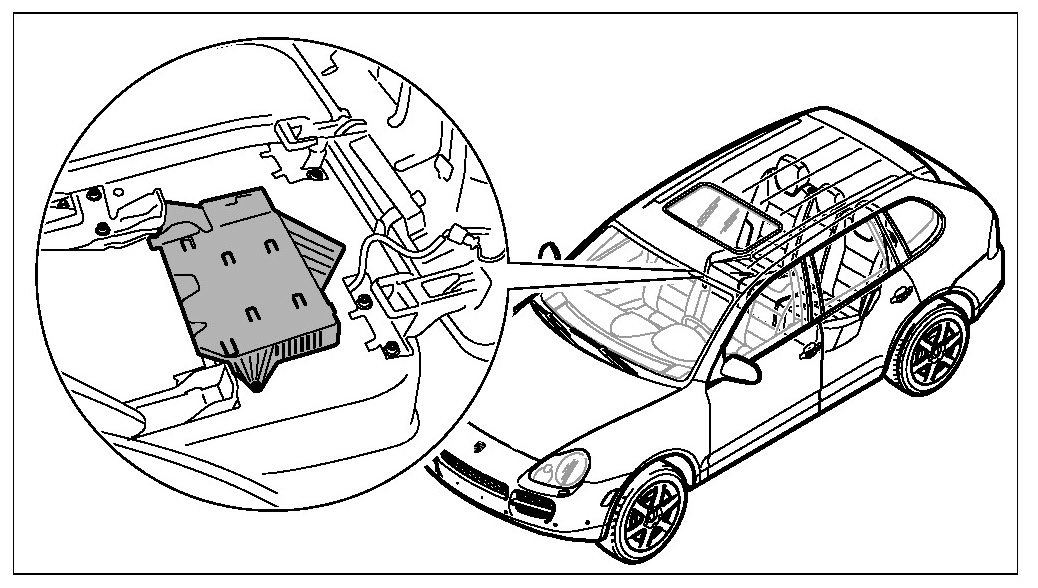

TV tuner component arrangement
TV tuner

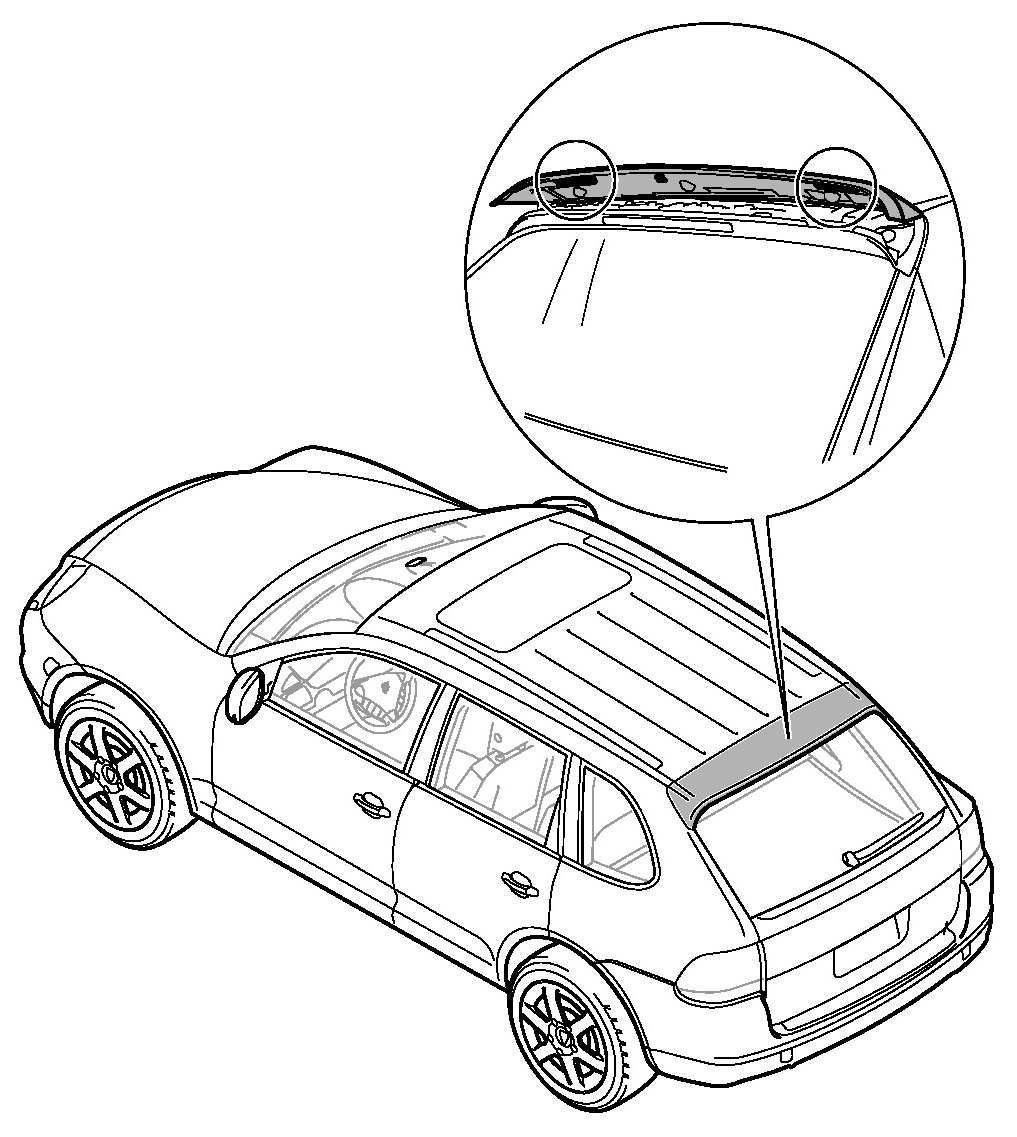

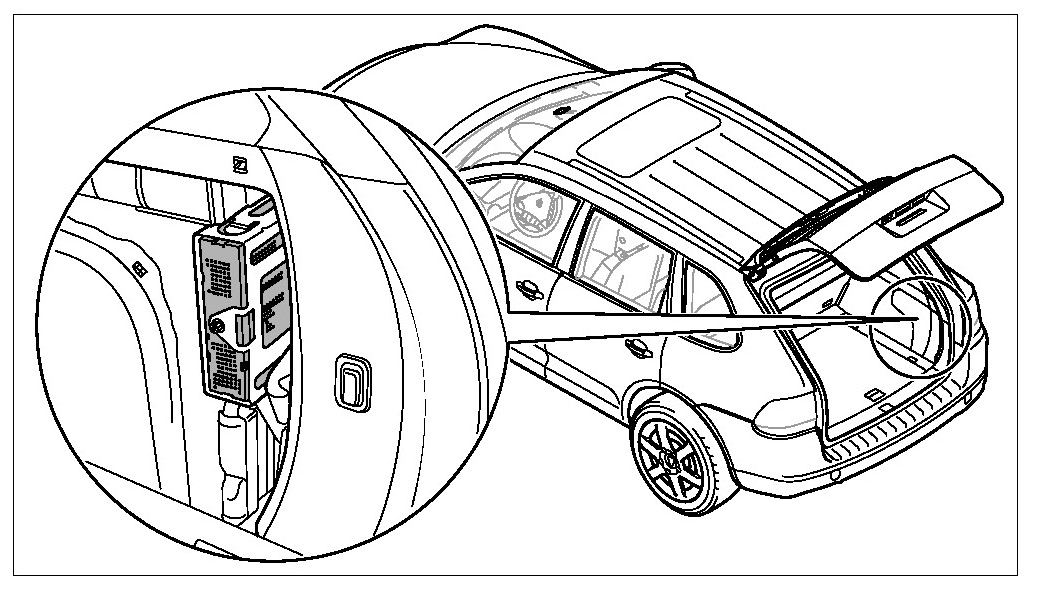

Antenna amplifier on left side window (reverse mirror image on right side window)

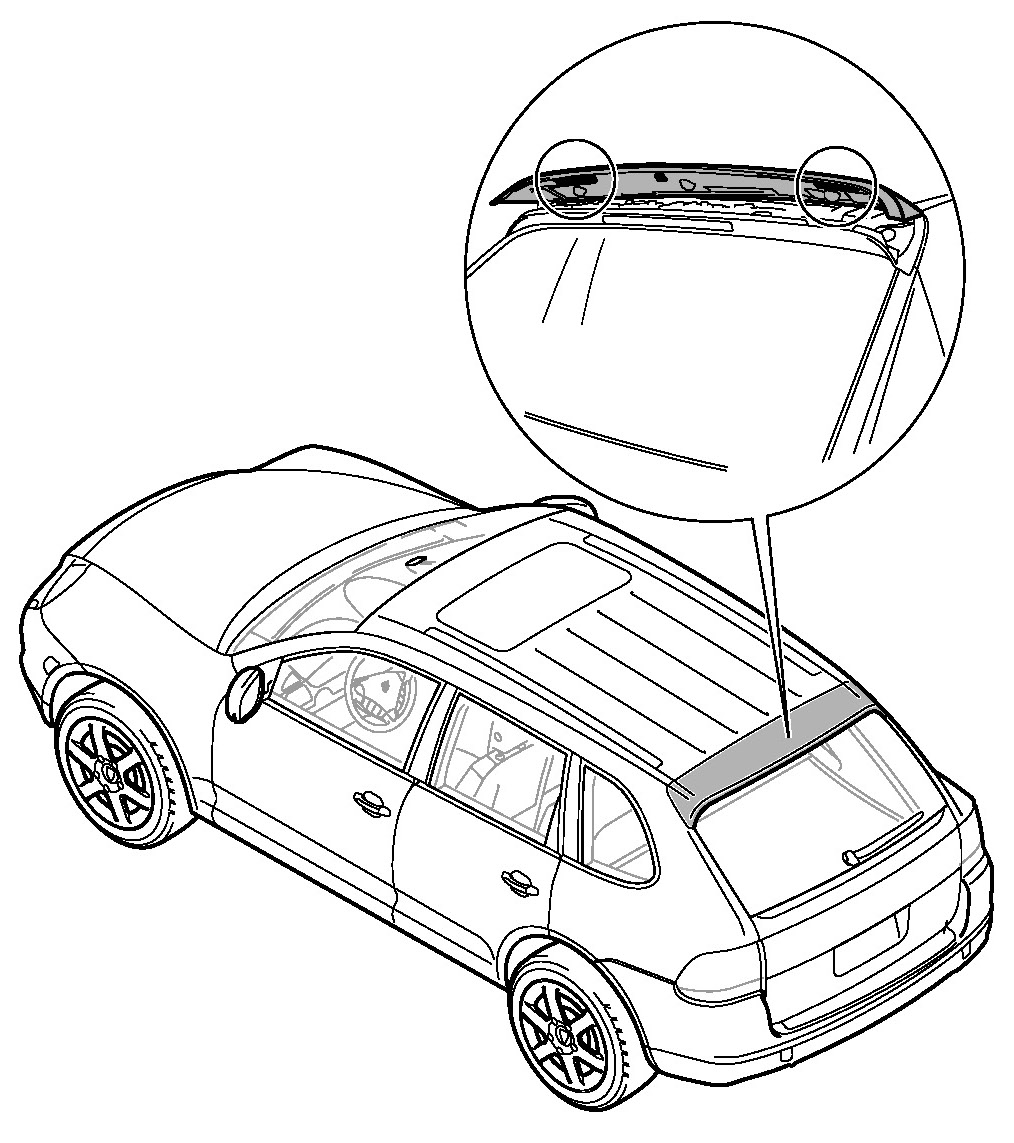

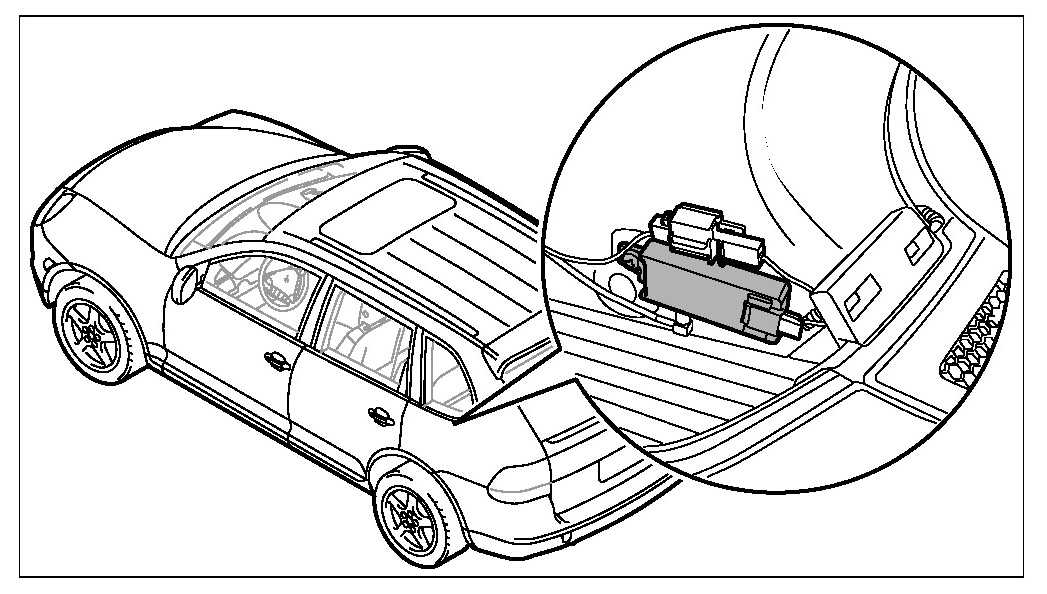

Rear antenna amplifier (outer and middle)
