PCM2/CDR23
PCM2/CDR23 Connector Assignment

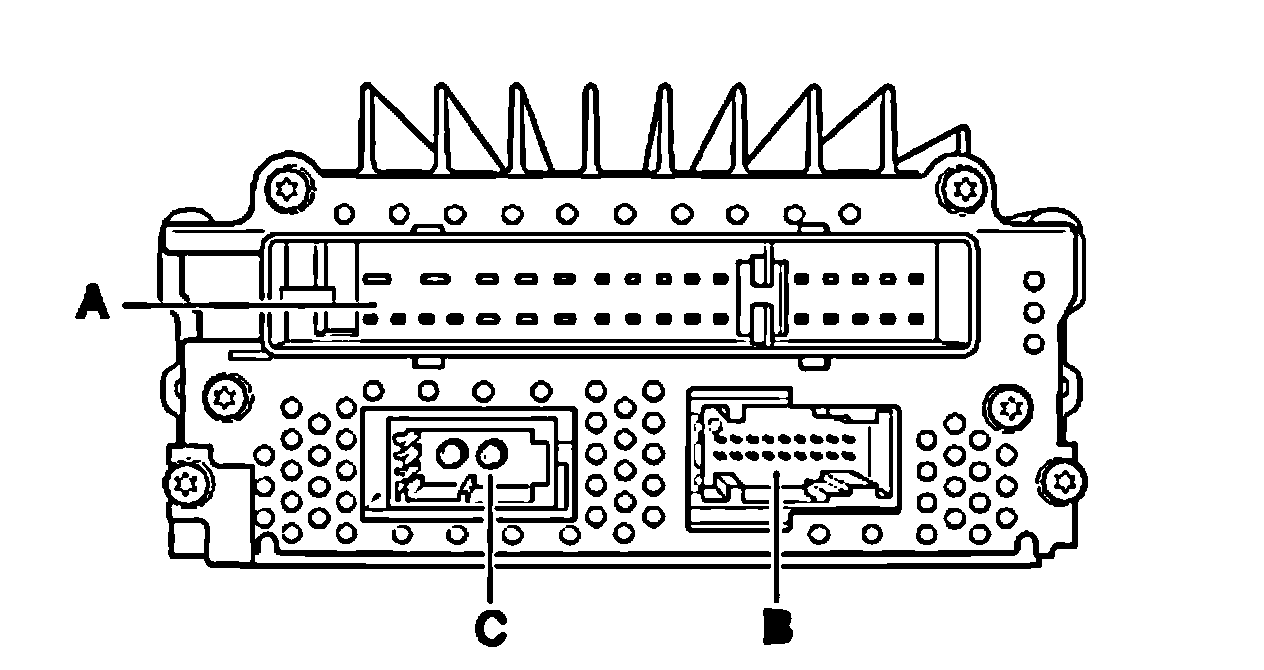

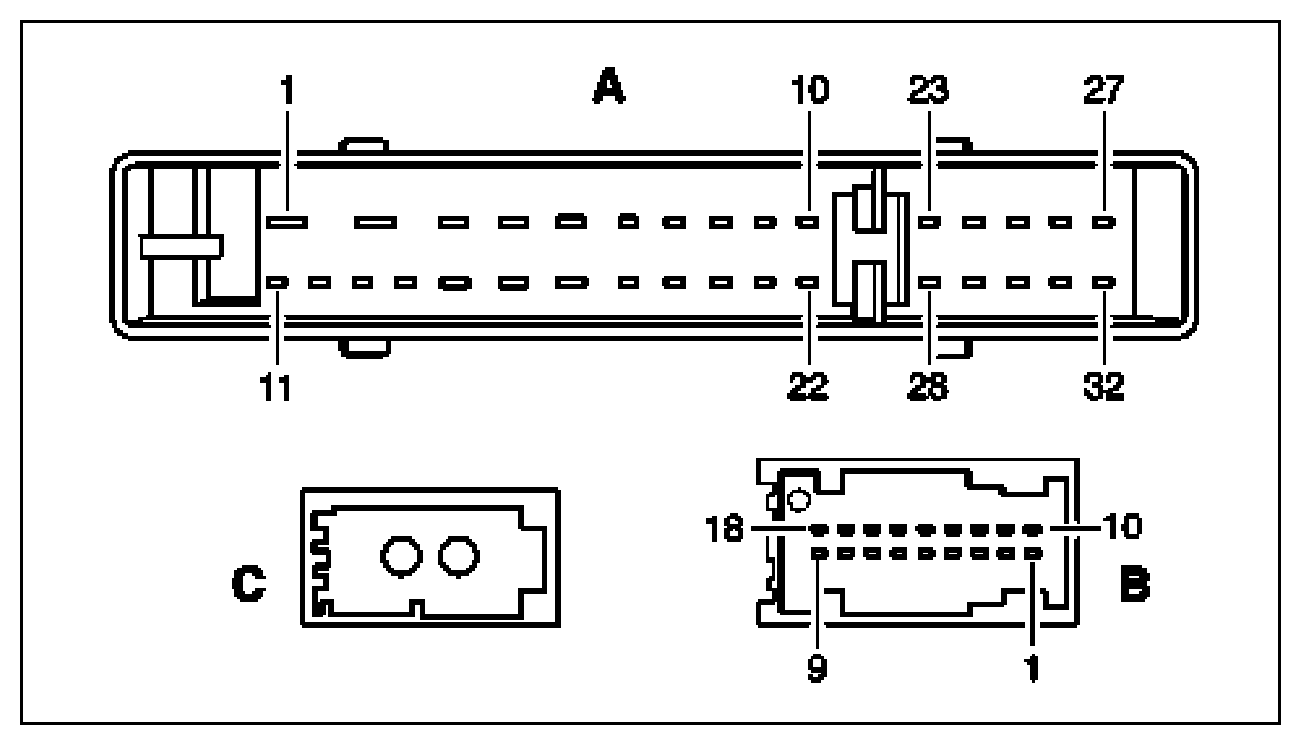

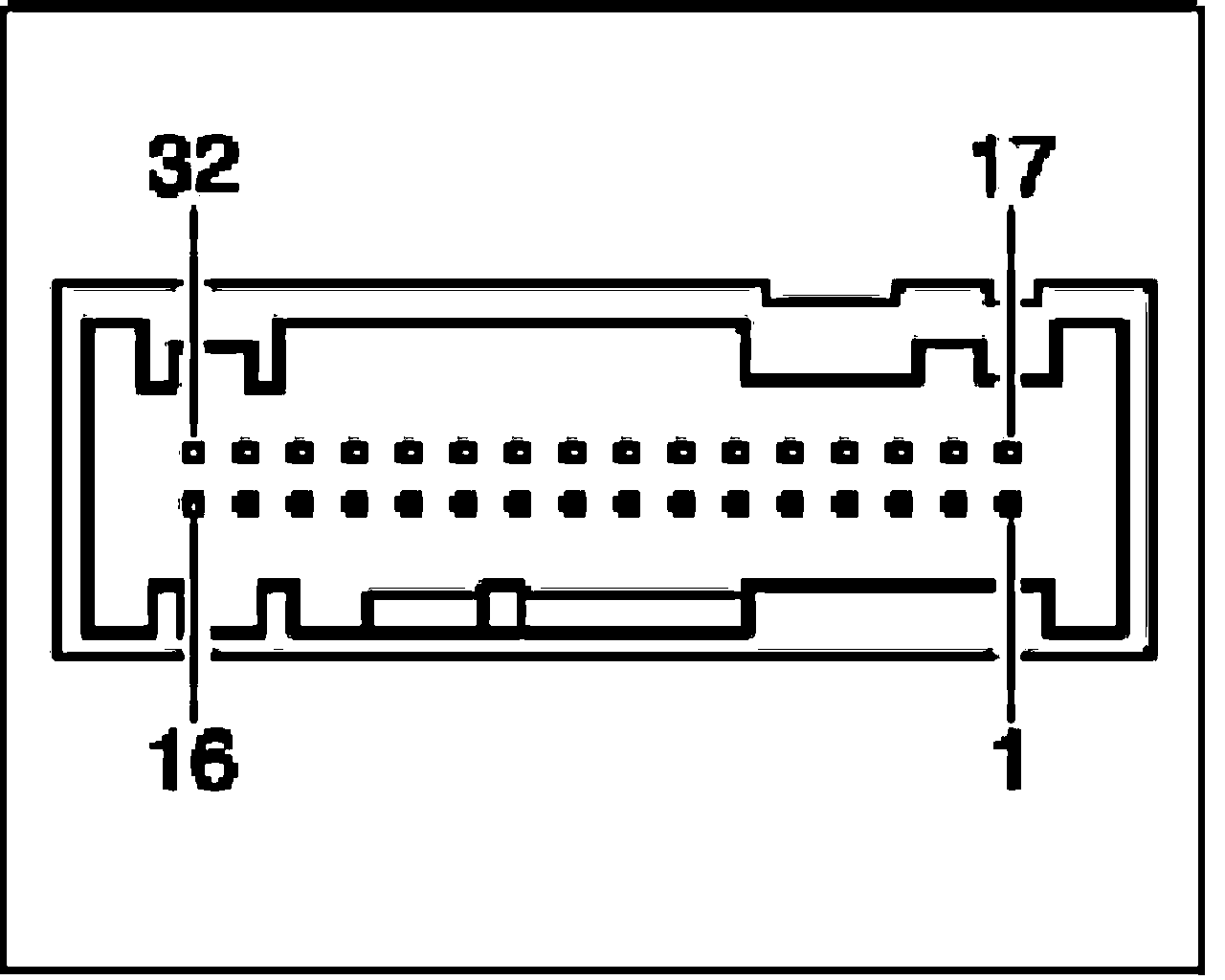

Connector pin assignments - external BOSE amplifier
Plug A, loudspeaker

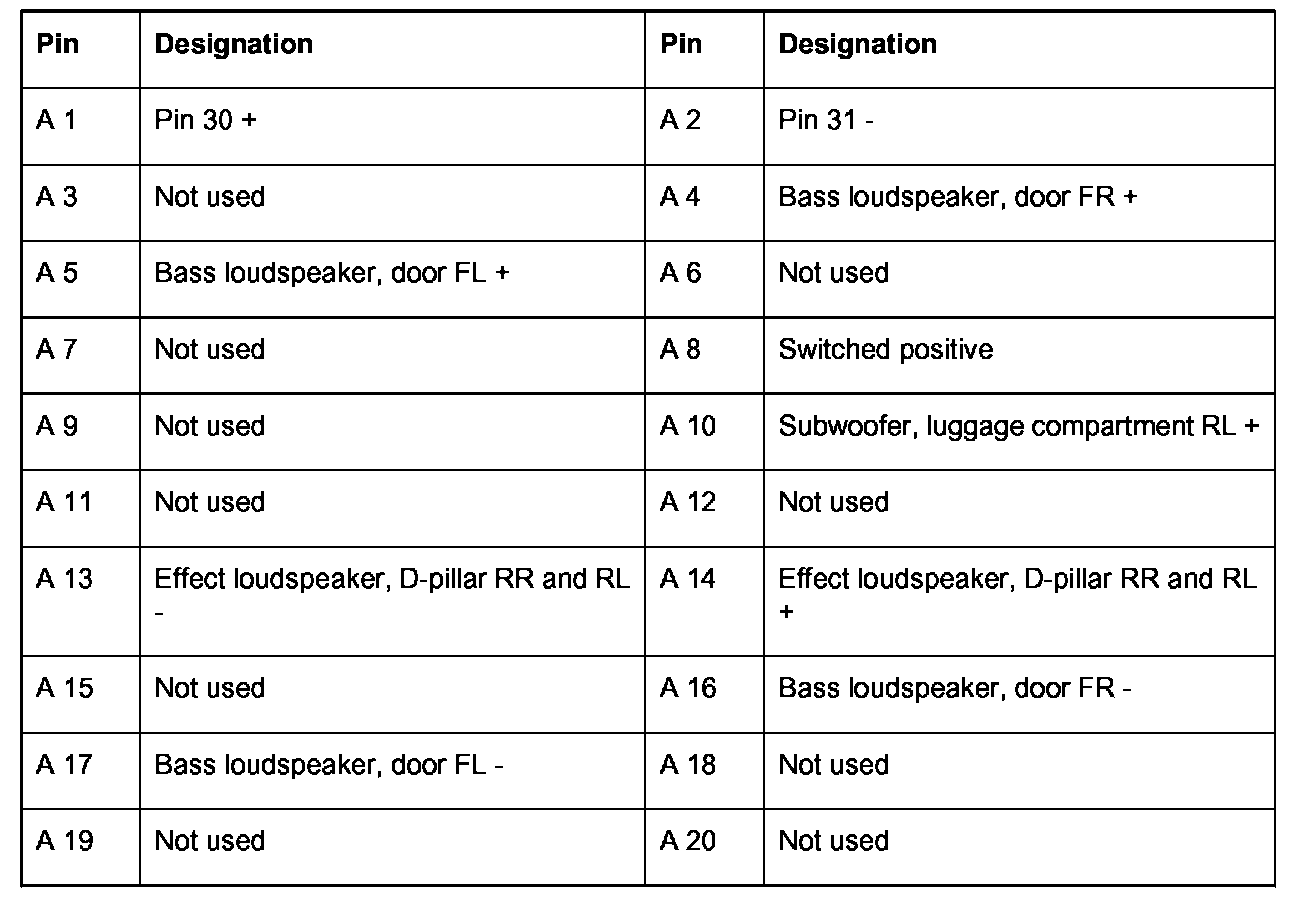

Pin A1 - A20:

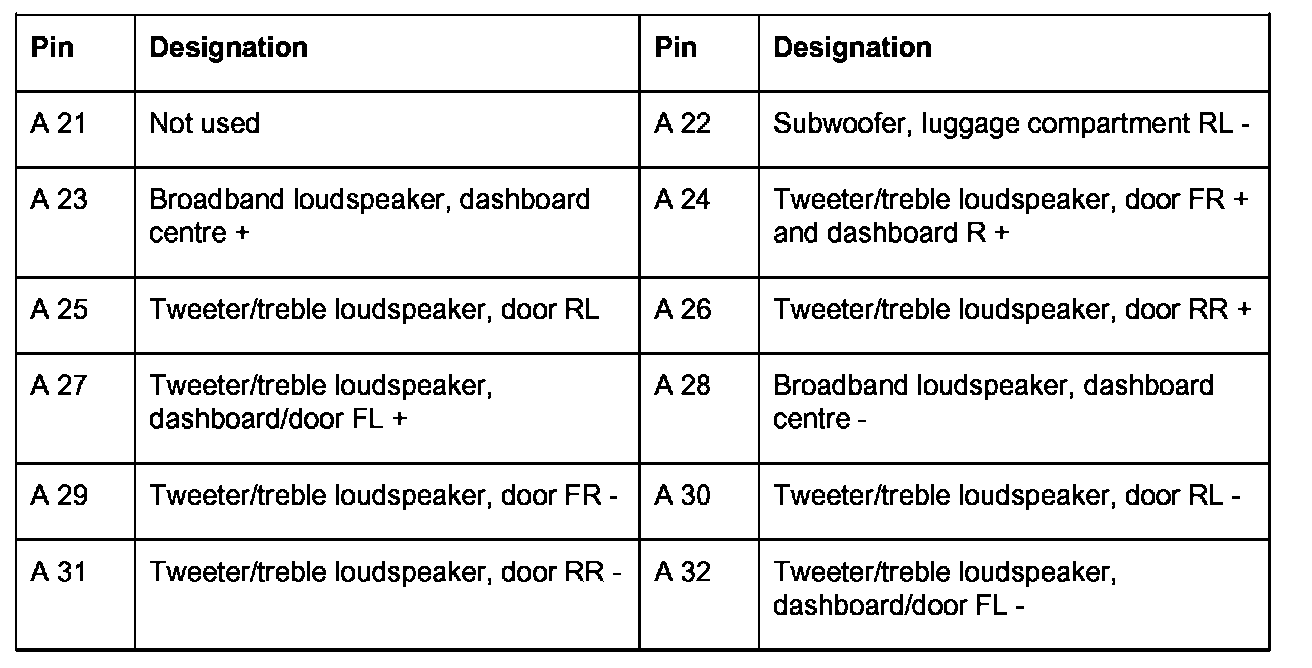

Pin A21 - A32:
Plug B, microphone

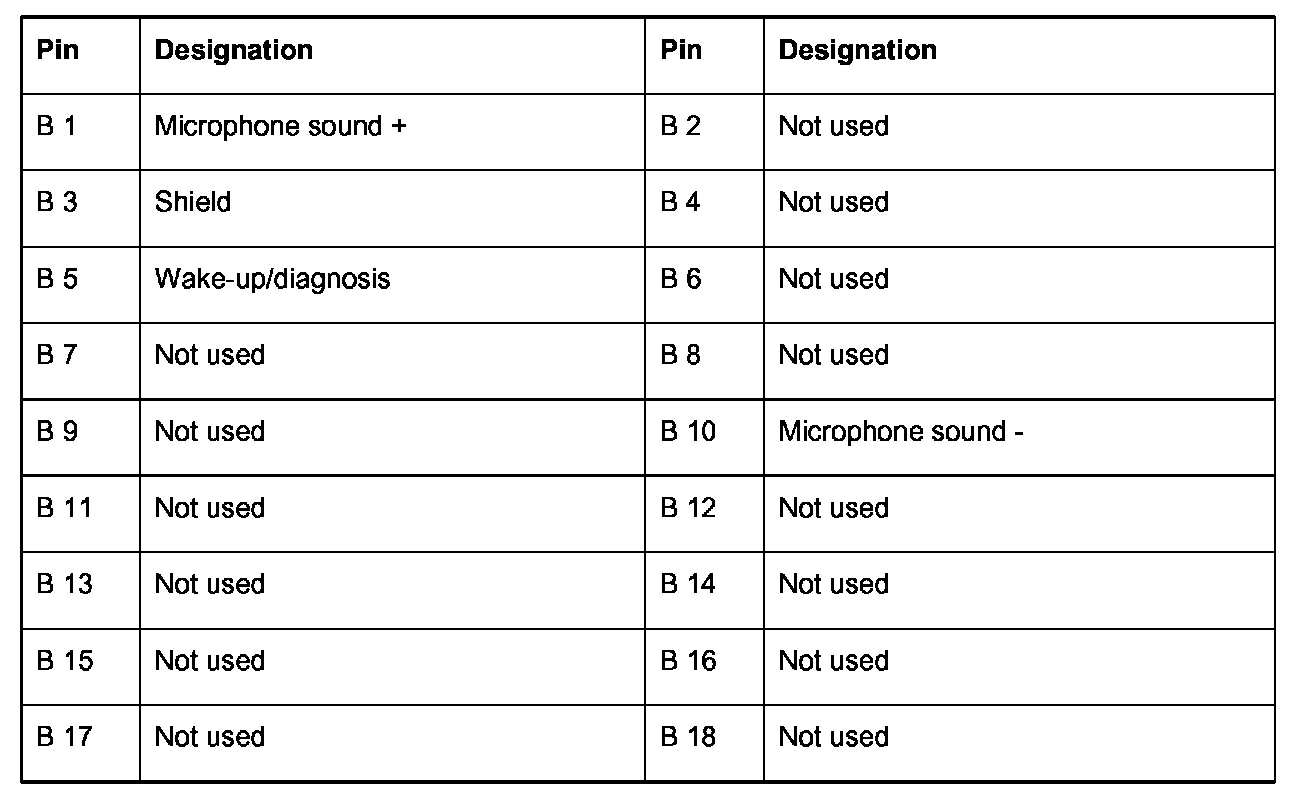

Pin B1 - B18:
Plug C, optical waveguide

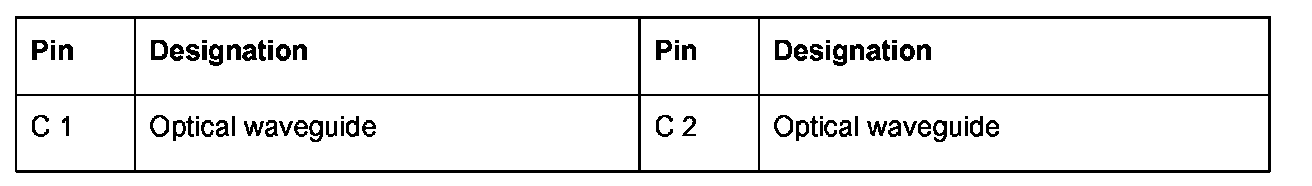

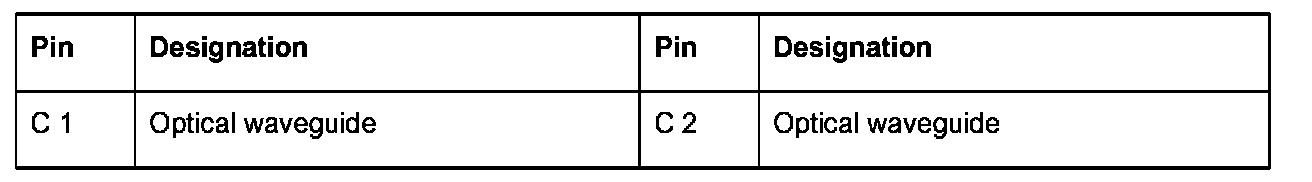

Pin C1 - C2:

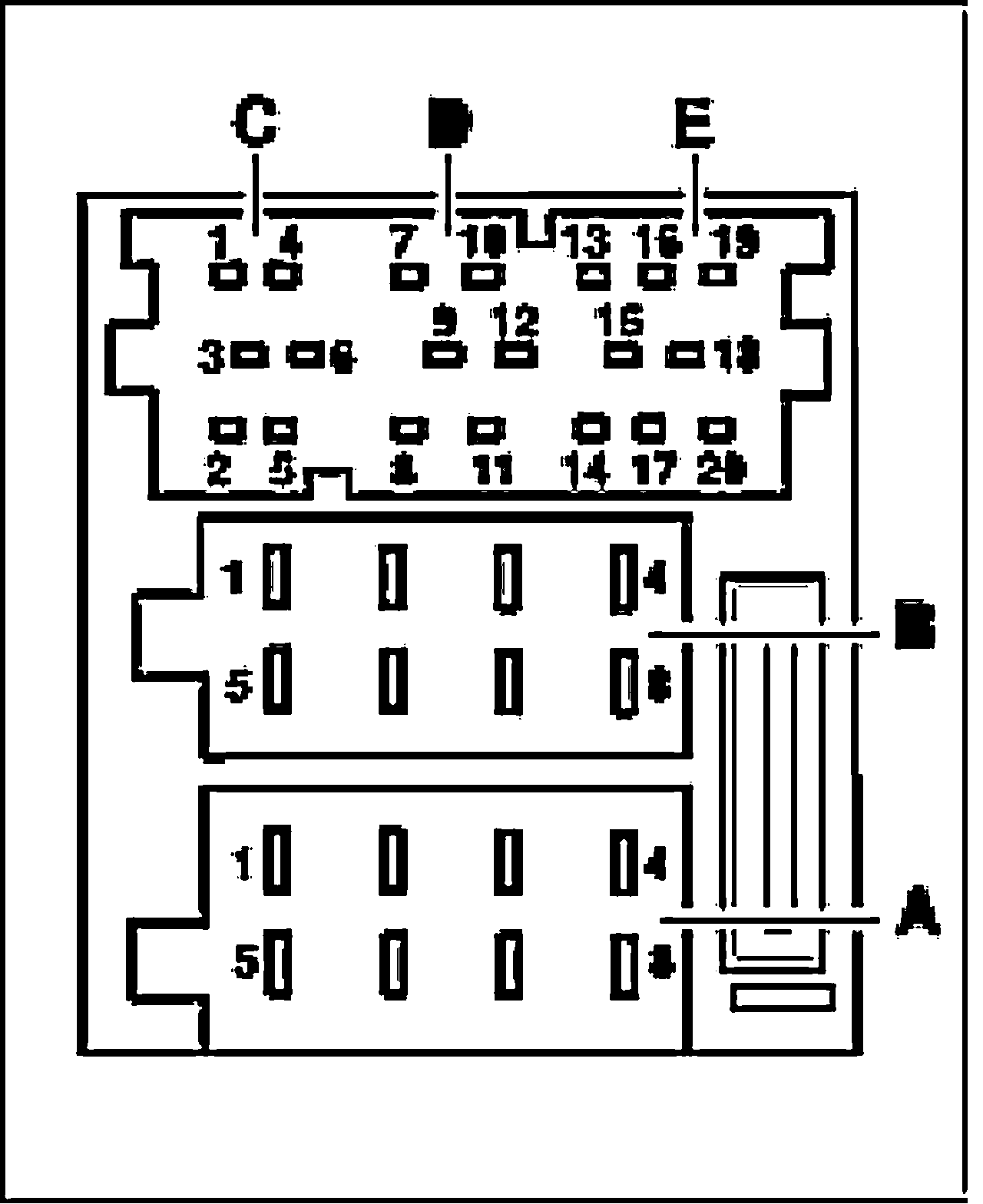

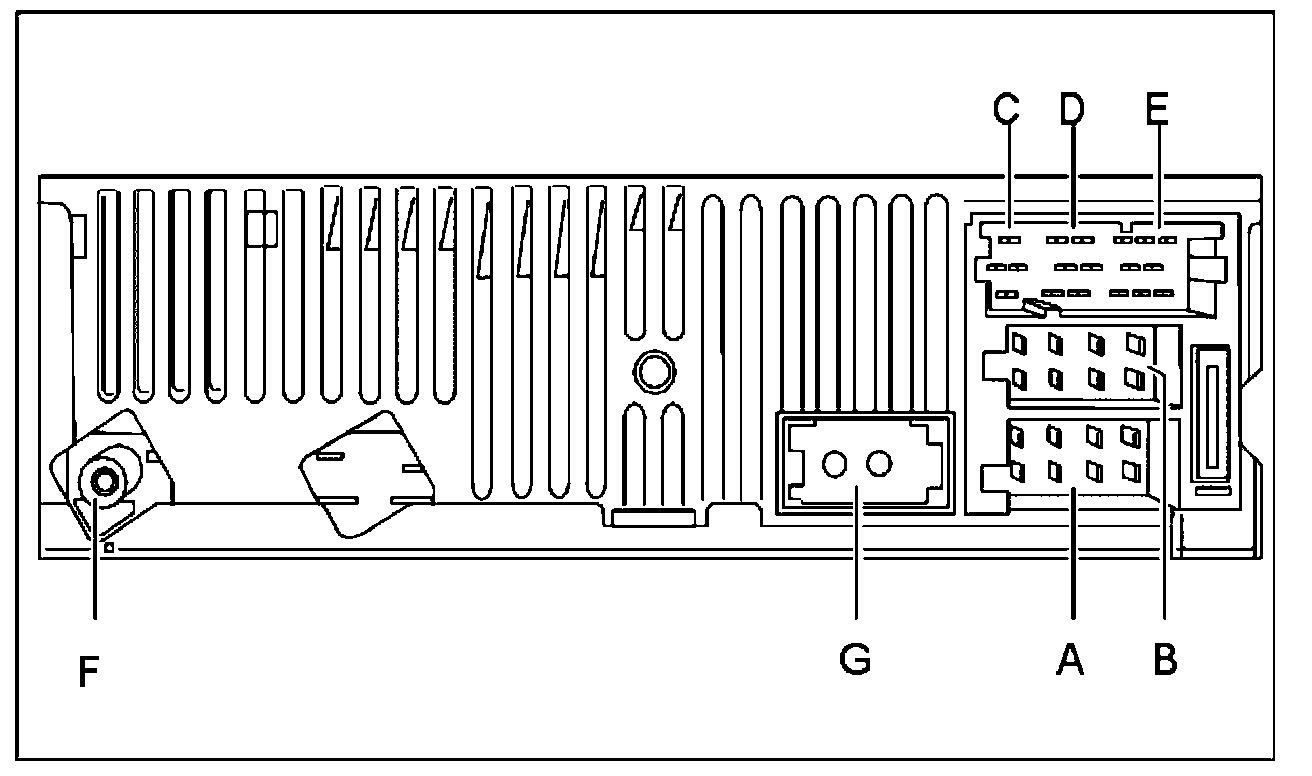

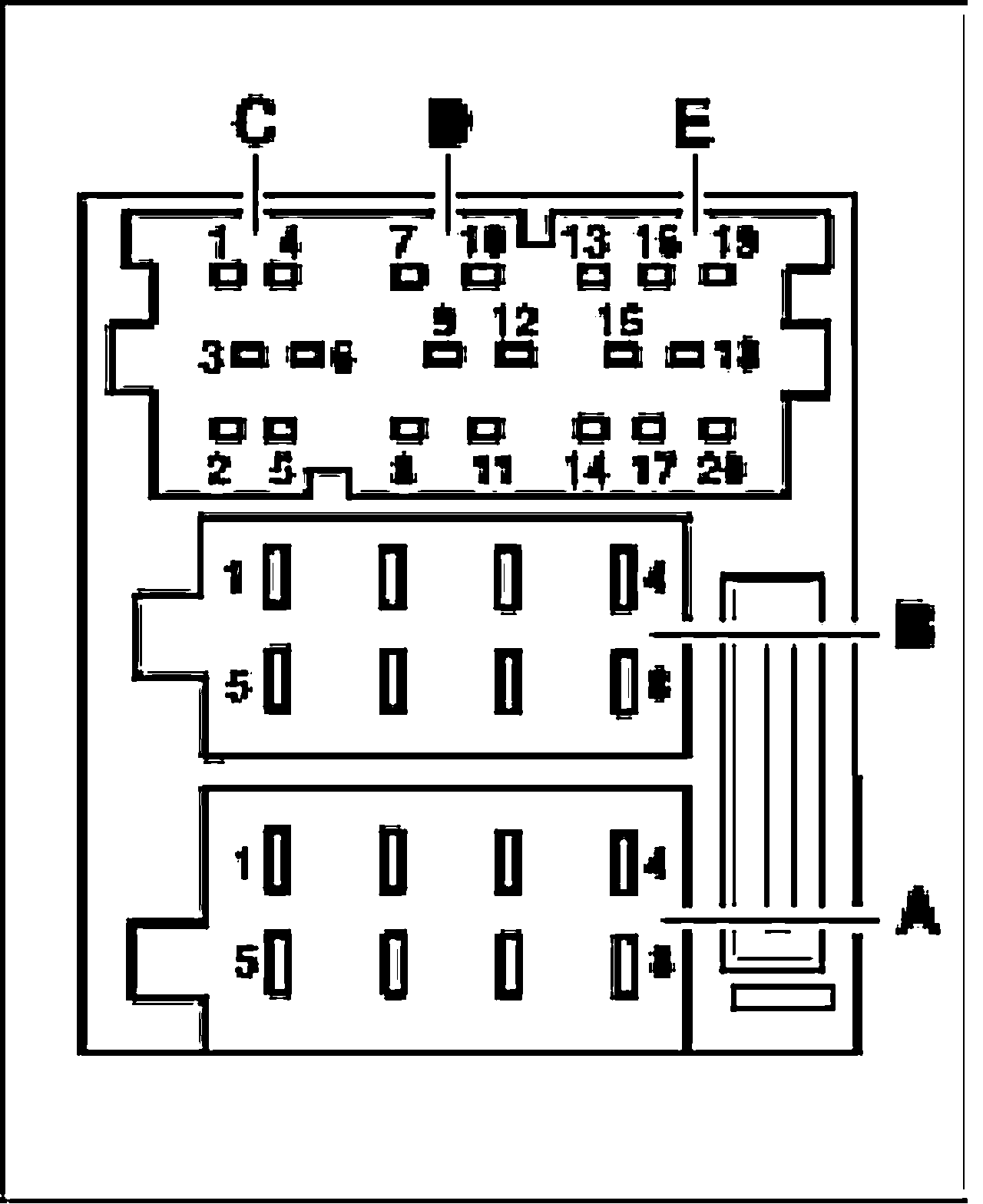

CDR23 connector assignment

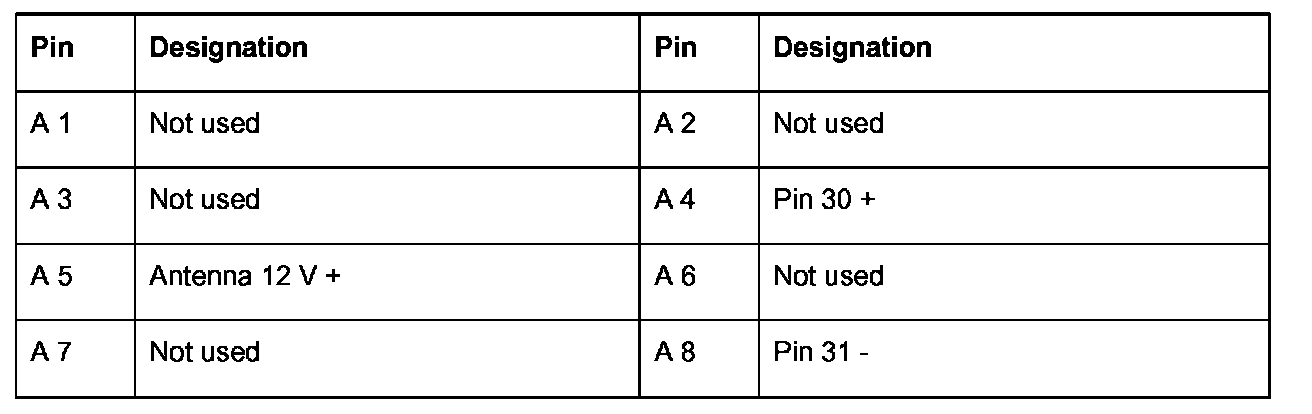

Plug A, black, power supply
Pin A1 - A8:

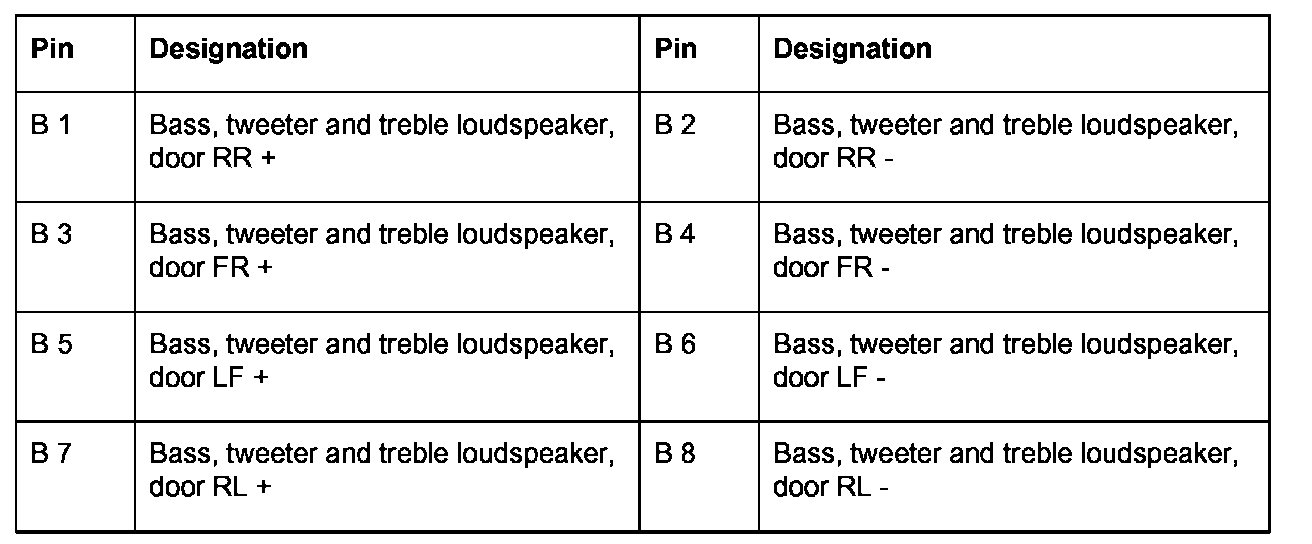

Plug B, brown, loudspeaker output
Pin B1 - B8:
Plug C, yellow, loudspeaker output

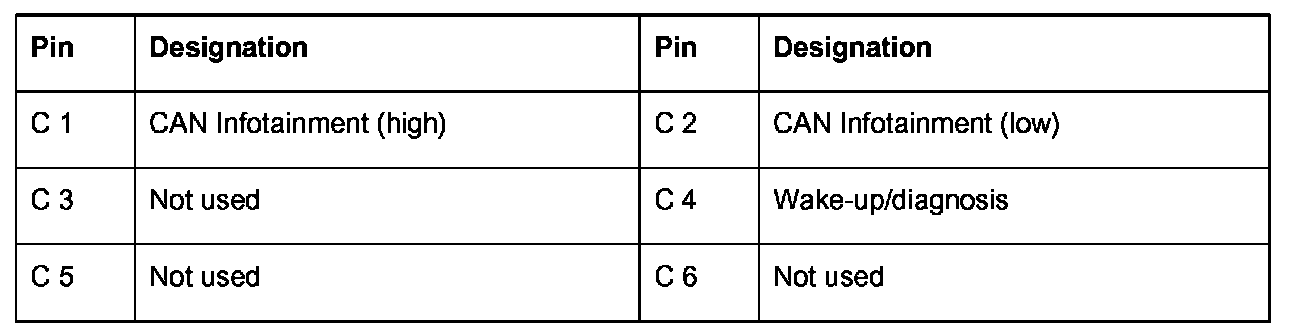

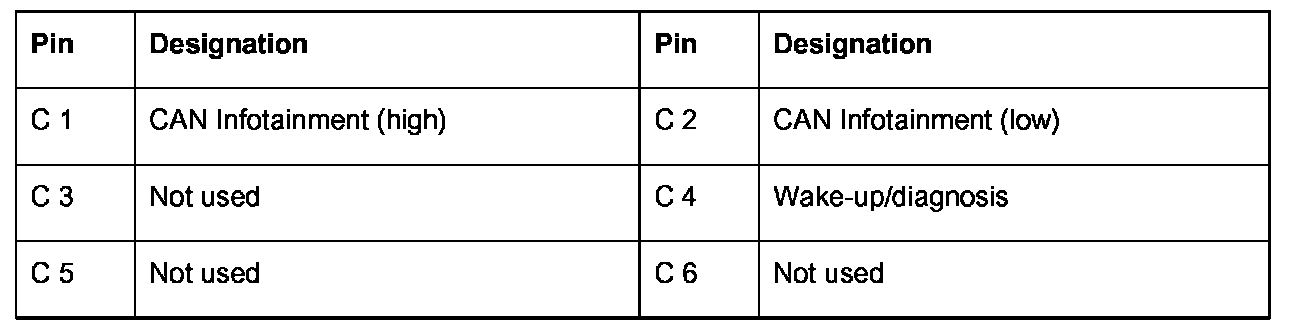

Pin C1 - C6:

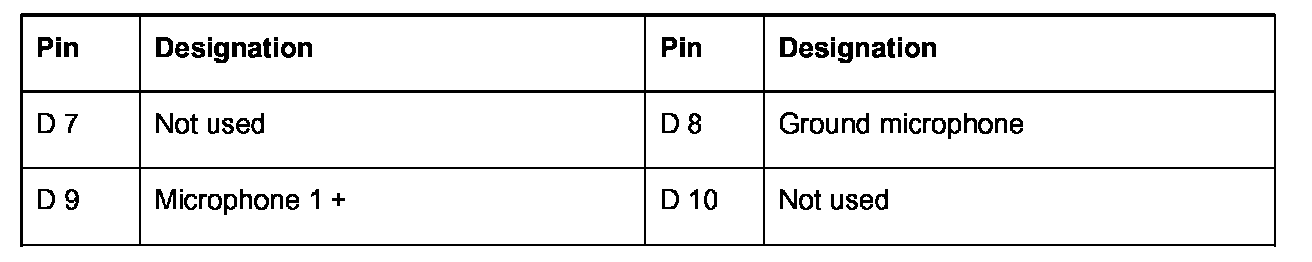

Plug D, green, microphone

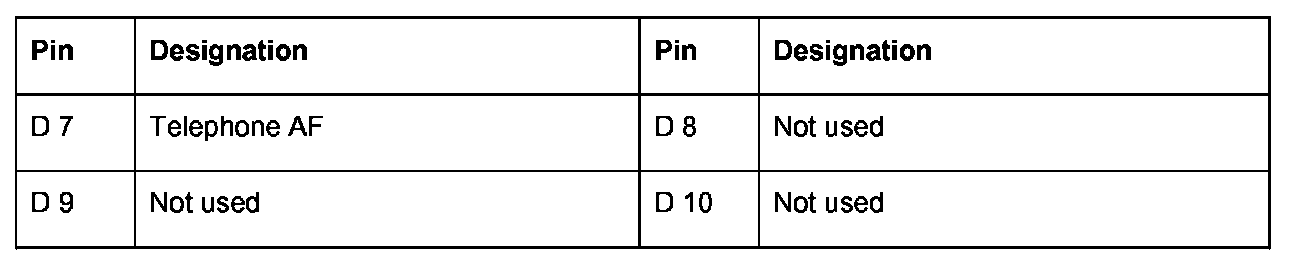

Pin D7 - D10:

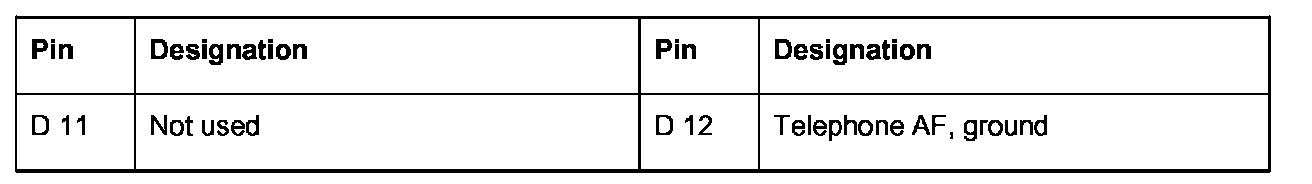

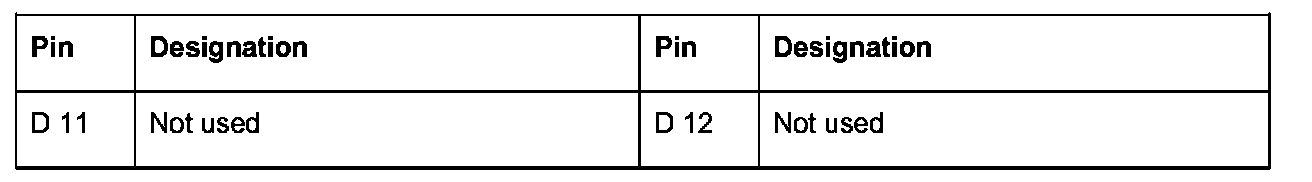

Pin D11 - D12:

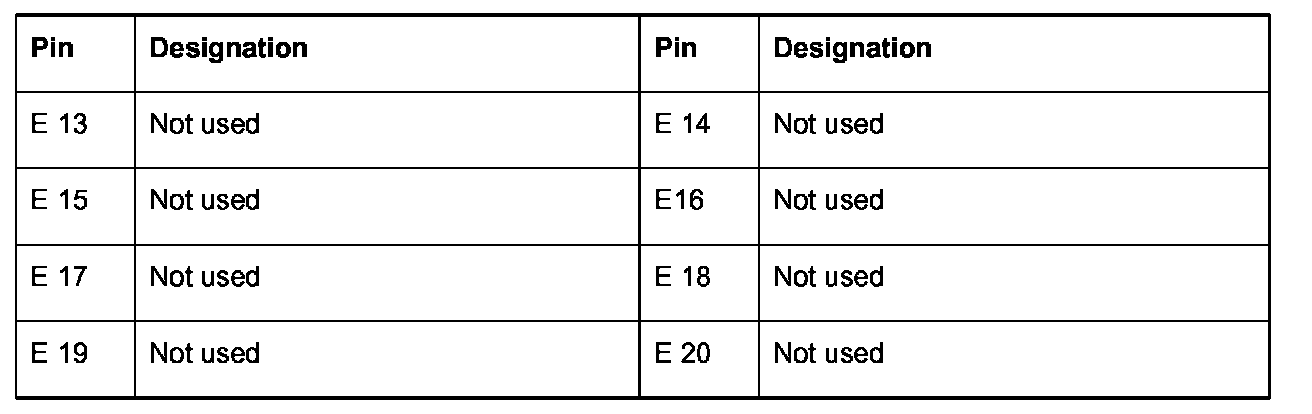

Plug E, blue, emergency call

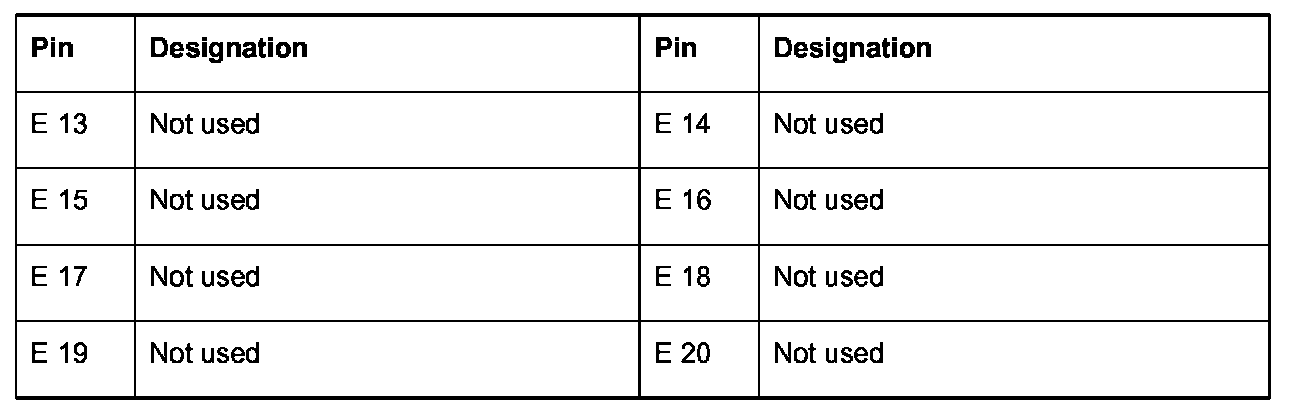

Pin E13 - E20:
Plug F, radio antenna

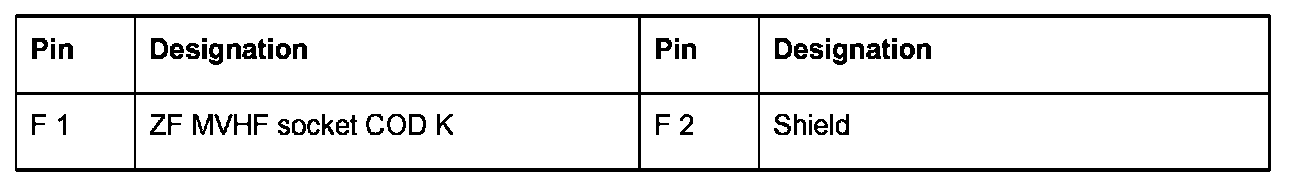

Pin F1 - F2:

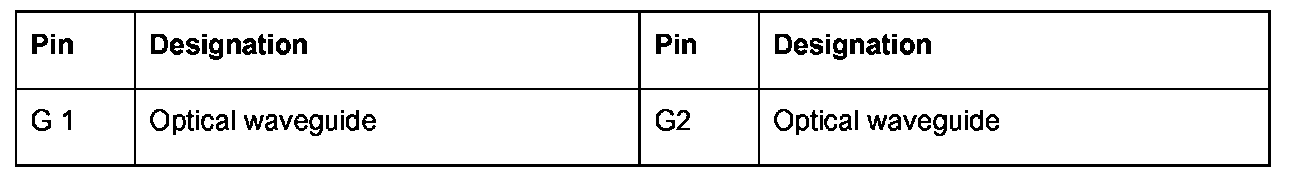

Plug G, MOST, optical
Pin G1 - G2:

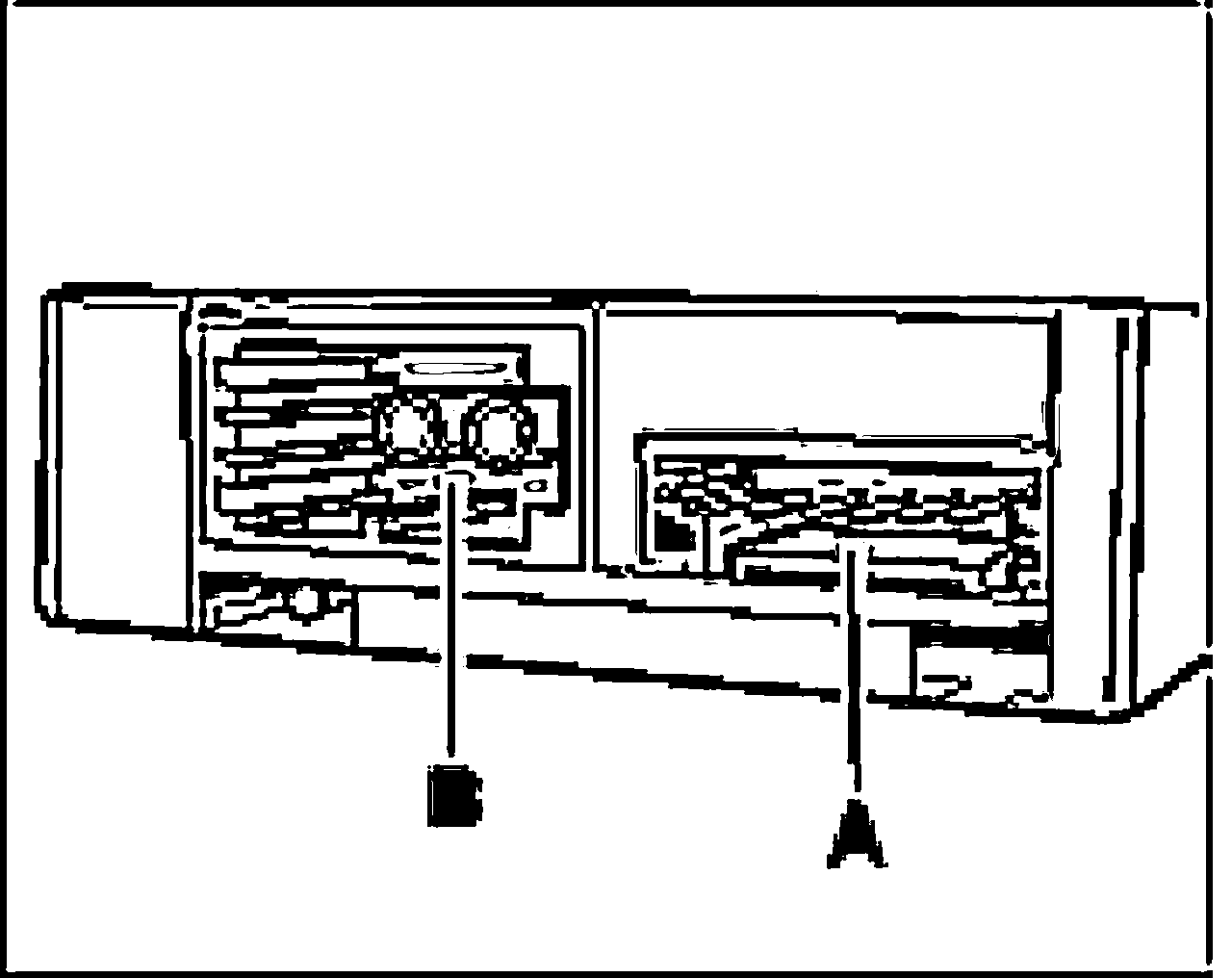

CD changer plug connections

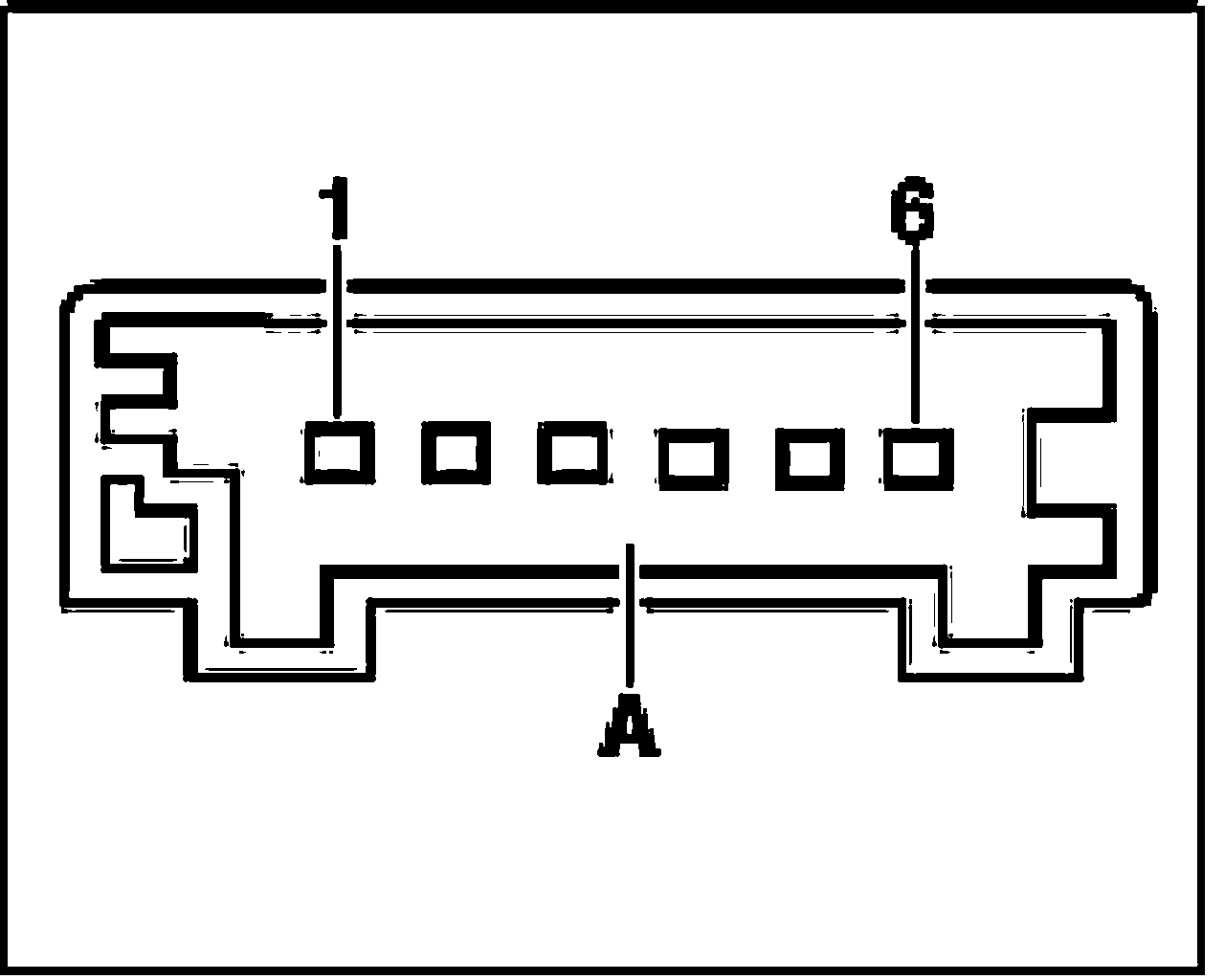

Connector A

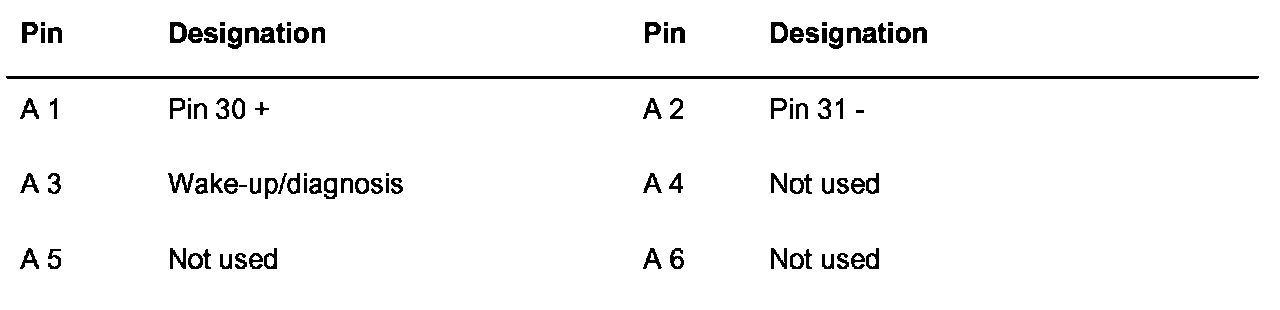

Pin A1 - A6:
Connector B
Pin B1 - B2:

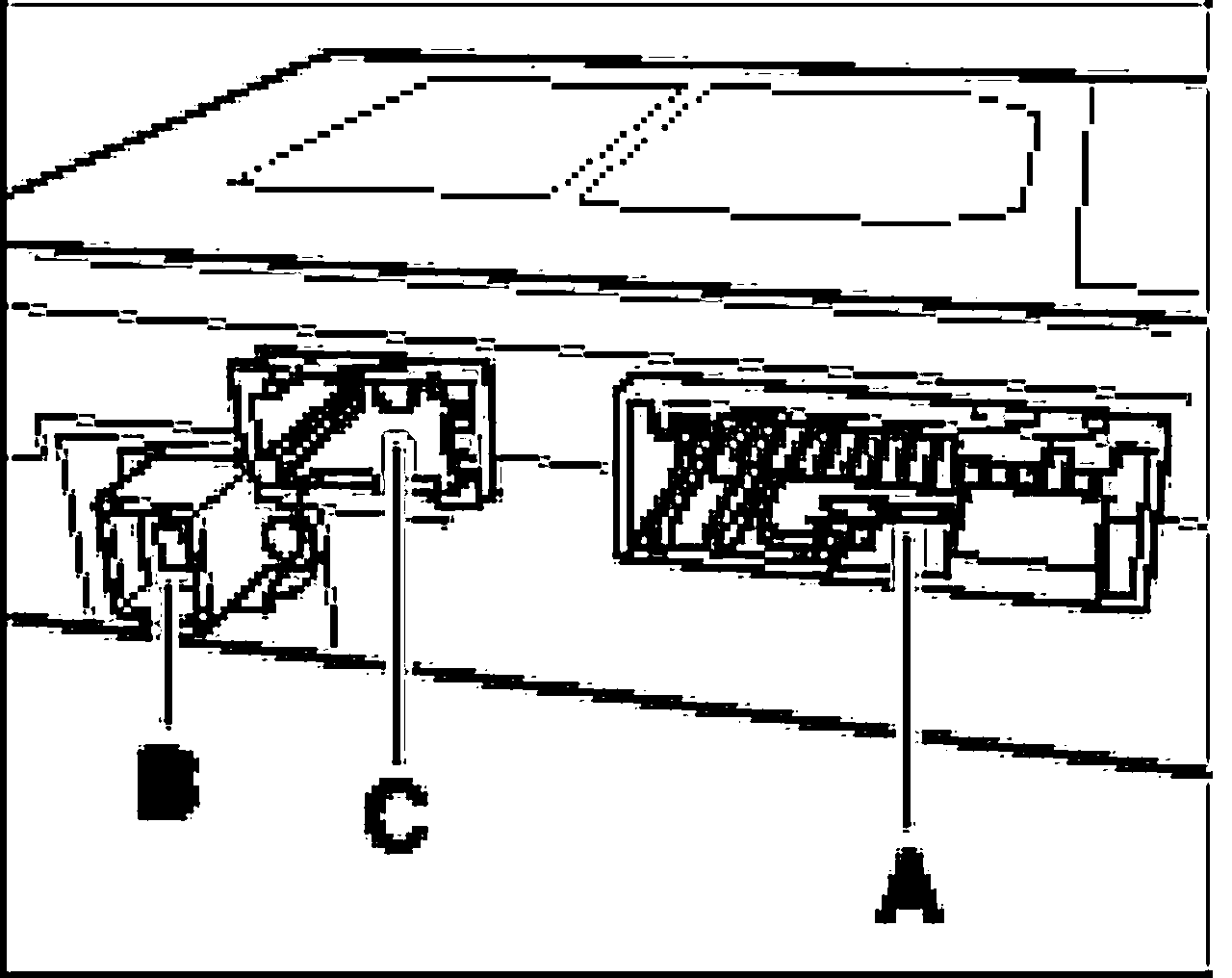

Telephone/telematics connector assignment
Connector A

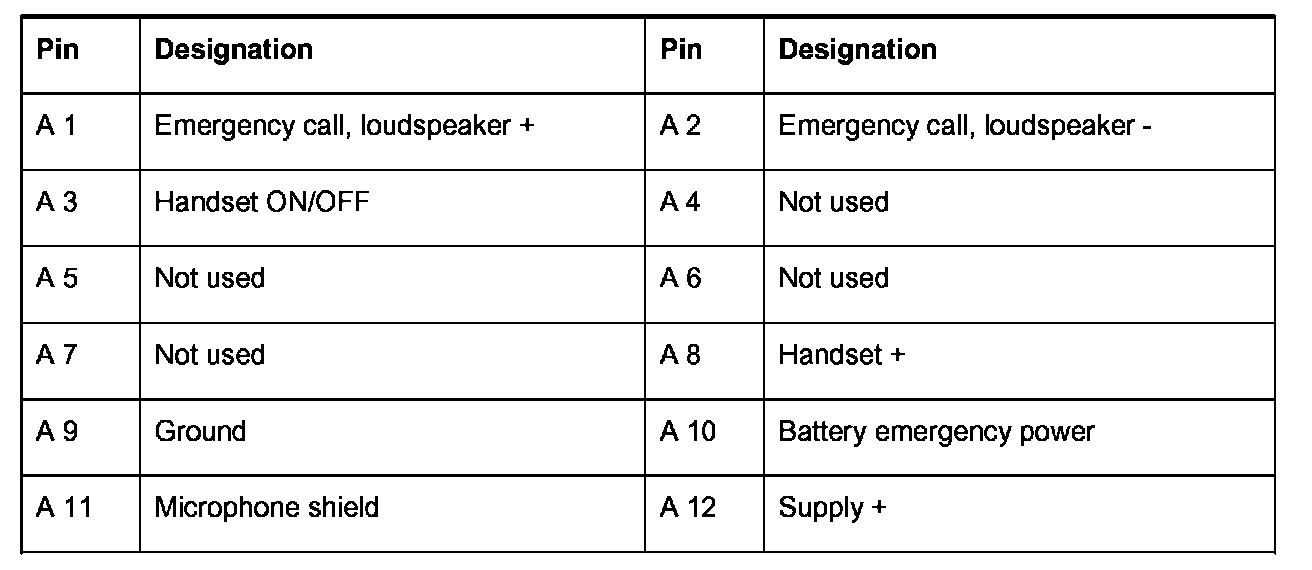

Pin A1 - A12:

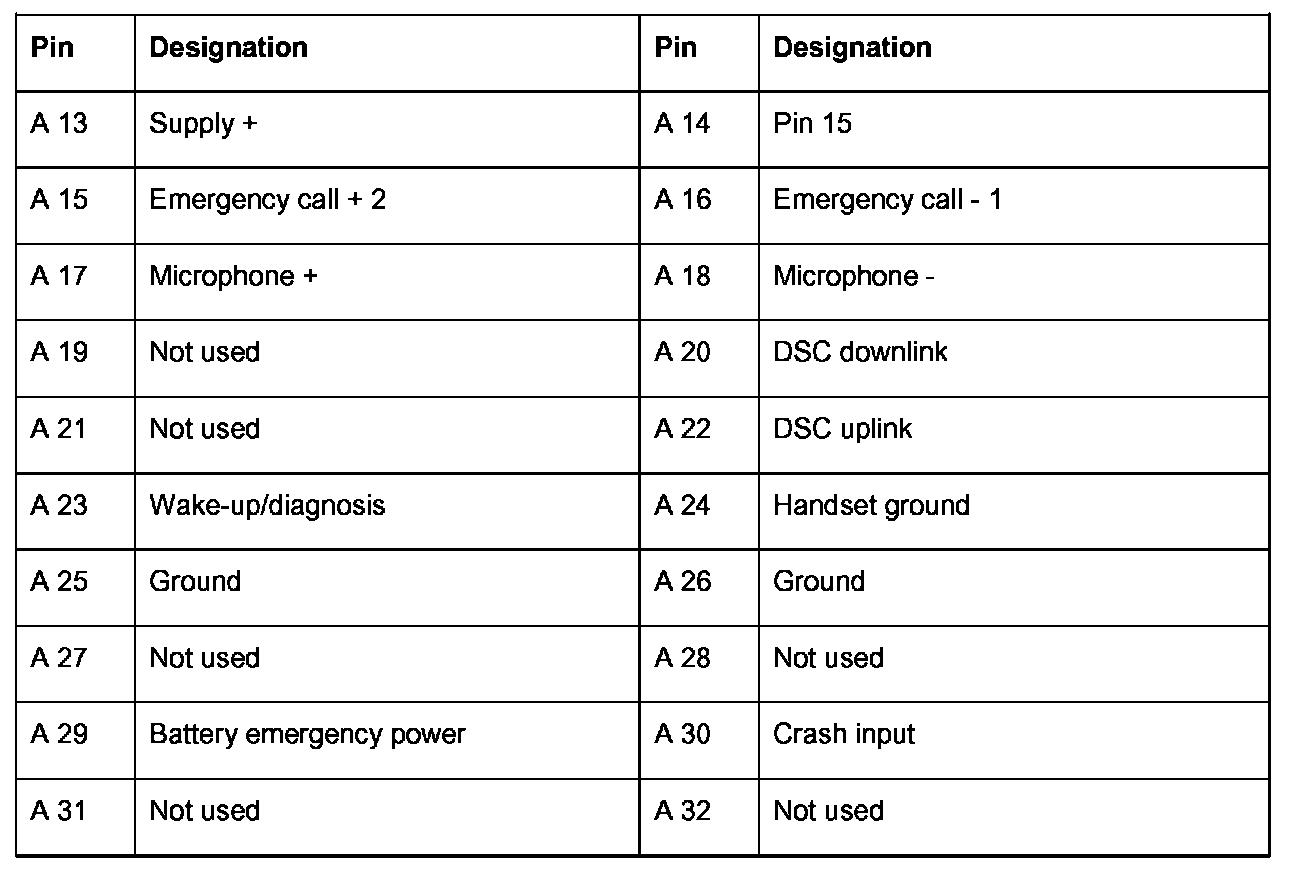

Pin A13 - A32:
Connector B

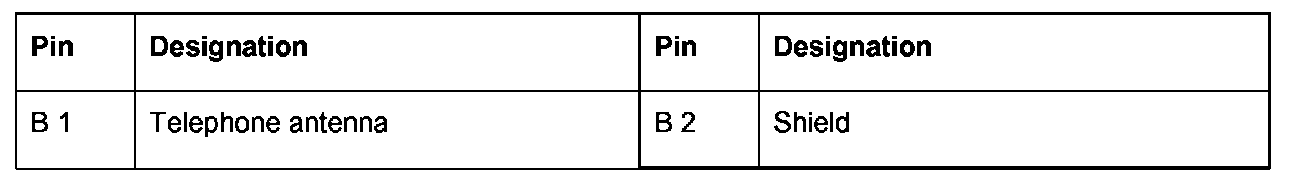

Pin B1 - B2:
Connector C
Pin C1 - C2:

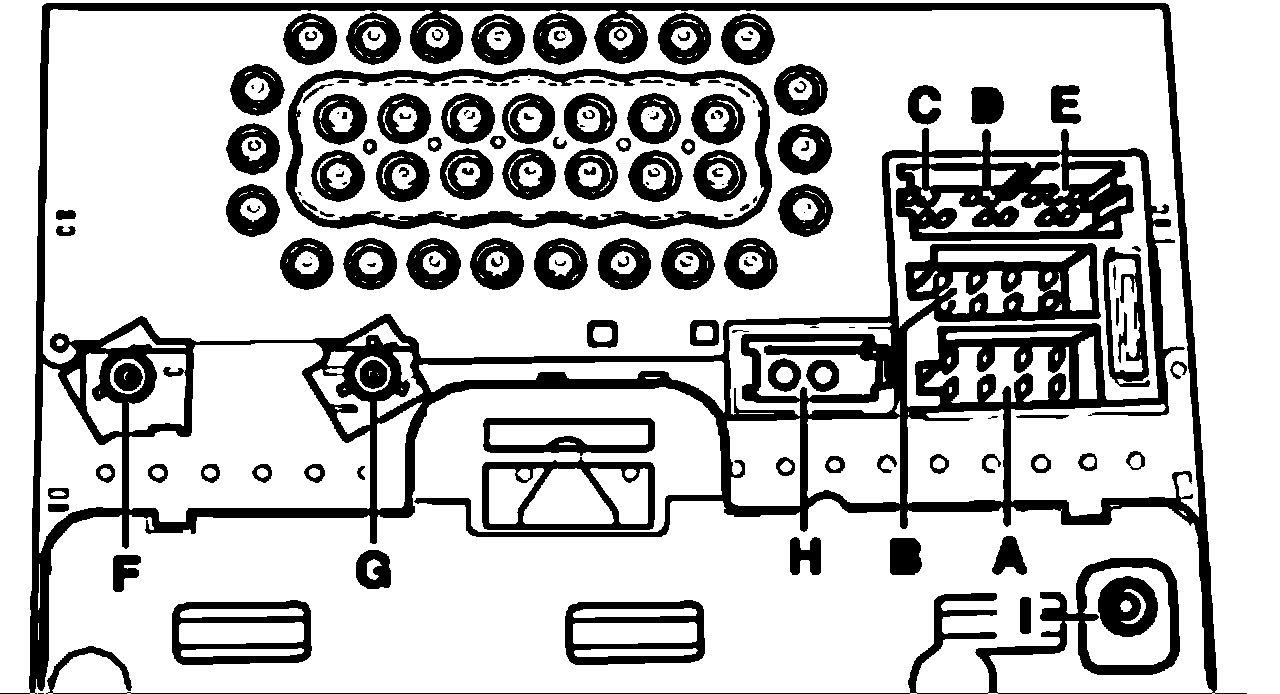

PCM2 plug connection

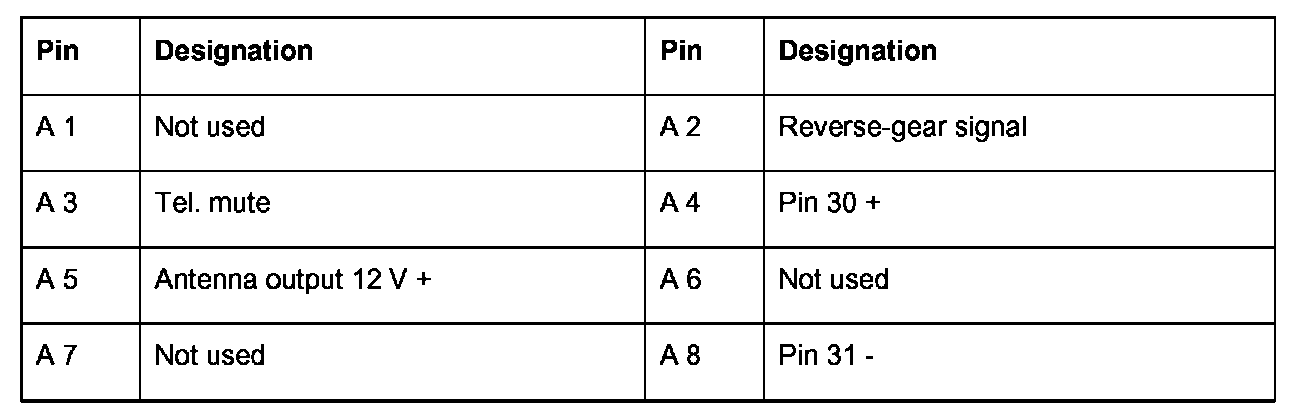

Plug A, black, power supply
Pin A1 - A8:
Plug B, brown, loudspeaker output
Pin B1 - B8:
Plug C, yellow, loudspeaker output
Pin C1 - C6:
Plug D, green, microphone
Pin D7 - D10:
Pin D11 - D12:
Plug E, blue, emergency call
Pin E13 - E20:
Plug F, antenna
Pin F1 - F2:

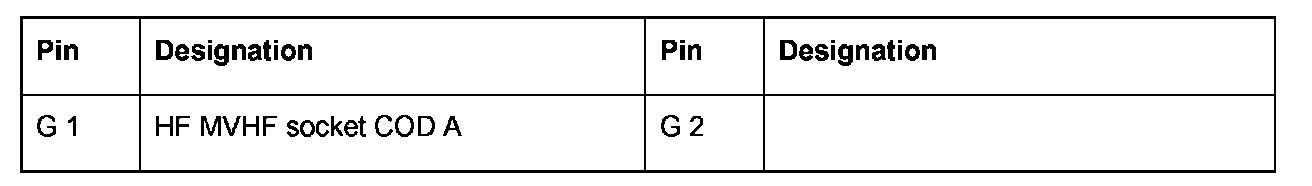

Connector G, diversity antennas
Pin G1 - G2:
Plug H, MOST, optical

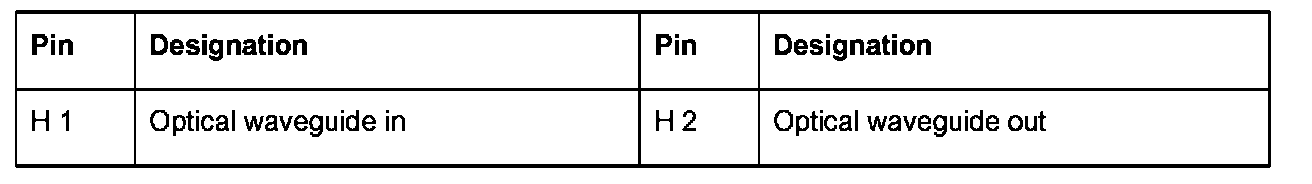

Pin H1 - H2:

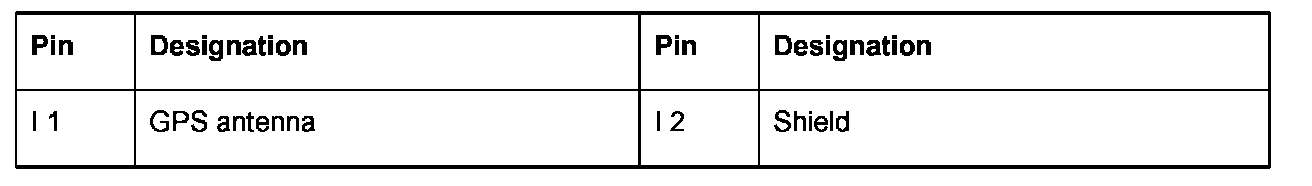

Plug I, navigation antenna
Pin I1 - I2:
Connector K TV
Pin K1 - K2:
