External BOSE Amplifier Audiotests



External BOSE Amplifier Audiotests

The loudspeakers can be checked externally with BOSE amplifier vehicle equipment using this menu item. The following selection is available:
- Manual single selection.
- Automatic test.
- Microphone and loudspeaker.

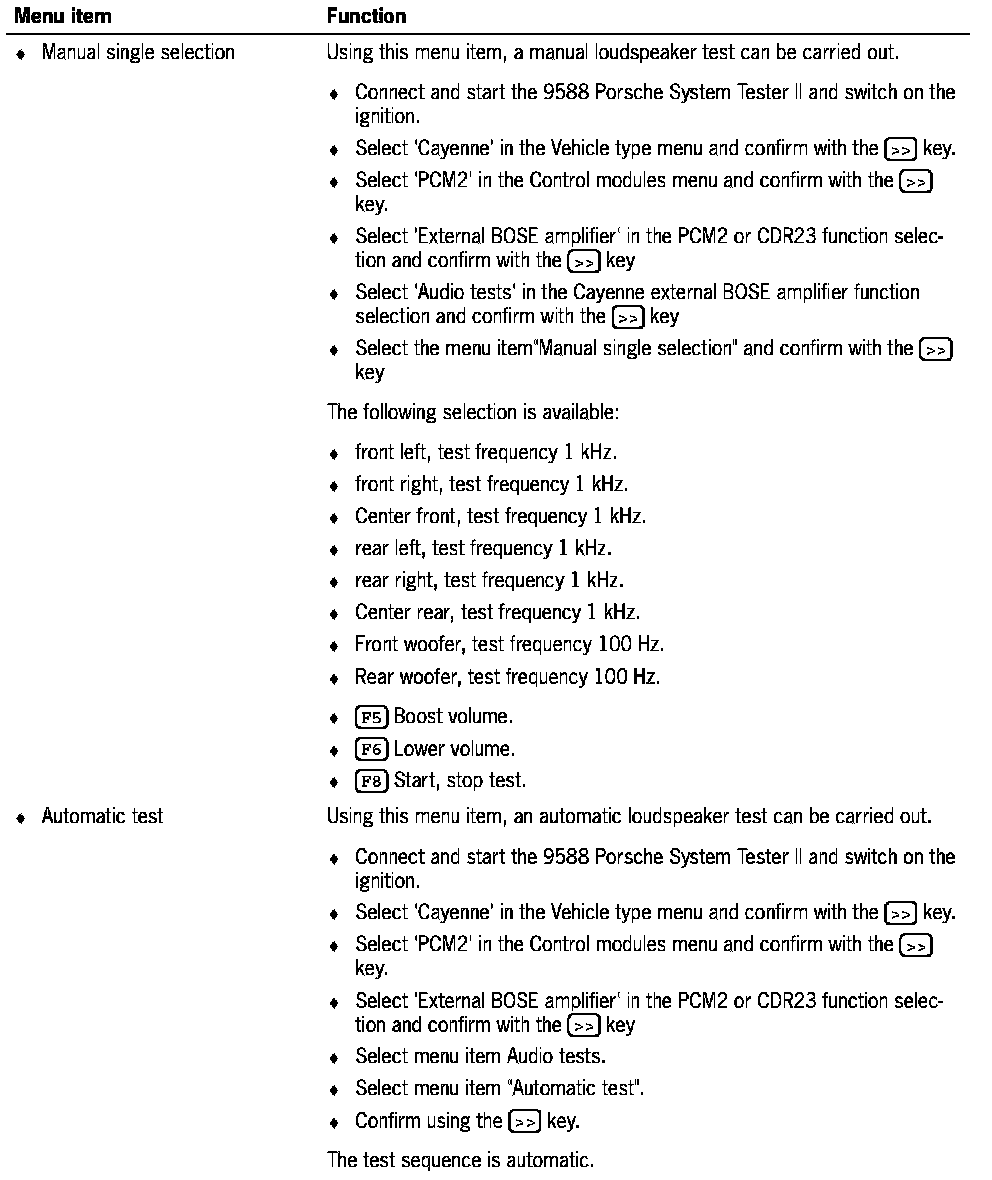

Part 1:

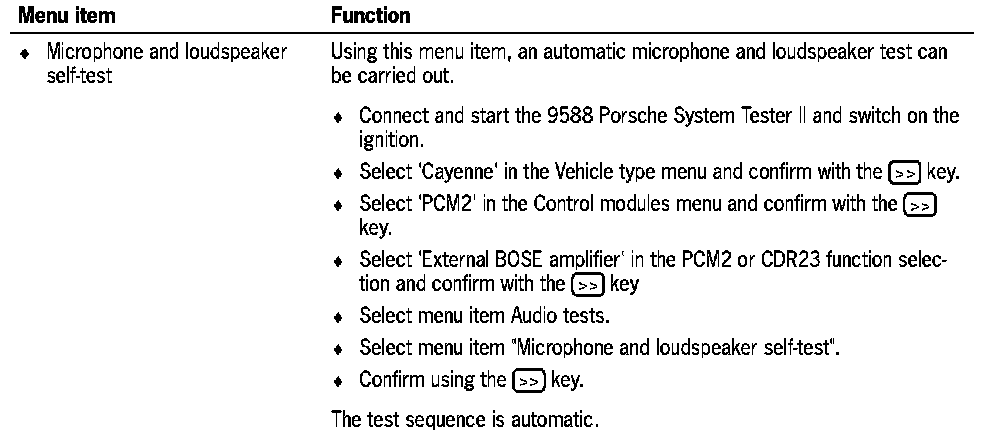

Part 2:
