MMI Input Signals



MMI Input Signals

The following queries can be run using this menu item:

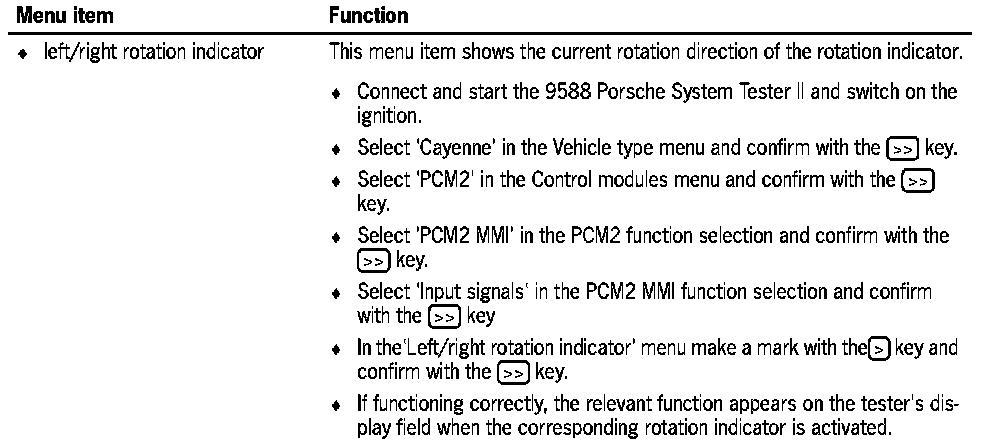

- left/right rotation indicator

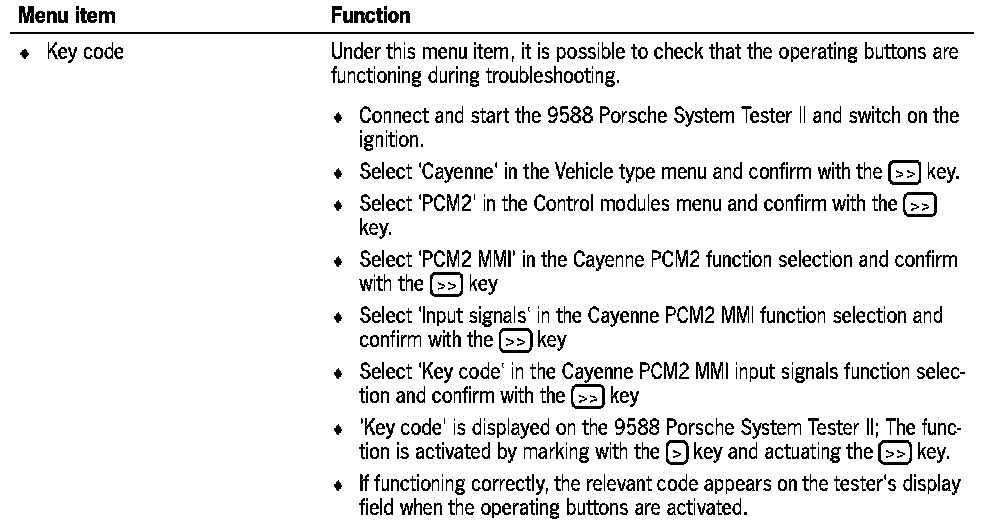

- Key code

NOTE: Deactivate the 'automatic traffic announcement' before performing the diagnosis on the PCM2. If this is not done, the diagnosis will abort (applies only to software version number < 03).


Part 1:




Part 2:
