Connector Locations

Connector Assignment

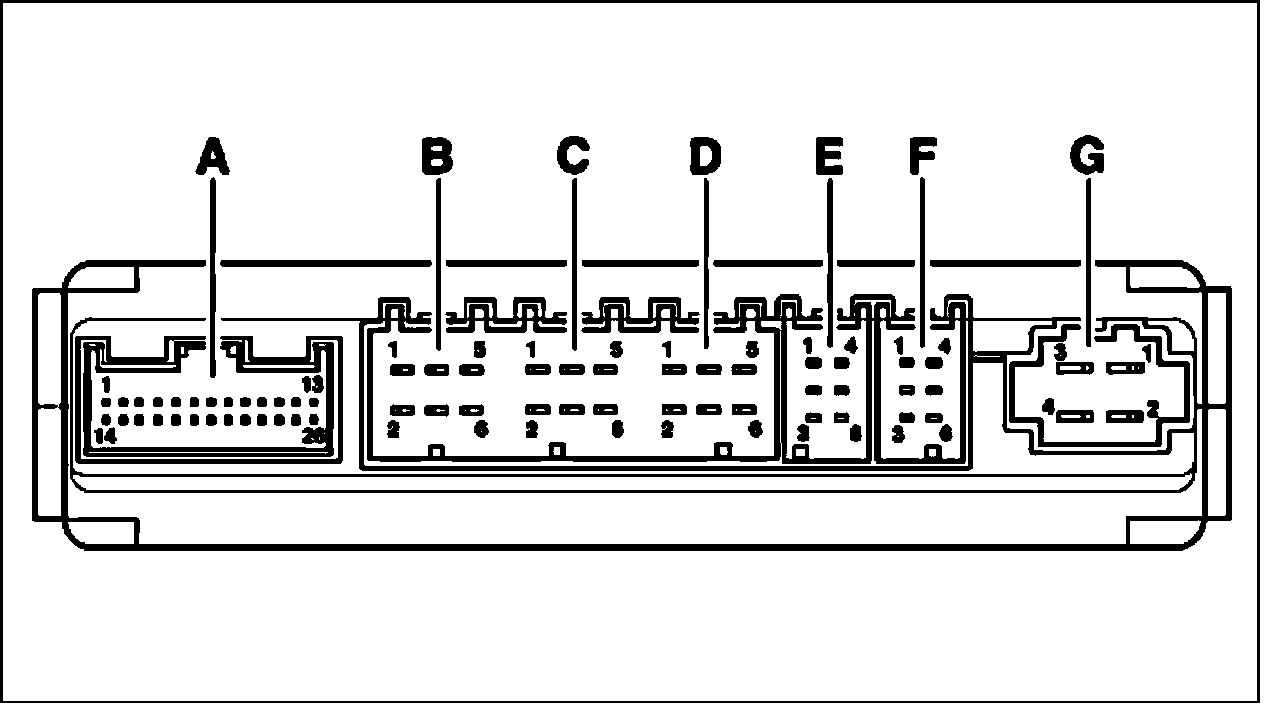

Connector arrangement A to G

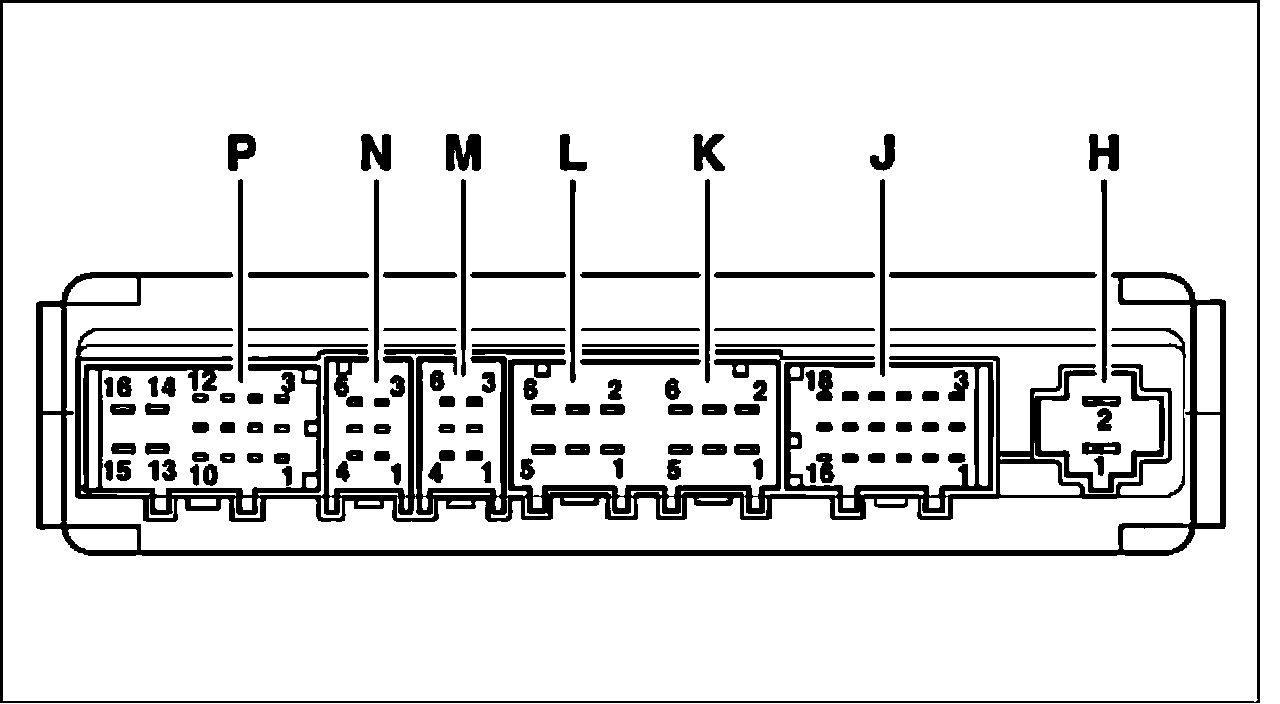

Connector arrangement H to P

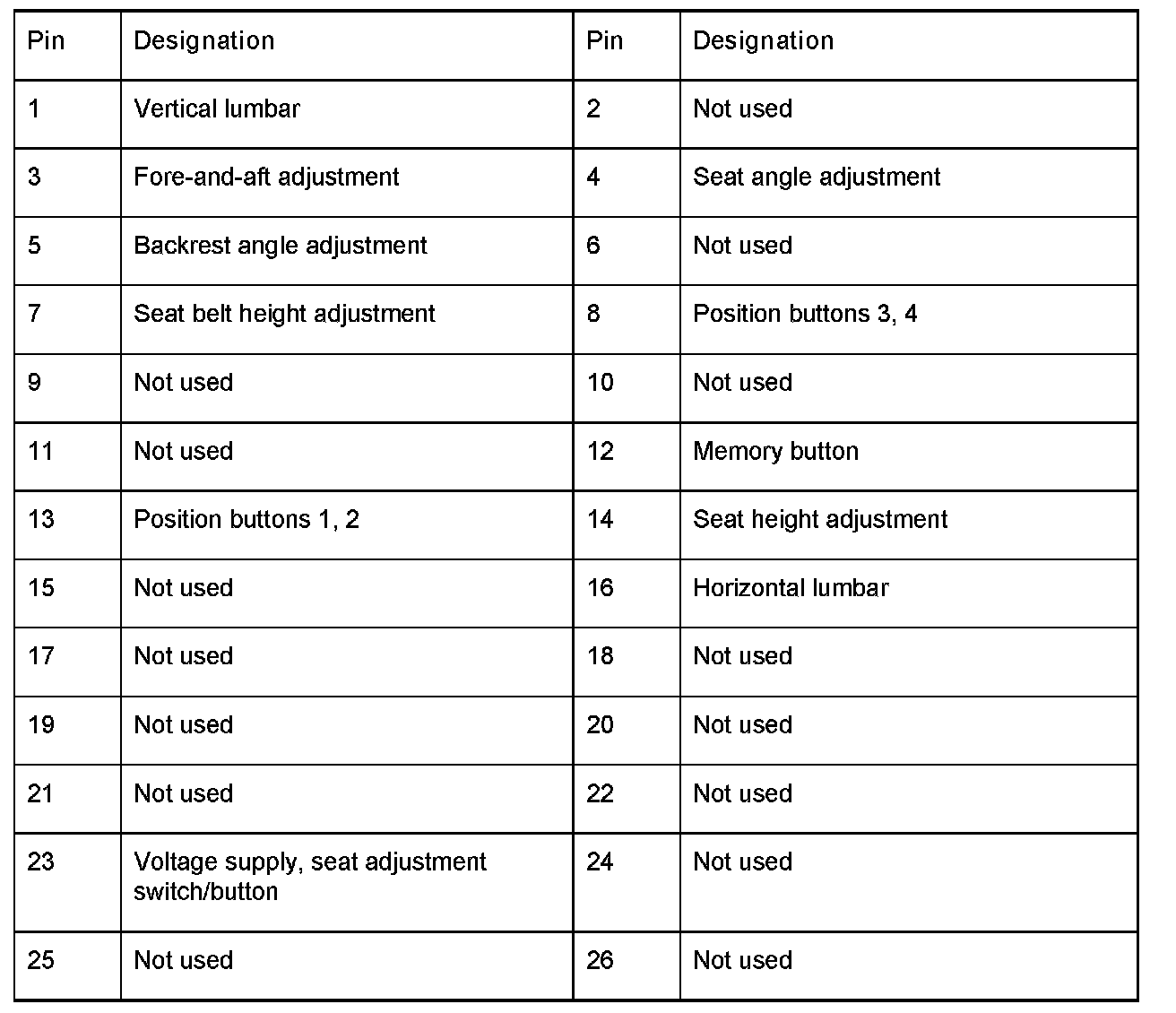

Connector A, 26-pin (seat adjustment switch group)

Pin 1 - 26:

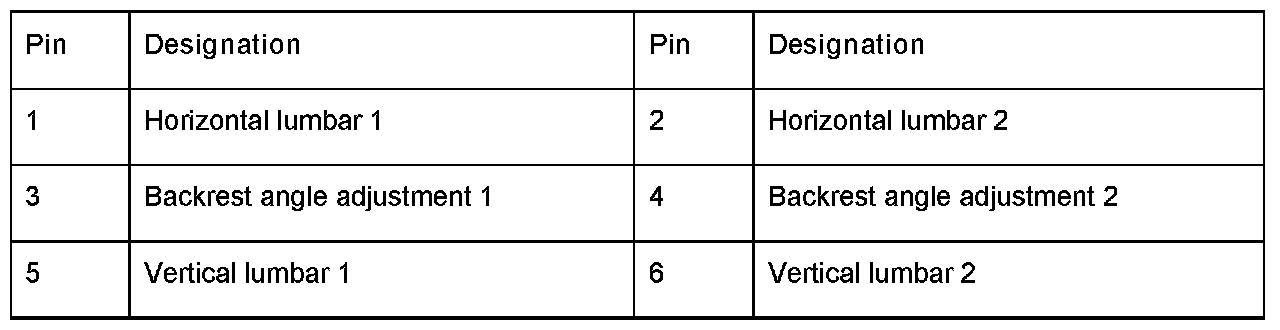

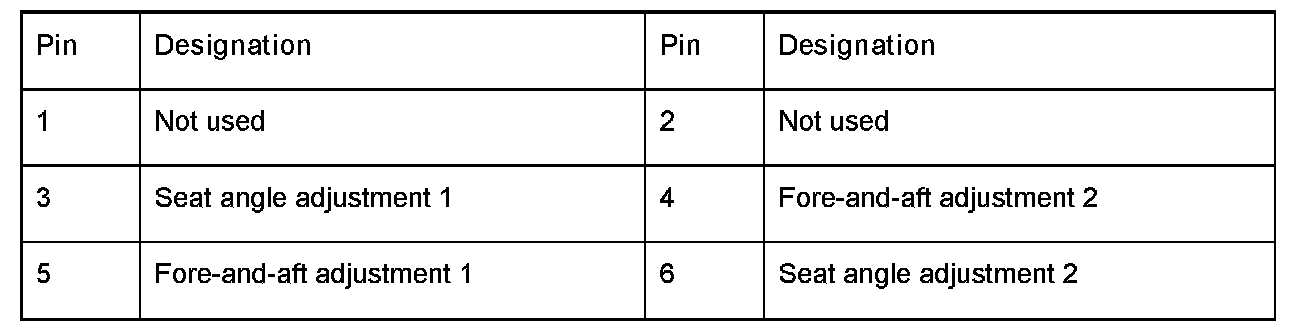

Connector B, 6-pin

Pin 1 - 6:

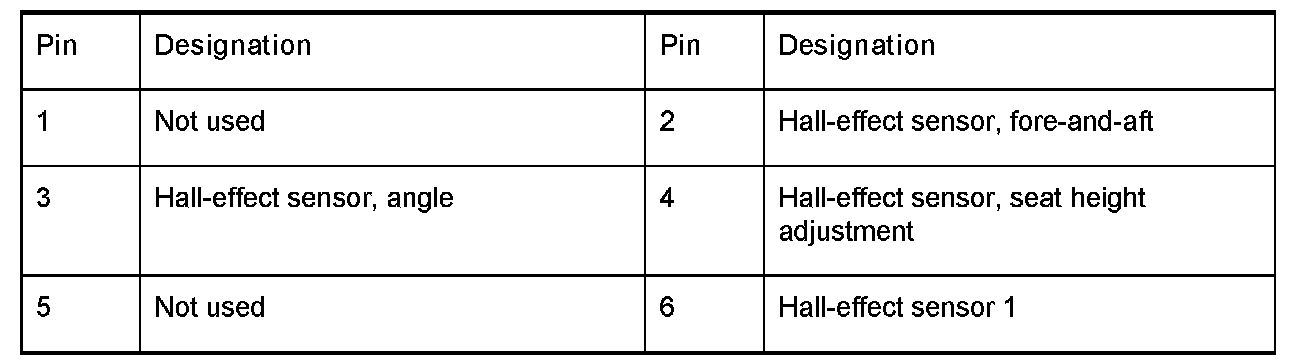

Connector C, 6-pin

Pin 1 - 6:

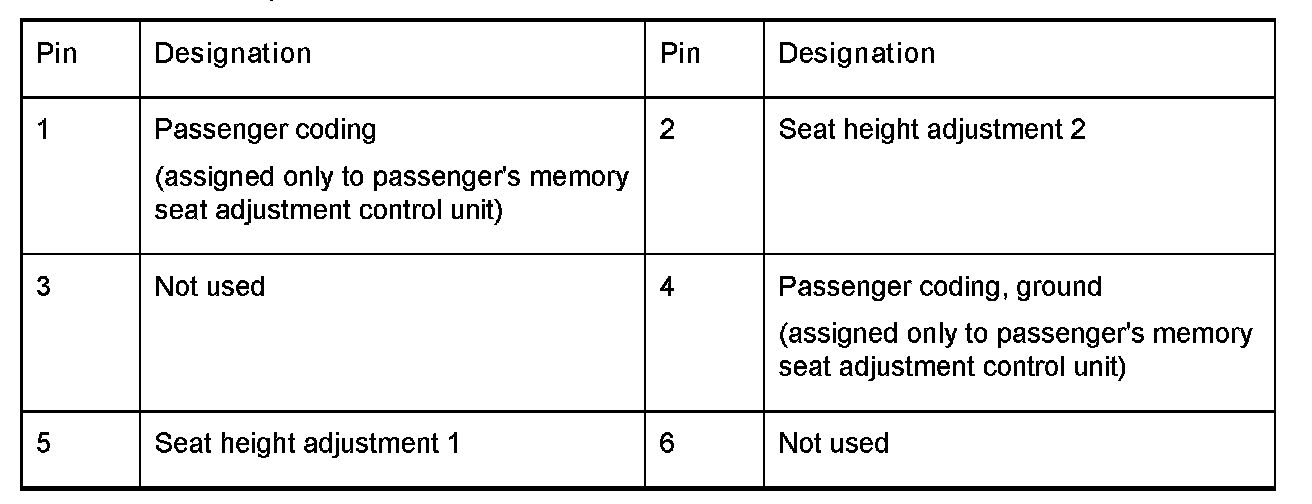

Connector D, 6-pin

Pin 1 - 6:

Connector E, 6-pin

Pin 1 - 6:

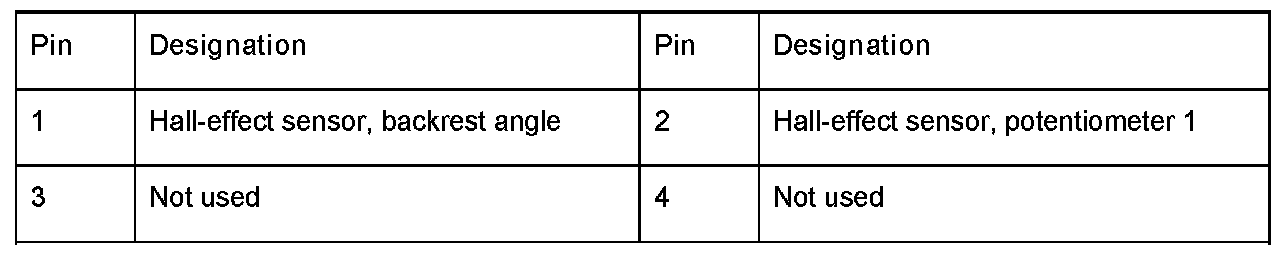

Connector F, 6-pin

Pin 1 - 4:

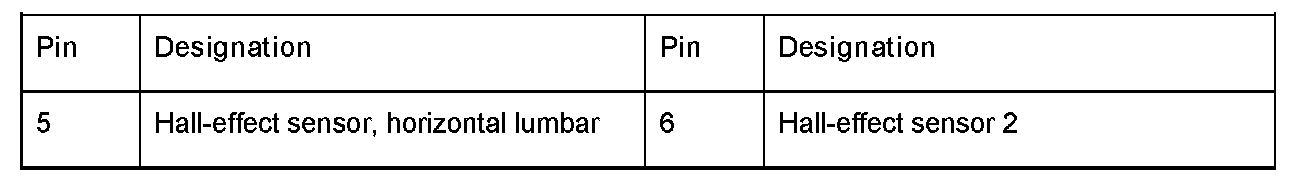

Pin 5 - 6:

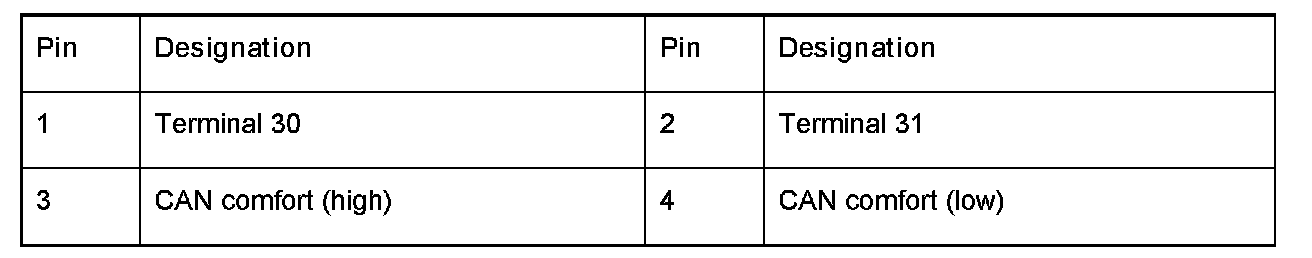

Connector G, 4-pin

Pin 1 - 4:

Connector H, 2-pin (Not used)
Connector J, 18-pin (Not used)
Connector K, 6-pin (Not used)
Connector L, 6-pin (Not used)
Connector M, 6-pin (Not used)
Connector N, 6-pin (Not used)

Connector P, 16-pin (only assigned for belt height and steering column adjustment)

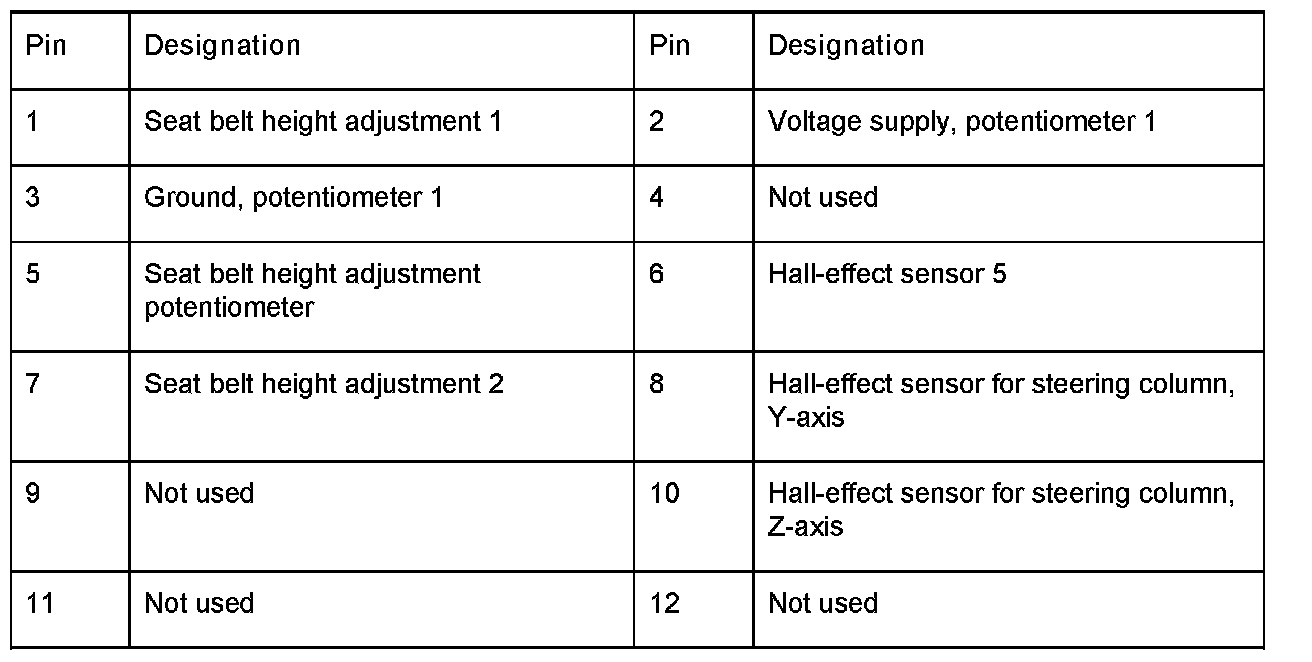

Pin 1 - 12:

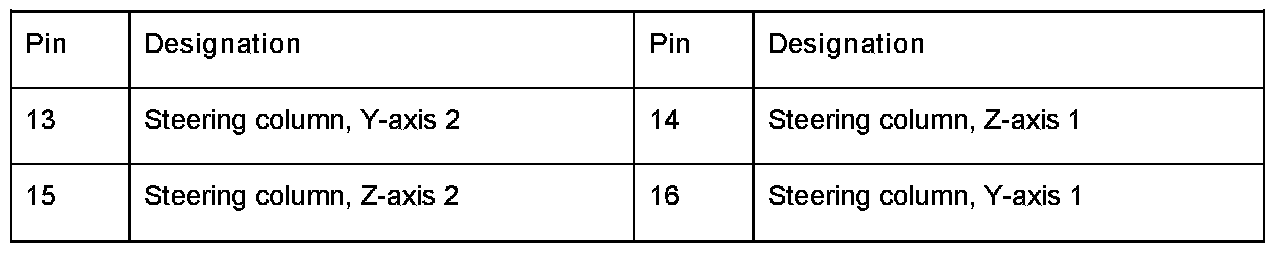

Pin 13 - 16:
