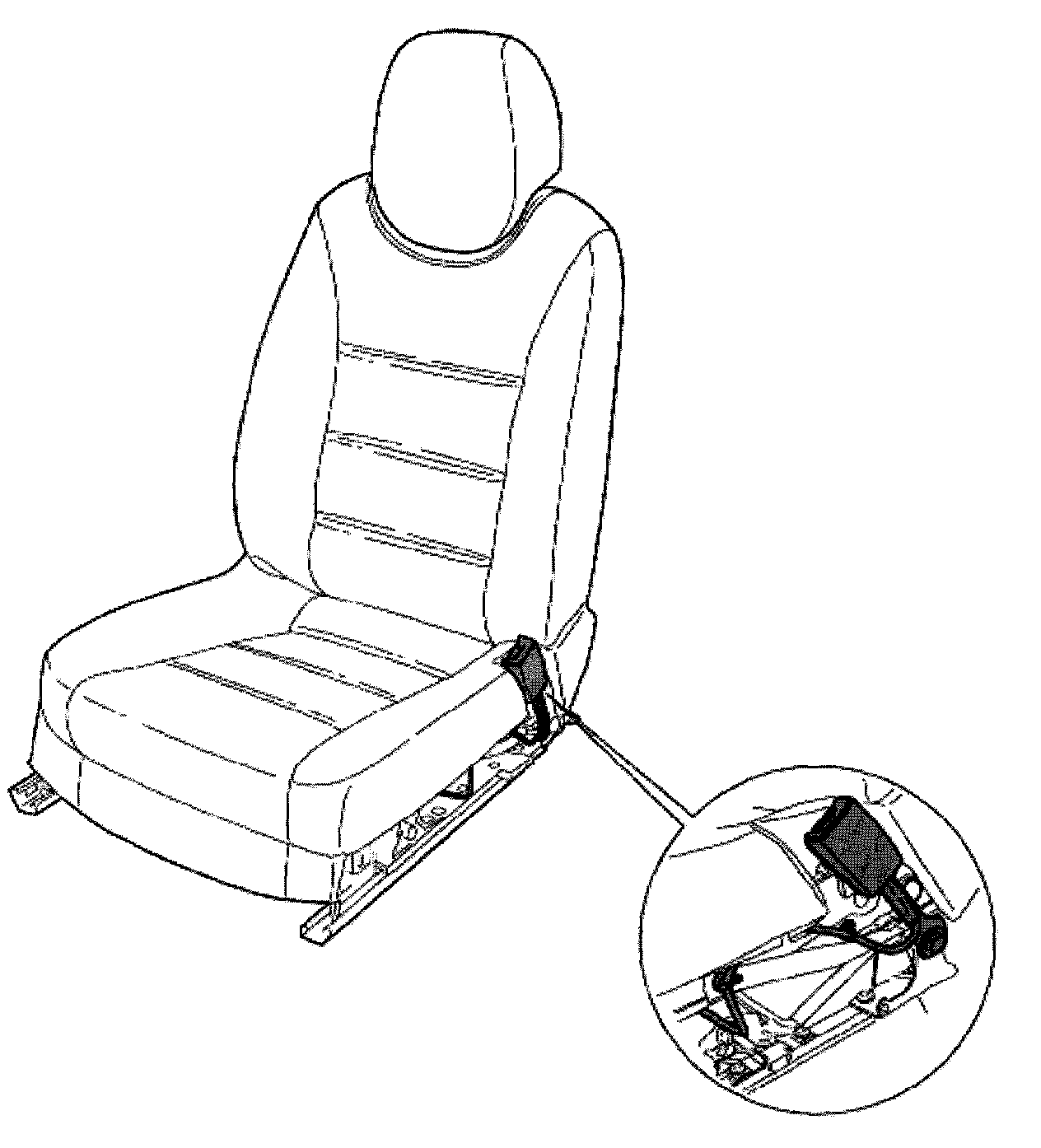

Removing and Installing Front Belt Lock

Removing and Installing Front Belt Lock







Removing belt lock

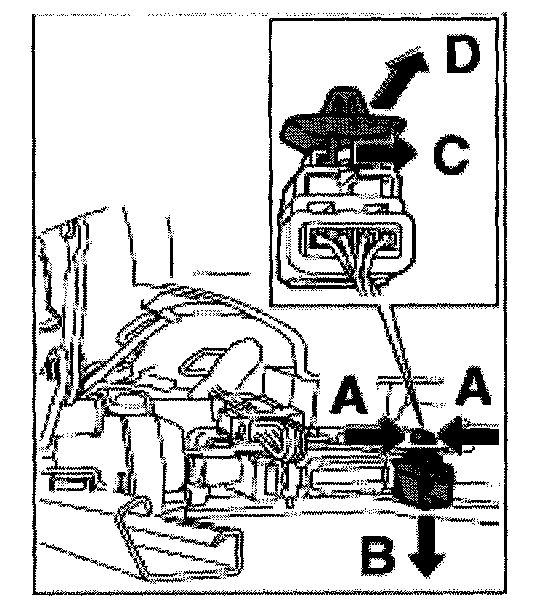

1. Press together the locking tabs of the clip -arrows A- and pull out the plug, together with the clip, in a downward direction -arrow B-.
2. Press the locking tab to the side -arrow C- and remove the plug from the clip -arrow D-.

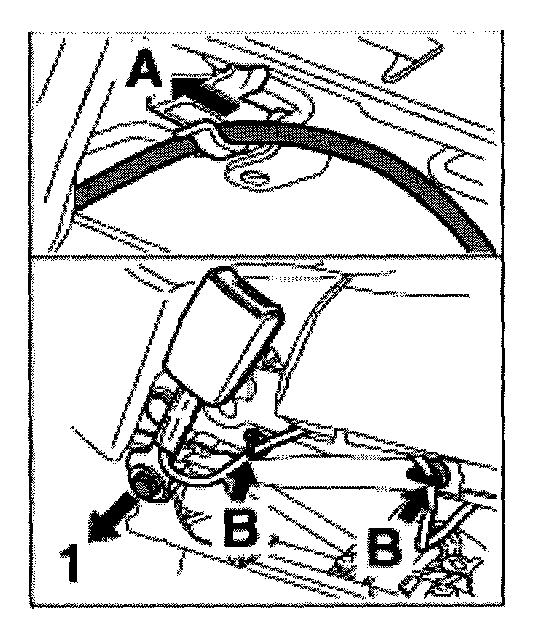

3. Remove cable from the retainer -arrow A-.
4. Separate the two tie-wraps -B- and unscrew the fastening screw -1-.

Installing belt lock

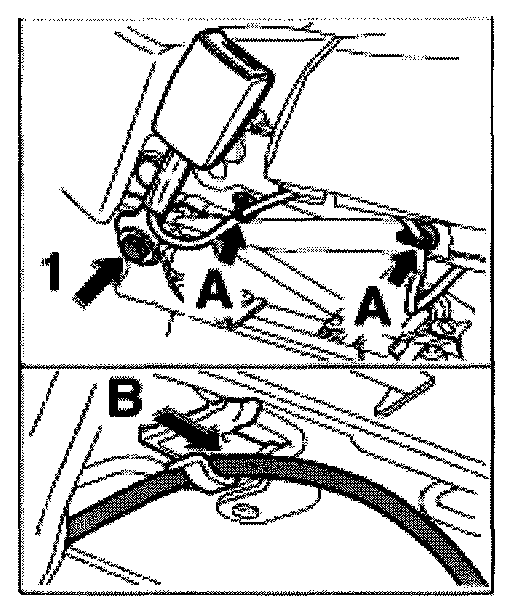

1. Install belt lock and tighten with the fastening screw -1-. Refer to, "Tightening torques".
2. Attach the cable with tie-wraps -A- to the two clips and connect the retainer to the centre of the spring -arrow B-.

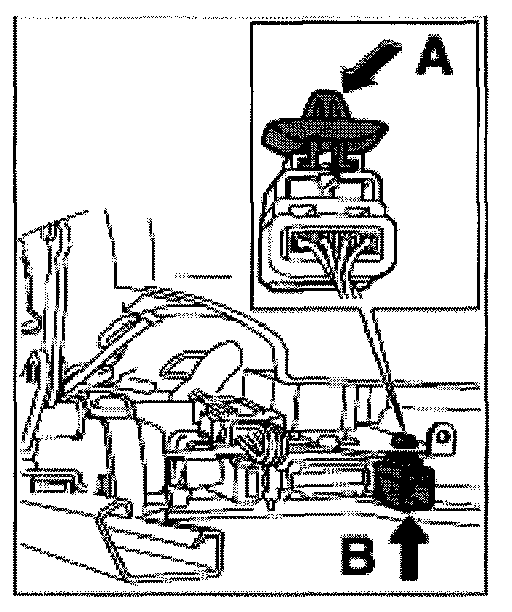

3. Connect the clip to the connector -arrow- until it audibly locks into place.
4. Connect the connector to the clip on the retaining bracket -arrow B- until the clip audibly locks into the retaining bracket.

Tightening Torques
