Removing and Installing Front Three-Point Belt
Removing and Installing Three-Point Belt

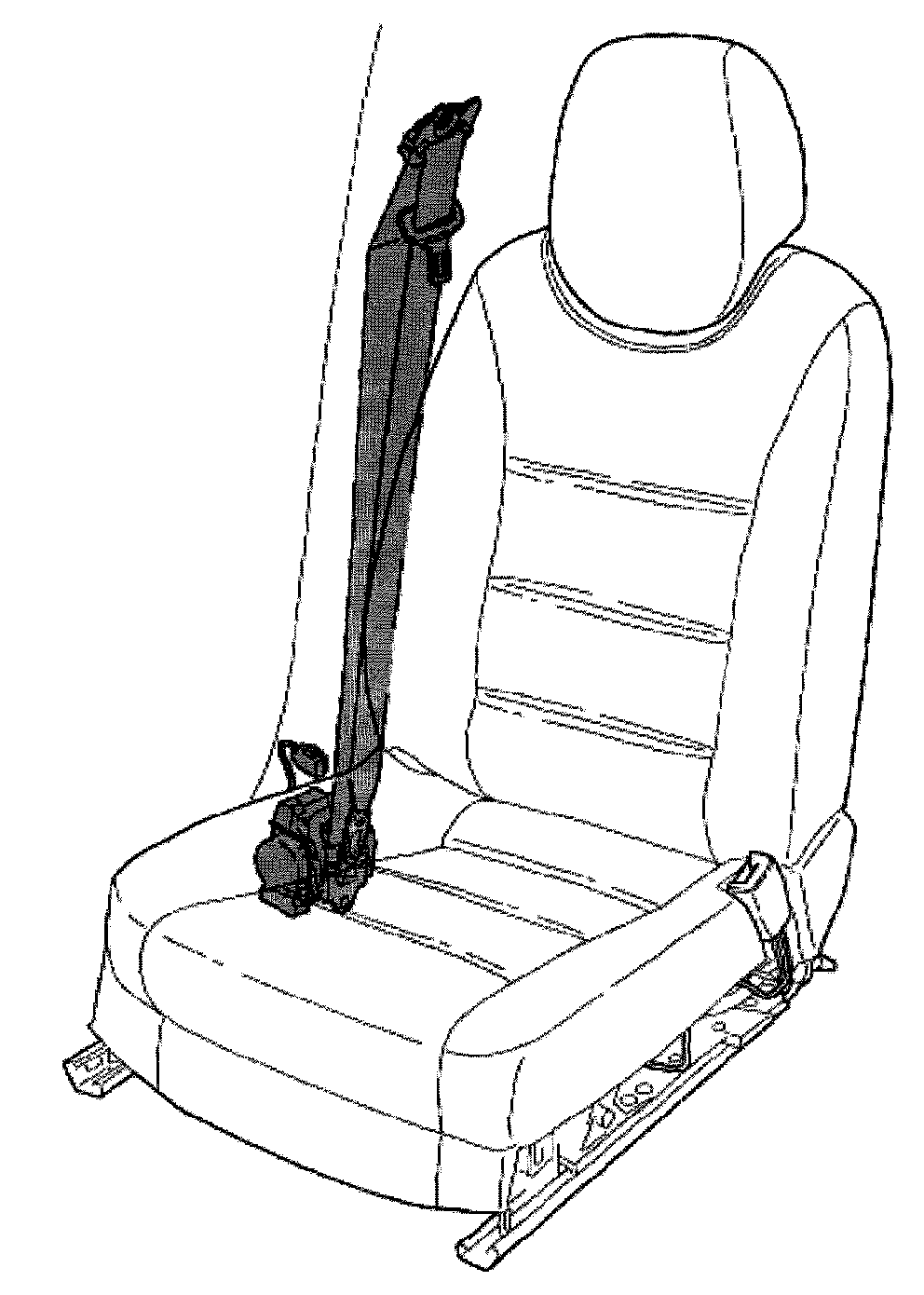

Removing front three-point belt
1. Remove the B-pillar trim.

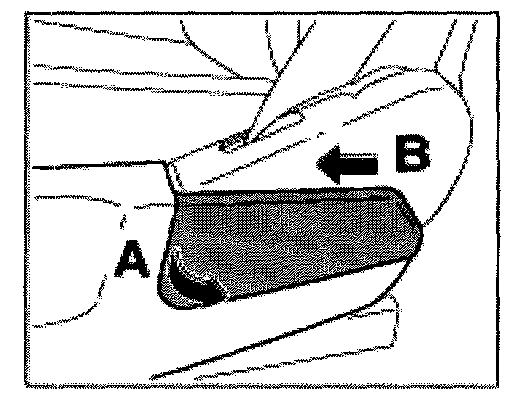

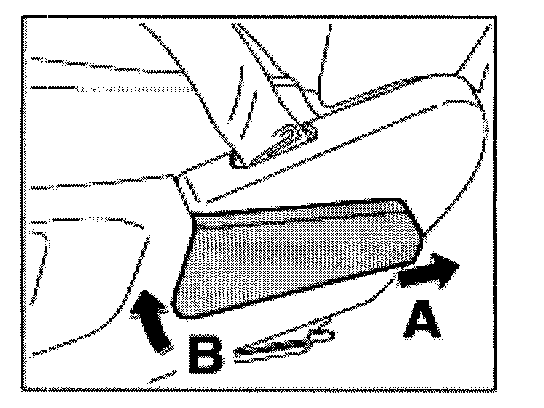

2. Pull out seat belt cover at front -A- and remove towards the front -B-.

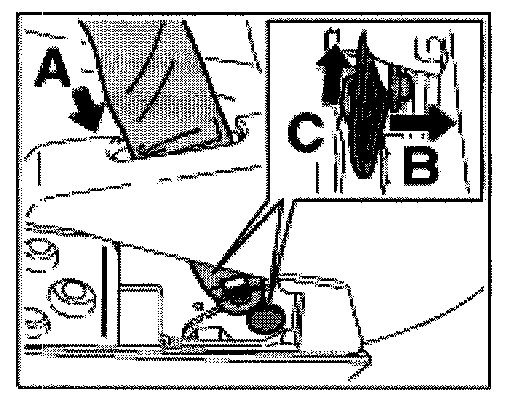

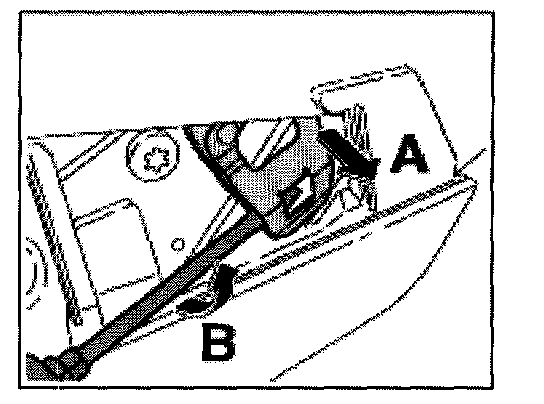

3. Unlock retainer clip on the belt end mount with an appropriate screwdriver -arrow A-.
4. Push belt end mount over the retaining pins -arrow B- until the lug relaxes the clip underneath the retaining pin.
5. Remove belt end mount from the retaining pin -arrow A- and pull seat belt out through the belt guide -arrow B-.

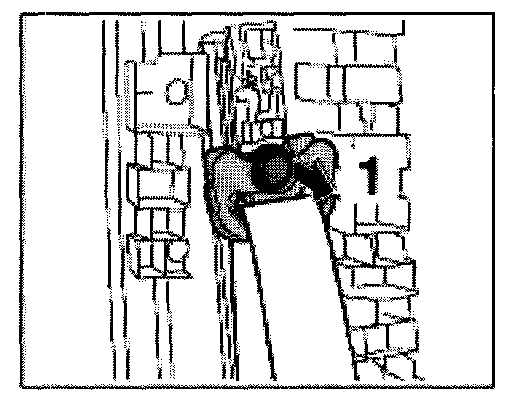

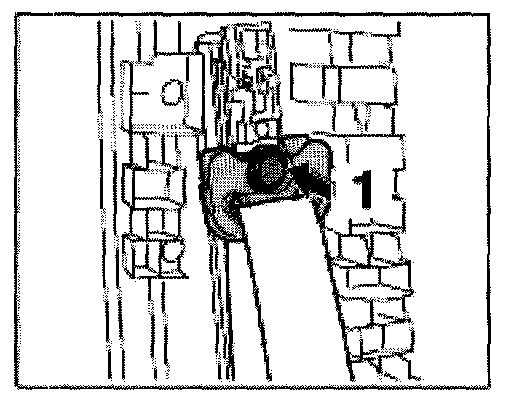

6. Remove the fastening screws -1- on the top belt lug.

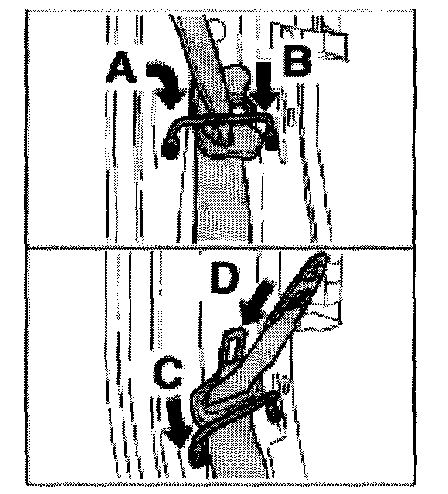

7. Twist the top belt lug -arrow A- and push downwards behind the holder -arrow B-.
8. Pull out belt lock -C- with belt end mount -D- towards the bottom.
CAUTION:
- Danger of injury and damage to property as a result of incorrect handling of airbag units.
- Always observe the safety regulations for handling airbag units.
- The airbag unit must always be deposited so that the airbag opening faces upwards.
- if removed for an extended period, the airbag unit must be kept in a locked place.
- Remove ignition key. Disconnect the battery and cover battery terminal.
- After the battery is disconnected, always wait for 1 minutes before disconnecting the airbag plugs.

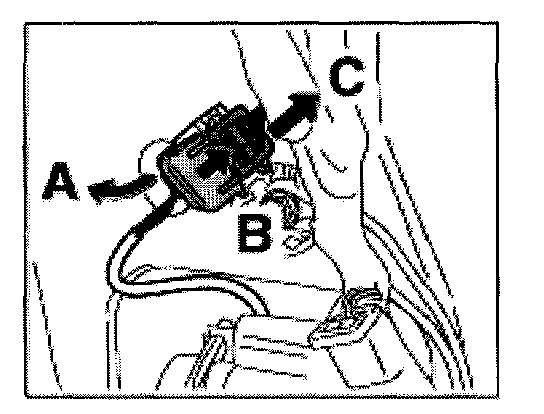

9. Fold out protective cover for belt tightener plug connection to the side -arrow A-.
10. Release side plug connection -arrow B- and pull the connector out -arrow C-.

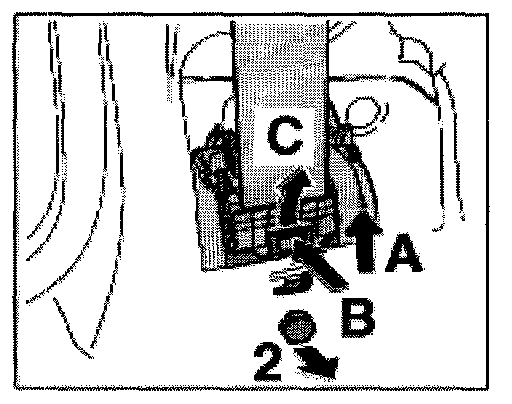

11. Unscrew fastening screw -2- on the belt roller. Lift belt roller -arrow A-, hang towards the back -arrow B- and remove upwards -arrow C-.
Installing front three-point belt
1. Position belt roller in the mounting opening -A- ensuring that the thread bore is aligned with the thread.
2. Tighten belt roller with the fastening screw -2-.
NOTE: Do not twist the three-point belt when installing.

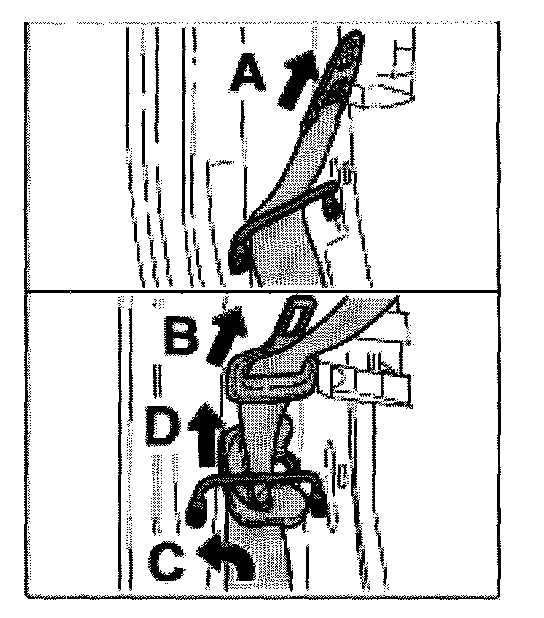

3. Push through belt end mount -A- and belt lock -B- upwards behind the holder.
4. Twist the belt lug -arrow C- and push upwards behind the holder -arrow D-.
5. Tighten belt lug on the vertical adjustment with the fastening screw -1-.

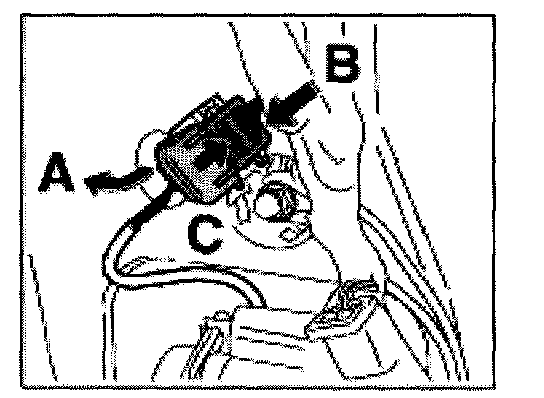

6. Fold out protective cover for belt tightener plug connection to the side -arrow A-.
7. Insert connector -arrow B- until the locking tab -C- can be felt engaging.

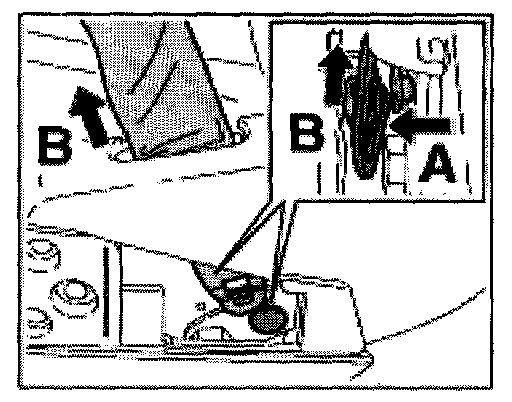

8. Push seat belt through the belt guide on the seat -arrow A-.
9. Position belt end mount on the retaining pin -arrow B- and pull upwards -arrow C- until the retainer clip locks with an audible click.
10. Engage seat belt cover at seat trim -arrow A- and push in -arrow B- until it can be felt engaging.
11. Install the B-pillar trim.
12. Connect the battery.
Carry out work instruction after disconnecting the battery.

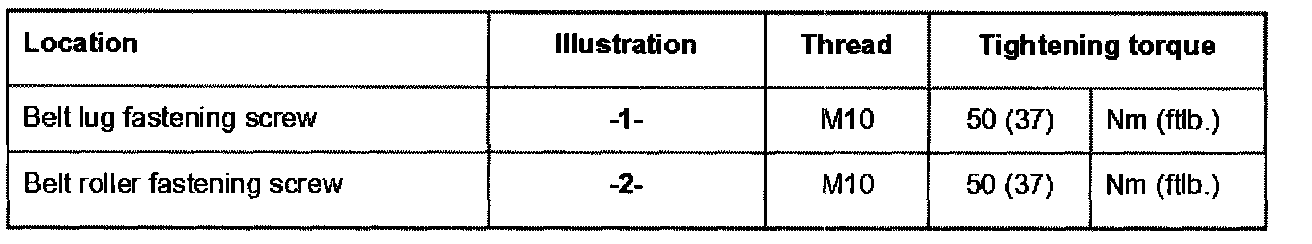

Tightening Torques
