Outside Temperature Display Sensor: Service and Repair

Removing And Installing Temperature Sensor

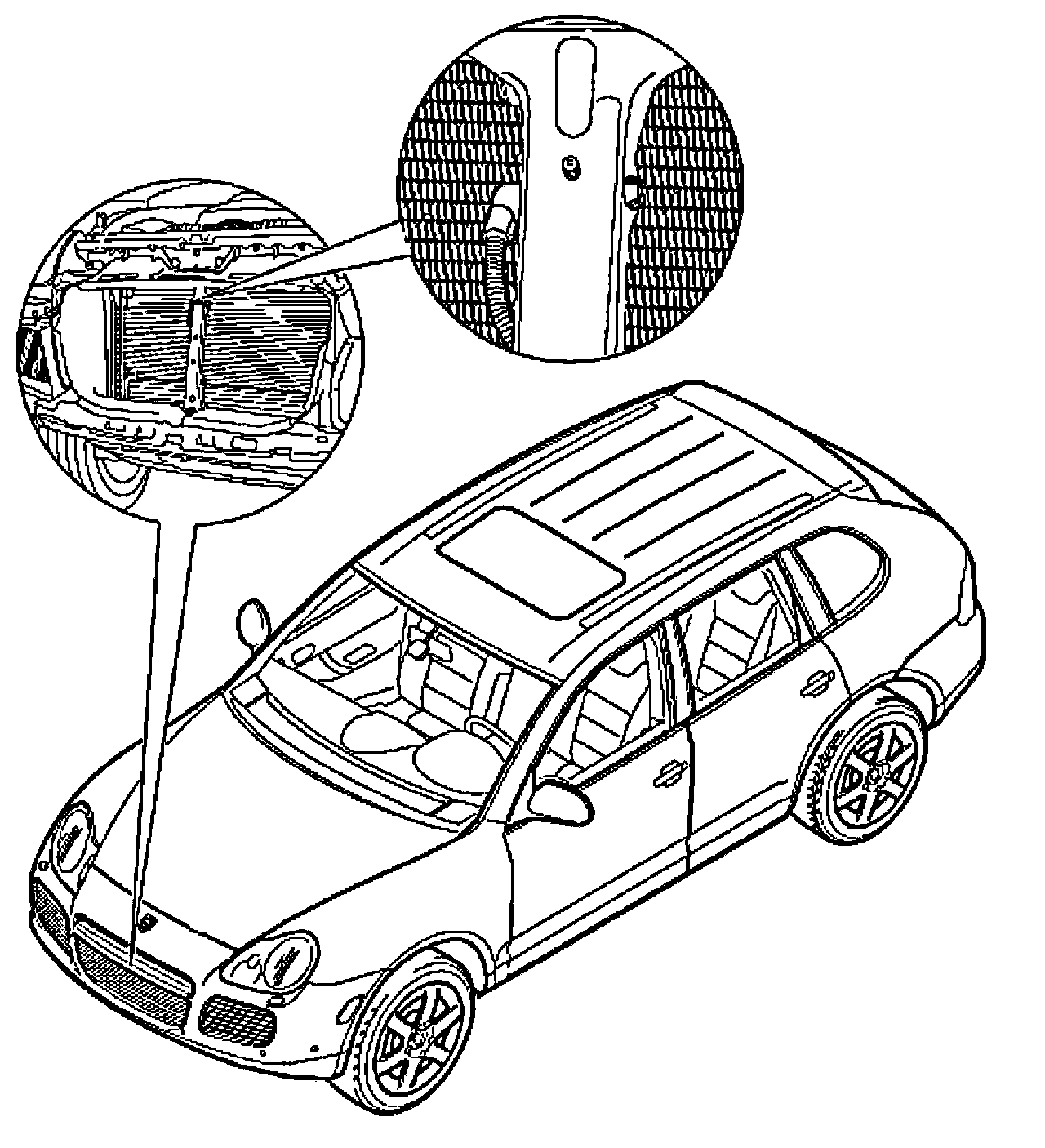

Removing Outside Temperature Sensor
Remove front spoiler.

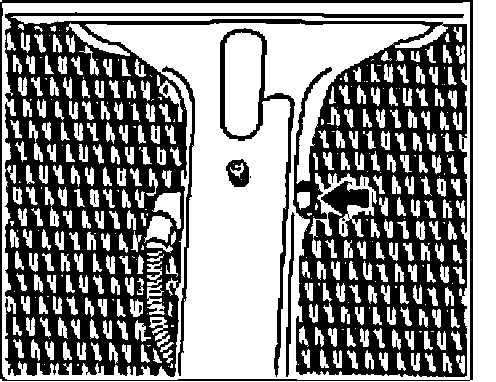

1. Press temperature sensor out of the holder "arrow".

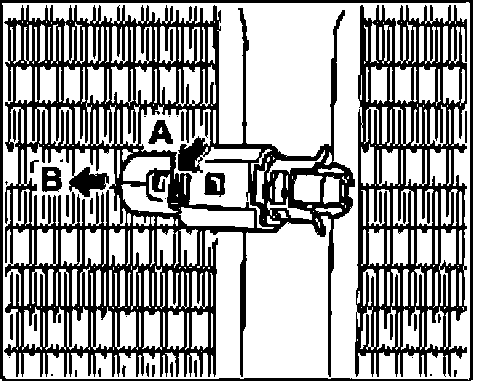

2. Release connector "arrow A" and pull out of temperature sensor "arrow B".

Installing Outside Temperature Sensor

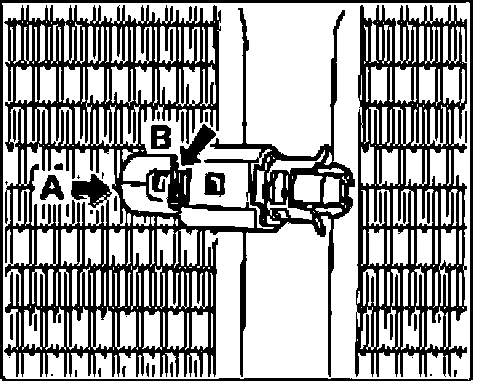

1. Connect the connector to the temperature sensor "arrow A" until the locking tab "B" engages audibly.

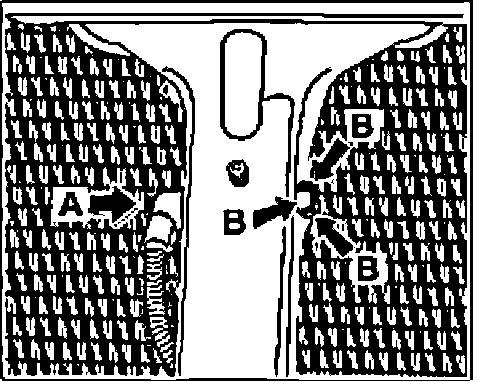

2. Push in temperature sensor "arrow A" until you feel the locking tabs "B" engage.

Install front spoiler.
