Level Control
Connector Assignment

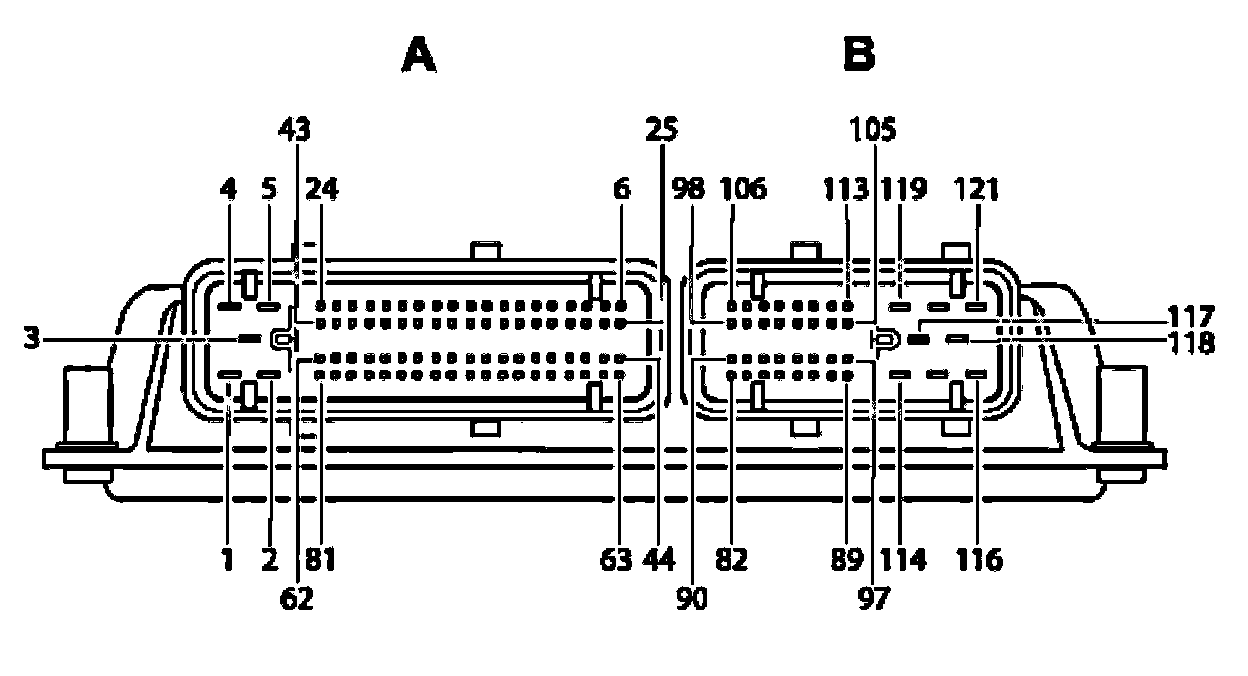

Level control module
Wiring harness plug A, 81-pin, level control module

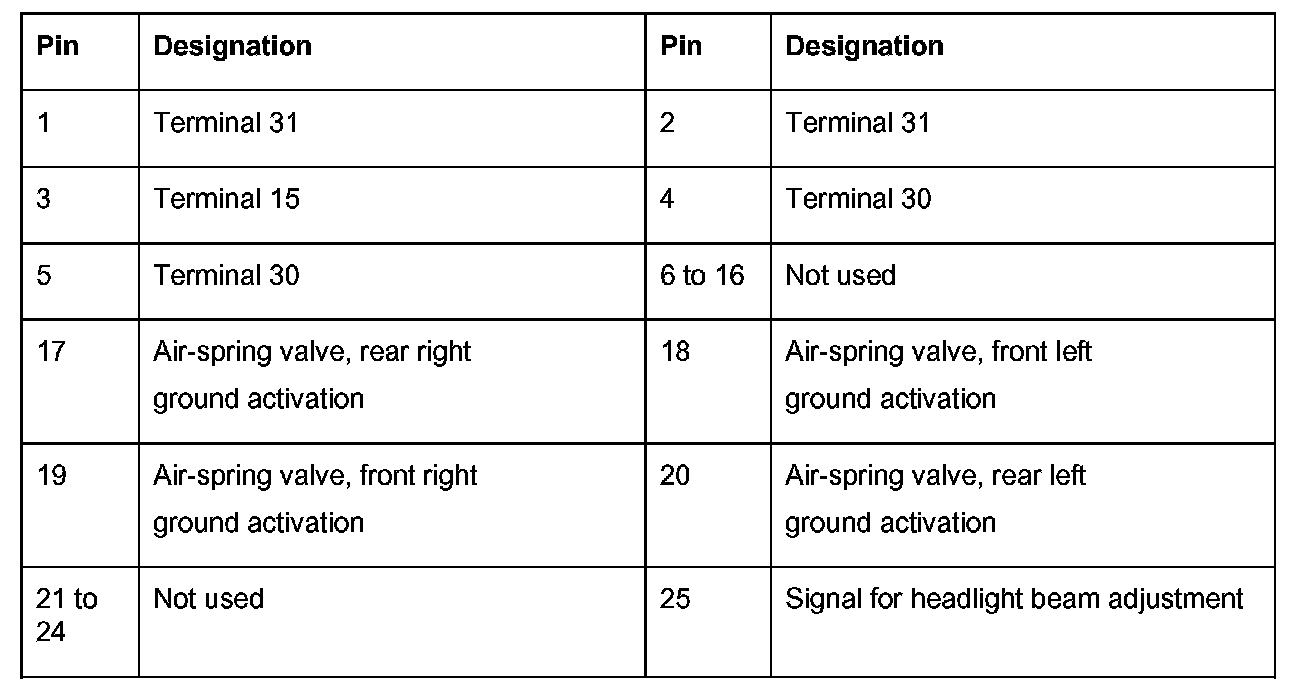

Pin 1 - 25:

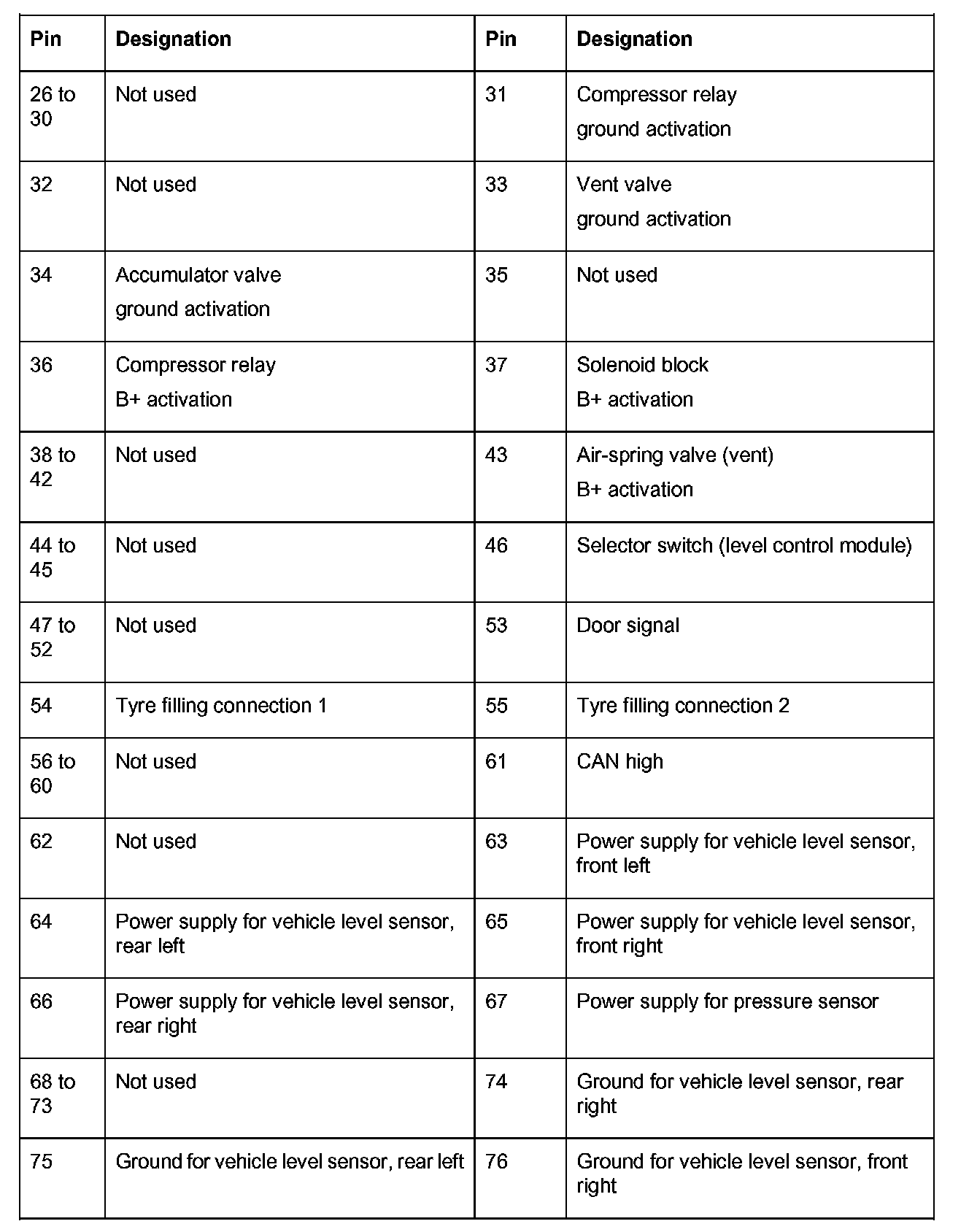

Pin 26 - 76:

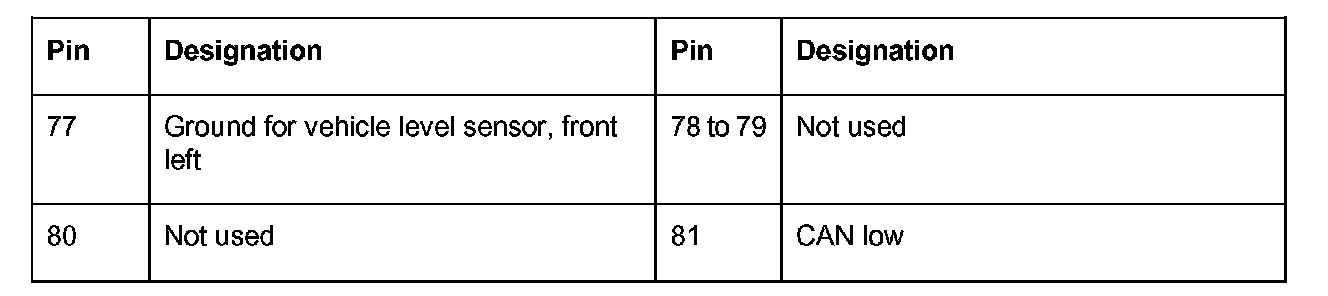

Pin 77 - 81:
Wiring harness plug B, 40-pin, level control module (pin assignment includes PASM)

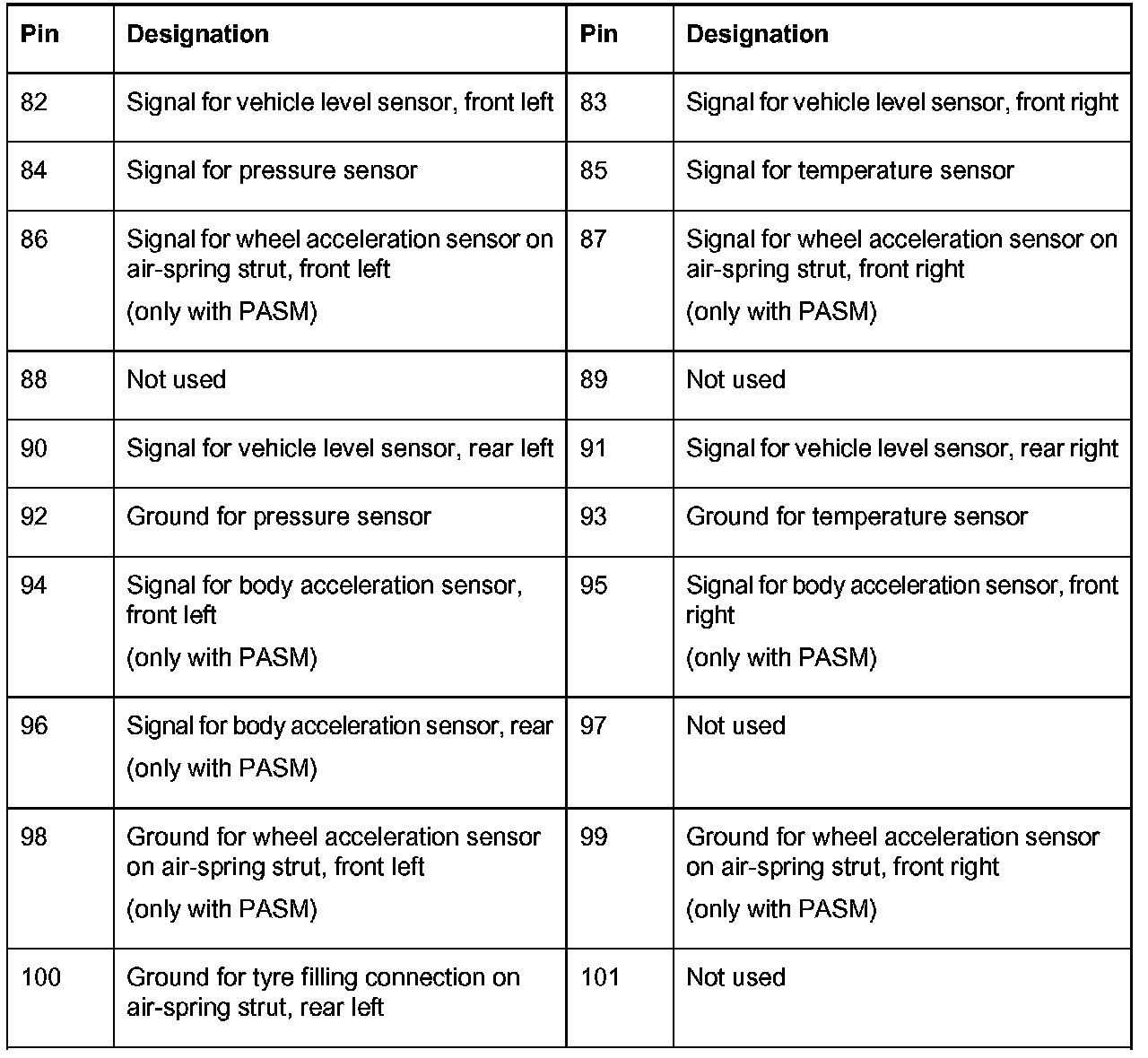

Pin 82 - 101:

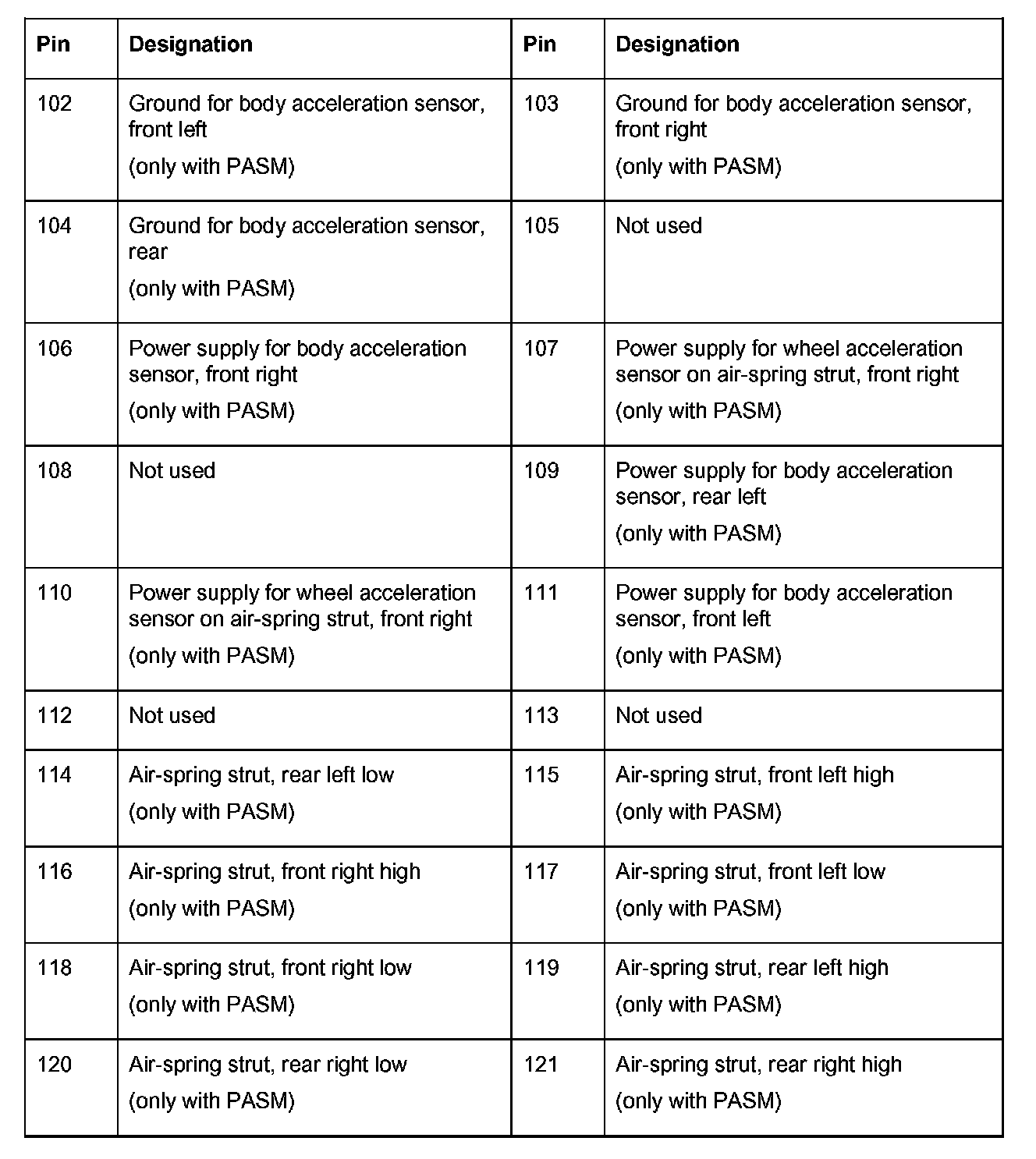

Pin 102 - 121:
