Offroad Stabilizers

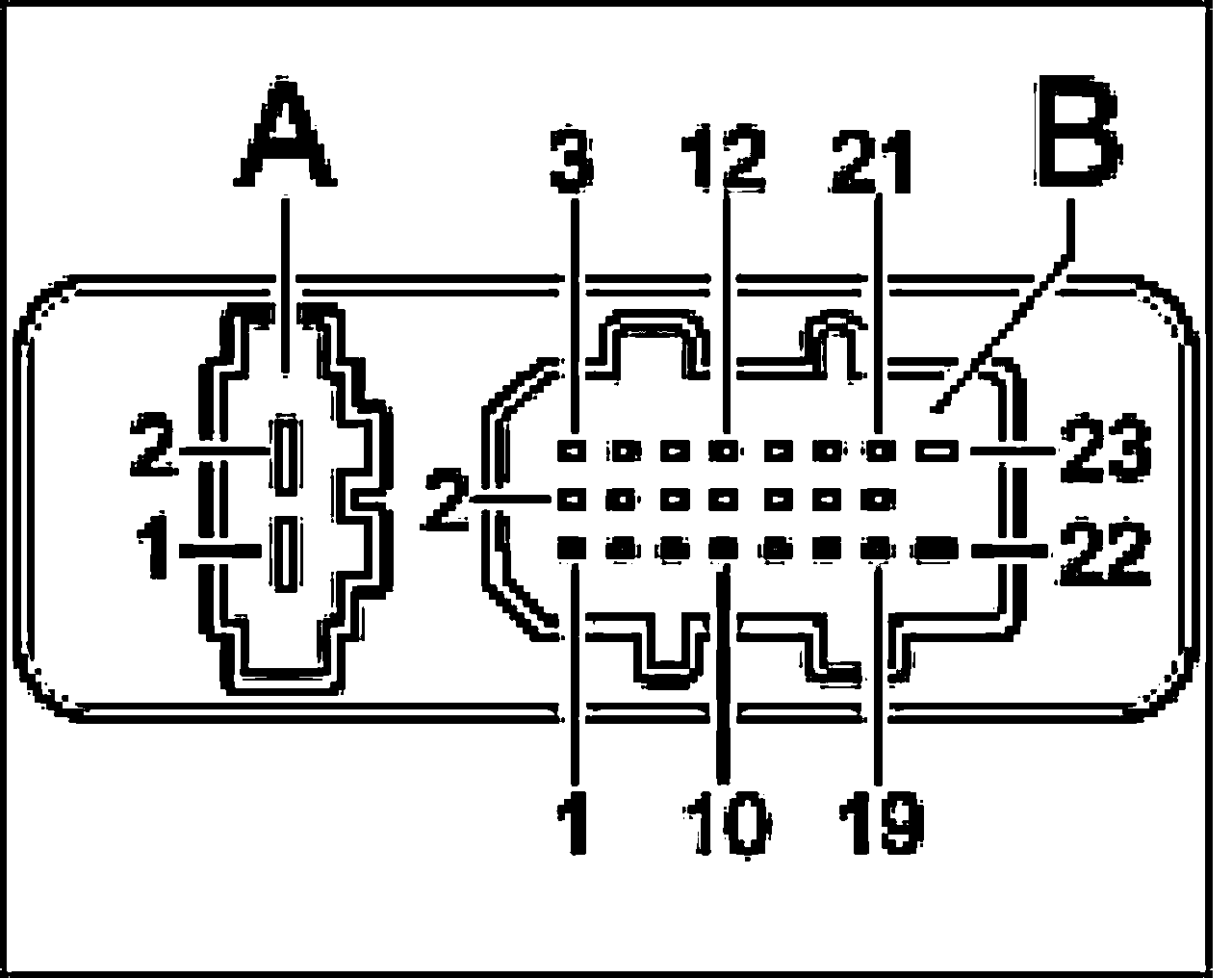

Connector Assignment For Offroad Stabilizers







Offroad stabilizer control module connector A


Pin 1:

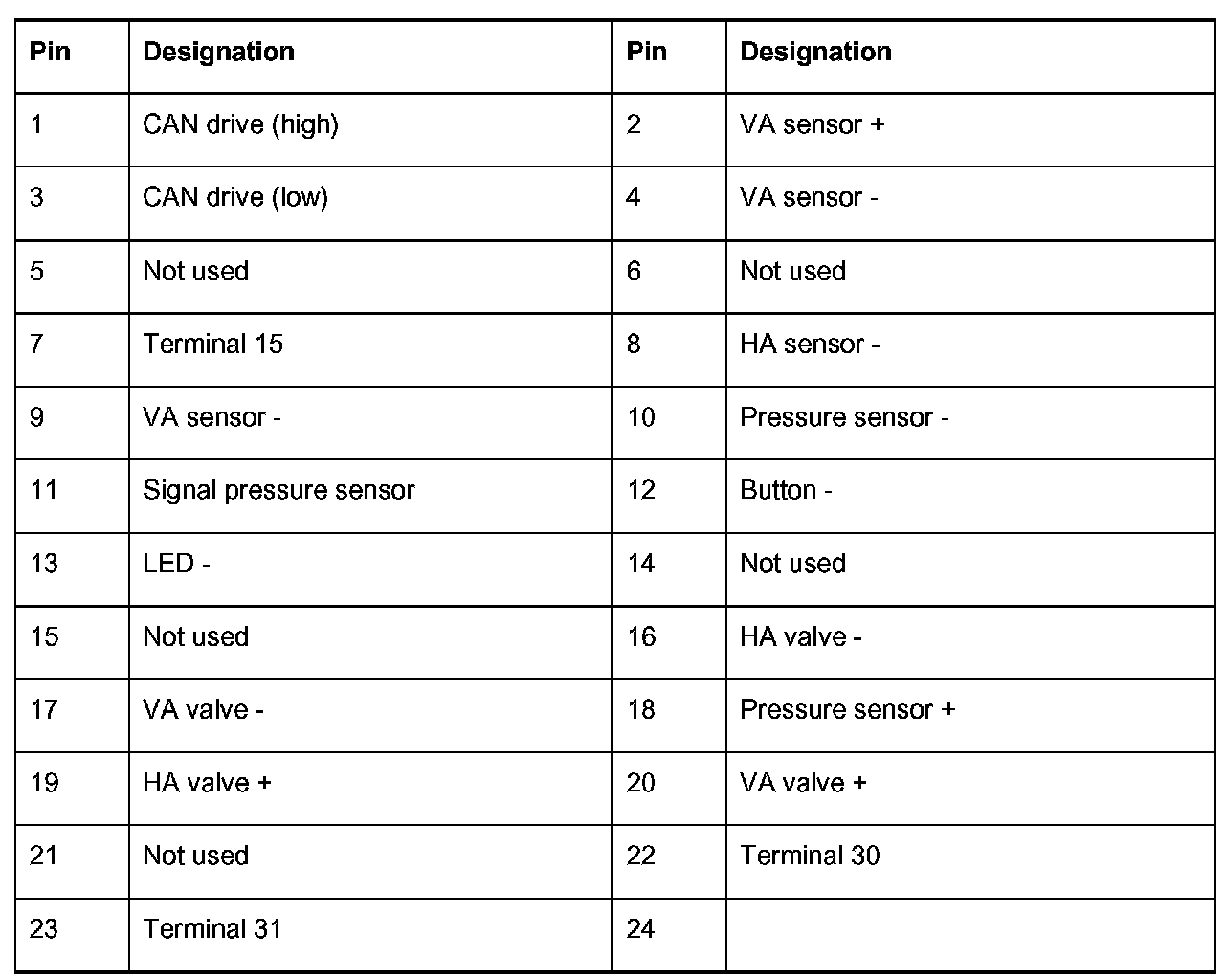

Offroad stabilizer control module connector B


Pin 1 - 24:
