Starting System - Auxiliary Battery Operation/Service
Cayenne1/03 2706
Binder - 2 - Fuel, Exhaust, Eng. EI.
Auxiliary Battery For The Cayenne
Date: 2-28-03
Vehicle Type:
Cayenne S/Cayenne Turbo
Model Year:
As of '03 (3)
Concern:
Auxiliary battery information (I No. J2C), advance publication from the Technical Manual - Repairs: Auxiliary Battery
Information:
The Cayenne S and Cayenne Turbo vehicles are currently being delivered with an auxiliary battery. The auxiliary battery is used exclusively for starting the engine. A cutoff relay connects it to the vehicle electrical system when the engine is started and disconnects it when the engine is not running. The auxiliary battery is located in the spare-wheel well in the rear of the vehicle and is charged when the engine is running.
Vehicles equipped with the Porsche Entry & Drive System (KESSY)

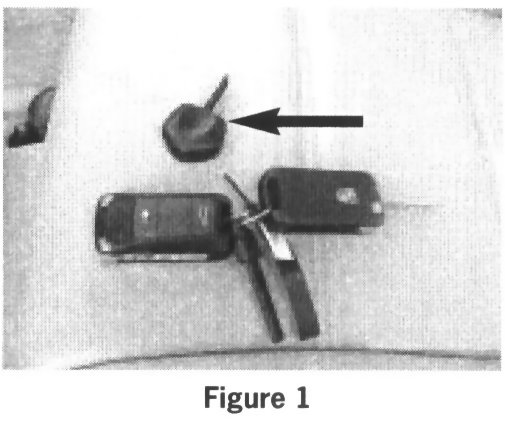

When the plastic "KESSY" key (Arrow in Figure 1) is used to start the vehicle, the battery underneath the driver's seat is utilized. When the main ignition key is used, the current from the auxiliary battery is used to start the engine. If the main battery (located underneath the driver's seat) is dead on a vehicle equipped with an auxiliary battery and KESSY, the plastic key must be removed from the ignition switch. The main ignition key must then be inserted in order to start the vehicle.
The following is an excerpt from the Cayenne Owner's Manual on this subject:
If the vehicle is fitted with an additional battery in the luggage compartment, it is possible to start the engine with the ignition key, even if the battery voltage fails.
In vehicles with Porsche Entry & Drive:
1. Remove the Porsche Entry and Drive control unit ("KESSY" key) from the ignition lock. Refer to "Removing the Control Unit from the Ignition Lock" in the Cayenne Owner's Manual.
2. Insert the ignition key into the ignition lock and start the engine as described.
An excerpt from the Technical Manual - Repairs - is enclosed with this Technical Information as advance information:
Chapter 274 - Removing and installing auxiliary battery
This scope is also included in Supplement 3 for the Technical Manual - Repairs.
Introduction:
October 28, 2002, from the following VIN numbers:
9P 23L A6 0051 USA
9P 63L A9 0022 USA Turbo
Attachment:
Cayenne Technical Manual, Group 2:

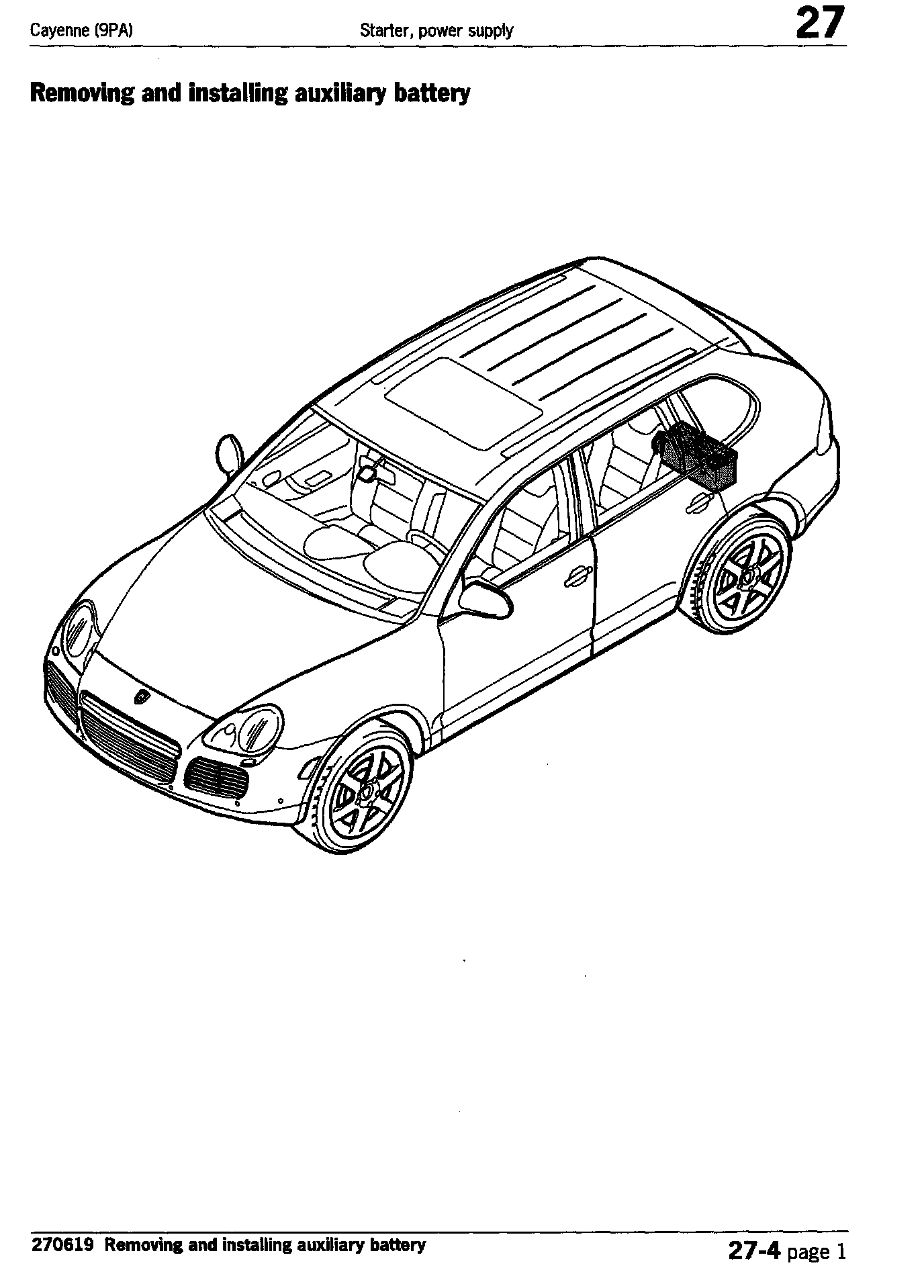

> Repairs: 27-4 - Removing and installing auxiliary battery
Removing auxiliary battery
Danger!
Risk of explosion, injury, short circuit and damage to the generator and electronic control modules.
^ Do not disconnect battery with engine running.
^ Disconnect and reconnect battery with extreme caution. Risk of short circuit and explosion.
^ Do not rub the battery with a dry cloth. Risk of explosion as a result of static charge.
Note!
^ The battery is located in the luggage compartment under the loadspace floor.
^ If the vehicle contains a subwoofer or collapsible spare wheel, the relevant component must be removed before the auxiliary battery is removed
^ Switch off all loads and remove ignition key.
^ Observe the warning notes and safety regulations for hydrocyanic acid batteries. --> 27-2 "Battery"

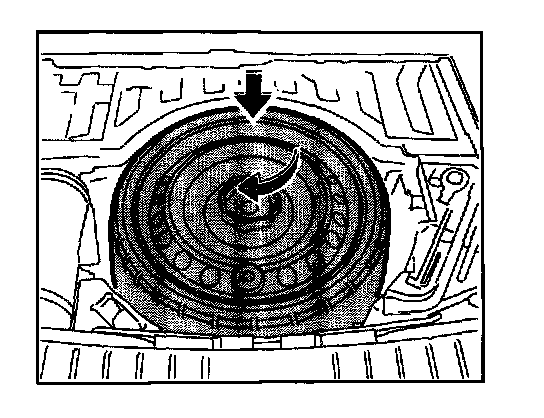

1 - Removing the collapsible spare wheel:
1. Remove twist grip -A-and position it on bolt -B-.
2. Unscrew bolt -B- and remove it together with the collapsible spare wheel.

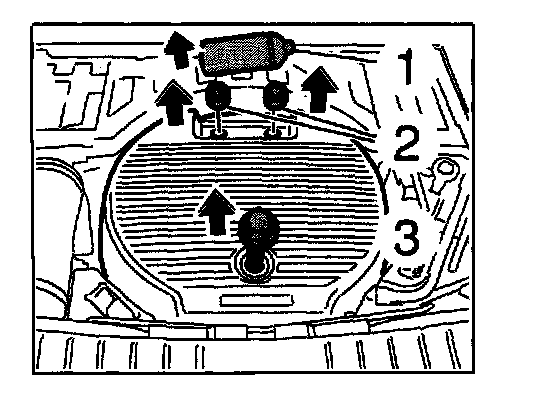

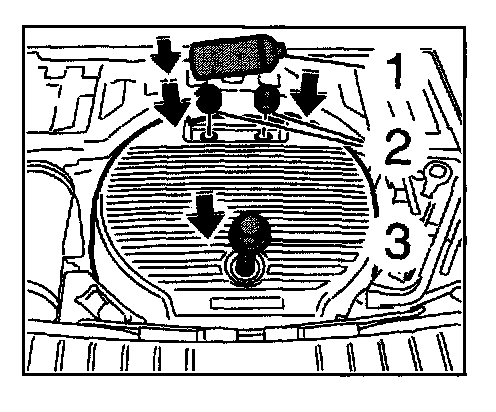

1 - Removing subwoofer fastening:
1. Remove tyre sealant -1- if it is present.
2. Unscrew the two fastening nuts -2-.
3. Undo fastening screw -3- and washer.

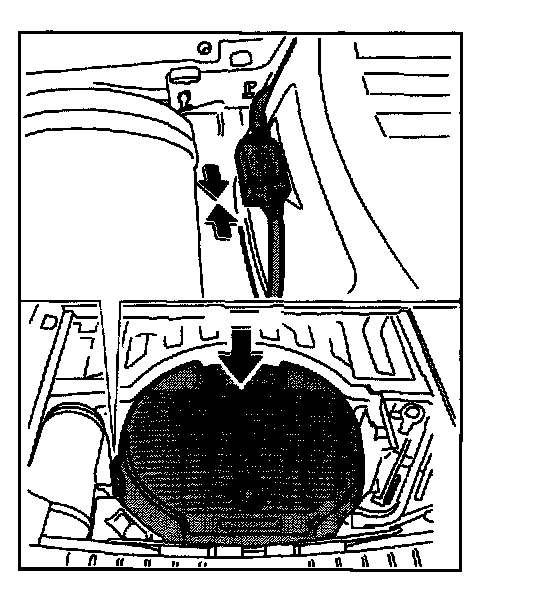

2 - Disconnecting electrical plug connection and removing subwoofer:
1. Take the plug connection out of the retaining bracket on the subwoofer and disconnect the plug connection.
2. Lift subwoofer up and out.

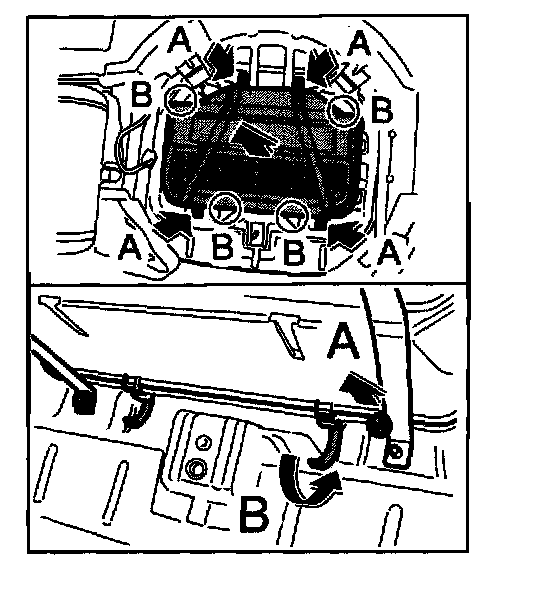

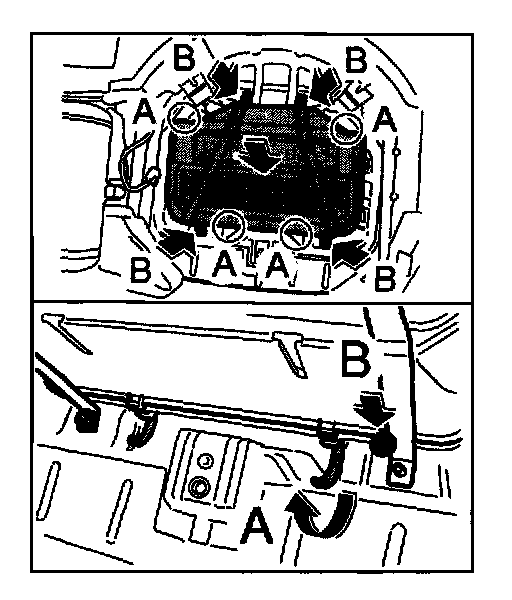

3 - Removing battery case cover:
1. -A- Unscrew the four fastening nuts.
2. -B- Unclip the four fastening clips using a screwdriver.
3. Remove the battery case cover by pulling it up.

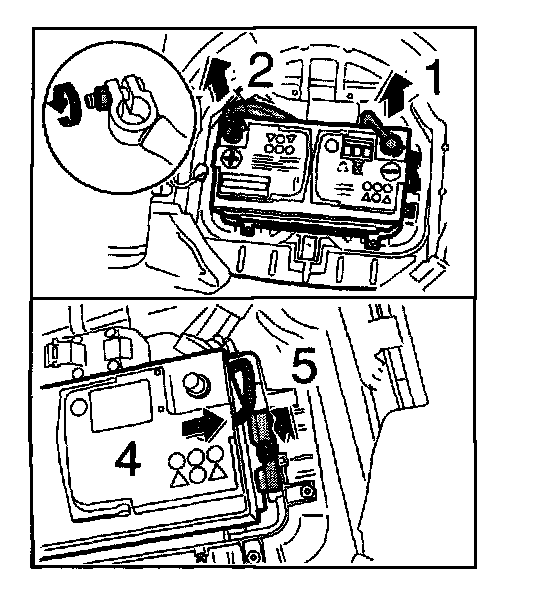

4 - Disconnecting and removing the battery:
1. Risk of short circuit! First disconnect negative cable -1-, then positive cable -2-.
2. Pull off vent hose -4- on the battery.
3. Unscrew the battery mount nut and remove the retaining bracket for the battery mount.
4. Risk of causticisation! Remove battery from the battery case by the folding handles, if at all possible without tilting it.
Installing auxiliary battery

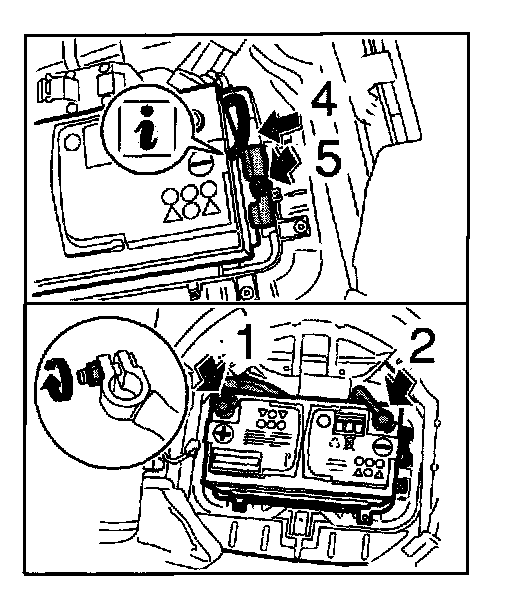

1 - Inserting and connecting the battery:
1. Risk of causticisation! Position the battery in the battery case below the stops, if at all possible without tilting it.
2. Position retaining bracket and tighten with fastening screw -5-. --> "Tightening torques" in 27-4
3. Push vent hose -4- onto the battery.
Note!
Make sure that the two ends of the vent hose are routed and inserted correctly.
1. Risk of short circuit! First connect positive cable -1- then negative cable -2-. --> "Tightening torques" in 27-4
2 - Positioning battery case cover and screwing it on:
1. Put on the battery case cover, position it and clip the four fastening clips -A- onto the cover.
2. Push the retraining straps across the four fastening bolts on the body floor and screw on the four fastening nuts. --> "Tightening torques" in 27-4

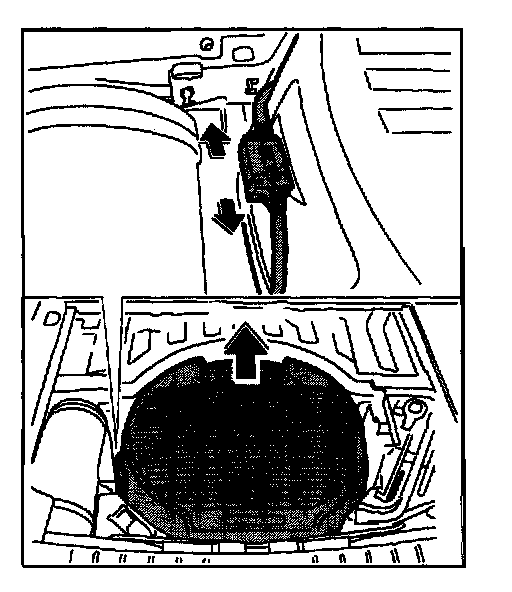

3 - Installing subwoofer:
1. Insert the subwooter via the battery case.
2. Connect the electrical plug connection, pressing on it until the plug audibly clicks into place.
3. Insert the electrical plug connection on the subwoofer.
4 - Fastening subwoofer:
Note!
If the vehicle contains a subwooter or collapsible spare wheel the relevant component must be reinstalled.
1. Push in fastening screw -3- with the large washer and tighten it. --> "Tightening torques" in 27-4
2. Position both fastening nuts -2- and tighten them.
--> "Tightening torques". in 27-4
3. If it is present, place tyre sealant -1- in tray.
4 - Installing collapsible spare wheel:
Note!
If the vehicle contains a subwoofer or collapsible spare wheel the relevant component must be reinstalled.
1. Insert collapsible spare wheel.
2. Screw in screw -B-.
3. Position twist grip -A- and tighten fastening screw -B-.

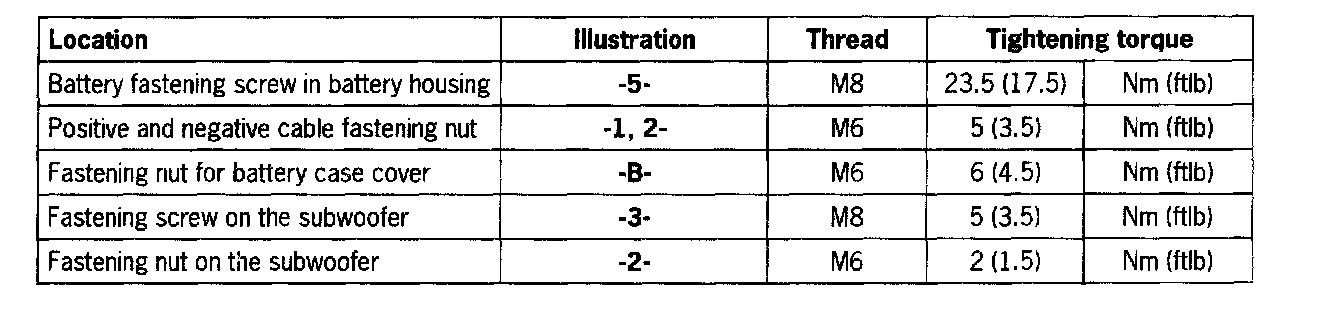

Tightening torques
