Removing and Installing Right Sealing Ring For Selector Shaft

Removing and installing right sealing ring for selector shaft

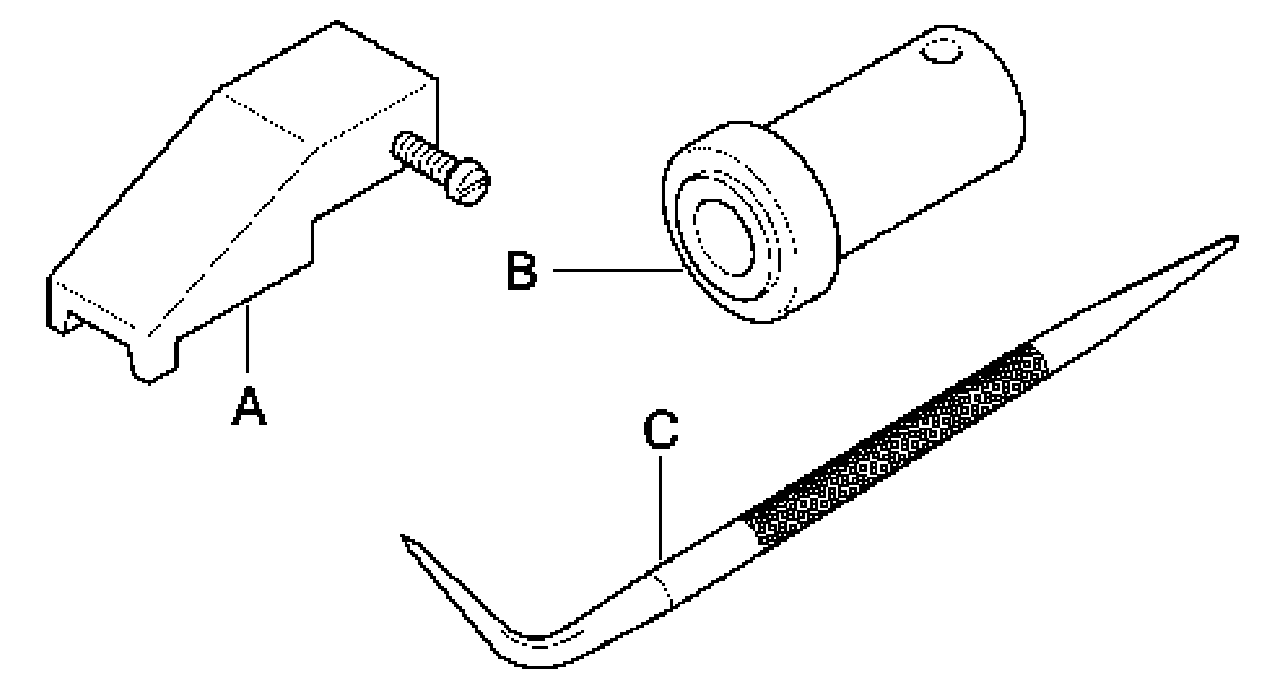

Tools

Remove sealing ring
1. Move selector lever to position N.
2. Remove engine guard.
3. Remove multi-functional switch.

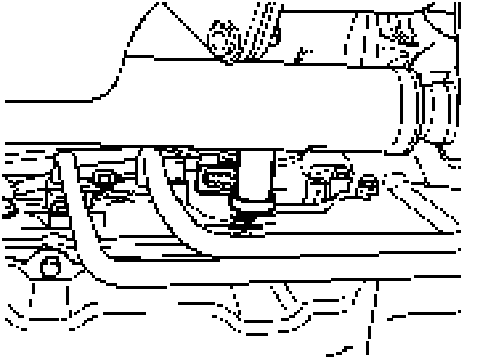

4. Remove sealing ring with sharp tool, such as a scriber etc.

Installing sealing ring

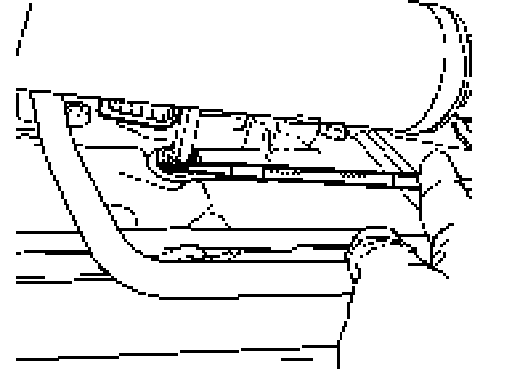

1. Press new sealing ring with special tool pressure sleeve T10174 as far as the pressure piece system on the transmission housing.
2. Install multi-functional switch.
3. Adjust multi-functional switch.
4. Install engine guard.
5. Functional test of gear selecting system:
^ Will the vehicle start?
^ Do all the selector lever positions work?

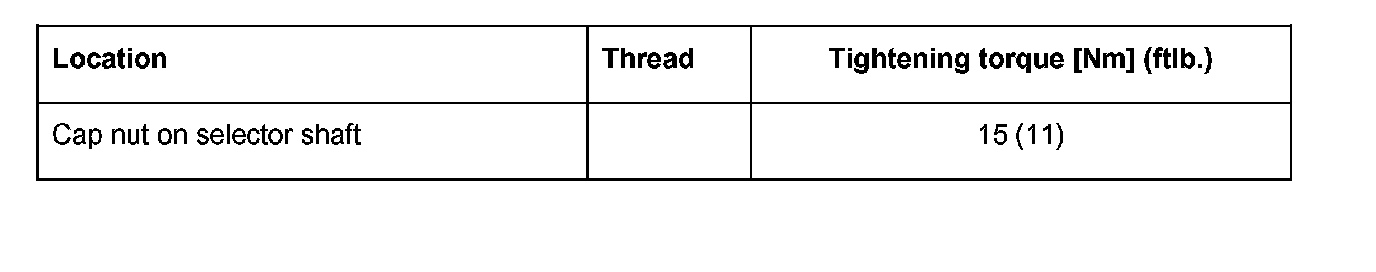

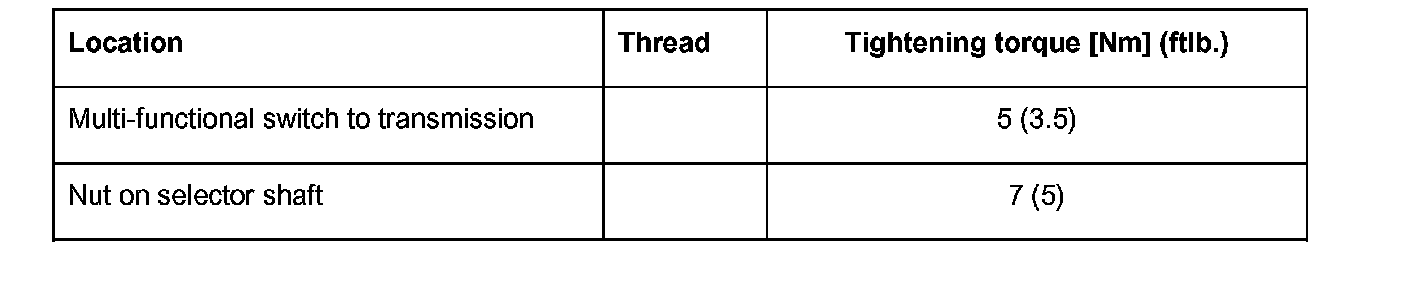

Tightening torques
