Removing and Installing Sealing Ring For Output Shaft

Removing and installing sealing ring for output shaft

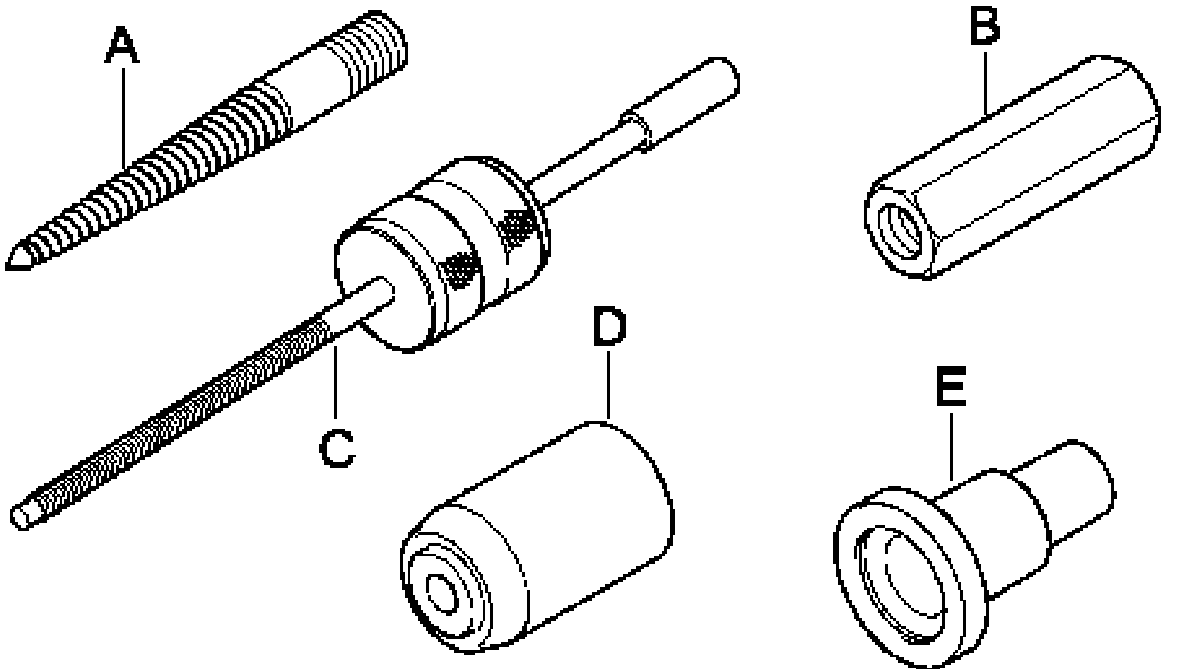

Tools

Removing sealing ring for output shaft

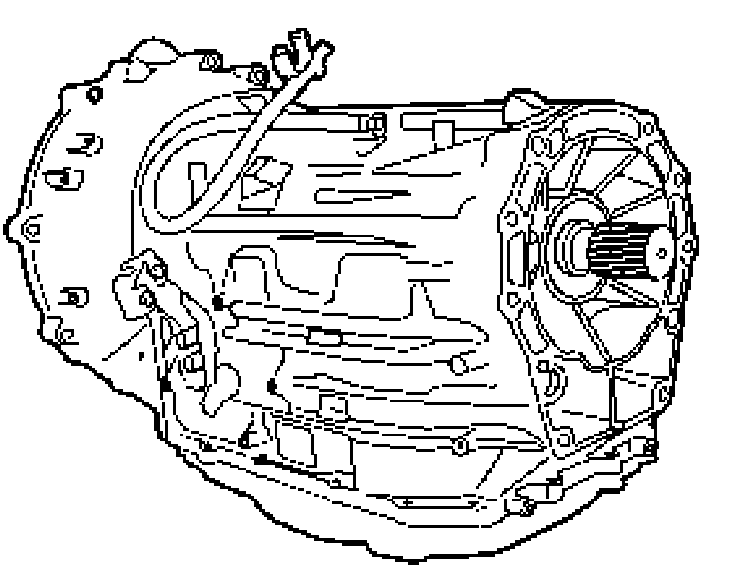

1. Remove transfer box.

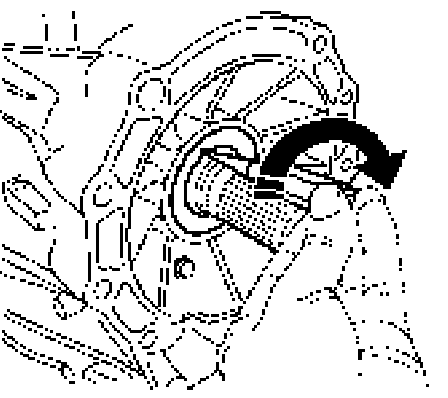

2. Screw countersunk head bolt and bolt adapter from slide hammer kit 168 into sealing ring.

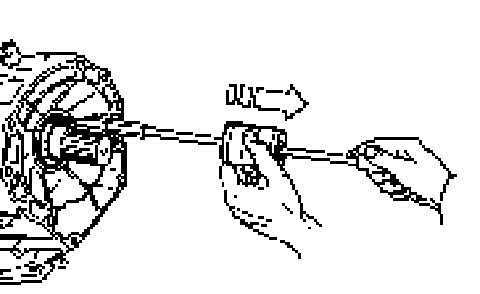

3. Screw on slide hammer from slide hammer kit 168 and remove sealing ring.

Installing sealing ring for output shaft

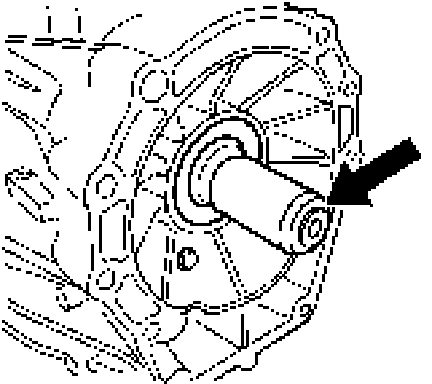

1. Push special tool protective sleeve T10186 onto output shaft.
2. Push on sealing ring.

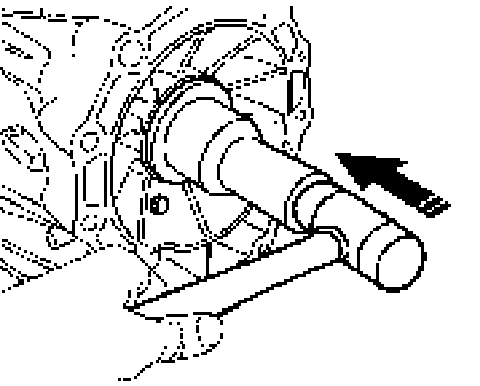

3. Remove special tool protective sleeve T10186 and drive in sealing ring flush using special tool pressure piece T10180.
4. Install transfer box.
