Removing and Installing Torque Converter Sealing Ring

Removing and installing torque converter sealing ring

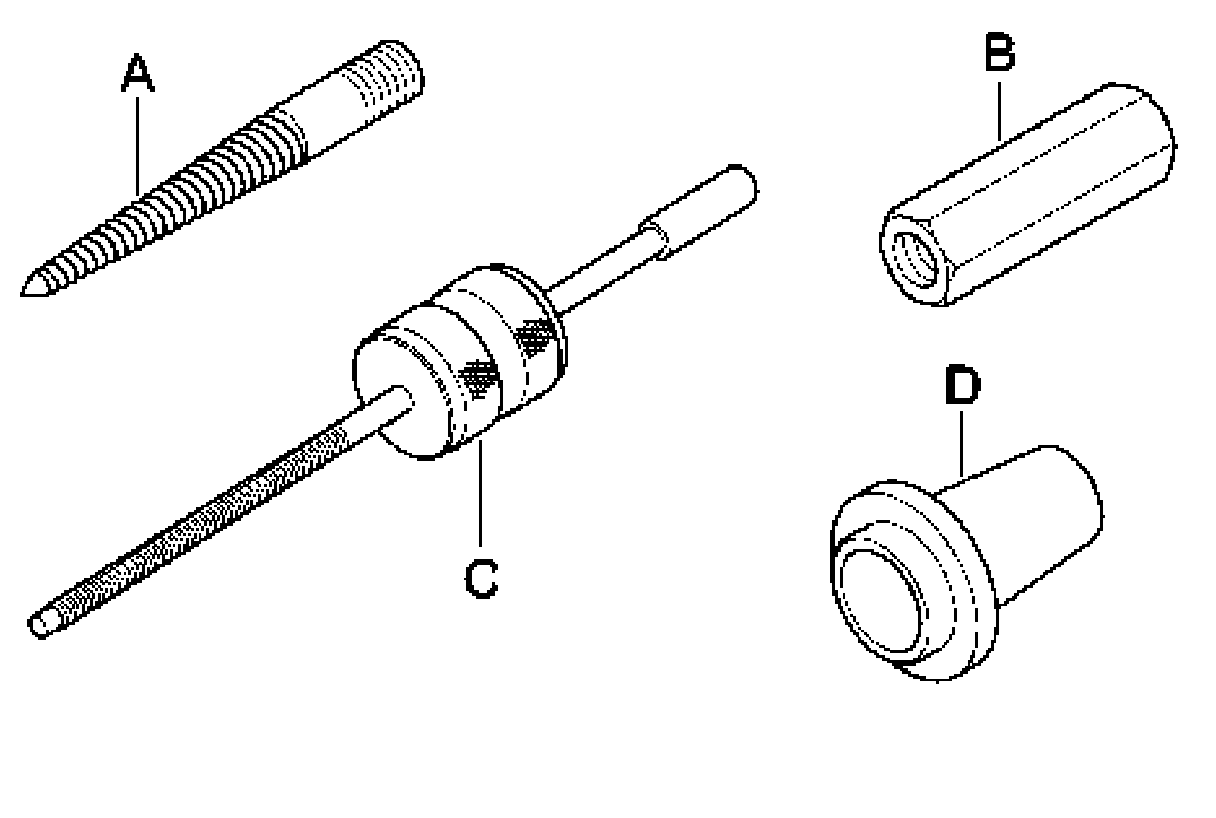

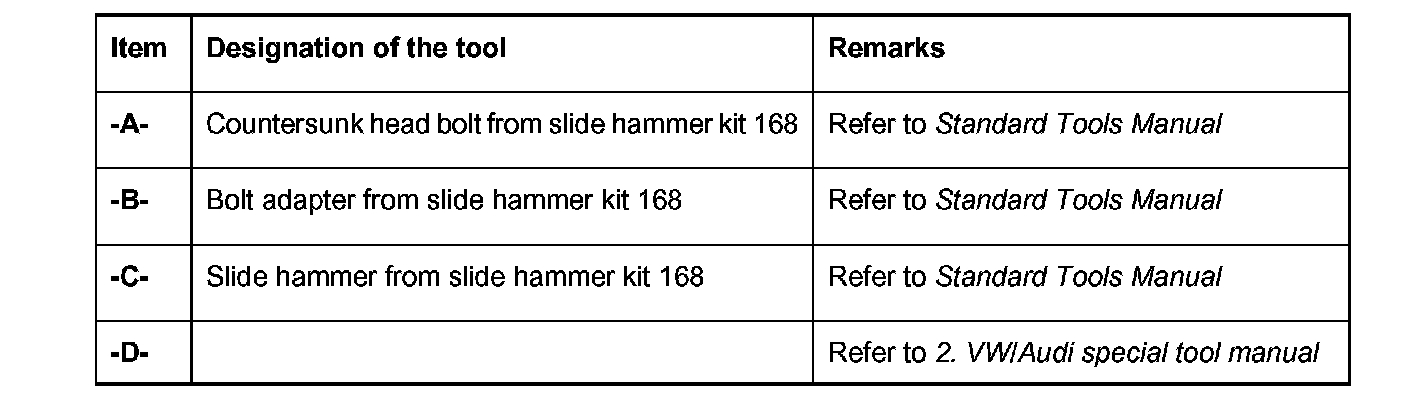

Tools

Removing the torque converter sealing ring
1. Remove Tiptronic gears.
2. Remove torque converter.

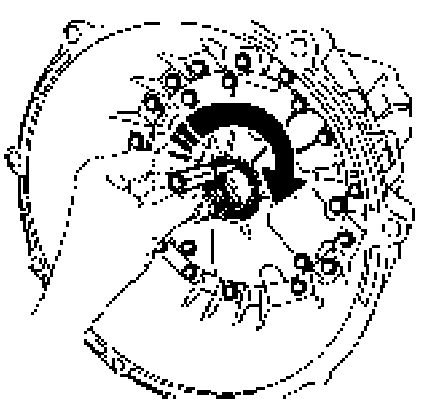

3. Using the bolt adapter from the slide hammer kit 168 screw countersunk head bolt into sealing ring.

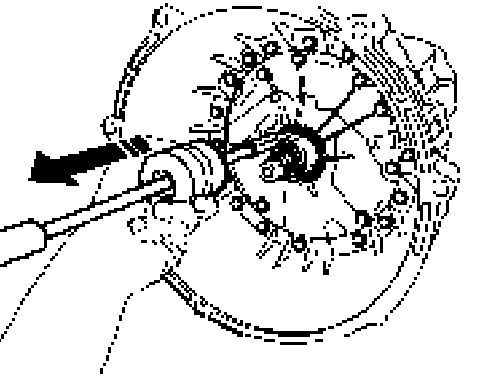

4. Screw on slide hammer from slide hammer kit 168 and remove sealing ring.

Installing the torque converter sealing ring
1. Position new sealing ring on special tool pressure piece, installing radial shaft sealing ring 3295.

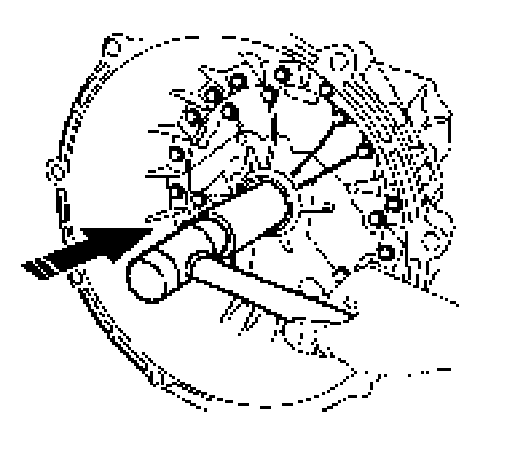

2. Push sealing ring in as far as it will go using special tool pressure piece, installing radial shaft sealing ring 3295.

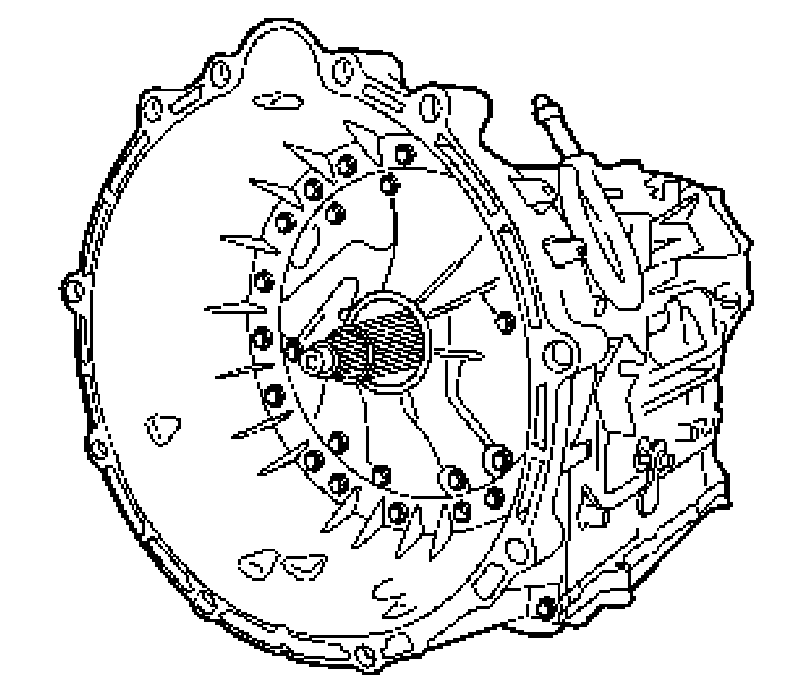

3. Install torque converter.
4. Install Tiptronic transmission.
