Selector Lever Emergency Release

Selector lever emergency release

Note:
^ It is not possible to lock the selector lever when it is de-energized, e.g. battery discharged.

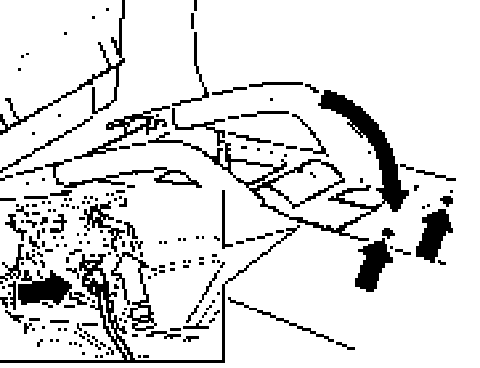

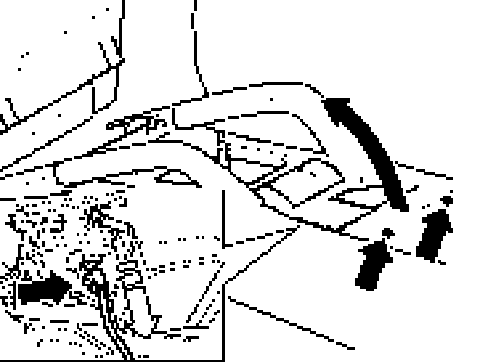

1. Fold up middle armrest.





2. Unscrew two screws of cover and tip cover up.
3. Release cable connection and remove cover.

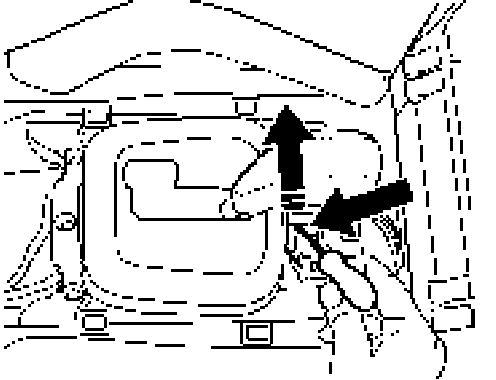

4. Using a screwdriver, for example, push locking lever on front of selector support towards the driver's side.
5. Move selector lever to position N.





6. Install cover for cent reconsole. While doing so, plug in cable.
7. Screw in two screws.
