Removing and Installing Selector Knob

Removing and installing selector knob
Removing selector knob

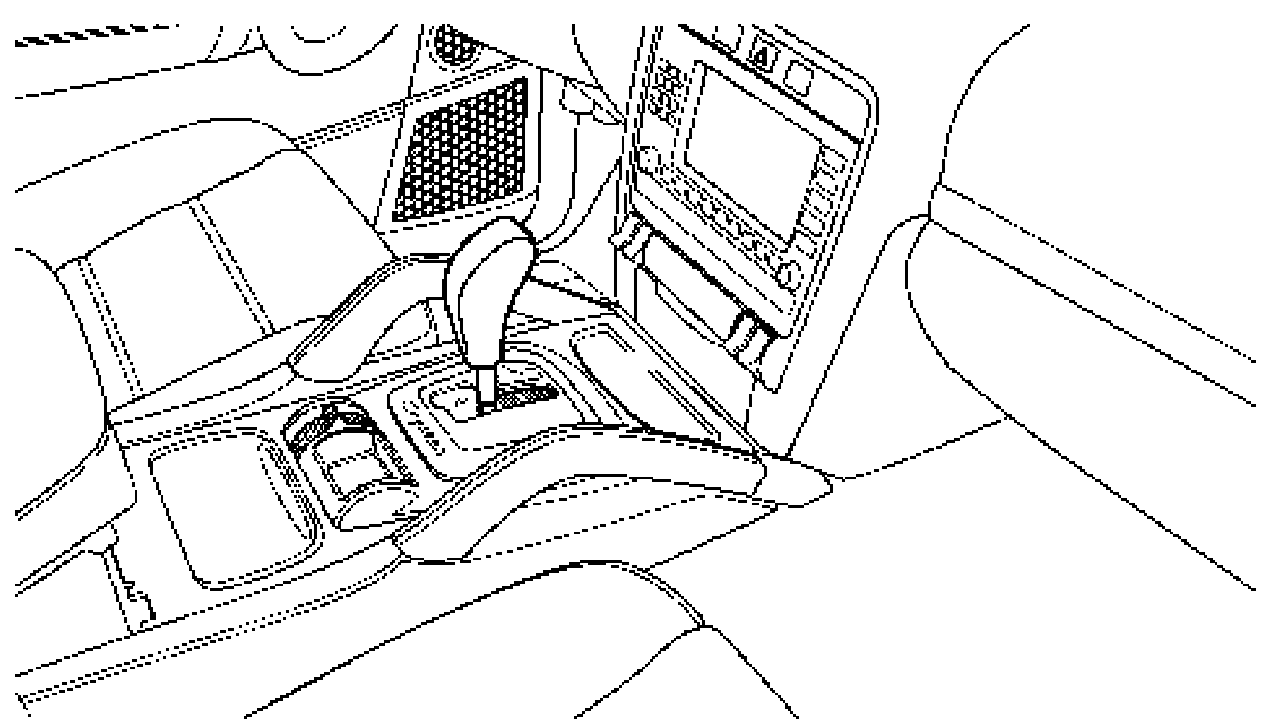

1. Selector lever is in position D.

Note:

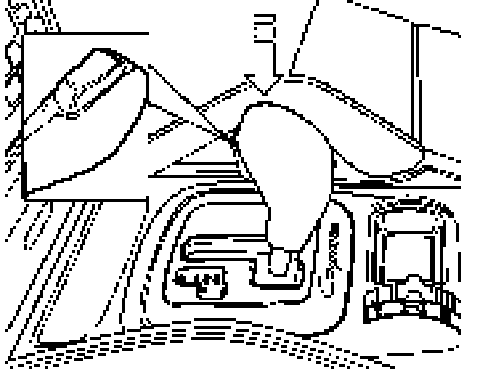

^ The button at the front must not be pressed down when the selector knob is pulled.

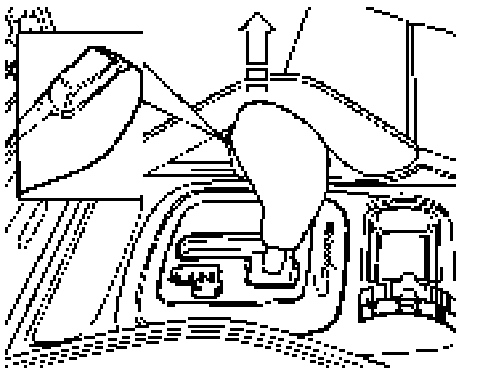

2. Pull selector knob up and off.

Installing selector knob

Note:
^ The button must not be pressed down when the selector knob is installed.

1. Selector lever is in position D.

Caution: Spring in selector knob is overstretched!
^ Only move the selector knob as far forward until the tool can be inserted.
^ Avoid any further overstretching.

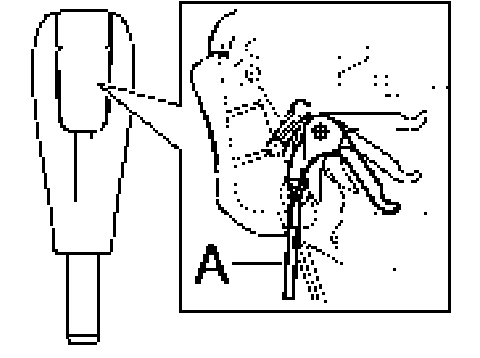

2. The unlocking hook in the selector knob must retract to the button. Lock the hook under the button, using short screwdriver -A- for example.





3. Push on the selector knob until it audibly engages in the selector support. The sleeve is then inserted in the selector lever cover.
4. Remove the tool on the handle.
5. Functional test of gear selecting system:
^ Will the vehicle start?
^ Do all the selector lever positions work?
