Removing and installing sealing ring for output flange (four-wheel final drive)

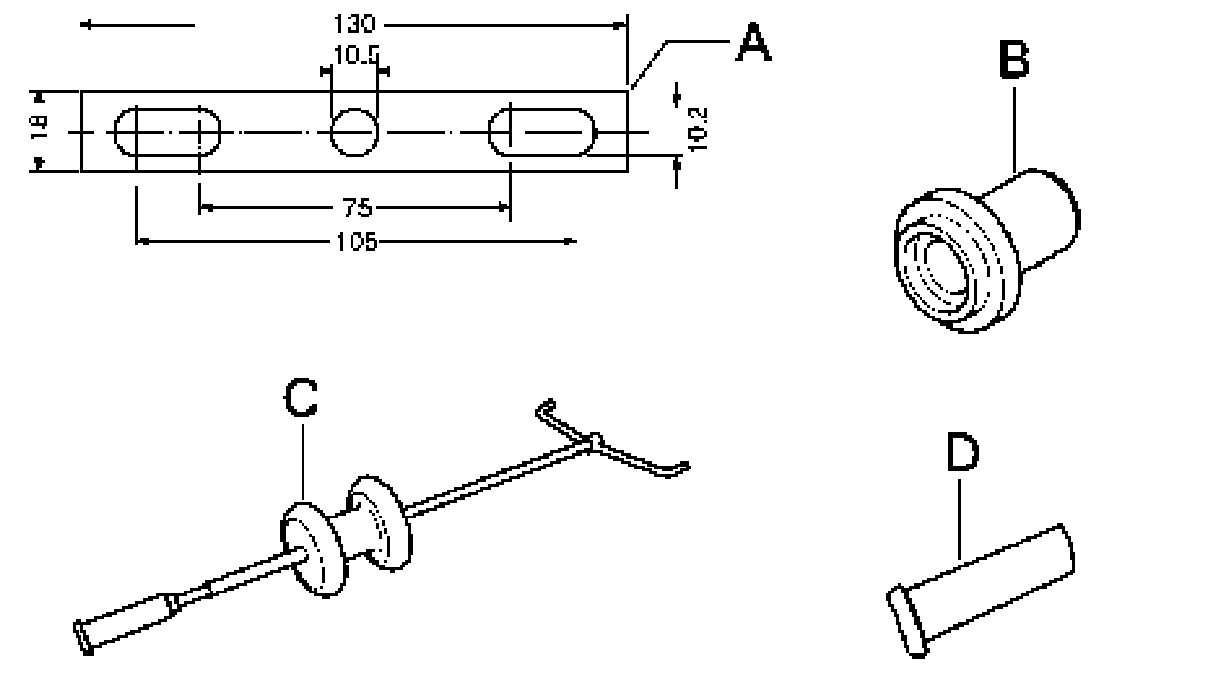

Tools

Removing and installing sealing ring for left-hand output flange

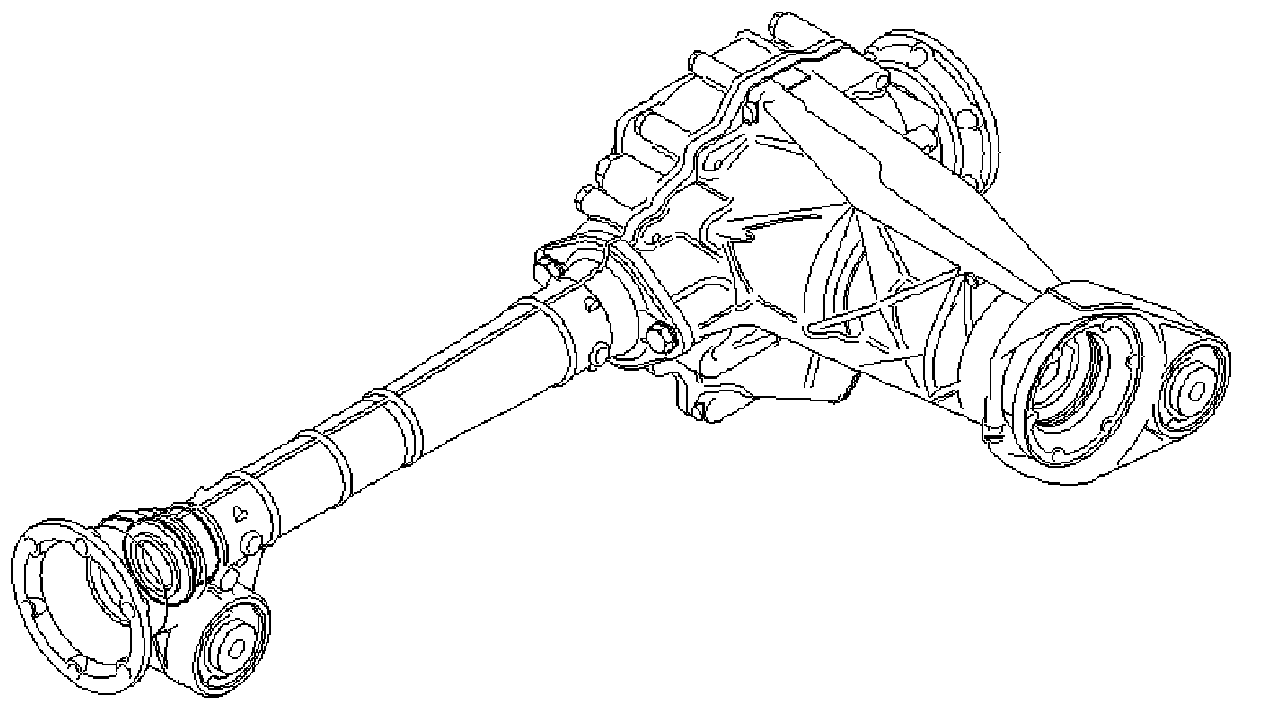

1. Remove all-wheel final drive.

Removing sealing ring for left-hand output flange

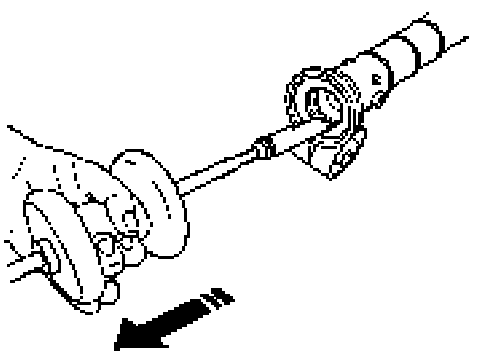

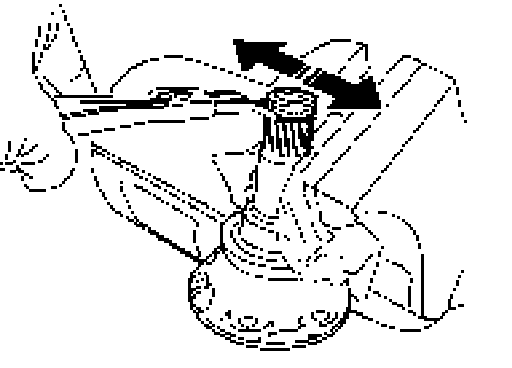

1. Remove flange shaft with special tool striker VW 771/1 and shop-made tool .

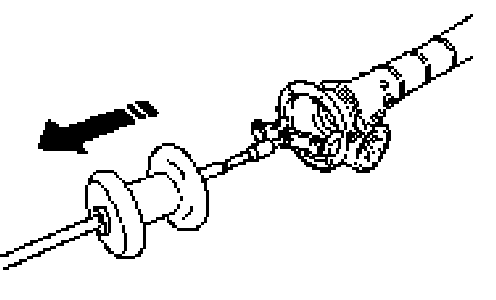

2. Remove sealing ring with special tool striker VW 771/1 and top of extraction tool VW 771/37 .

Installing sealing ring for left-hand output flange

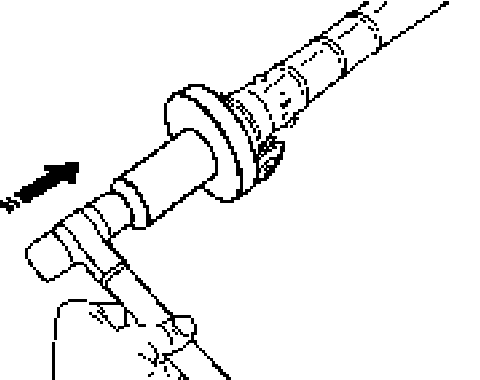

1. Drive in sealing ring with special tool pressure piece T10032 until special tool touches transmission housing.





2. Replace snap ring on end of flange shaft.
3. Push flange shaft into transmission until it engages.
4. Install all-wheel final drive.
