Removing and Installing Sealing Ring For Output Flange (Rear Final Drive)

Removing and installing sealing ring for output flange (rear final drive)

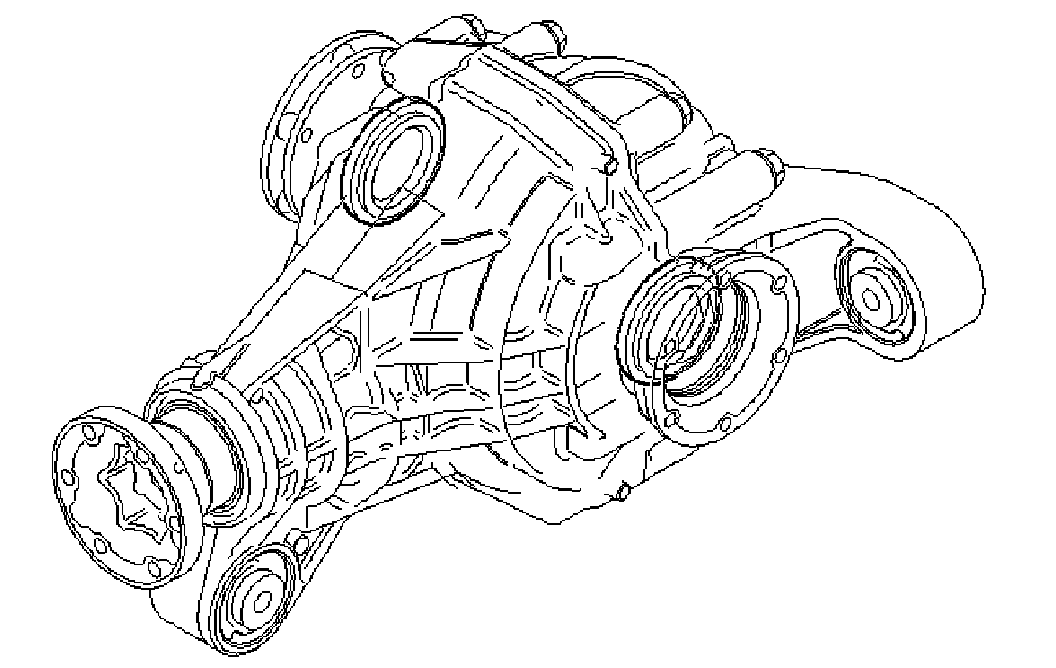

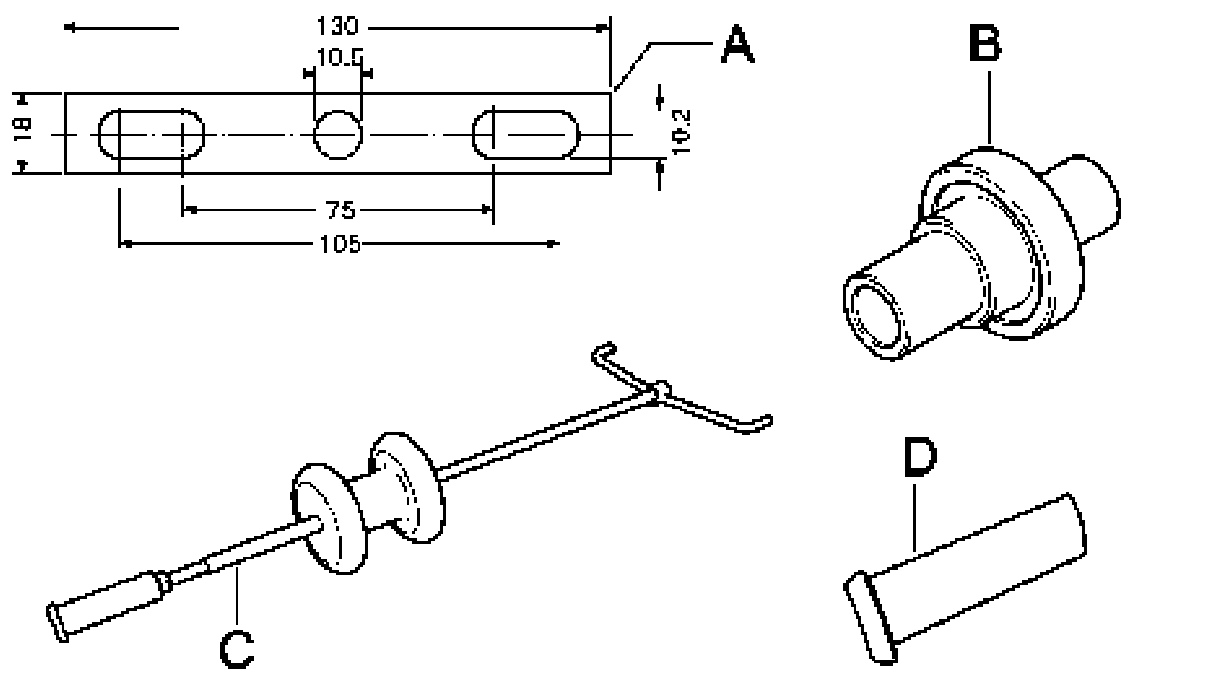

Tools

Removing sealing ring for output flange
1. Remove final drive.

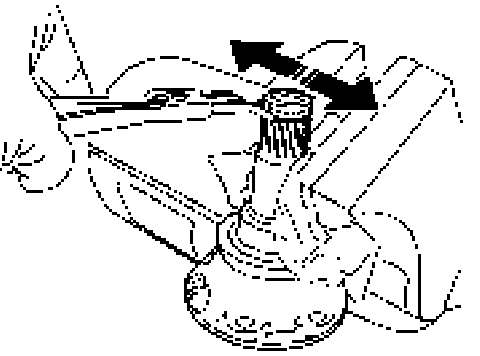

2. Remove output flange with special tool striker VW 771/1 and shop-made tool.

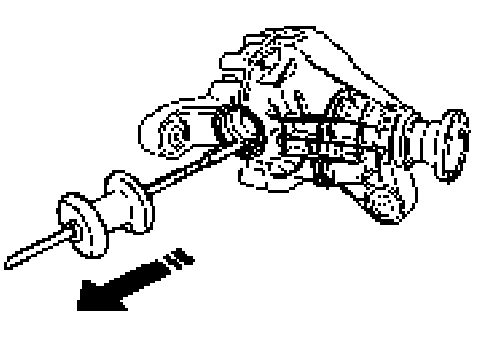

3. Remove sealing ring with special tool striker VW 771/1 extraction tool VW 771/37.

Installing sealing ring for output flange





1. Replace flange shaft snap ring.

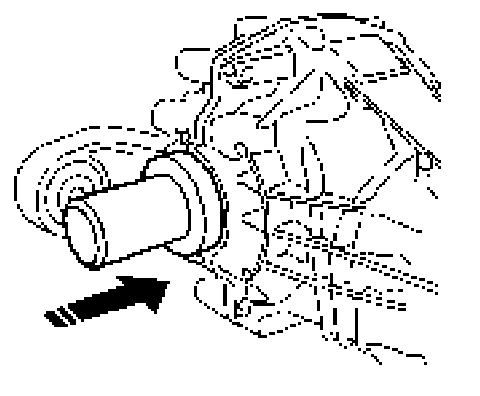

2. Drive in sealing ring with special tool pressure piece T10181 until special tool touches transmission housing.
3. Install output flange.
4. Install rear final drive.
