Removing and Installing Sealing Ring For Drive Shaft

355019 Removing and installing sealing ring for drive shaft

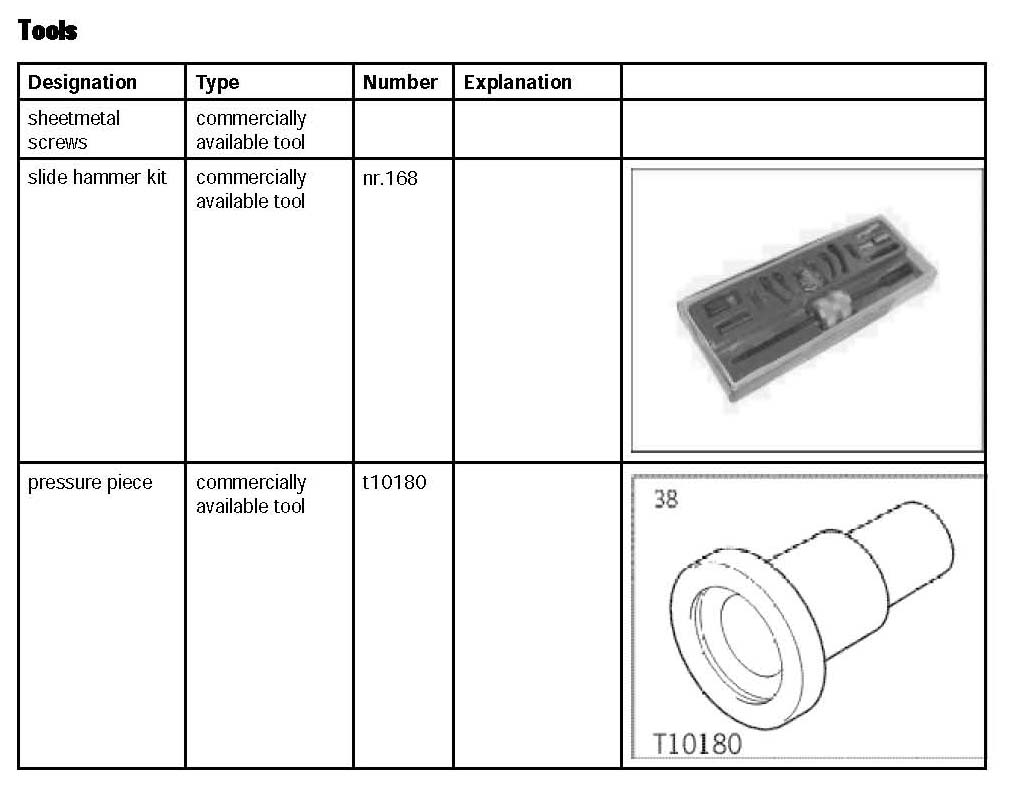

Tools





Preliminary work for drive shaft

Preliminary work for sealing ring for manual transmission
1. Remove transmission.

Removing sealing ring for drive shaft

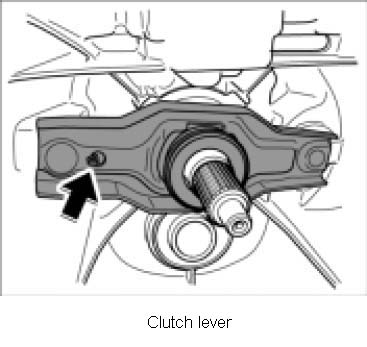

1. Remove clutch lever with release bearing. To do this, press the retaining spring -arrow- out of the opening in the clutch lever.

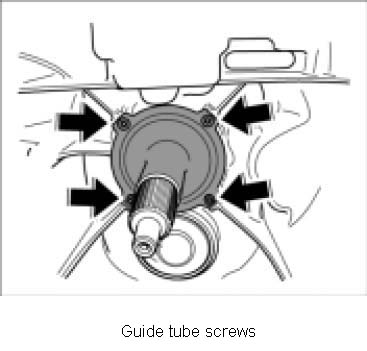

2. Remove guide tube for release bearing. To do this, unscrew four fastening screws -arrow-.





Note:

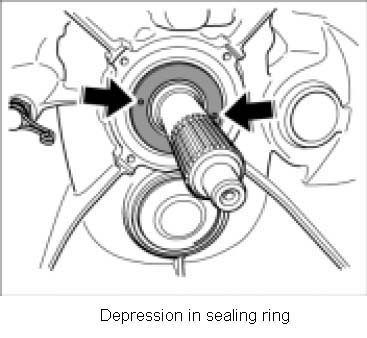

^ There are two depressions in the sealing ring -arrows-. The sheetmetal screws for removing the sealing ring are screwed in here.

3. Screw two sheetmetal screws into the sealing ring.

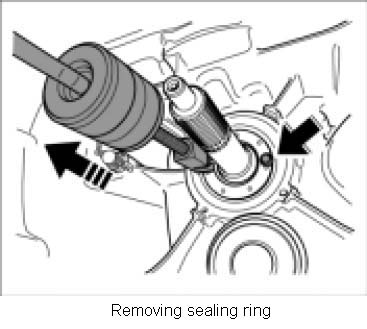

4. Remove sealing ring using slide hammer kit nr.168.

Installing sealing ring for drive shaft

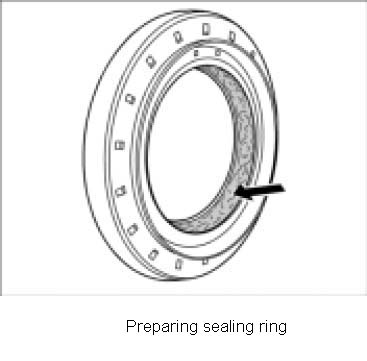

1. Fill the space between the dust and sealing lips on the new sealing ring with grease).
2. Drive new sealing ring in flush with special tool pressure piece t10180.

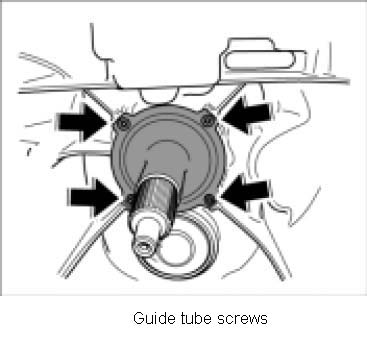

3. Install guide tube for release bearing. To do this, screw in four fastening screws -arrow-.





4. Install clutch lever with release bearing. To do this, the retaining spring -arrow- must be engaged in the opening in the clutch lever.

Touching up for sealing ring for drive shaft

Subsequent work for sealing ring for drive shaft
1. Install transmission.
