Removing and Installing Sealing Ring For Output Shaft

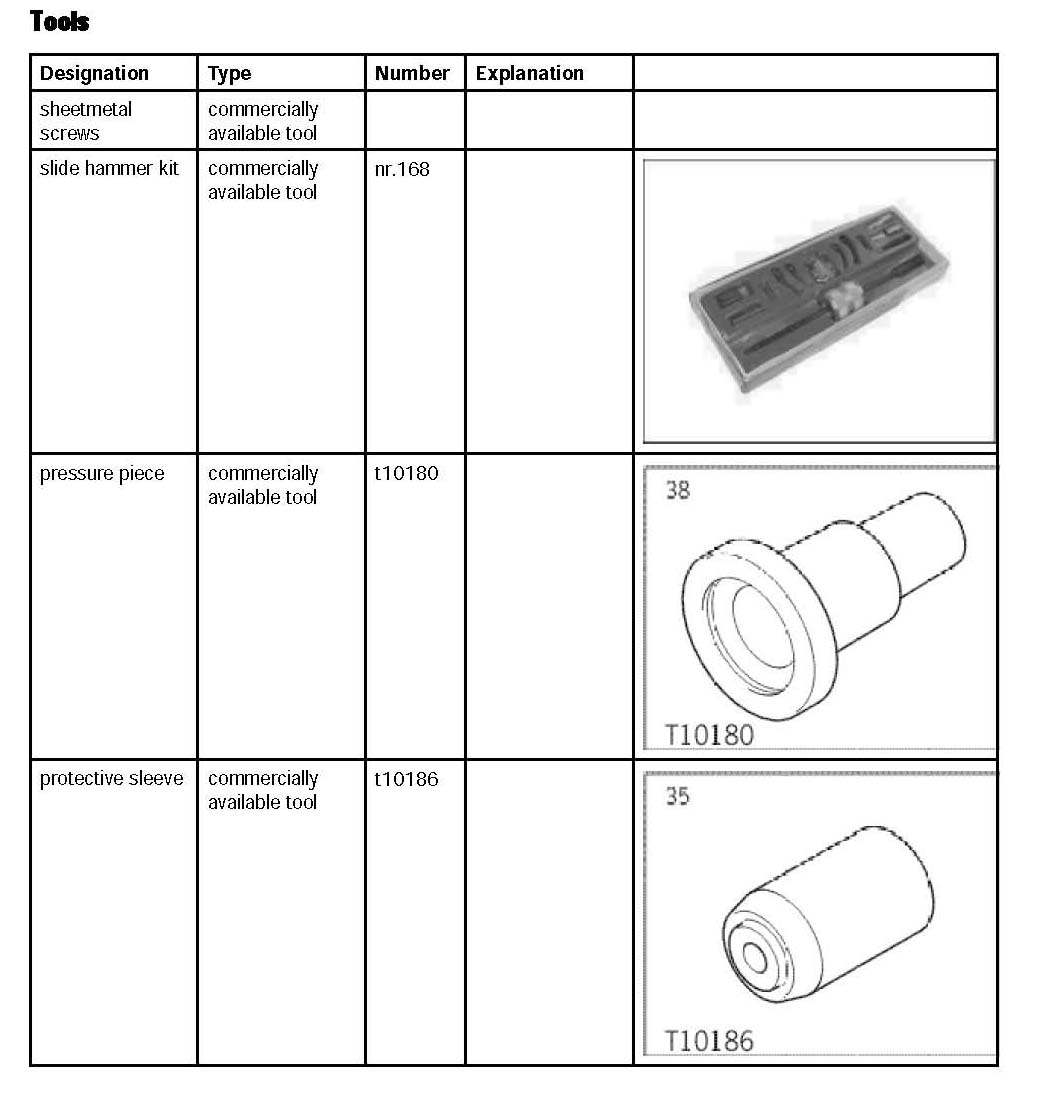

355319 Removing and installing sealing ring for output shaftTools
Preliminary work for sealing ring for output shaft
1. Remove transfer box.
Removing sealing ring for output shaft

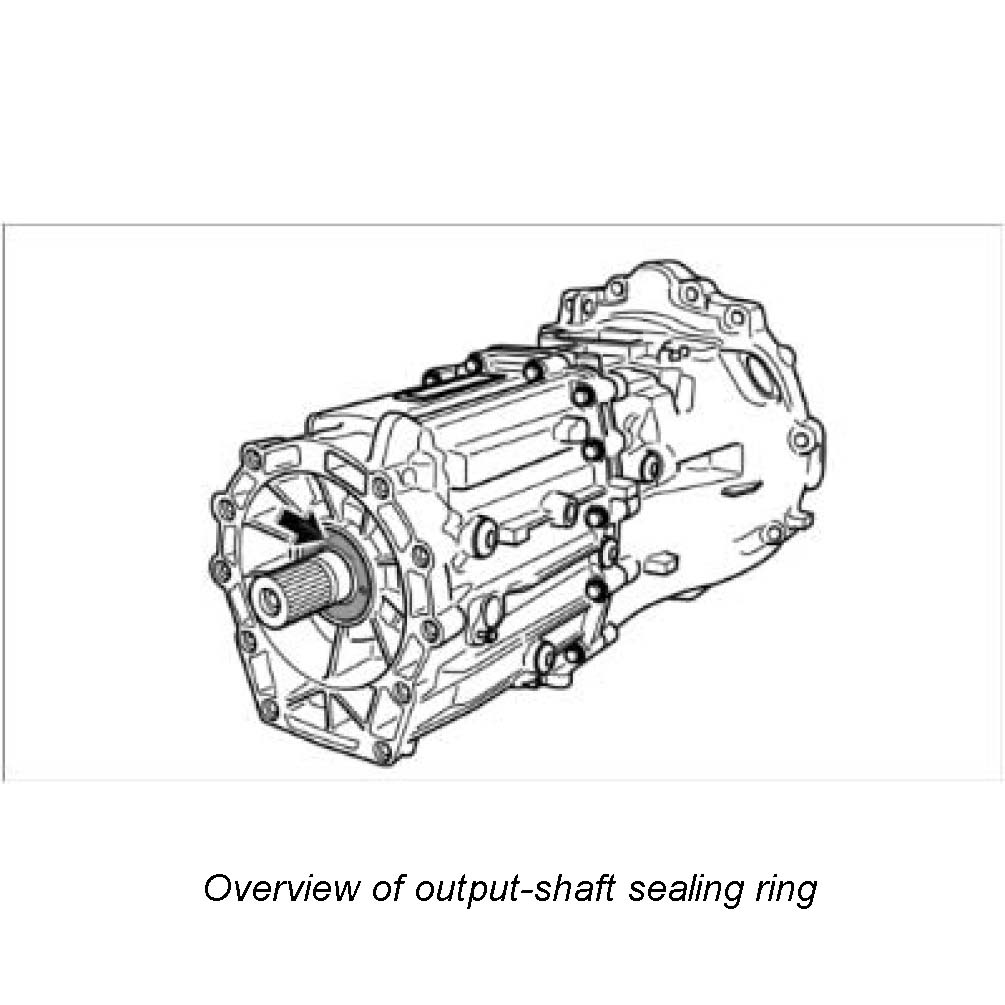

Overview Of Output-shaft Sealing Ring:
Note:

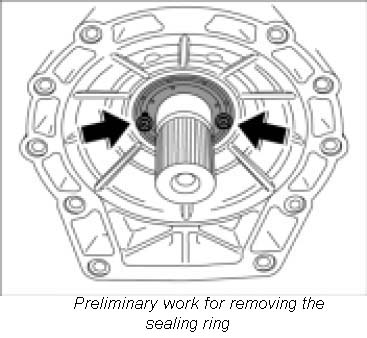

^ There are two depressions in the sealing ring. -arrows- The sheetmetal screws for removing the sealing ring are screwed in here.
1. Screw two sheetmetal screws into the sealing ring.

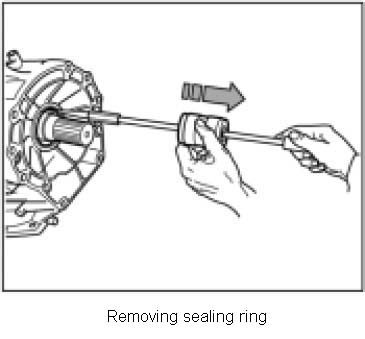

2. Remove sealing ring using slide hammer kit nr.168.
Installing sealing ring for output shaft

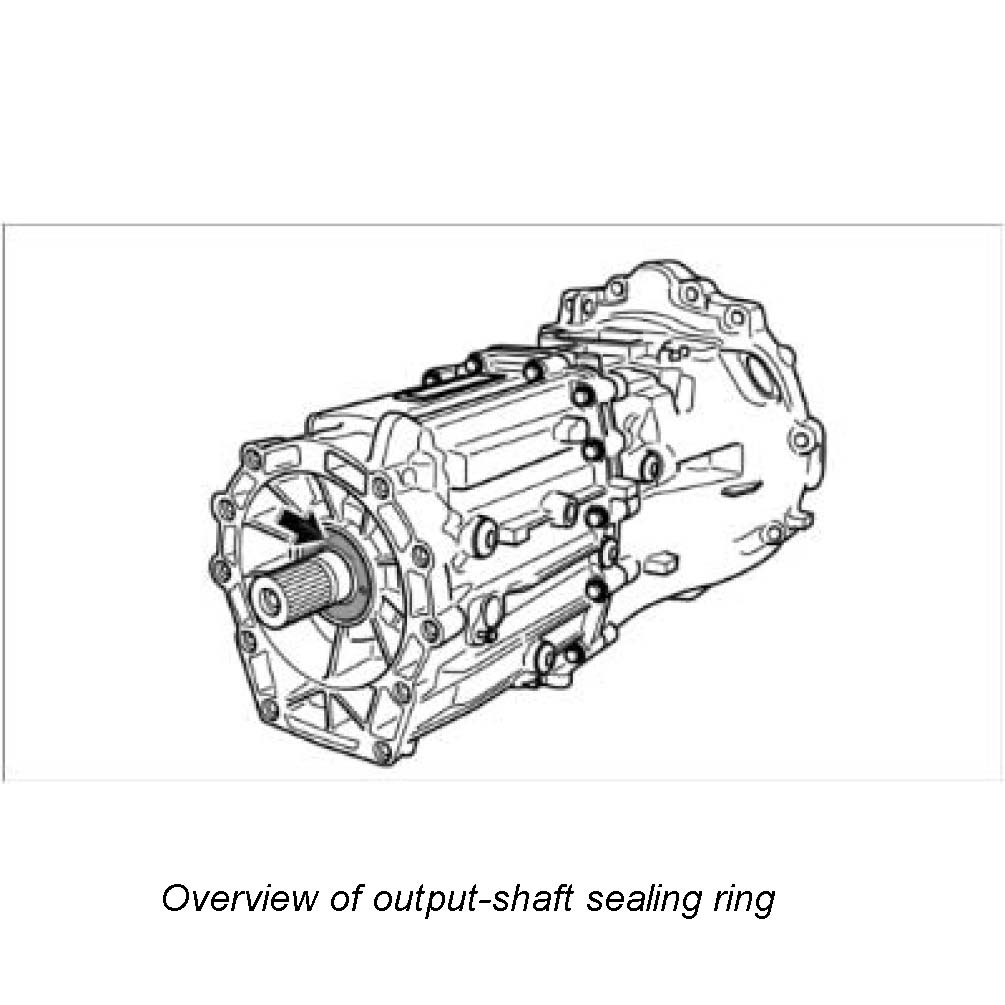

Overview Of Output-shaft Sealing Ring:

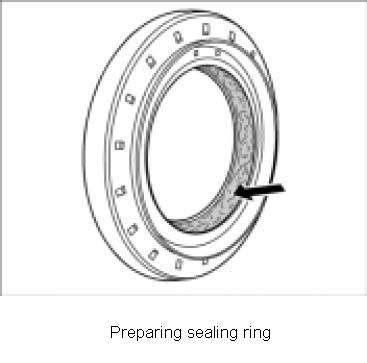

1. Fill the space between the dust and sealing lips on the new sealing ring with grease).

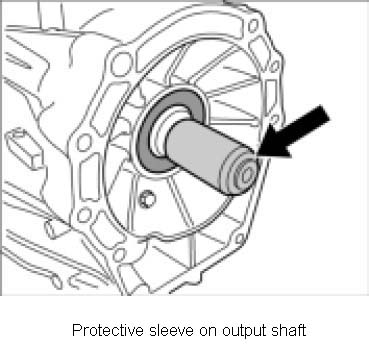

2. Push special tool protective sleeve t10186-arrow- onto the output shaft.
3. Push on sealing ring.

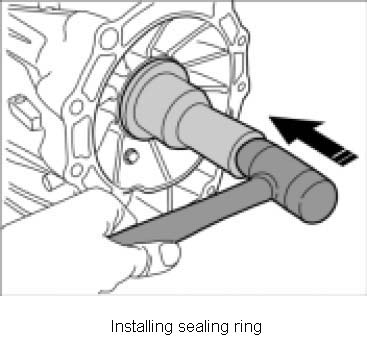

4. Remove special tool protective sleeve t10186 and drive sealing ring in flush using special tool pressure piece t10180-arrow-.
Subsequent work for sealing ring for output shaft
1. Install transfer box.
2. Check transmission oil.
