Removing and Installing Countershaft Cap

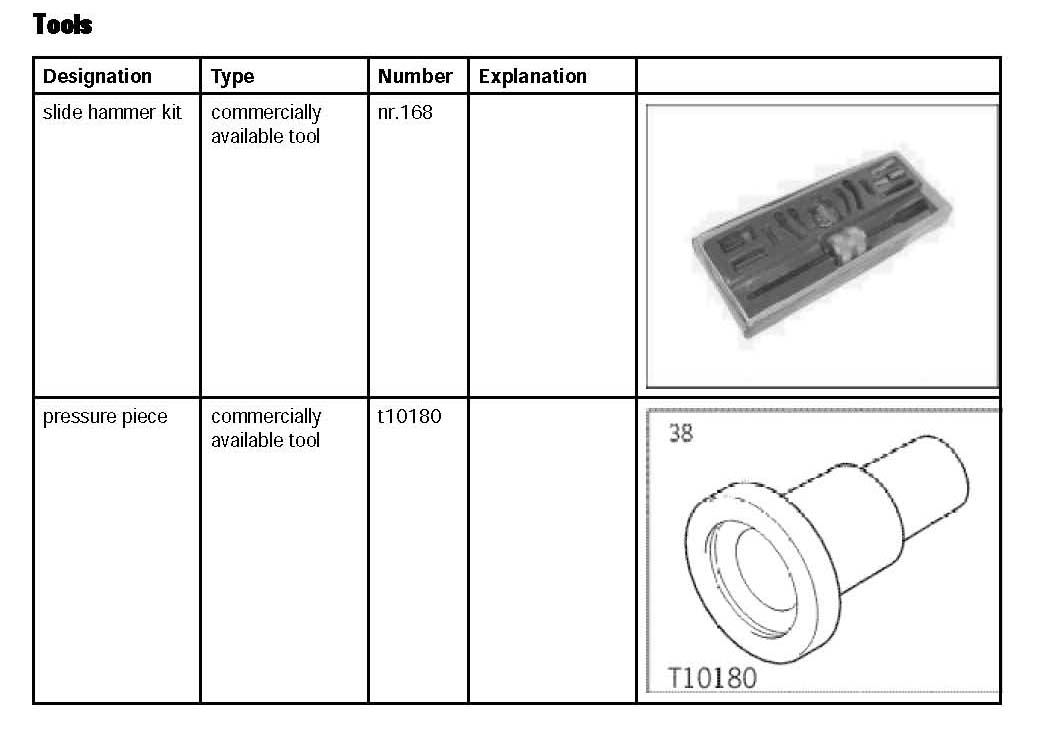

344919 Removing and installing countershaft capTools
Preliminary work countershaft cap
1. Remove transmission.
Removing countershaft cap

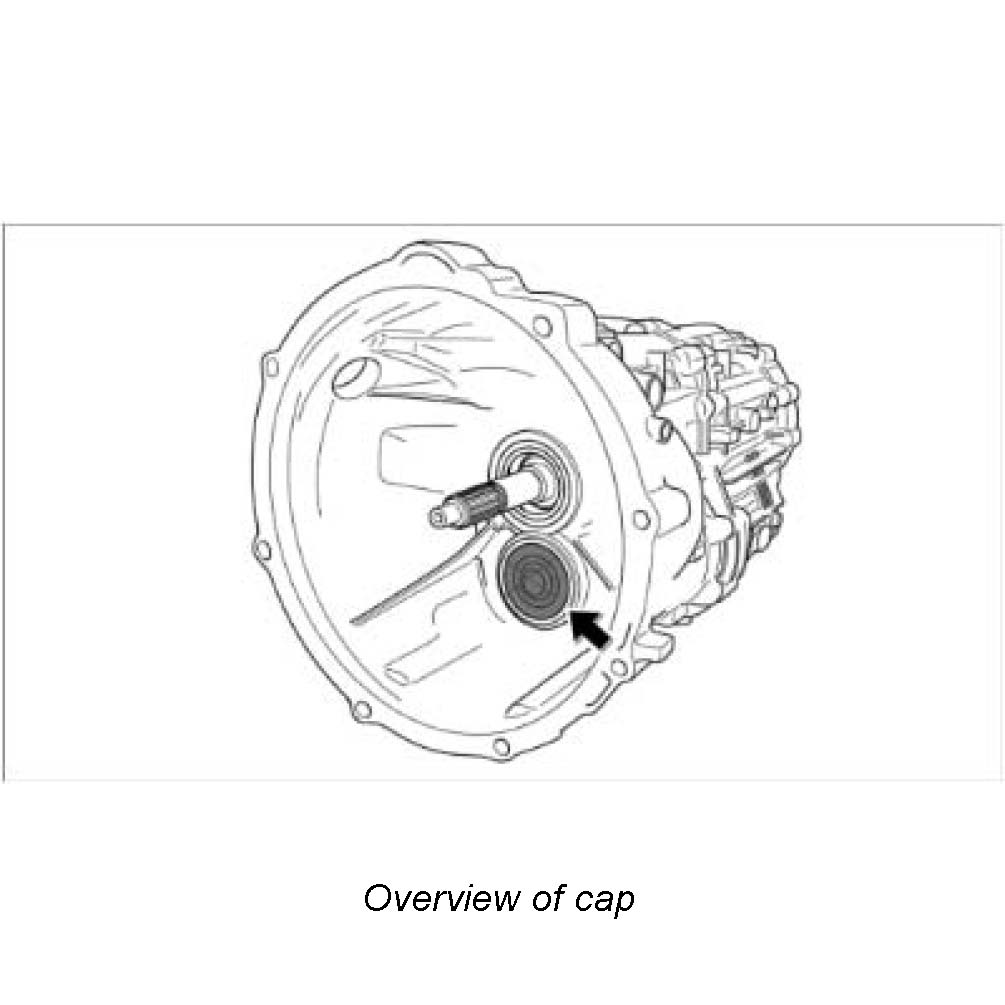

Overview Of Cap:

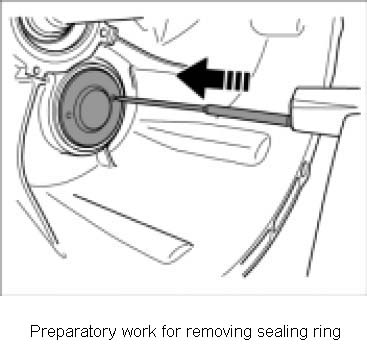

1. Drive two small holes -figure- -offset by 180 degrees -into the sealing ring.
2. Screw two sheetmetal screws into the holes in the cap.

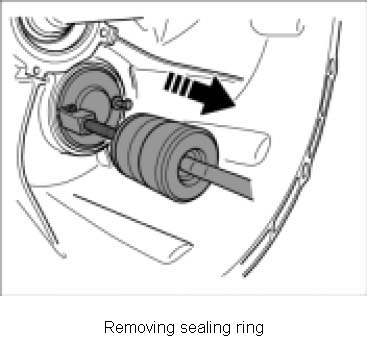

3. Remove cap using slide hammer kit nr.168.
Installing countershaft cap

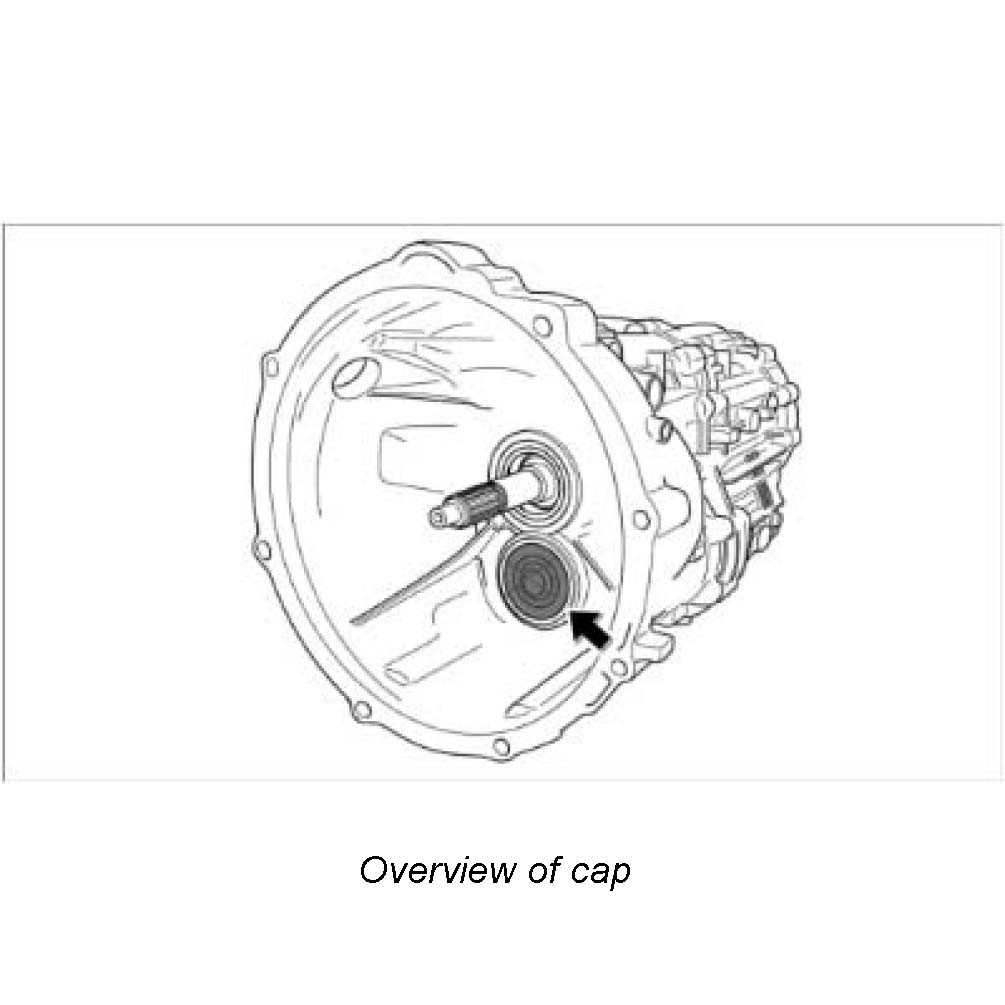

Overview Of Cap:
1. Drive new cap in flush using special tool pressure piece t10180.
Touching up countershaft cap
Reworking countershaft cap
1. Install transmission.
2. Check transmission oil.
