Removing and Installing Shift Lever Knob
340419 Removing and installing shift lever knobRemoving shift lever knob

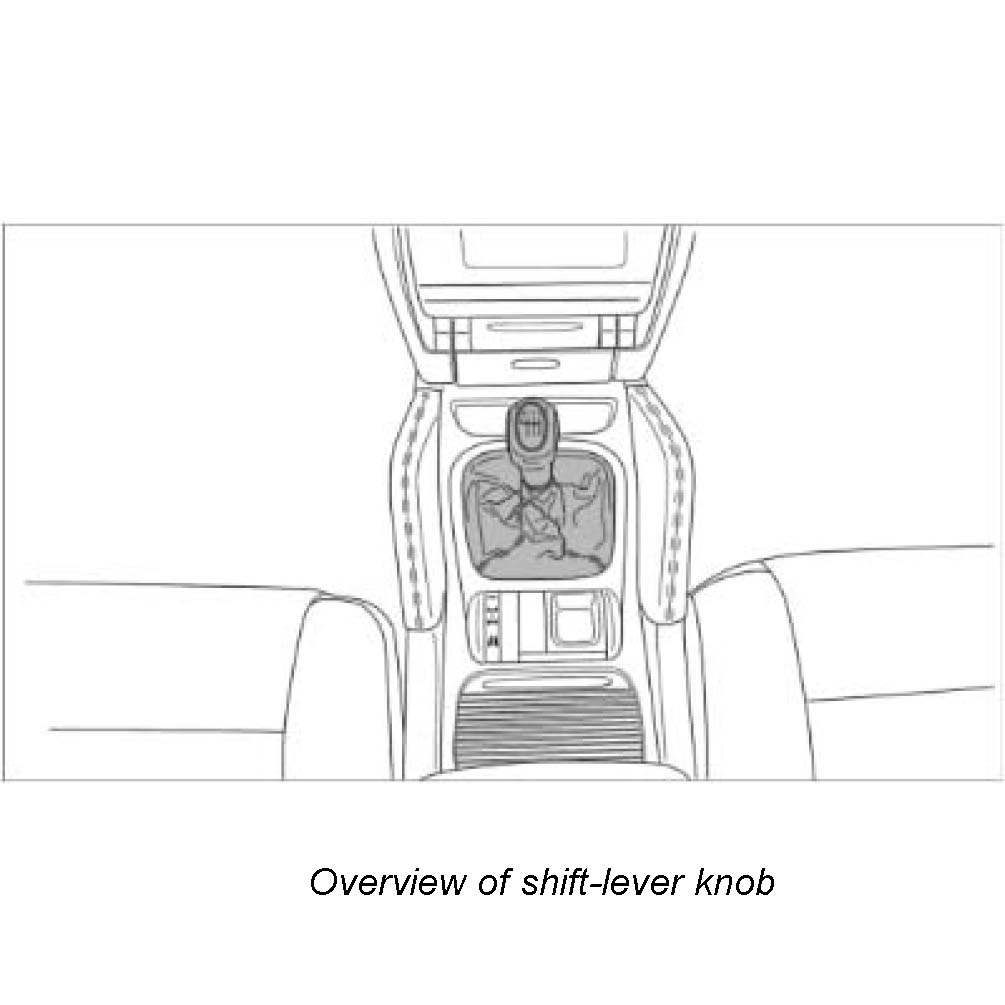

Overview Of Shift-lever Knob:
1. Put shift-lever knob in neutral position.

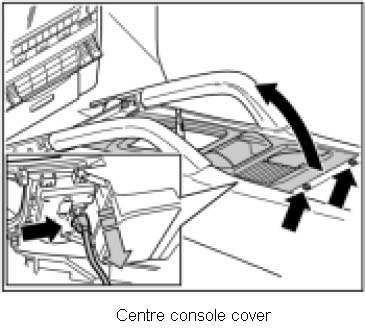

2. Unscrew fastening screws on centre console cover -right arrows-, tip cover up and back -curved arrow- and separate cable connection -inset-.

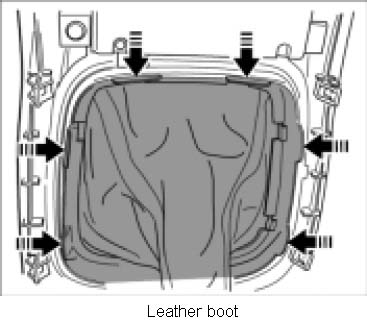

3. Press leather boot out of centre console cover from below -arrows-.

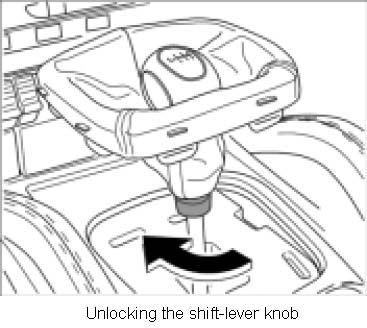

4. Unlock shift-lever knob. To do this, turn the grooved end piece on the gearshift lever clockwise by a quarter of a turn until it engages.
Note:
^ Do not pull shift-lever knob off by pulling on the leather boot.

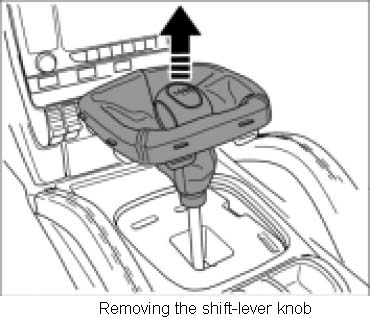

5. Grasp the shift-lever knob at the top end and pull off -arrow-.
Installing shift lever knob

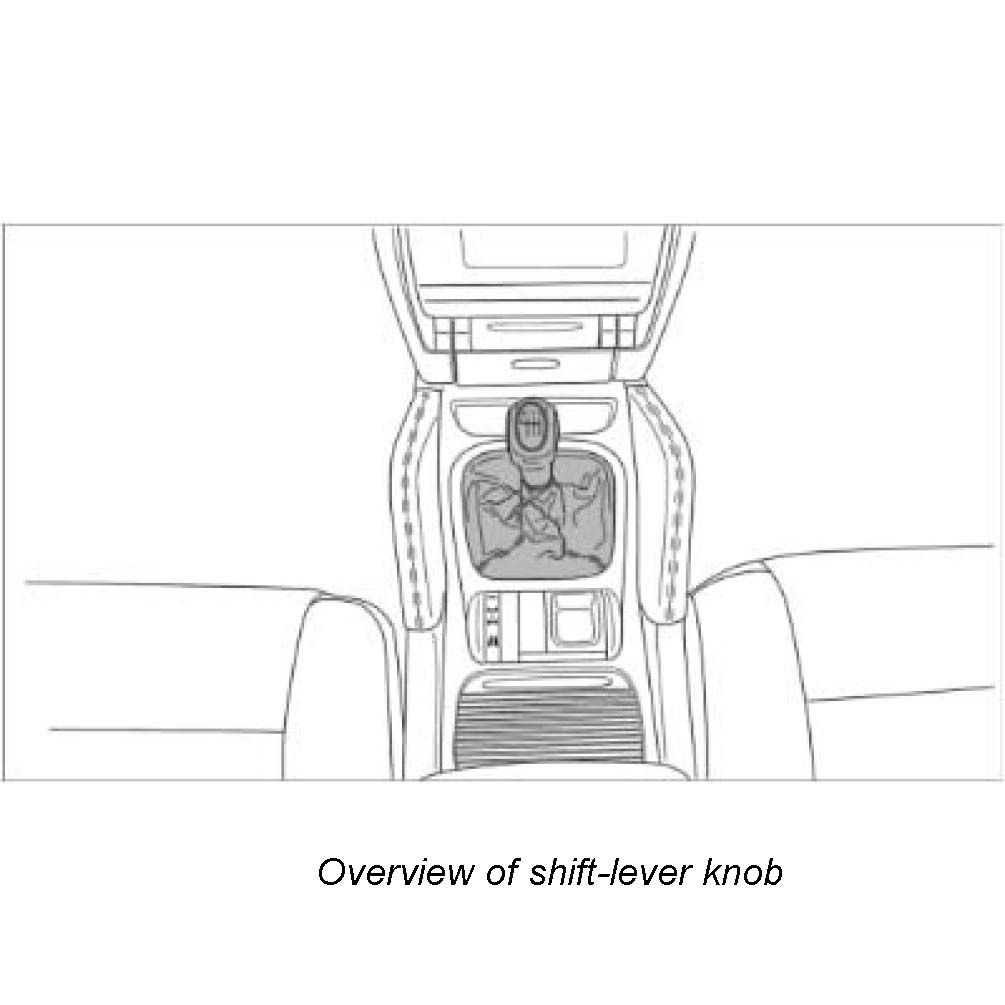

Overview Of Shift-lever Knob:

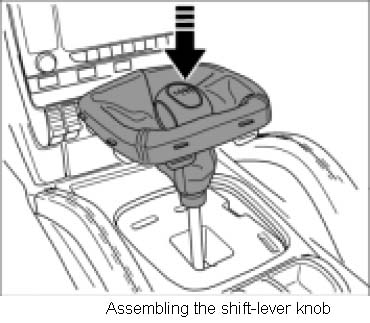

1. Insert the shift lever knob from above until it engages.

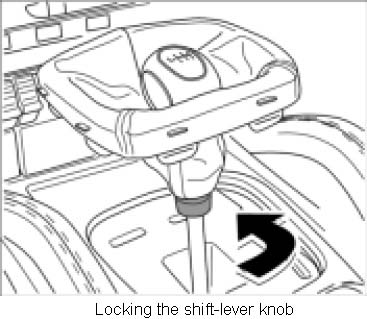

2. Lock shift-lever knob. To do this, turn the grooved end piece on the gearshift lever anti-clockwise by a quarter of a turn until it engages.
3. Fit leather boot into centre console cover from above.

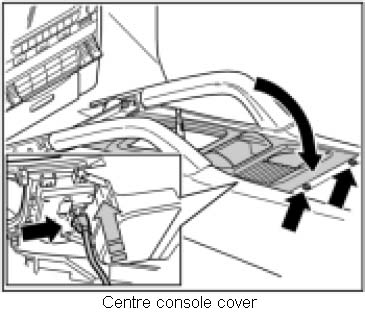

4. Position cable connection -inset- on the underside of the centre console cover.
5. Tip centre console cover backwards -curved arrow- and screw in fastening screws -right arrows-.
