Removing and Installing Top Section of Gearshift Bracket

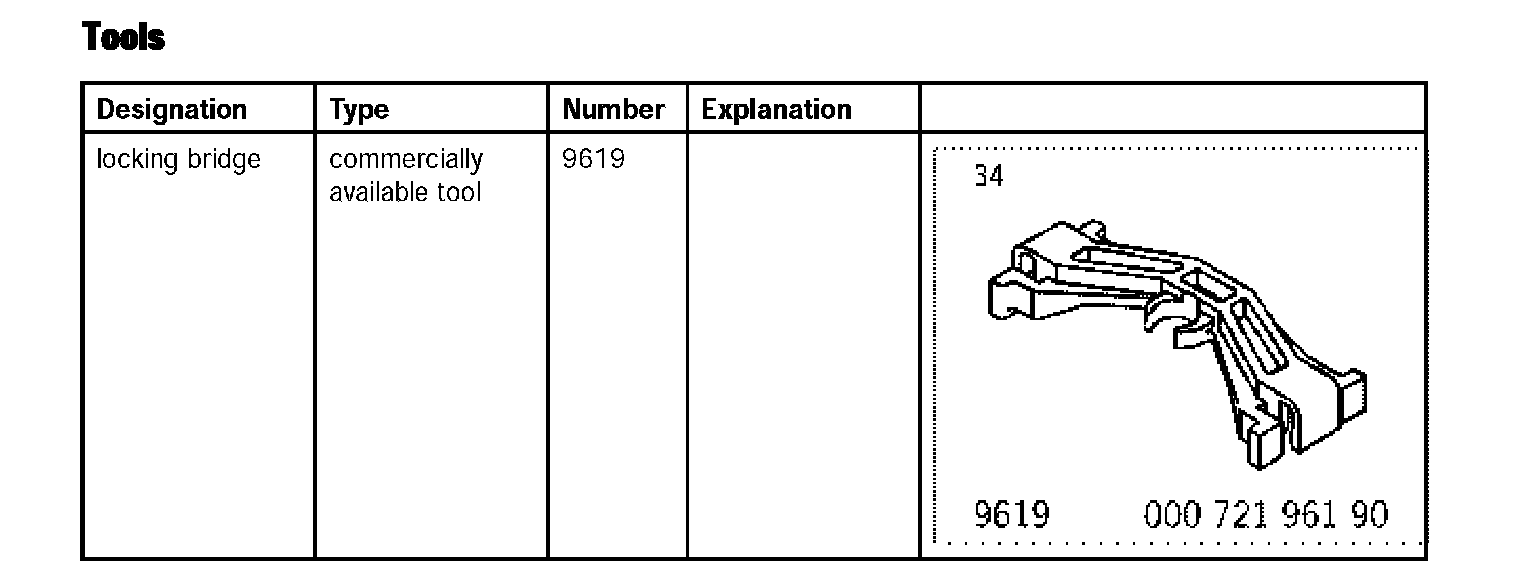

340819 Removing and installing top section of gearshift bracketTools
Preliminary work for top section of gearshift bracket
1. Remove shift lever knob.
Removing top section of gearshift bracket
1. Remove centre console trim panel.

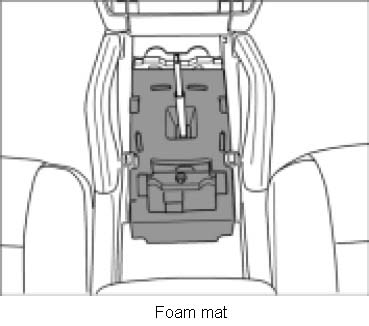

2. Remove foam mat.

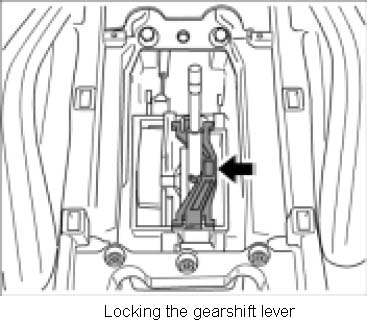

3. Lock gearshift lever in neutral position using special tool locking bridge 9619-arrow-.

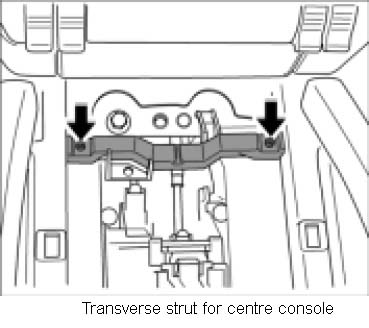

4. Remove transverse strut on centre console -arrows-.
ATTENTION: Plate on fastening part breaks off.
^ Unlocking causes plate to become overstretched.
^ Only bend fastening part as far as release.

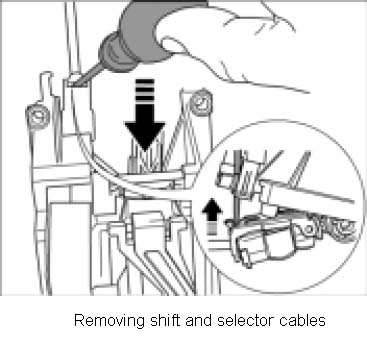

5. Pull shift and selector cable off gearshift bracket. To do this, release the fastening parts using a screwdriver -arrows-.
6. Remove special tool locking bridge 9619.

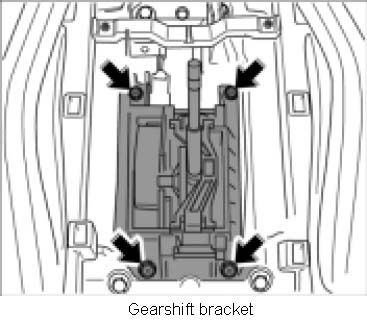

7. Unscrew fastening screws -arrows- on top section of gearshift bracket.
8. Remove top section of gearshift bracket.
Installing top section of gearshift bracket
Note:
^ Transmission must be in neutral position!

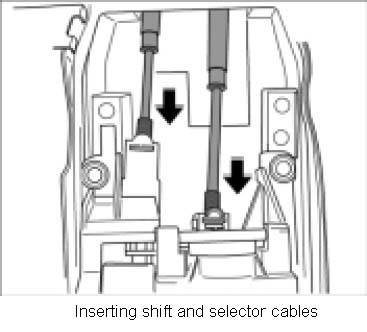

1. Install top section of gearshift bracket. Insert shift and selector cable into fastening part -arrows-.

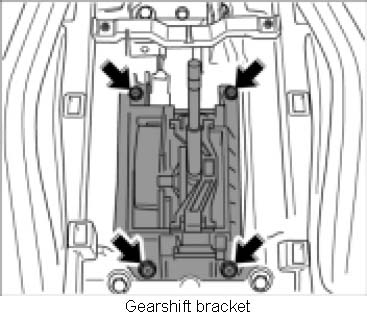

2. Screw in fastening screws -arrows- on top section of gearshift bracket. Tightening torque: 6.5 ftlb.

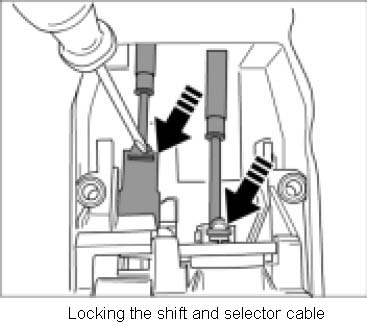

3. Lock shift and selector cable by pressing on the fastening parts -arrows-.
4. Function test for shift mechanism:
^ Position of gearshift lever?
^ Possible to shift through all gears, including reverse gear?
5. Install the transverse strut of the centre console -arrows-.

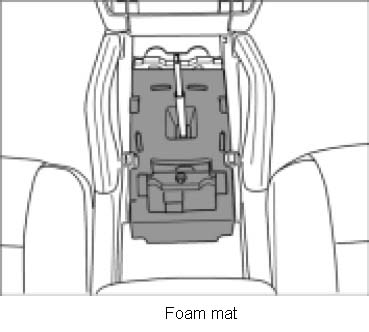

6. Insert foam mat.
7. Insert centre console trim panel.
Subsequent work for top section of gearshift bracket
Touching up top section of gearshift bracket
1. Install shift lever knob.
