Removing and Installing Sealing Ring For Front Transfer Box Output
Removing and installing sealing ring for front transfer box output

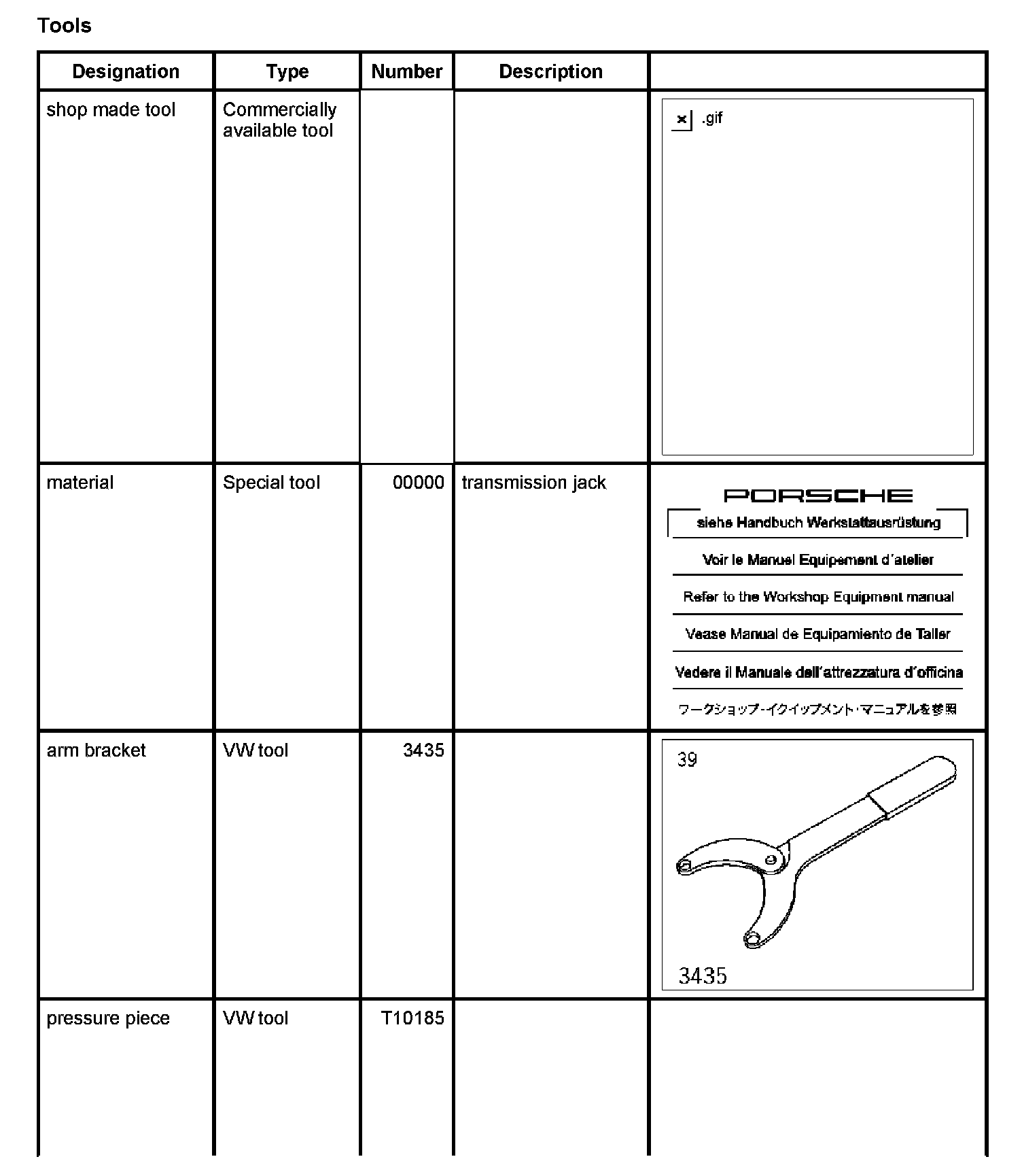

Preliminary work for transfer box sealing ring
1. Remove front cardan shaft.
2. Support transfer box with transmission jack.
3. Support transmission with material 00000 and secure with retaining band.

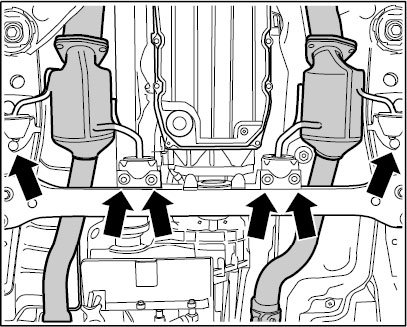

4. Unscrew four exhaust system screws on the cross member -center arrow- and unscrew screw connection holder on body -right arrow-.
Exhaust system at cross member

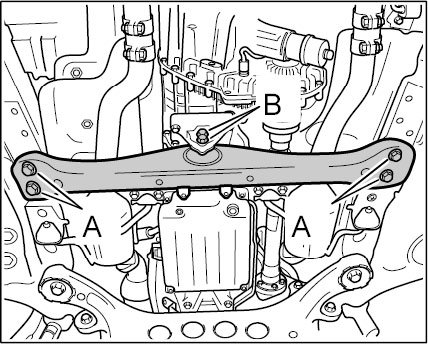

5. Unscrew transmission cross member on body -A-.
Transmission cross member
6. Unscrew two screws on the cross member -B- on the transfer box holder and remove transmission cross member.
Removing sealing ring for front transfer box output

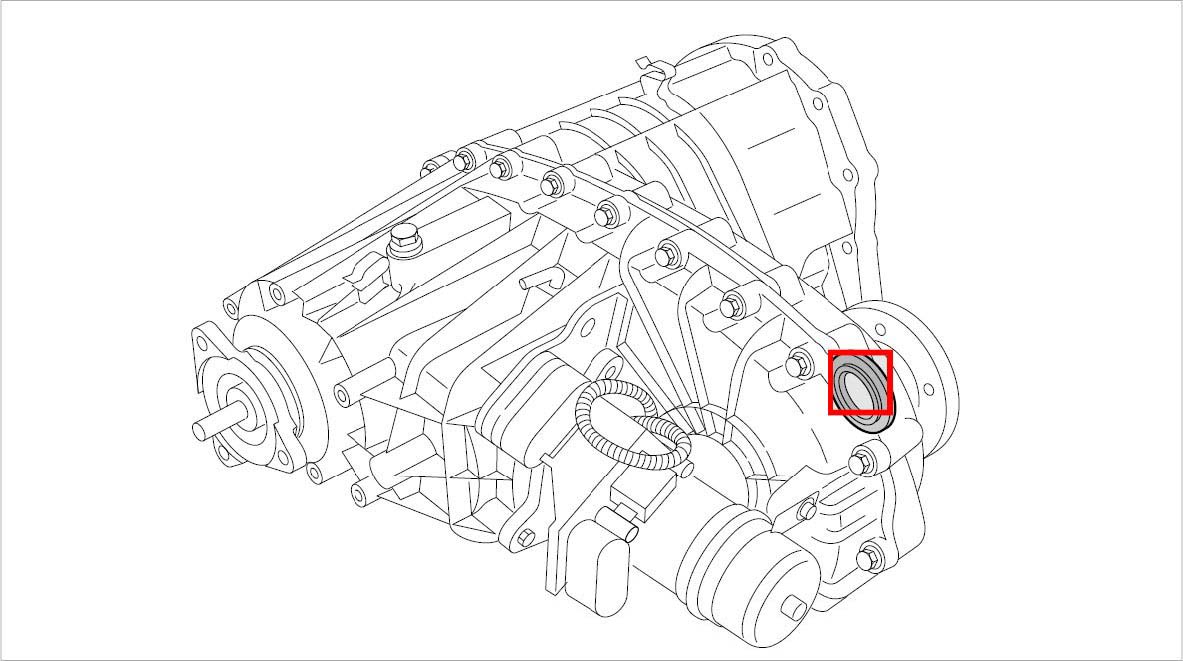

Overview of sealing ring for front transfer box output

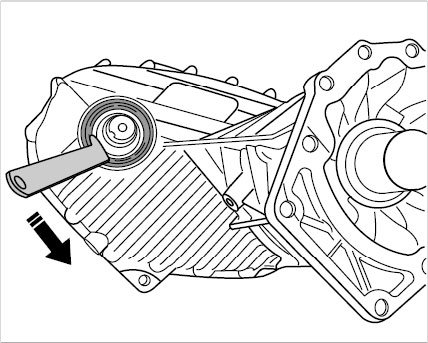

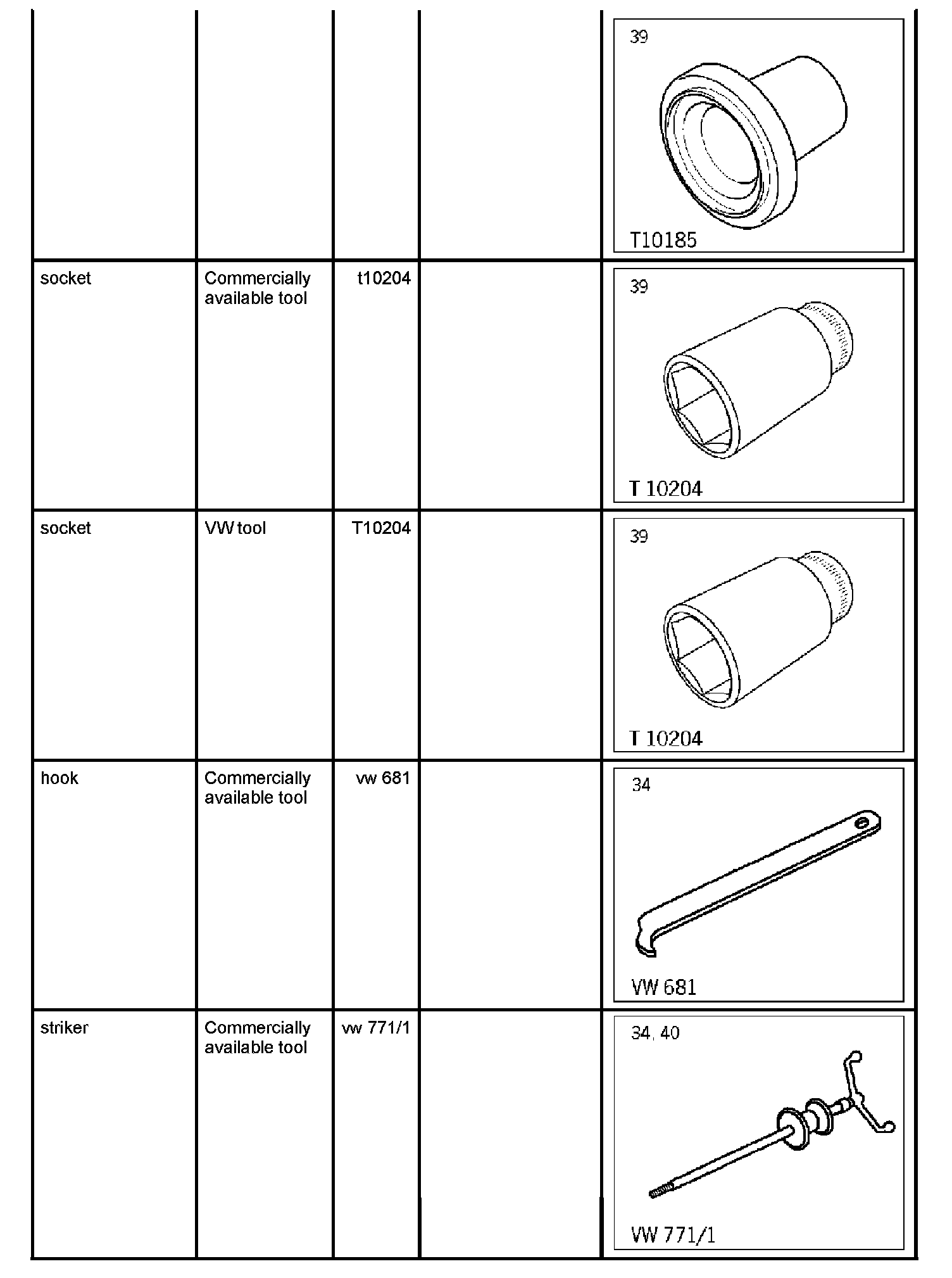

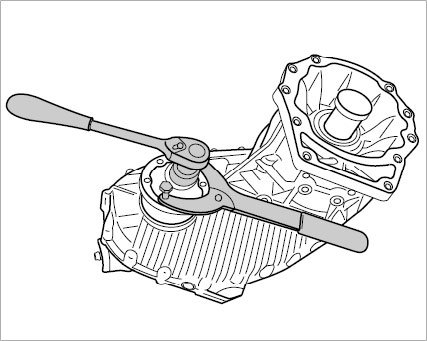

1. Unscrew collar nut of output flange with special tool socket t10204. To do this, block flange with special tool arm bracket 3435.
Countering flange

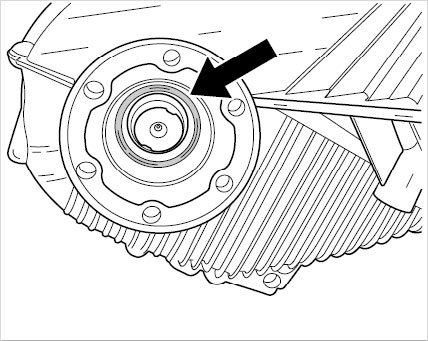

2. Remove round seal on output flange.
Round seal on output flange

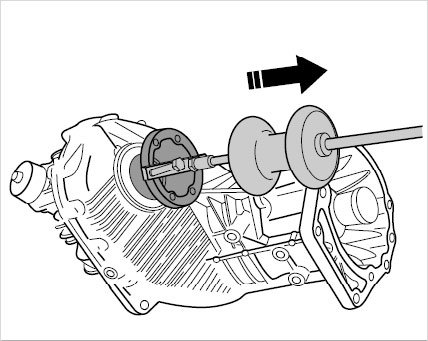

3. Remove output flange with shop made tool and striker vw 771/1.
Removing output flange
4. Remove sealing ring with special tool hook vw 681.
Removing sealing ring
Installing sealing ring for front transfer box output
Overview of sealing ring for front transfer box output
Information:
- Ensure that the round seal is inserted.
Round seal on output flange
- Replace nut on output flange.
- Fit nut using screw-locking compound, e.g. Loctite 648.

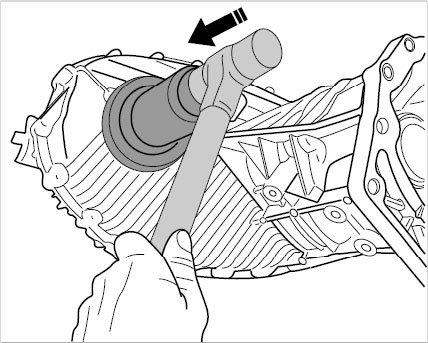

1. Drive in new sealing ring with special tool pressure piece T10185 until the special tool touches the transmission housing.
Driving in the sealing ring
2. Install output flange and, if necessary, drive in with a plastic hammer.
Information:
- Ensure that the round seal is inserted.
Round seal on output flange
- Replace nut on output flange.
- Fit nut using screw-locking compound, e.g. Loctite 648.

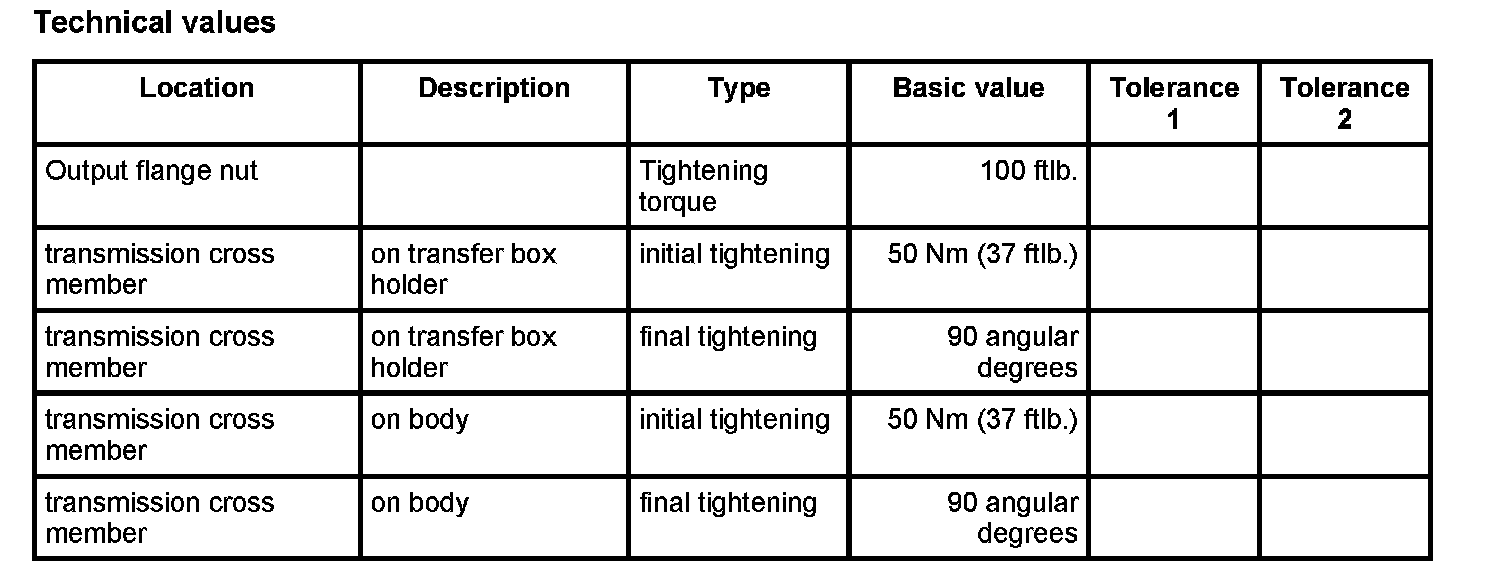

3. Screw in new nut on output flange using special tool socket T10204. To do this, counter the flange with special tool arm bracket 3435. - Tightening torque: 100 ftlb.
Tightening nut on output flange

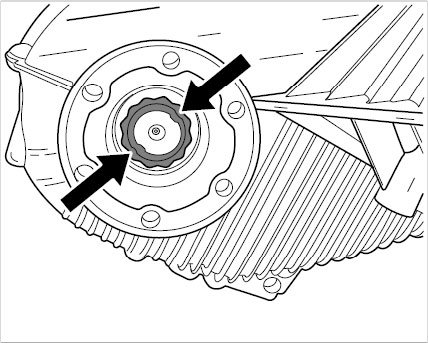

4. Caulk nuts at the recesses in the output shaft.
Caulking nuts
Subsequent work for transfer box sealing ring
1. Install front cardan shaft.
2. Screw in new transmission cross member screws -B- on transfer box holder. - initial tightening: 50 Nm (37 ftlb.) - final tightening: 90 angular degrees
Transmission cross member
3. Screw in new cross member screws on body -A-. - initial tightening: 50 Nm (37 ftlb.) - final tightening: 90 angular degrees
4. Fix exhaust system to transmission cross member -center arrow- and body -outer arrow-. Observe tightening torques for exhaust system.
Exhaust system to cross member
5. Check oil for transfer box.
