Removing and Installing Sealing Ring For Rear Transfer Box (Output Flange)

Removing and installing sealing ring for rear transfer box (output flange)











Preliminary work for sealing ring for transfer box

1. Remove rear cardan shaft.

Removing sealing ring for rear transfer box (output flange)

1. Remove nut of output flange with special tool socket T10204. To do this, secure with special tool arm bracket 3435.

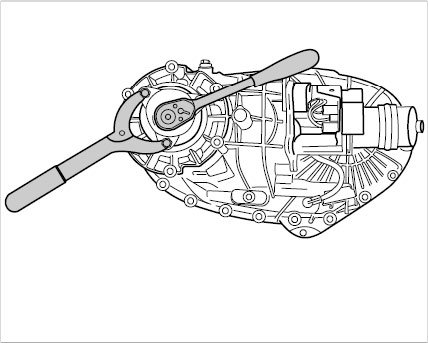

Output flange nut

2. Remove round seal on output flange.

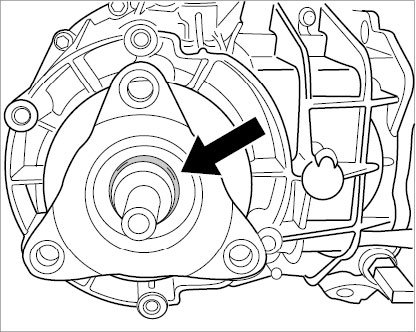

Rubber ring for rear output drive

3. Remove flange with shop made tool and striker vw 771/1.

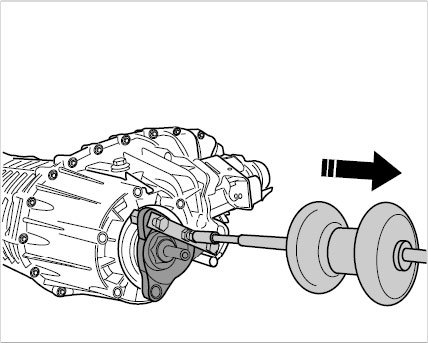

Removing output flange

Caution:
Leakage due to scores on the sealing face.

- When removing the sealing ring, place the tip of the hook on the sealing ring only and not on the sealing face.

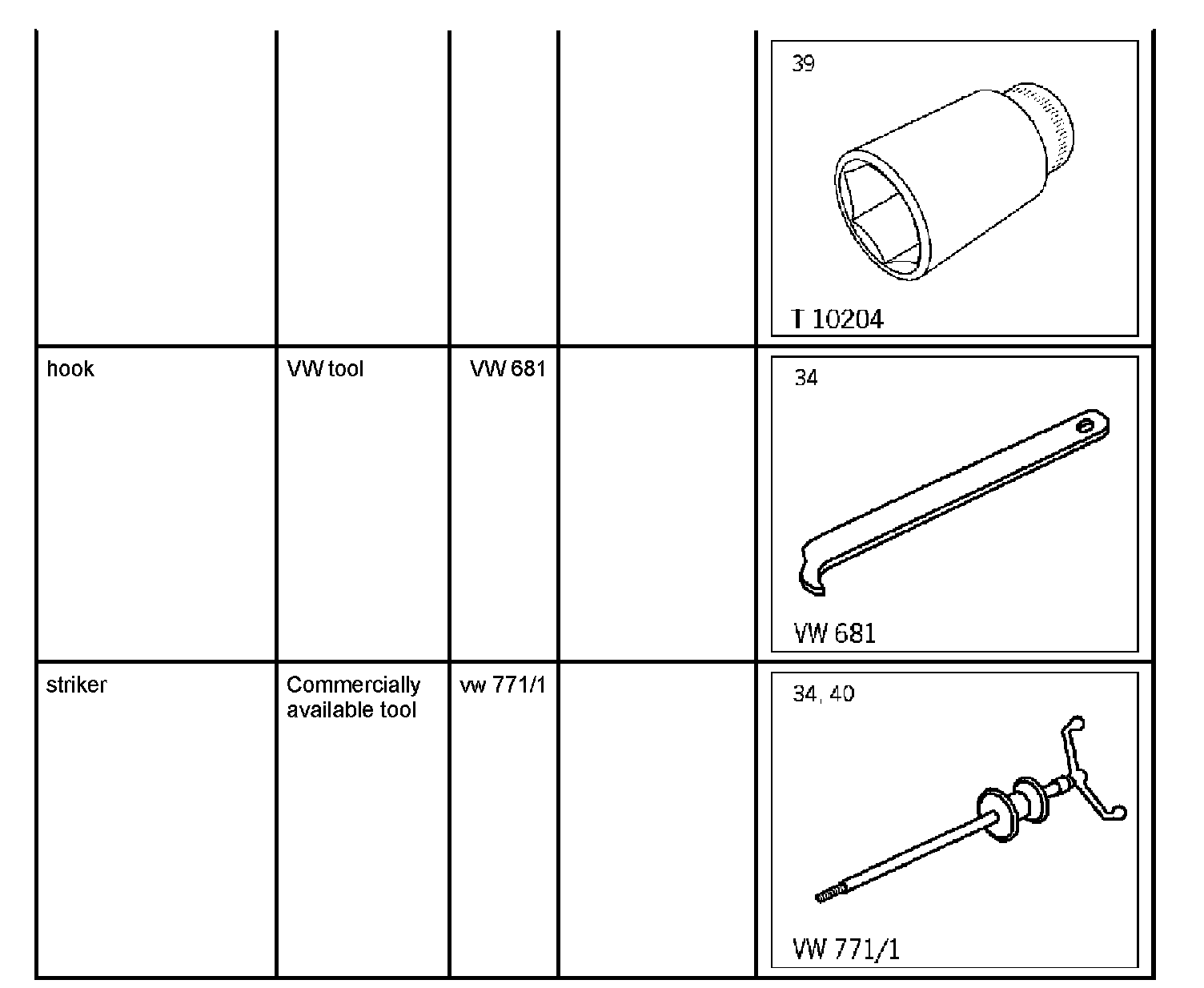

4. Remove sealing ring with special tool hook VW 681.





Removing sealing ring for rear output drive

Installing sealing ring for rear transfer box (output flange)

1. Drive in new sealing ring with special tool pressure piece T10185 until the special tool touches the transmission housing.





Driving in the sealing ring

2. Install output flange and, if necessary, drive in with a plastic hammer.

Information:
- Ensure that the round seal is inserted.





Rubber ring for rear output drive

- Replace nut on output flange.

- Fit nut using screw locking device.

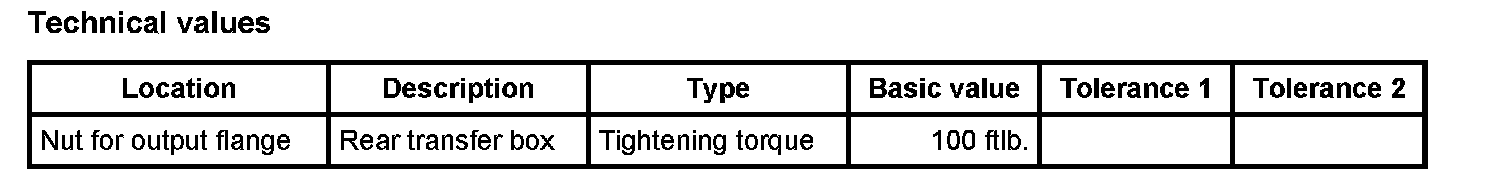

3. Screw in output flange nut using special tool socket T10204. To do this, counter the flange with special tool arm bracket 3435. - Tightening torque: 100 ftlb.





Output flange nut

4. Caulk nuts at the recesses in the output shaft.

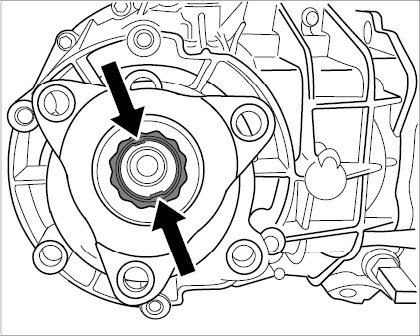

Caulking nuts

Subsequent work for sealing ring for transfer box

1. Install cardan shaft.
