Removing and Installing Sealing Ring For Transfer Box Input Shaft

Removing and installing sealing ring for transfer box input shaft

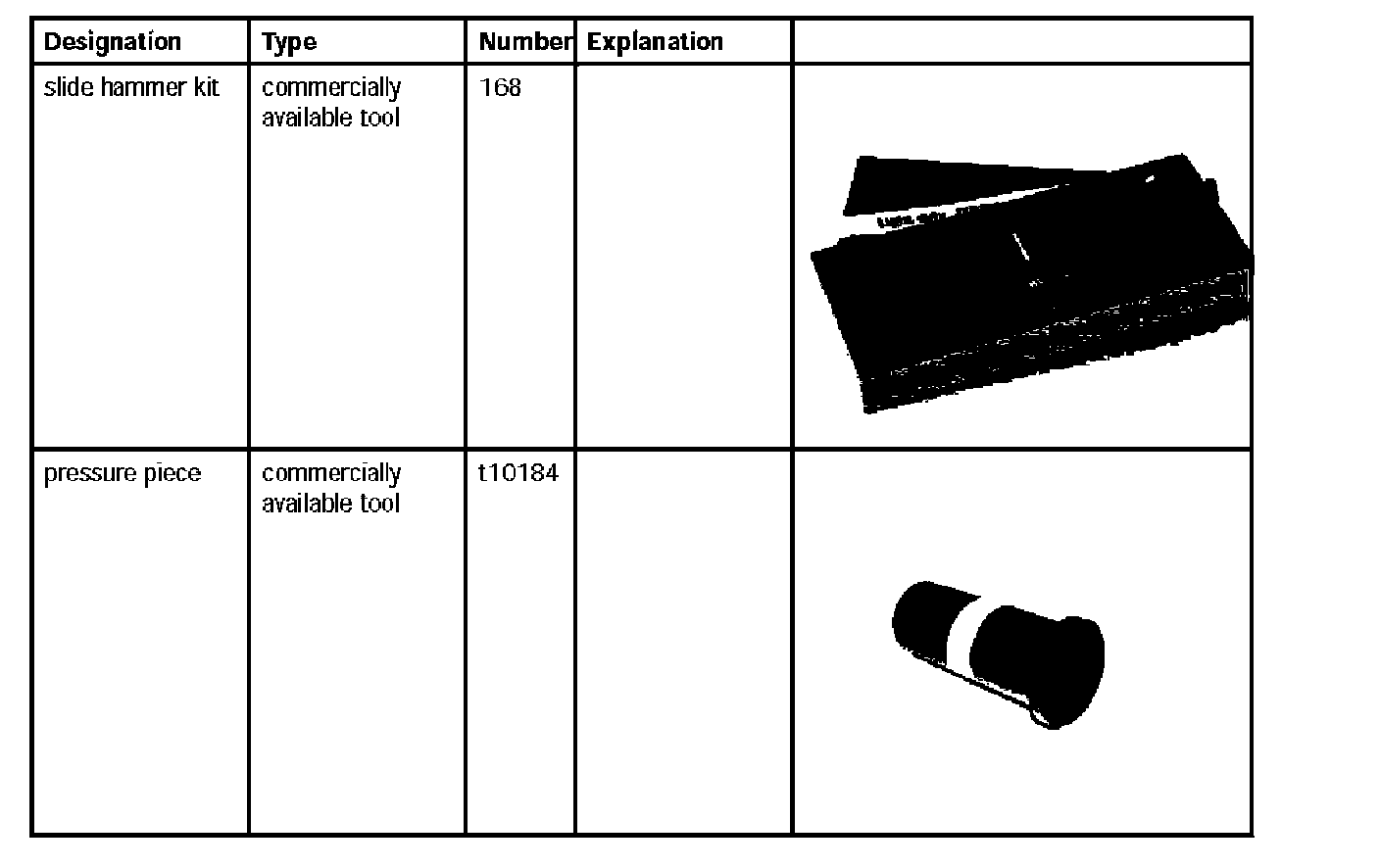

Tools





Preliminary work sealing ring for input shaft transfer box

1. Remove transfer box.


Removing sealing ring for transfer box input shaft





ATTENTION: Damage to input shaft bearing.
-> Drive beveled attachment in by approximately 2 mm.
-> Screw sheet metal screw max. two turns into the sealing ring.

1. Using the beveled attachment from the slide hammer kit 168, make a small hole -figure- in the sealing ring.

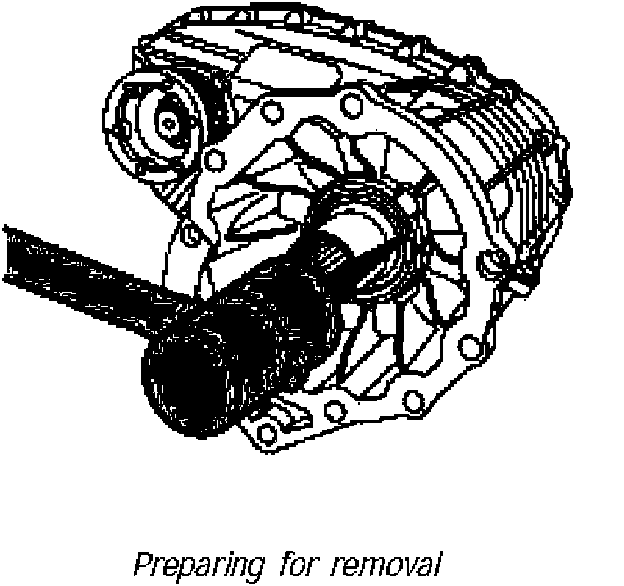

Preparing for removal





2. Screw a suitable sheet metal screw in by two turns.

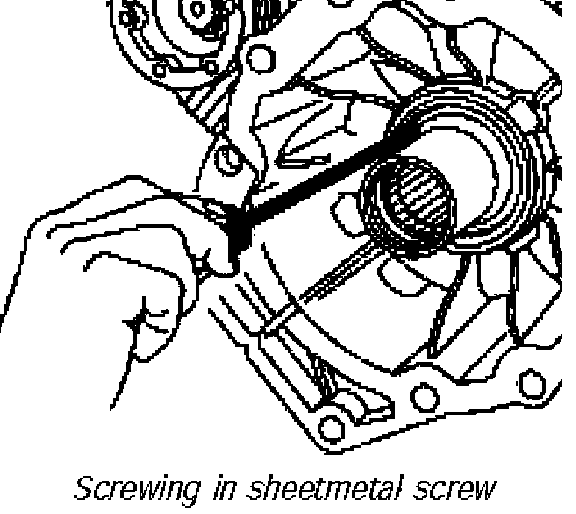

Screwing in sheet metal screw





3. Remove sealing ring using special tool slide hammer kit 168.

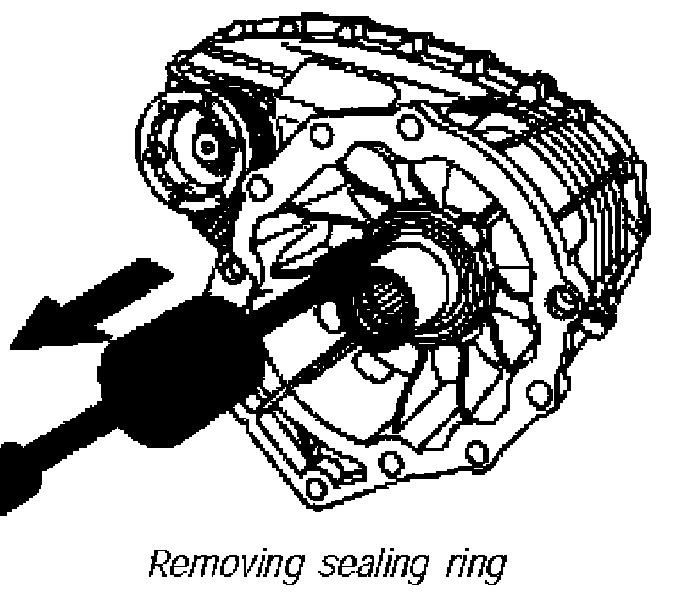

Removing sealing ring

Installing sealing ring for transfer box input shaft






1. Fill the space between the dust and sealing lips on the new sealing ring with grease.

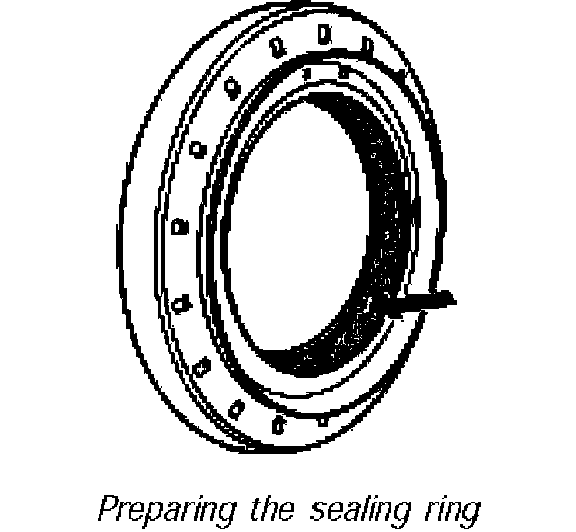

Preparing the sealing ring

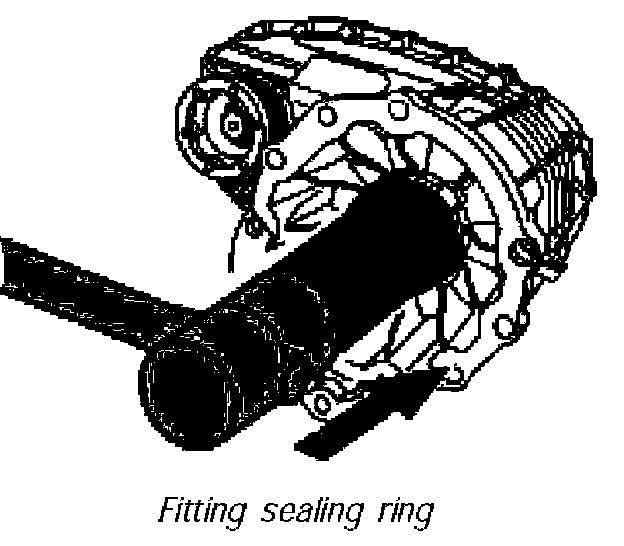

2. Drive new sealing ring in flush using special tool pressure piece t10184. Fitting sealing ring

Subsequent work
Reworking sealing ring for transfer box
1. Install transfer box.
2. Check oil for transfer box.
