Removing and Installing Sealing Ring For Transfer Gear Input Shaft

Removing and installing sealing ring for transfer gear input shaft





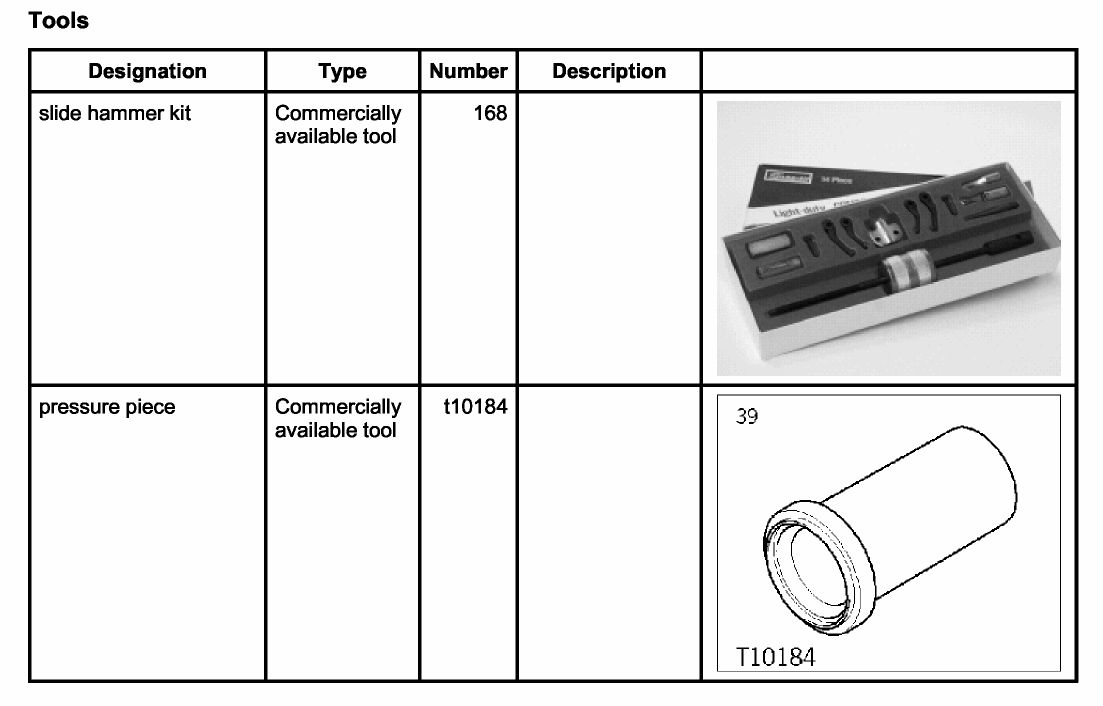

Preliminary work for sealing ring for transfer gear input shaft

1. Remove transfer box.

Removing sealing ring for transfer gear input shaft

Caution:
Incorrect removal of sealing ring
- Risk of damage to input shaft bearings

- Drive bevelled attachment in by approx. 2 mm.

- Screw sheetmetal screw max. two turns into the sealing ring.

1. Using the bevelled attachment from the slide hammer kit 168, make a small hole in the sealing ring.





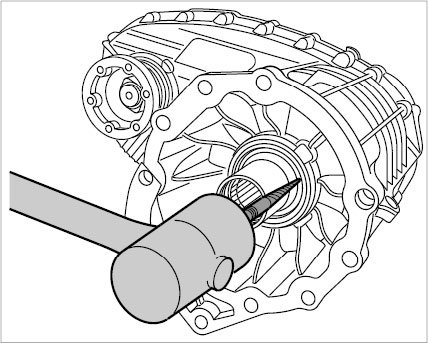

Preparing for removal

2. Screw a suitable sheetmetal screw in by two turns.





Screwing in sheetmetal screw

3. Remove sealing ring using special tool slide hammer kit 168.

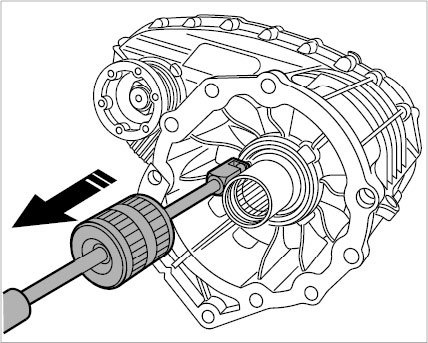

Removing sealing ring

Installing sealing ring for transfer gear input shaft

1. Fill the space between the dust and sealing lips on the new sealing ring with grease.

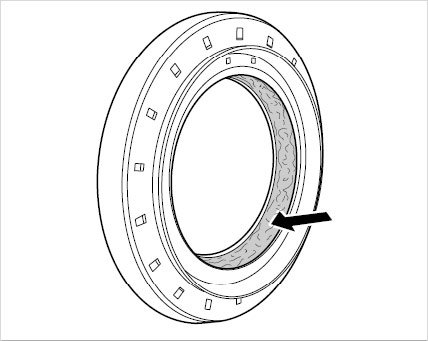

Preparing the sealing ring

2. Drive new sealing ring in flush using special tool pressure piece t10184.

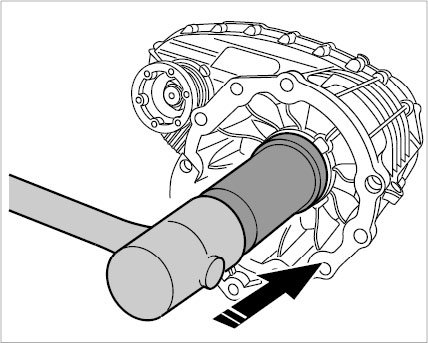

Fitting sealing ring

Subsequent work

Reworking sealing ring for transfer box

1. Install transfer box.
2. Check oil for transfer box.
