Headlamp Washer Hose: Service and Repair

Removing And Installing Hose For Headlight Washing System







Removing Hose For Headlight Washing System

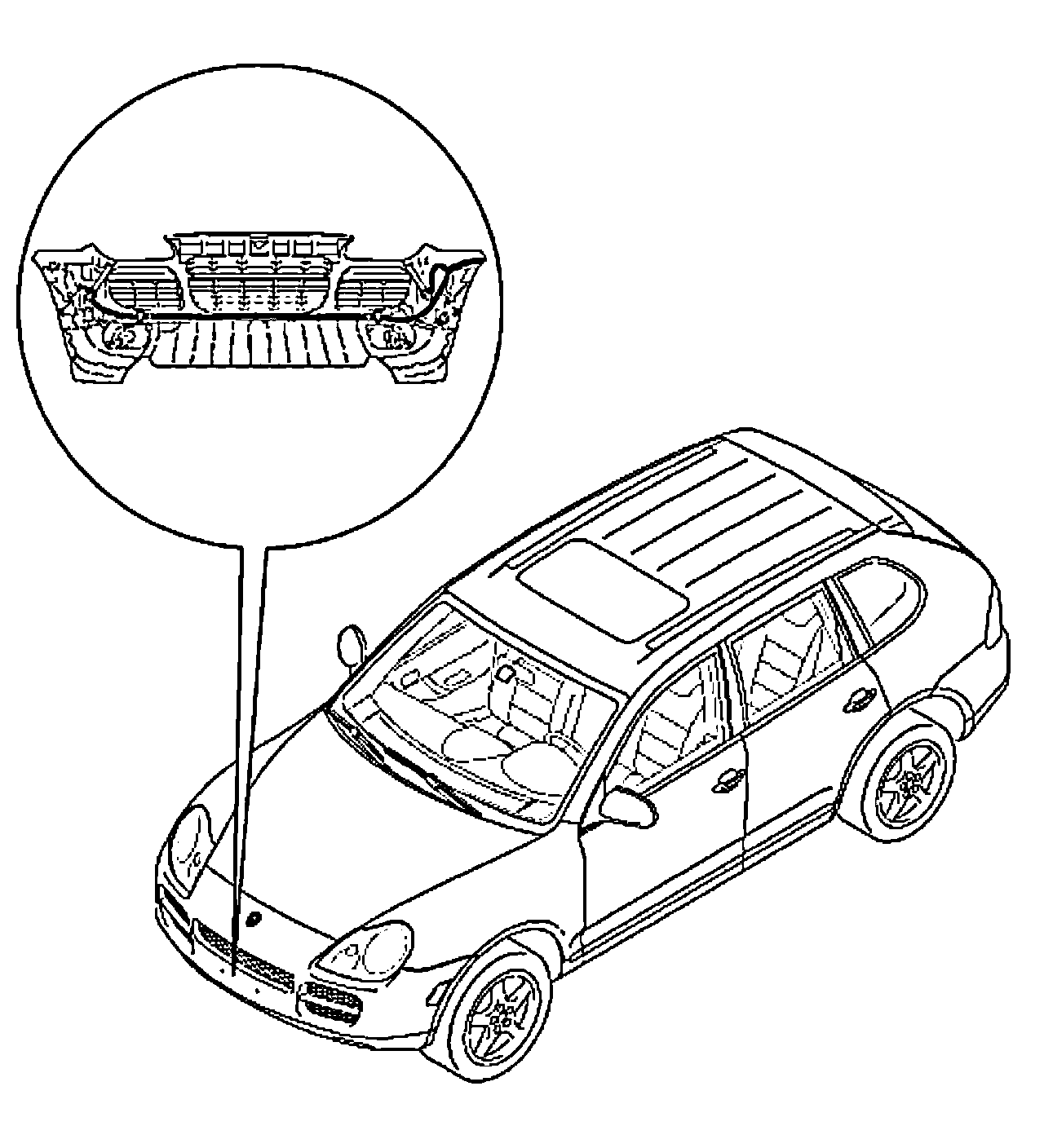

1. Remove front bumper

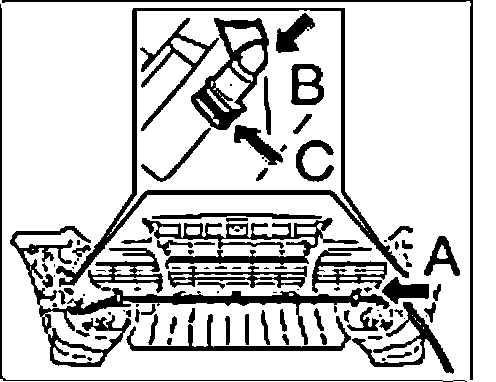

2. Unclip the high-pressure hose "arrow A".
3. Take out the retaining clip "arrow B" and pull off the hose on both spray jets "arrow C".

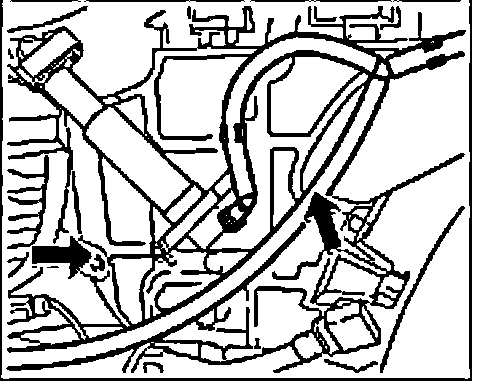

4. Cut through the tie-wrap "A" and take out the hose on the right side "arrow B".

Installing Hose For Headlight Washing System

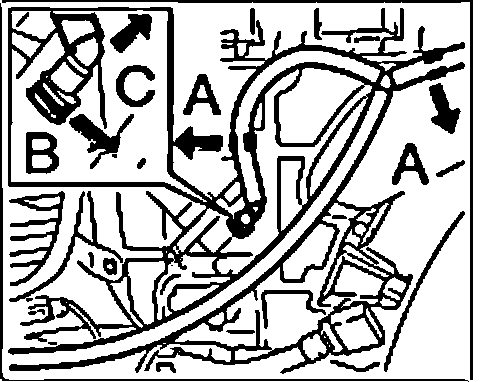

1. Slide in hose on the right side "arrow A" and position it along the electrical wiring harness.
2. Connect the hose to the spray jets "arrow B" and attach the retaining clip "arrow C" until it clicks audibly.







3. Tighten the hose with tie-wrap "arrow A" to the electrical wiring harness.

NOTE: Before tightening using a tie-wrap, make sure that the hose doesn't chafe against the locking tabs of the parking aid "B".







4. Press hose in until it clicks into place in the clips "arrows".
5. Install front bumper.
