Headlamp Washer Pump: Service and Repair

Removing And Installing Pump For Headlight Washer System

Information

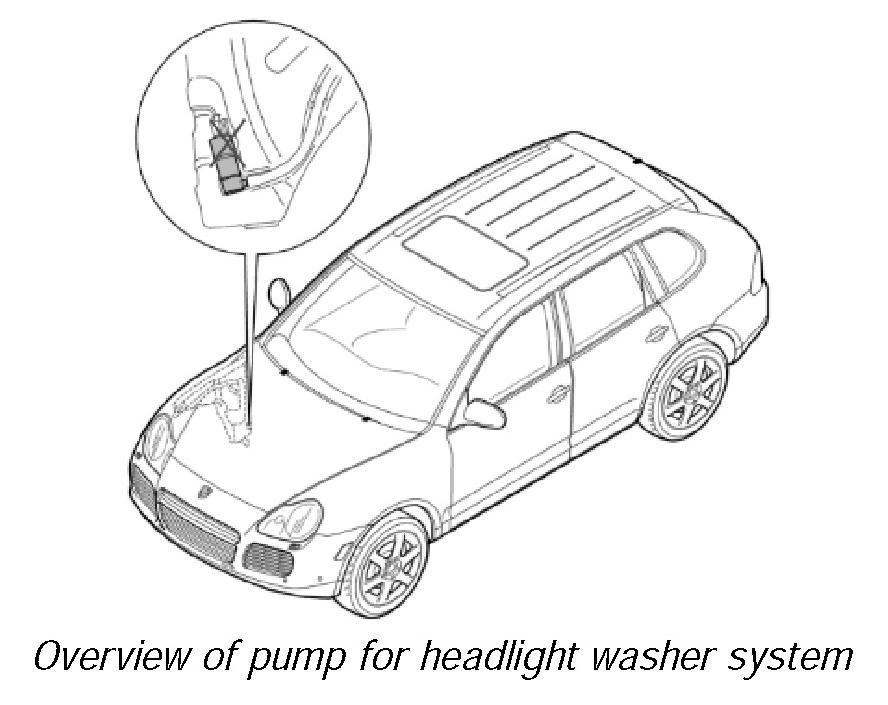

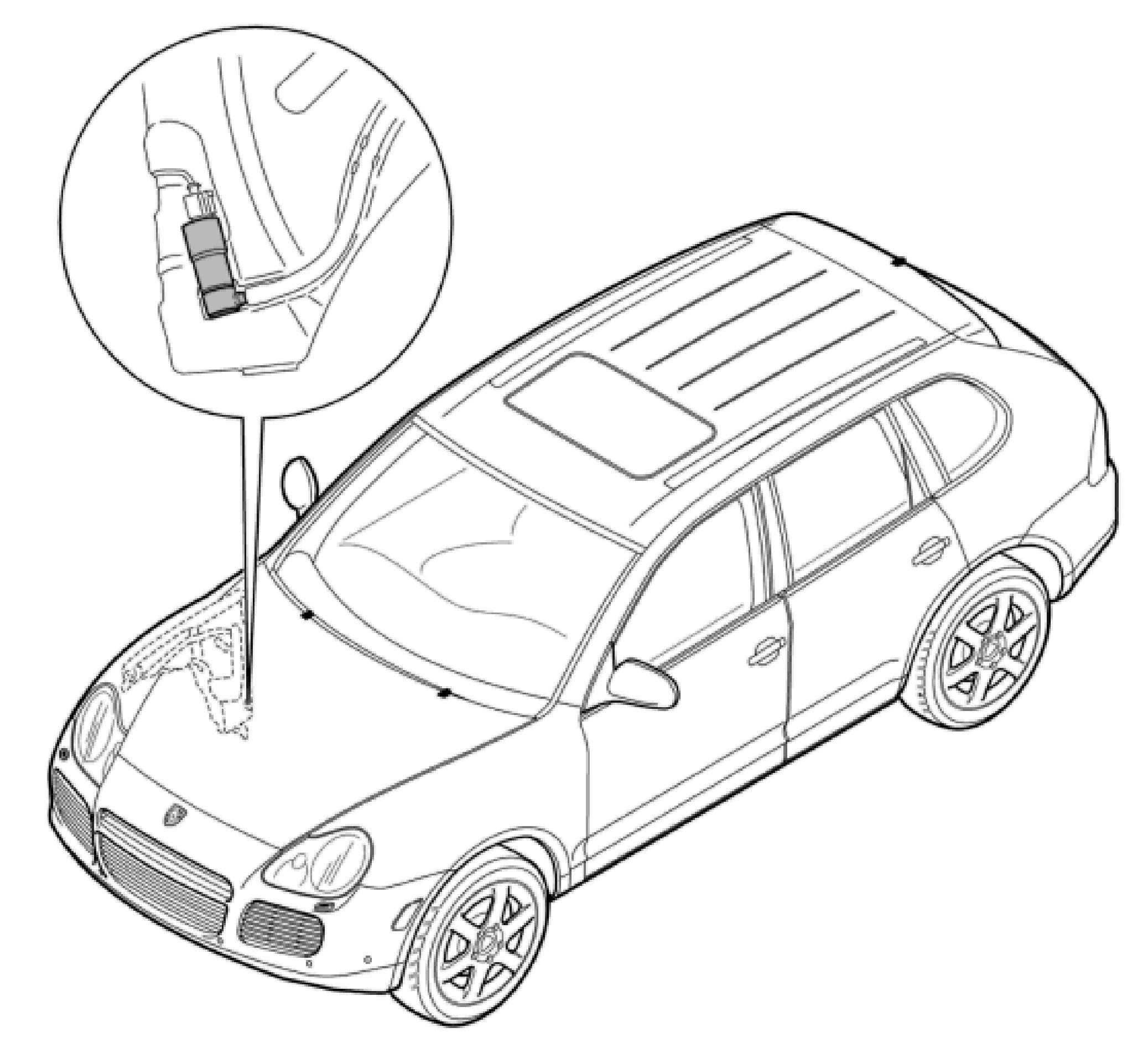

Overview







Preliminary work

Remove reservoir for windscreen washer system

Removing pump for headlight washer system

Removing pump for headlight washer

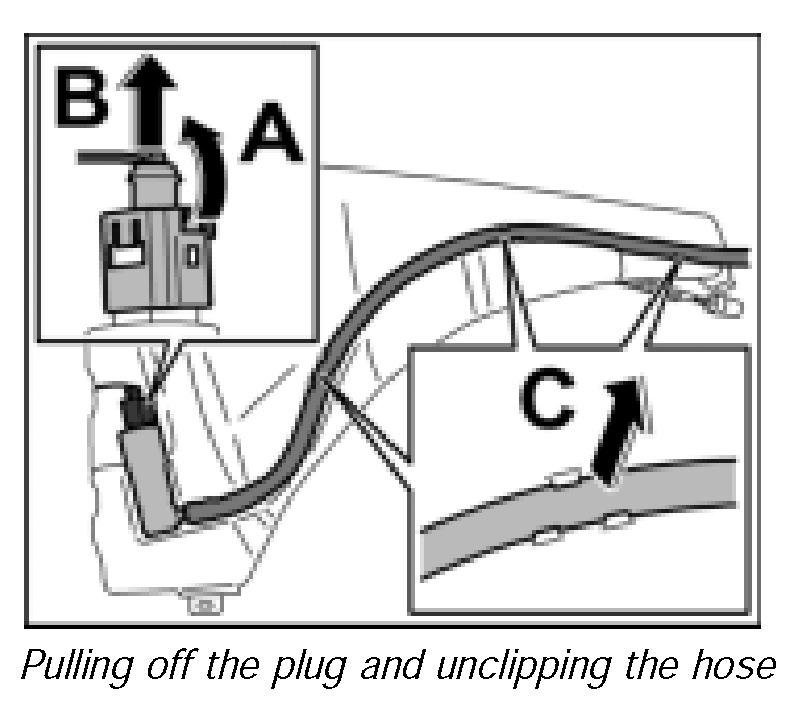

1. Release the plug -Arrow A- and pull off -Arrow B-.
2. Pull out high pressure hose from retaining tabs on tank -Arrow C-

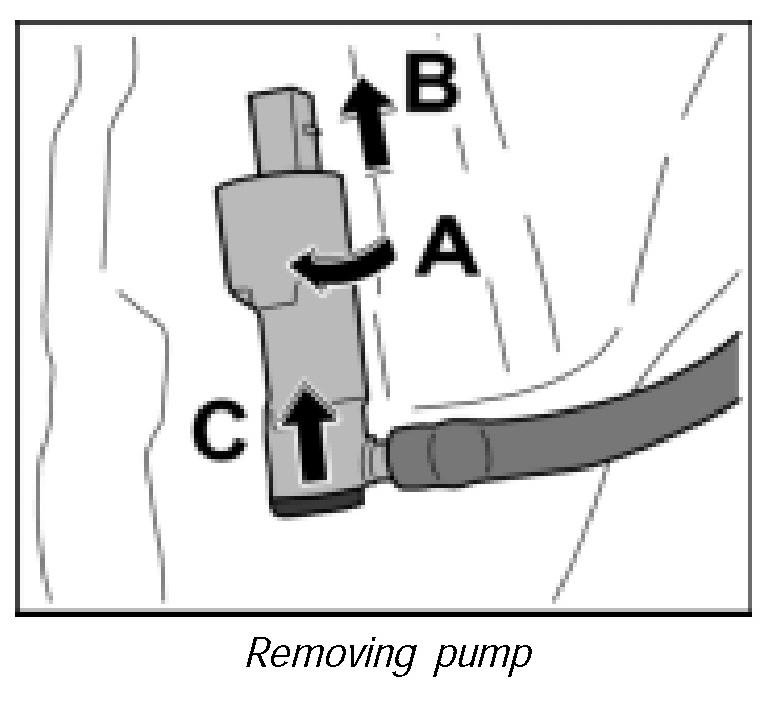

3. Rotate pump with high-pressure hose -Arrow A- and pull it out of tank -Arrow B-.
4. Take out the rubber gasket -C- from the tank.
5. Pull hose off the high-pressure pump.

Installing pump for headlight washer system

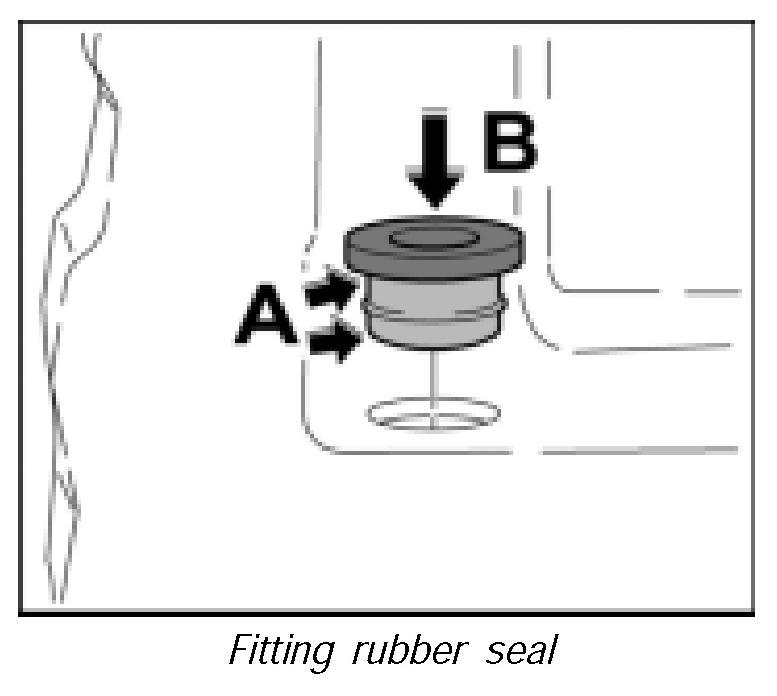

1. Apply a suitable rubber lubricant (tire mounting paste) to sealing surface -Arrows A- and press rubber seal into tank -Arrow B- until it is felt to engage.

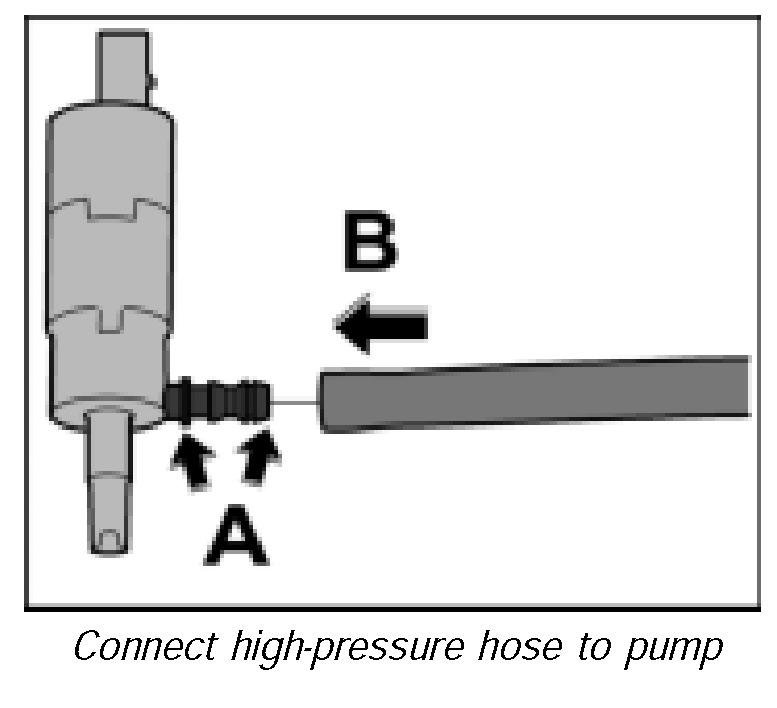

2. Apply a suitable rubber lubricant (tire mounting paste) to the sealing surface -Arrows A- and attach the high-pressure hose to the pump -Arrow B-.







3. Apply a suitable rubber lubricant (tire mounting paste) to the sealing surface -Arrows A-.

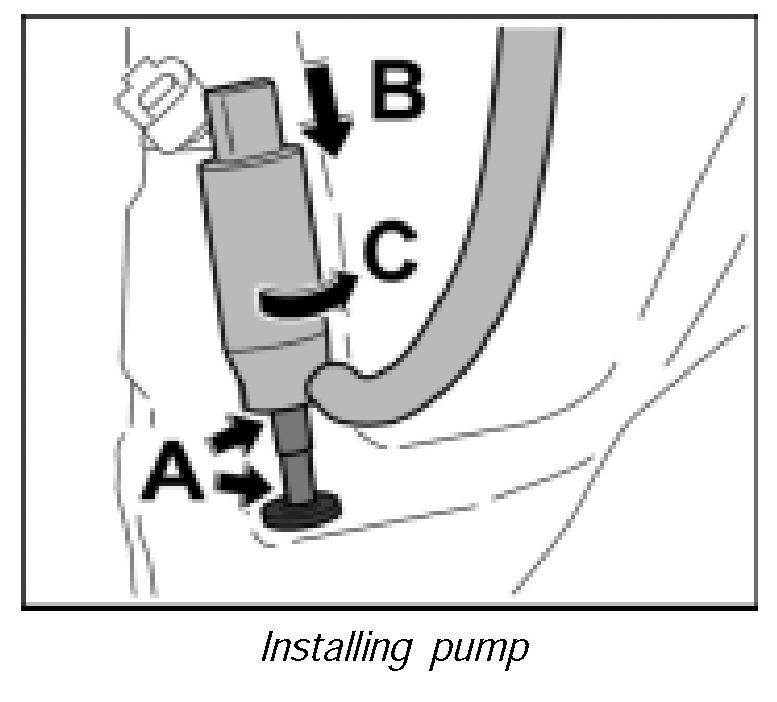

4. Press high-pressure pump completely into rubber gasket -Arrow B- and rotate to the limit position -Arrow C-.

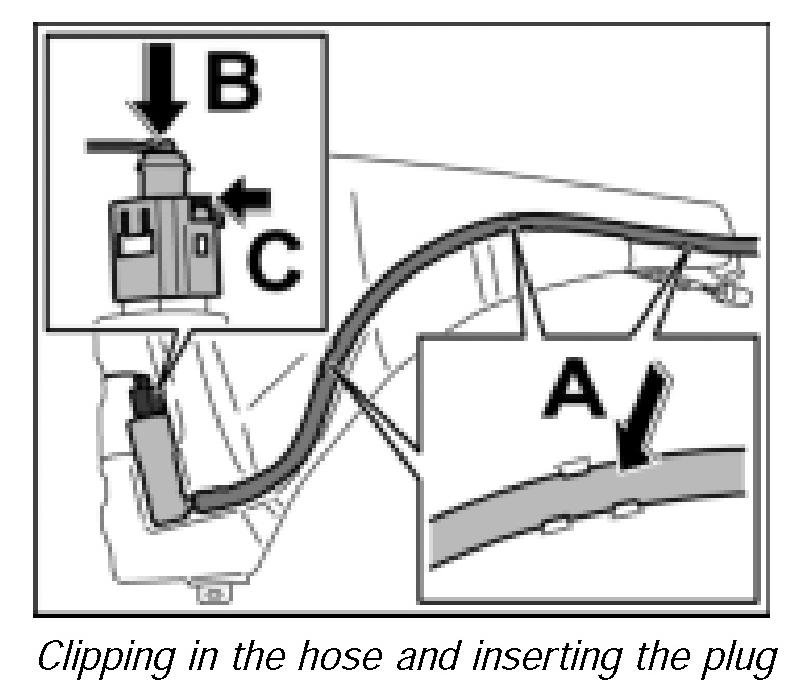

5. Press high-pressure hose into retaining tabs -Arrow A- until it is felt to engage in the tank.
6. Plug in the high-pressure pump connector -Arrow B- until the locking tab -C- is felt to engage.

Subsequent work

Install reservoir for windscreen washer system.
